LMKS30R

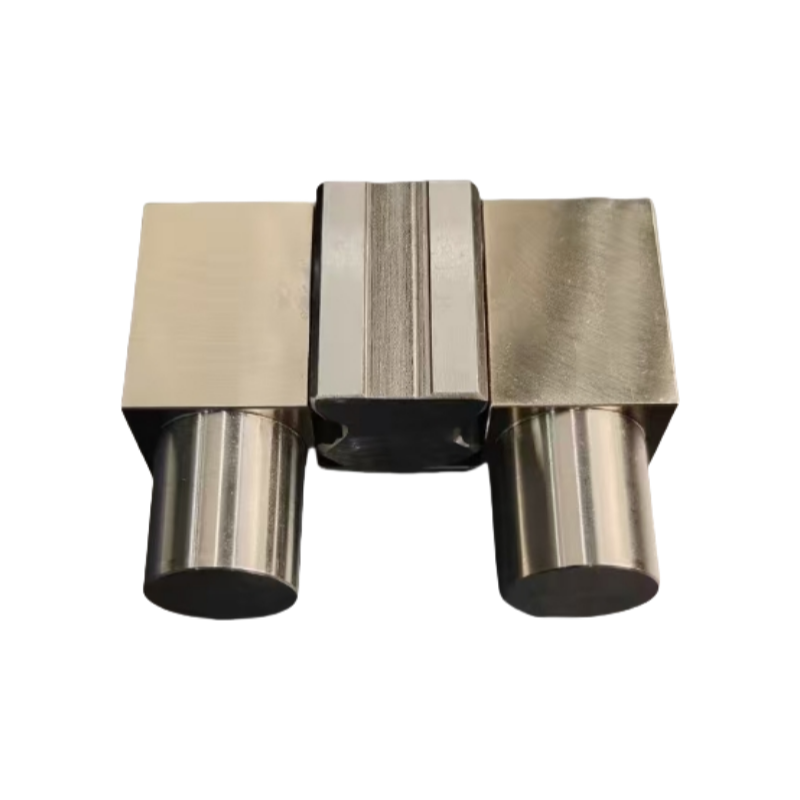

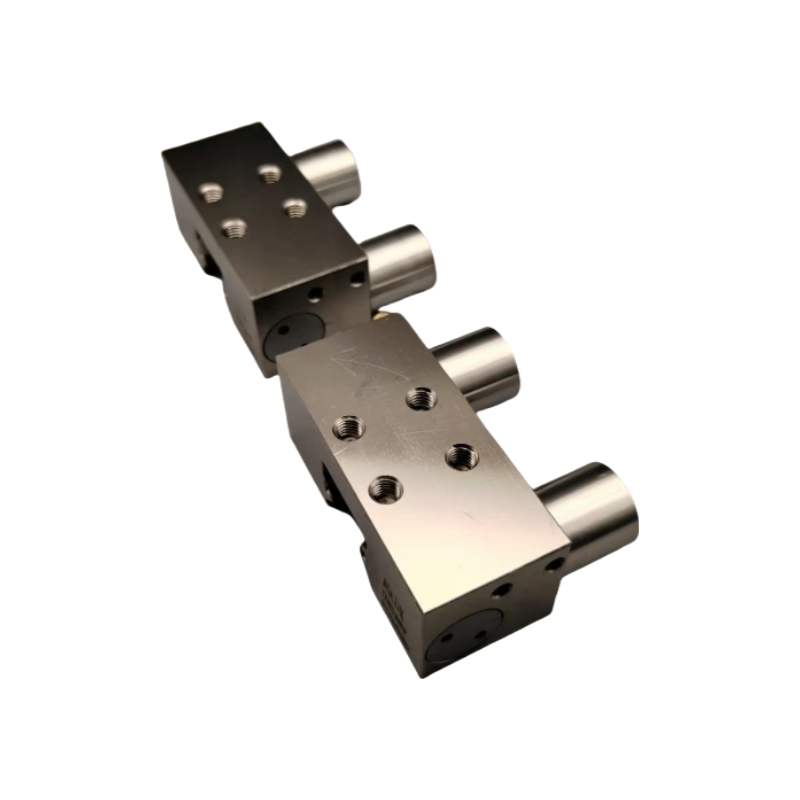

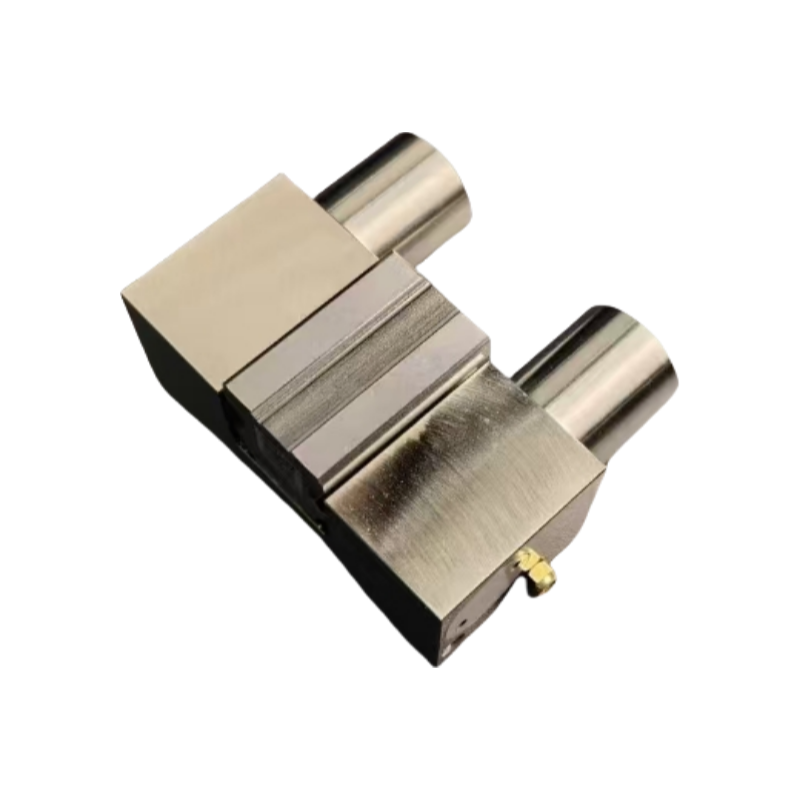

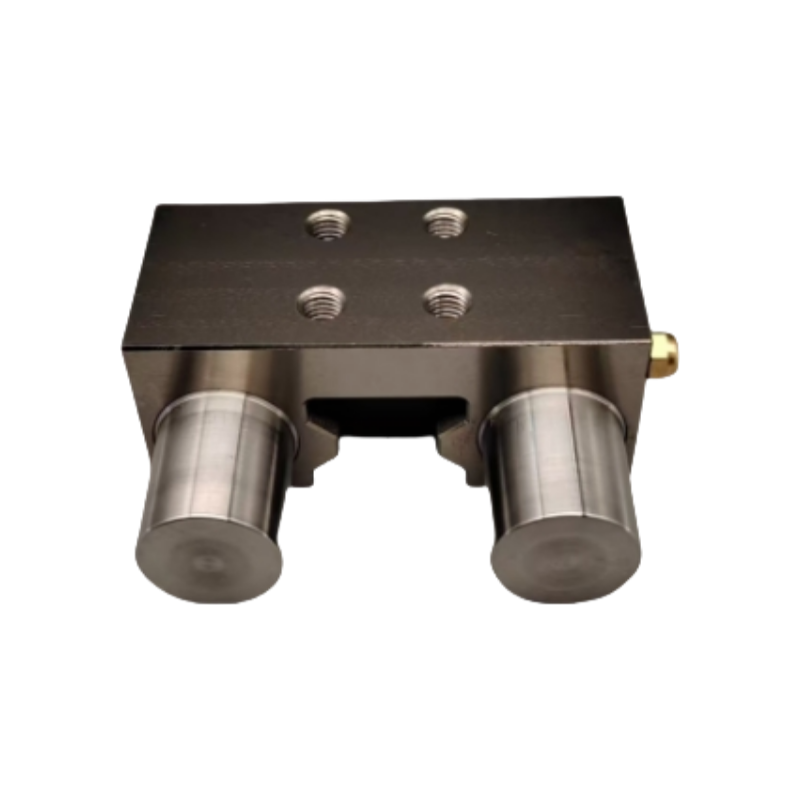

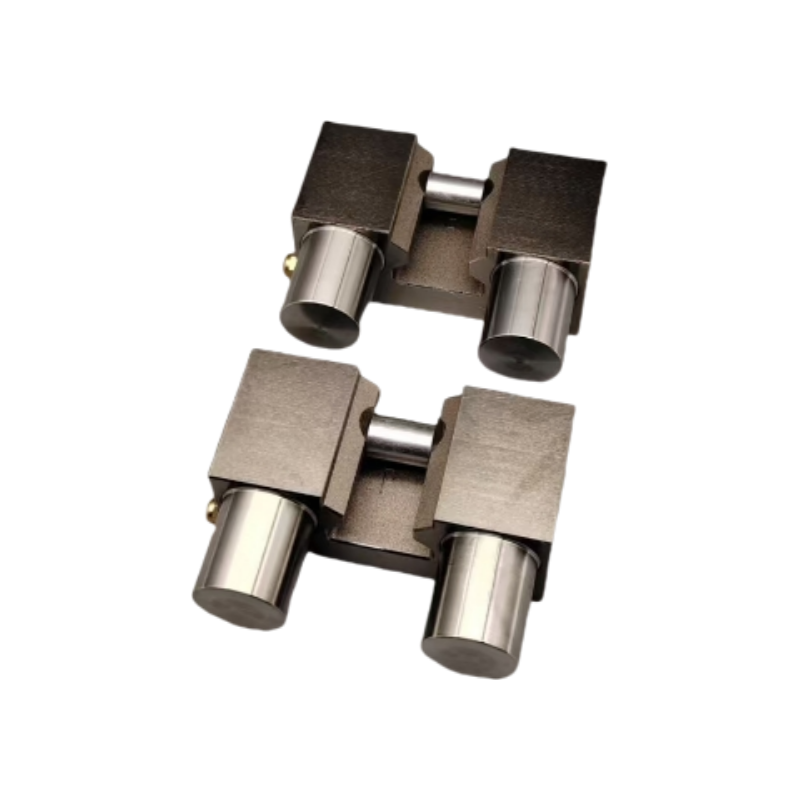

30mm Roller Guide Pneumatic Normally Close Clamps
This clamp element is used with 30mm roller linear guide. The clamping is realized by spring energy storage acting on the wedge block. The clamp is released by air pressure.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 30mm |
| Rated holding force(N) | 1050/2600N(Standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Roller Rail Pneumatic Normally Close Clamp Dimension
Contact our sales to get a quote!
