LMKS30B

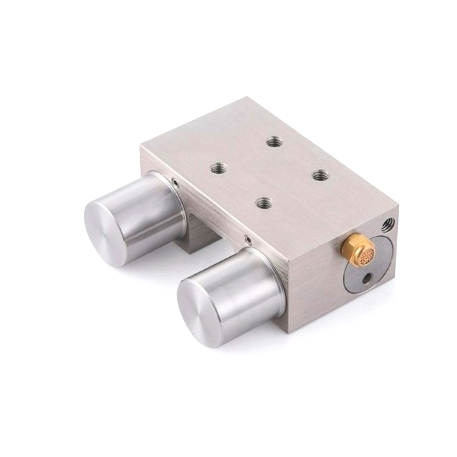

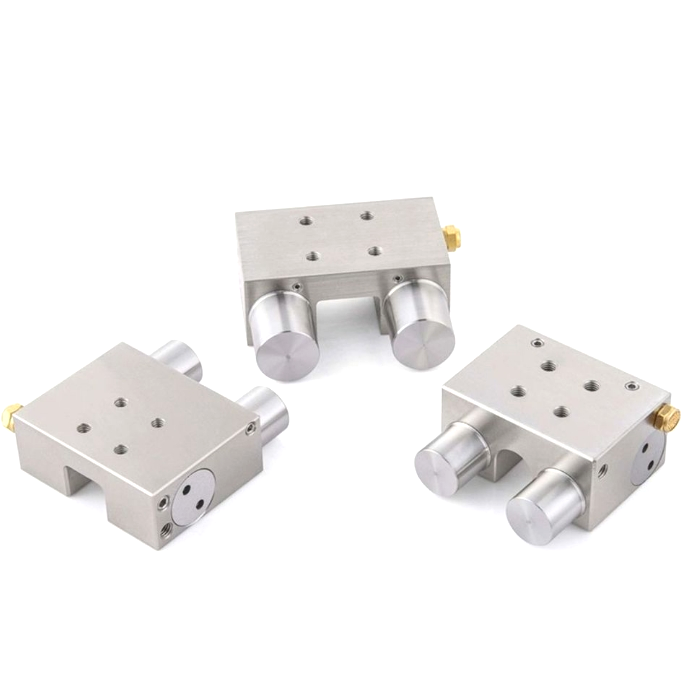

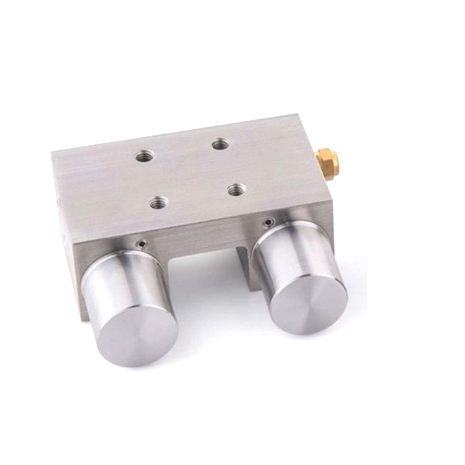

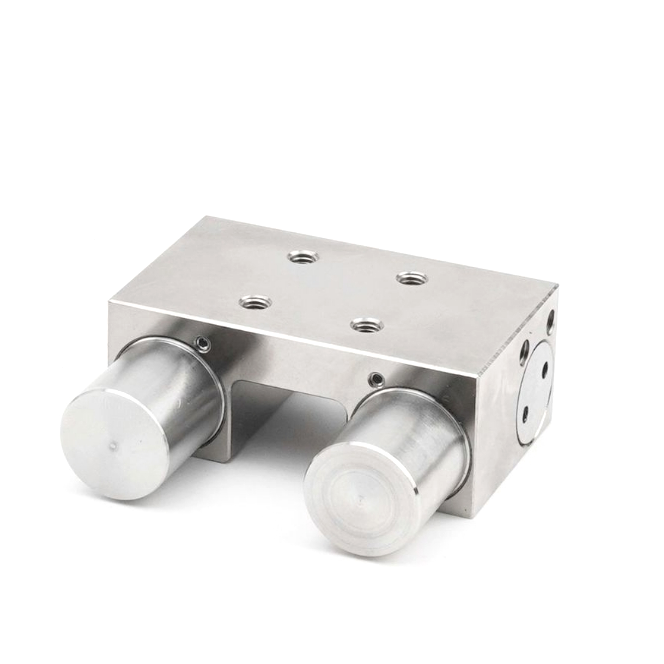

30mm THK HIWIN Linear Rail Pneumatic Clamping Braking Element
Our rail brakings are suitable for HIWIN and THK brand 30mm linear guides. The pneumatic clamp has the functions of fixing the slide, precise positioning, anti-vibration and improving rigidity.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 30mm |
| Rated holding force(N) | 1050/2600N(standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Pneumatic Braking Element Dimension
Contact our sales to get a quote!
