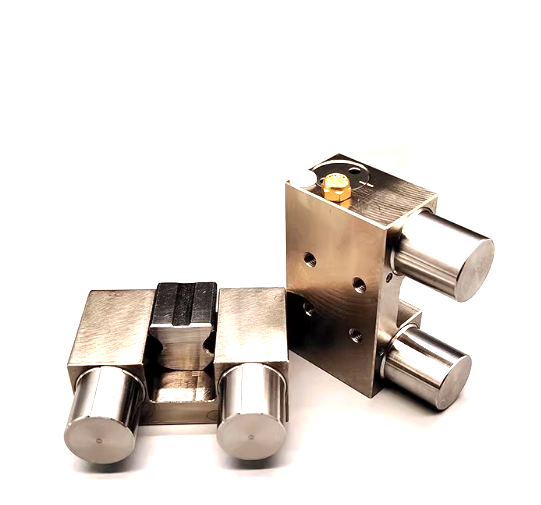

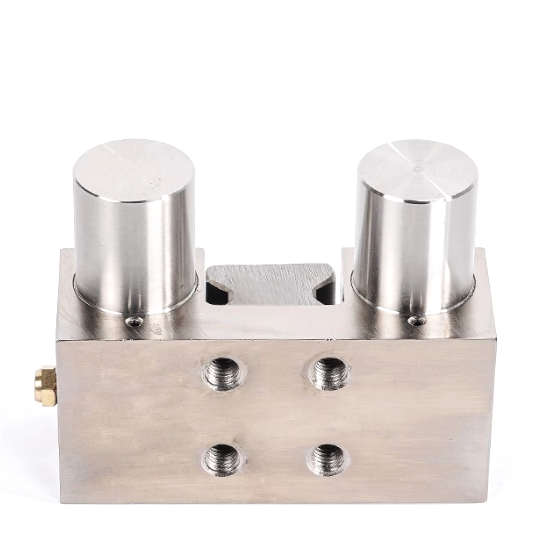

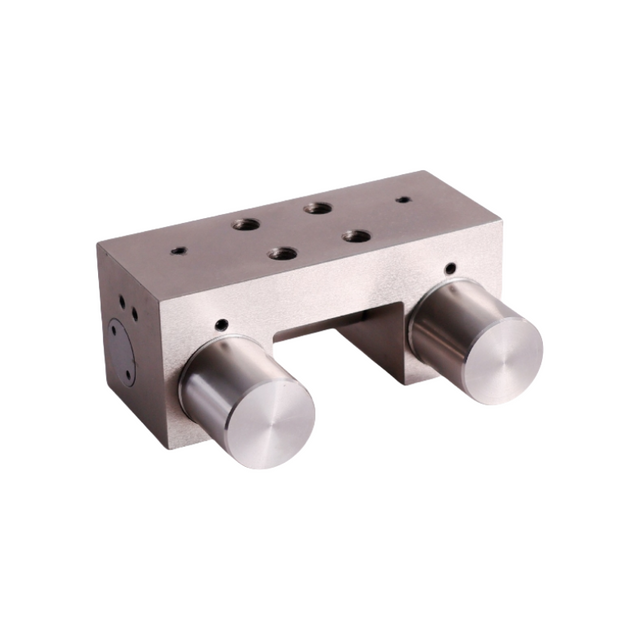

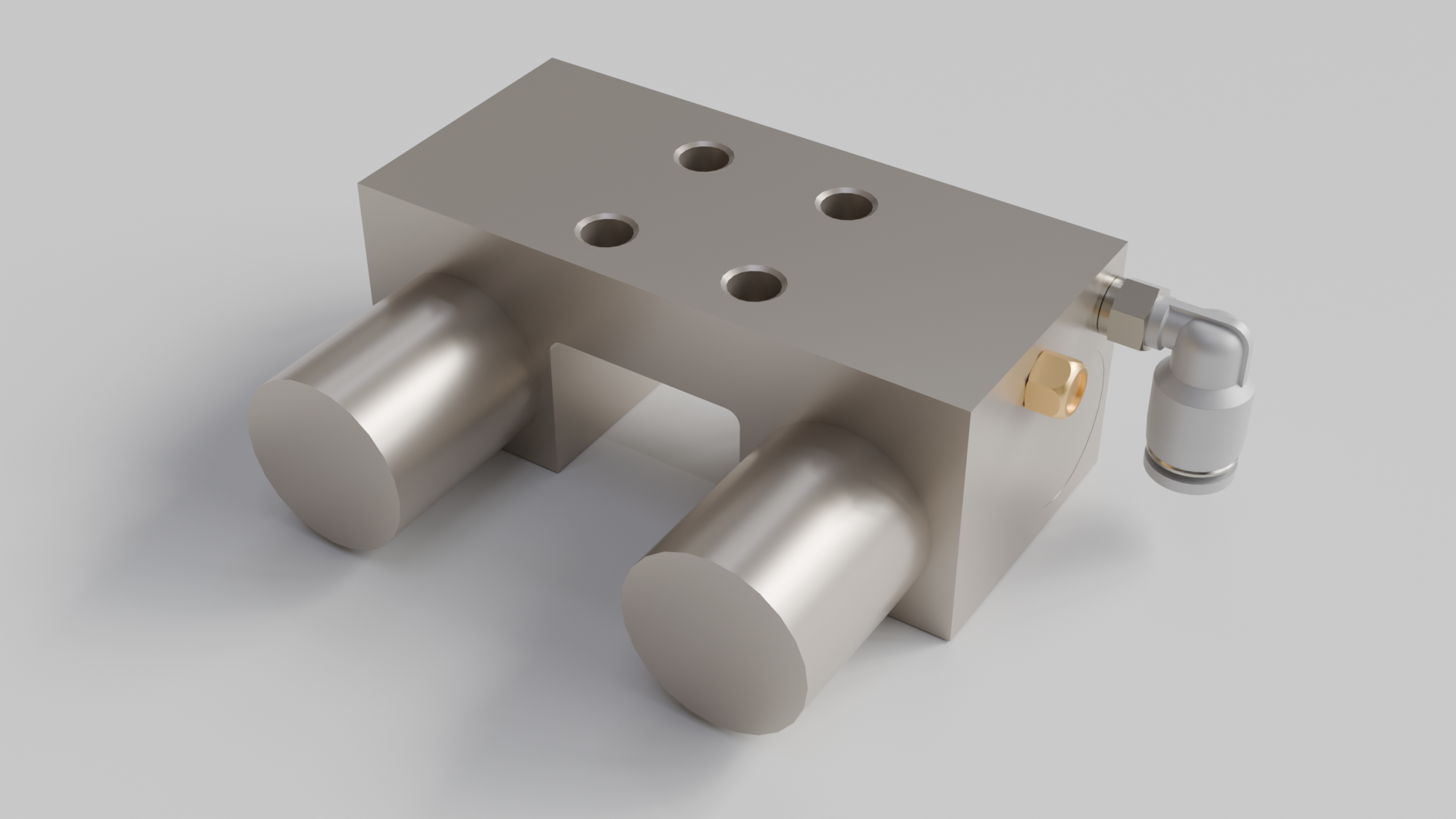

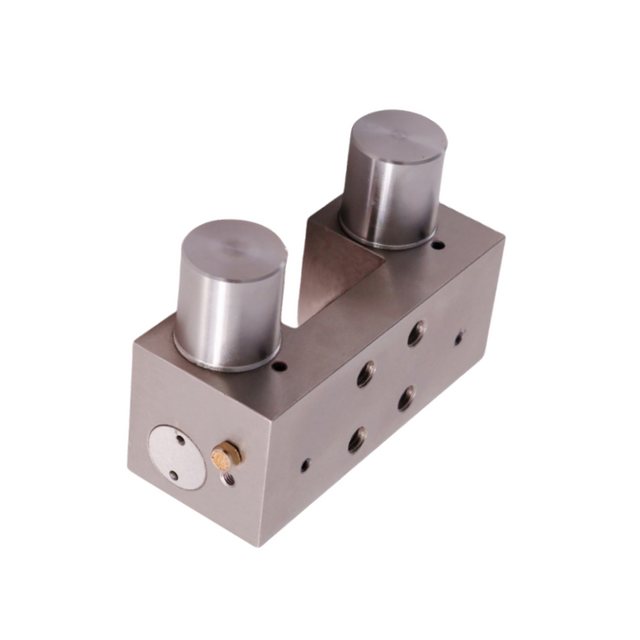

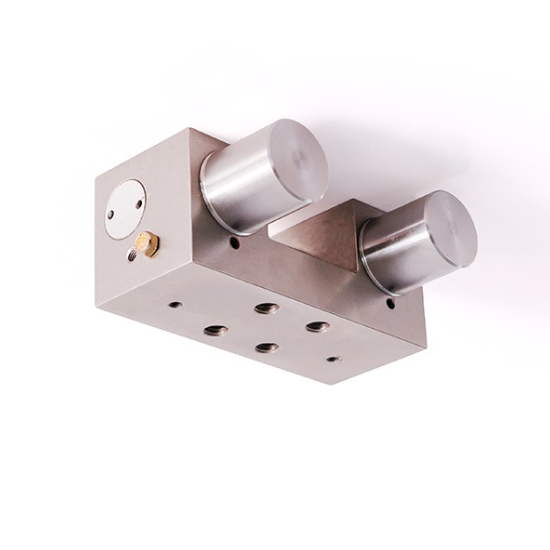

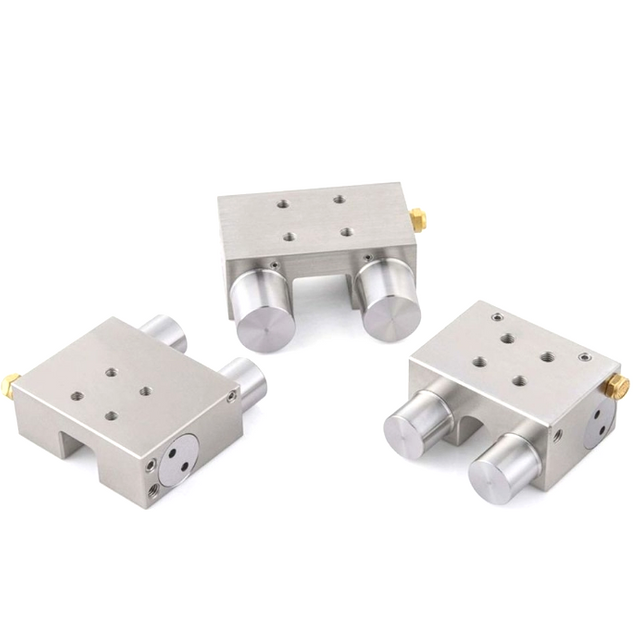

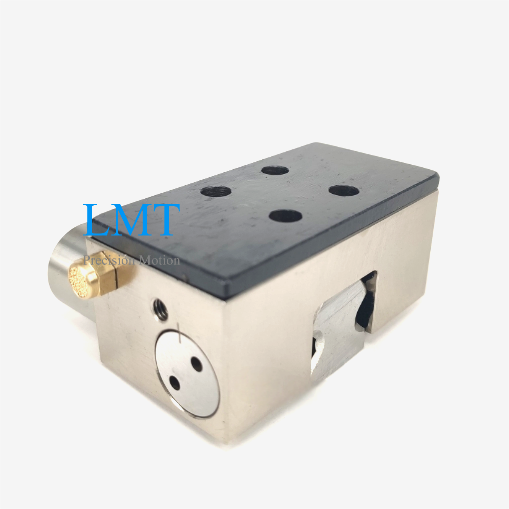

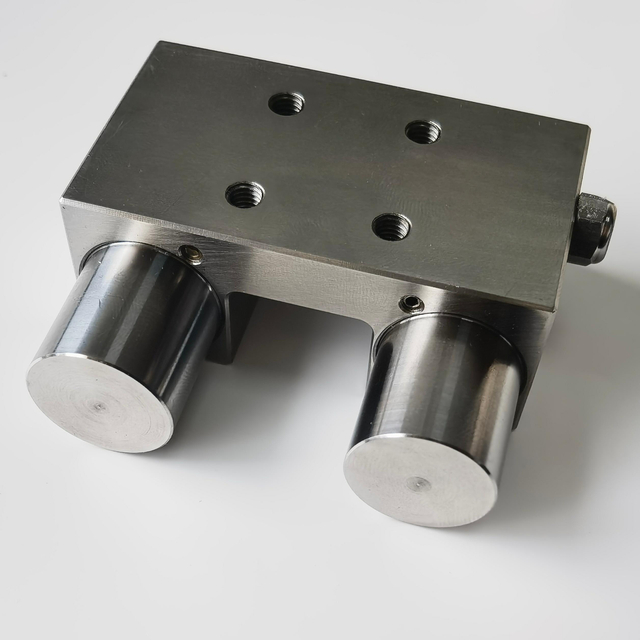

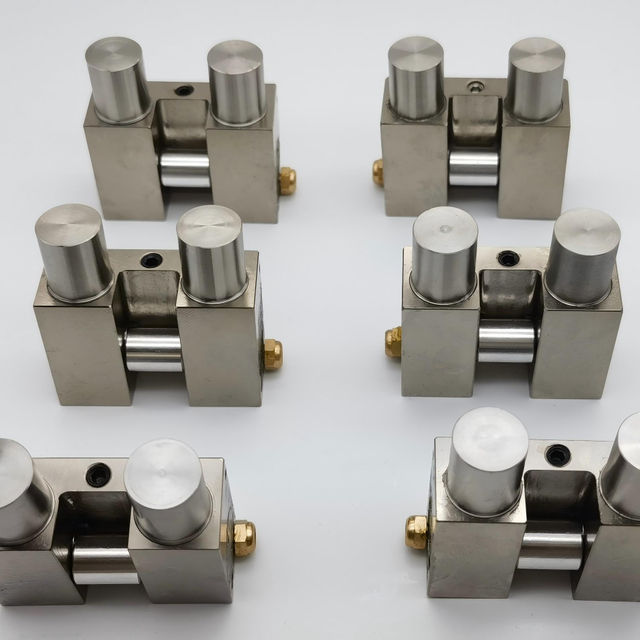

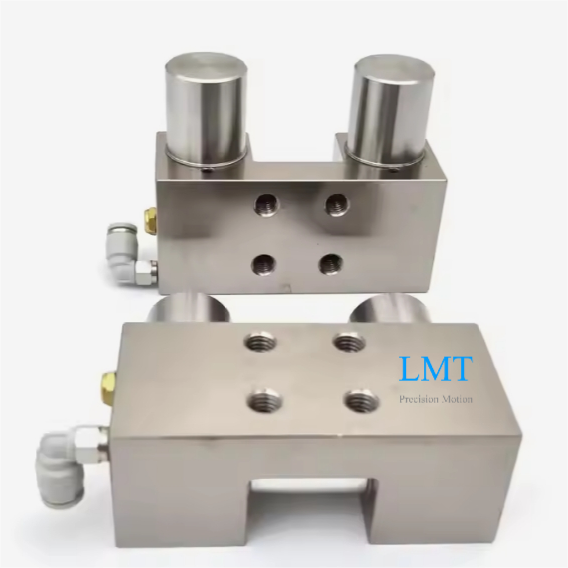

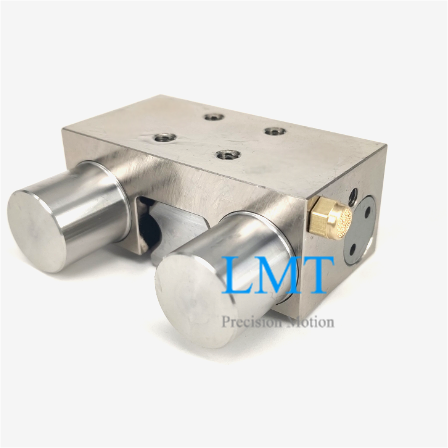

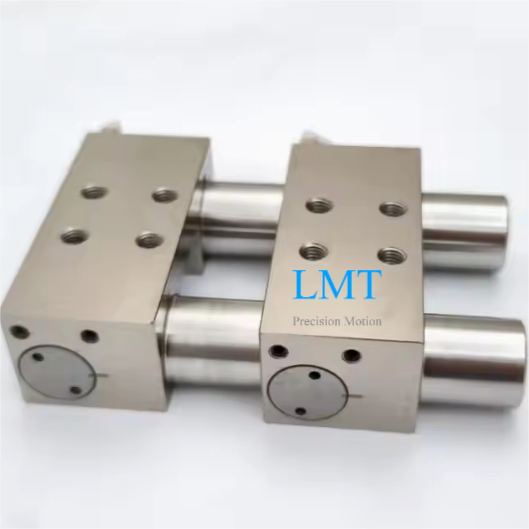

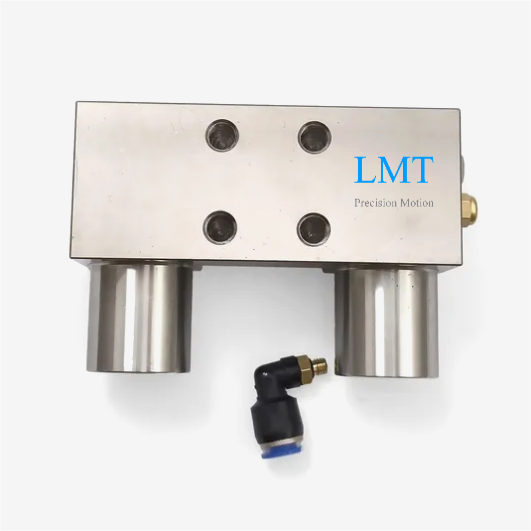

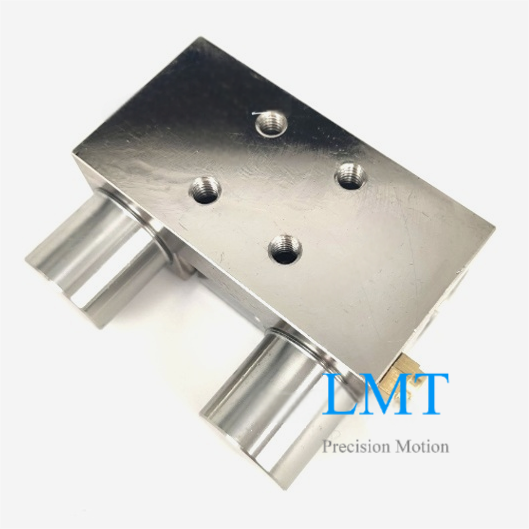

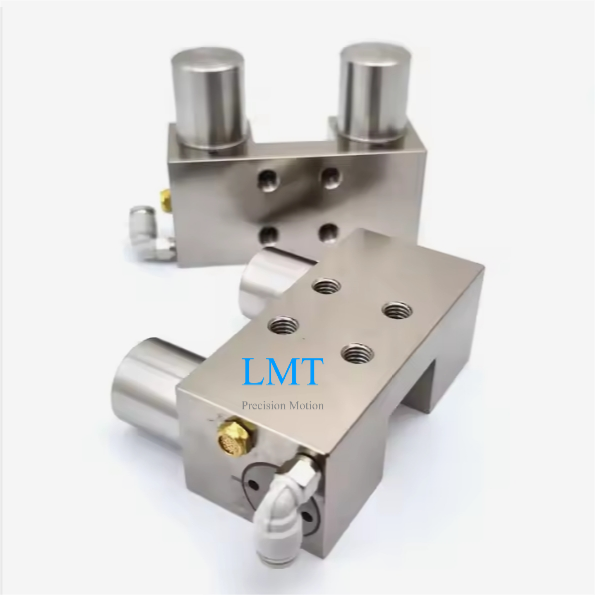

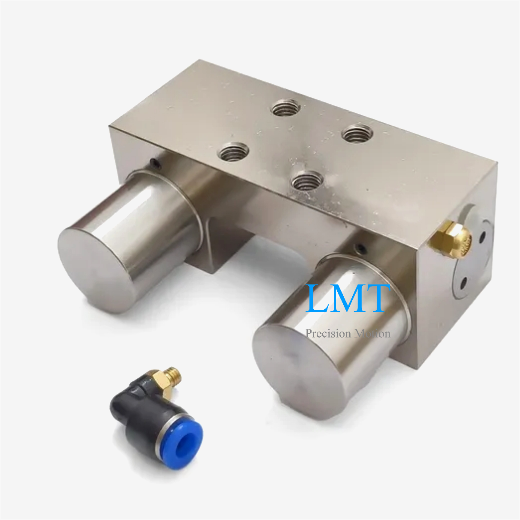

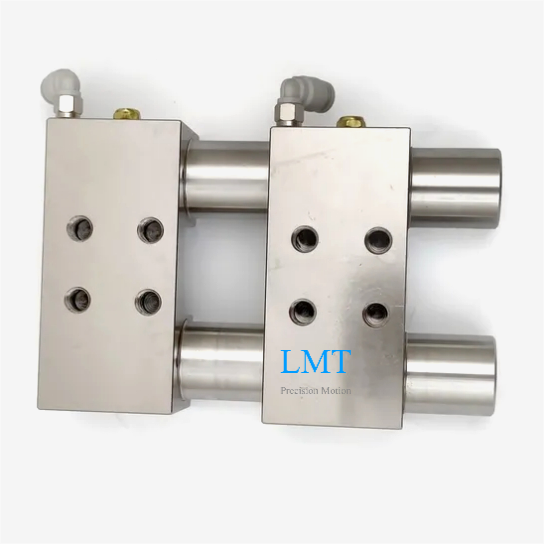

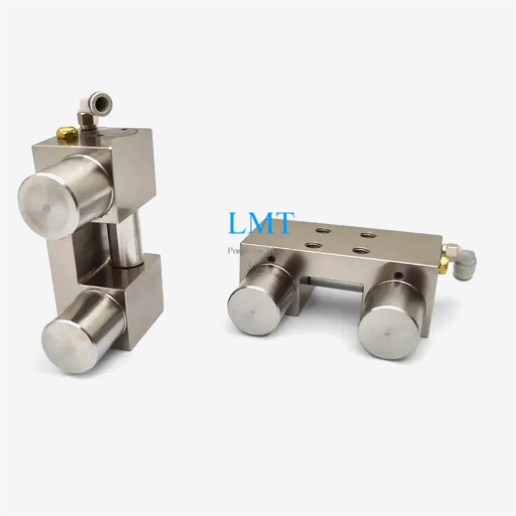

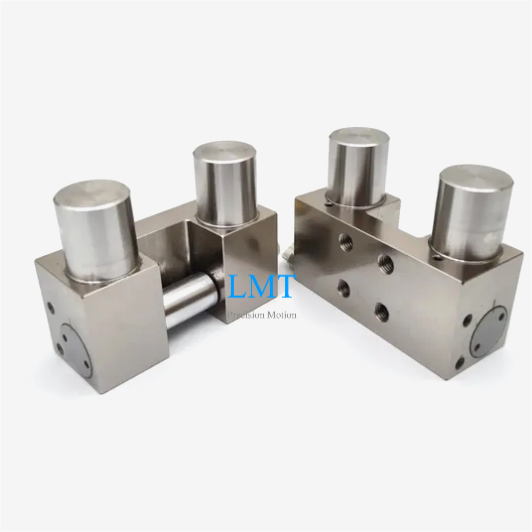

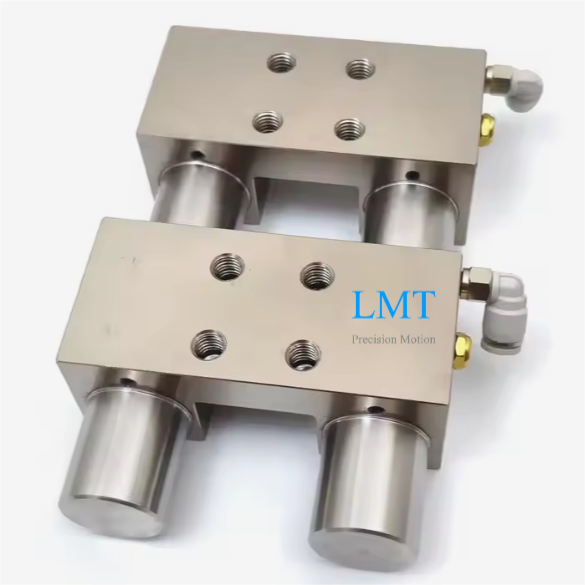

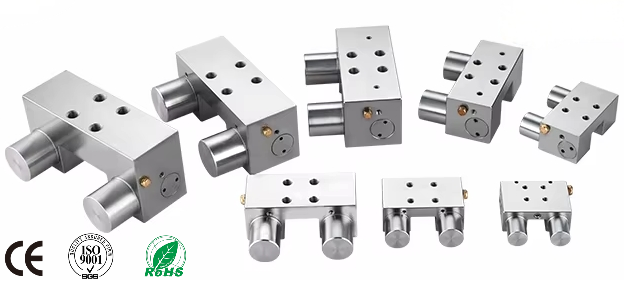

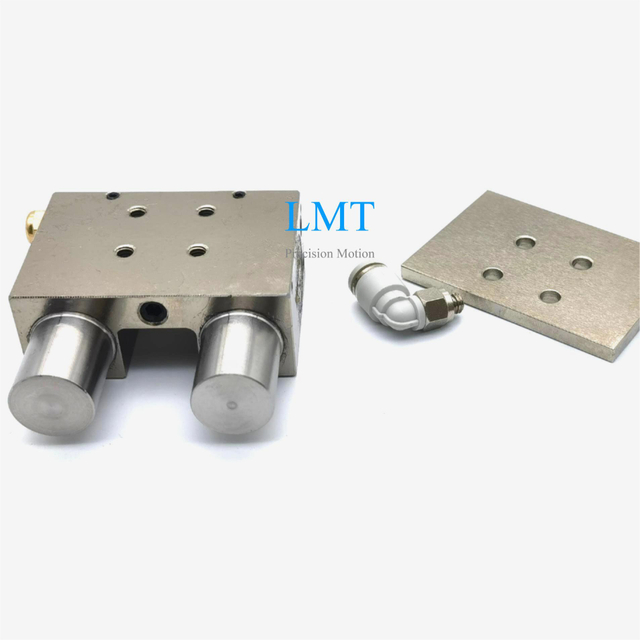

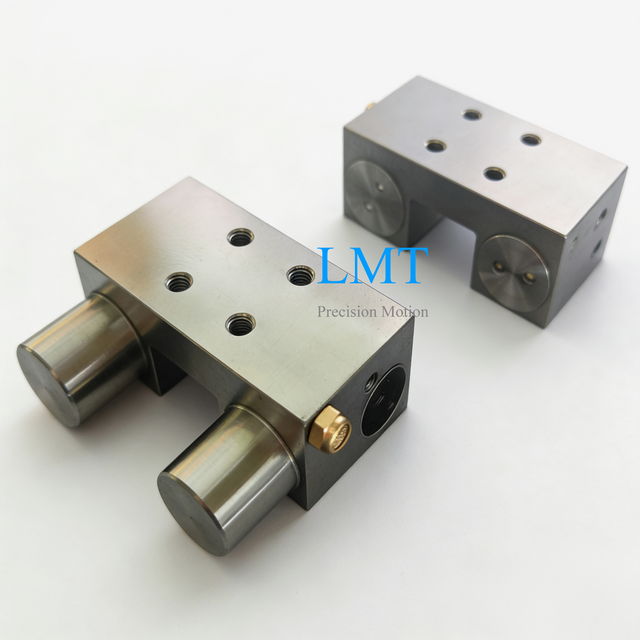

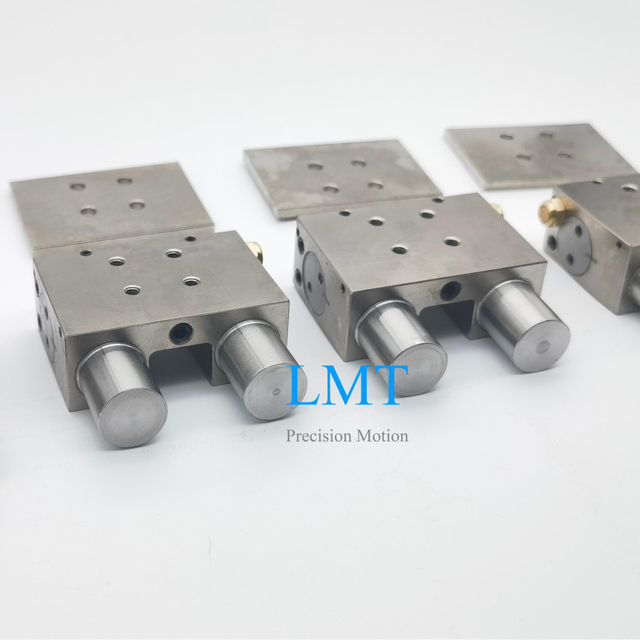

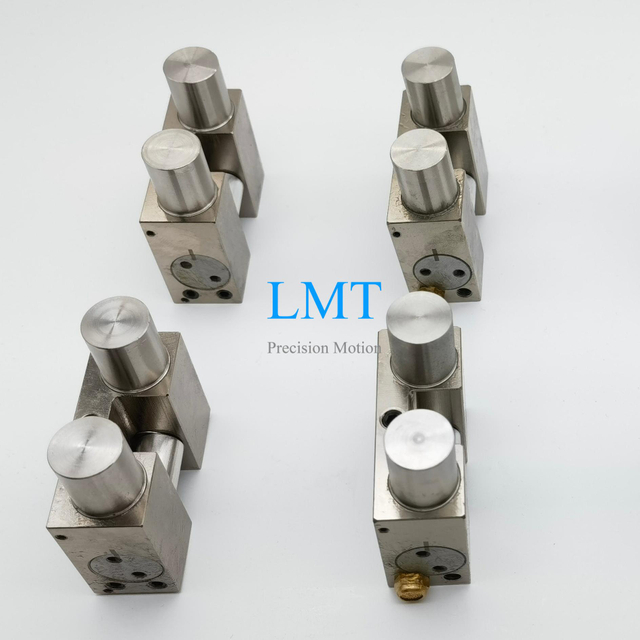

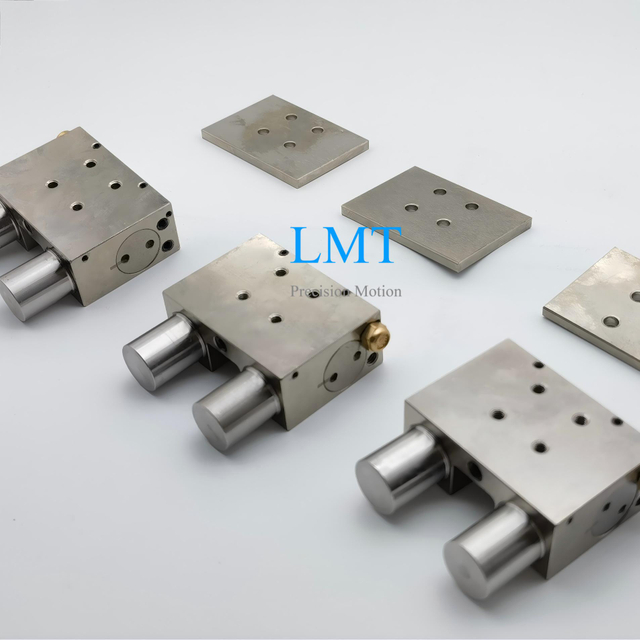

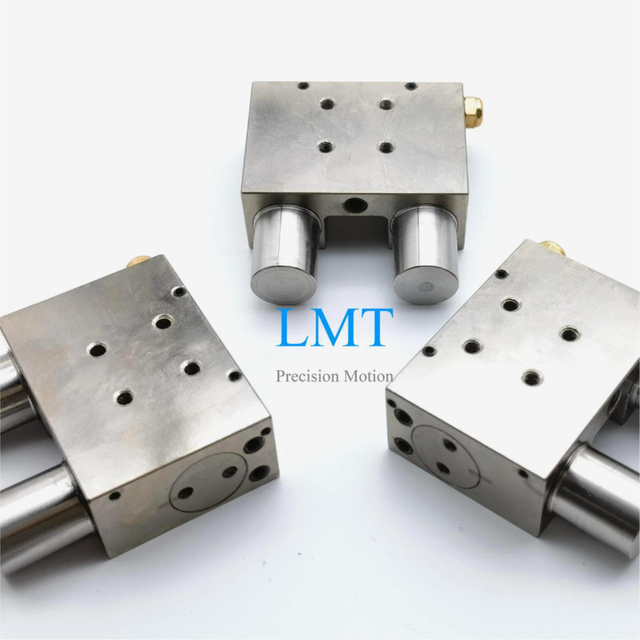

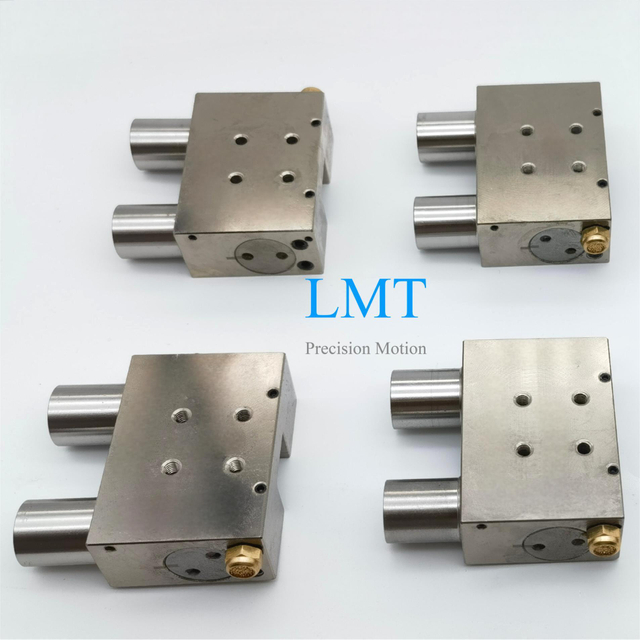

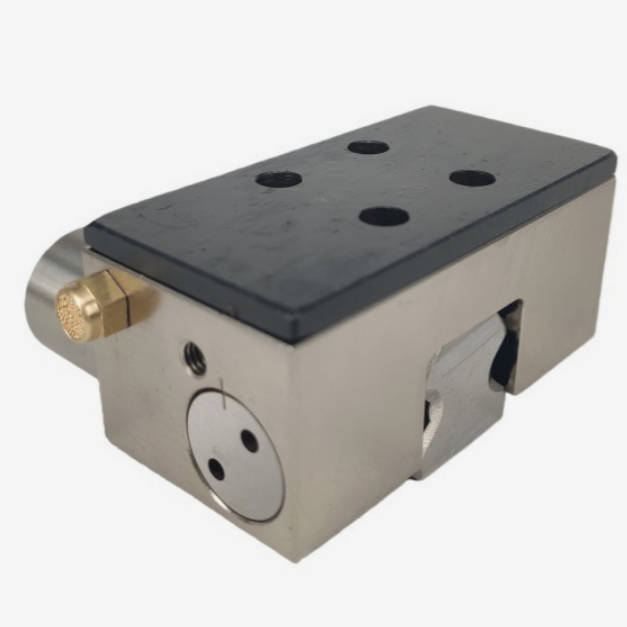

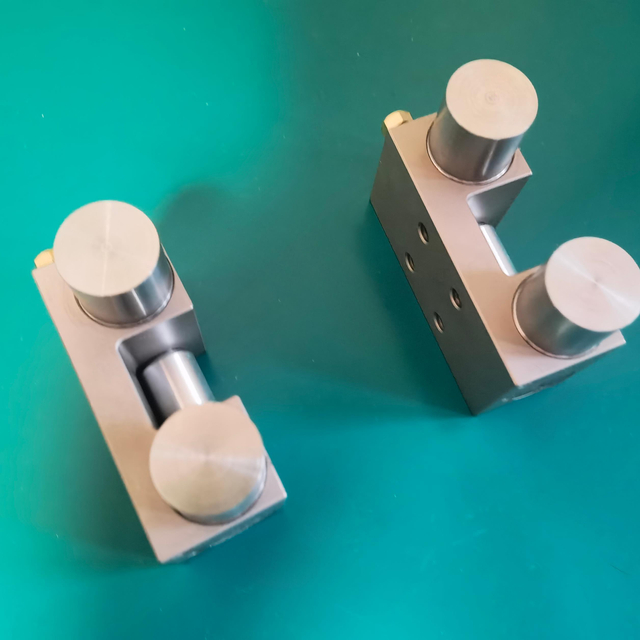

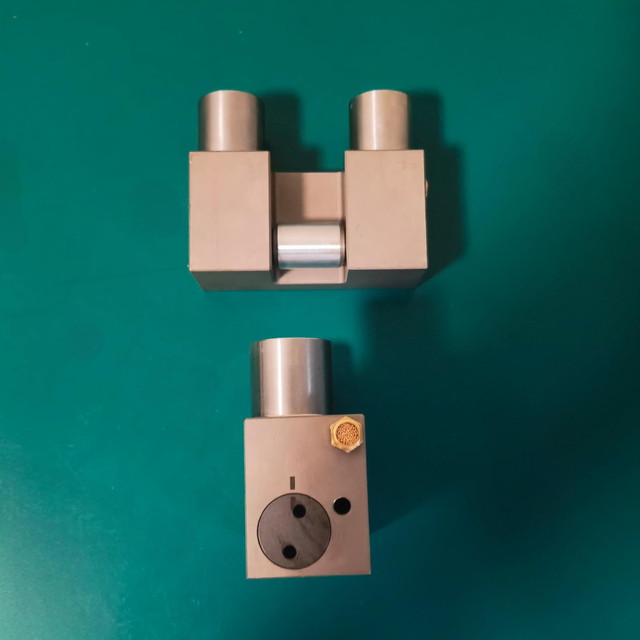

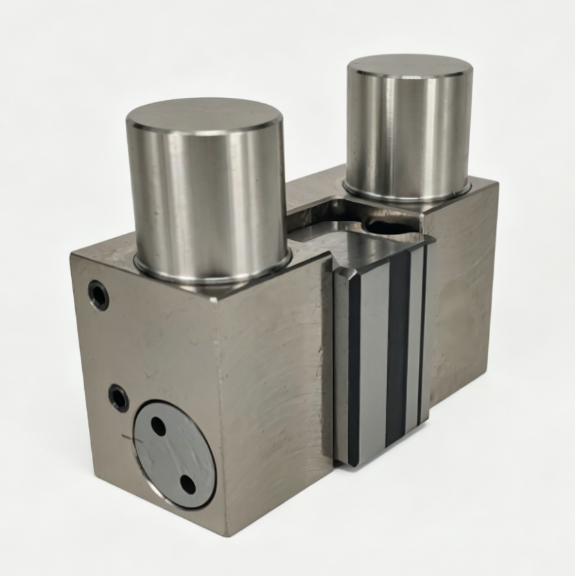

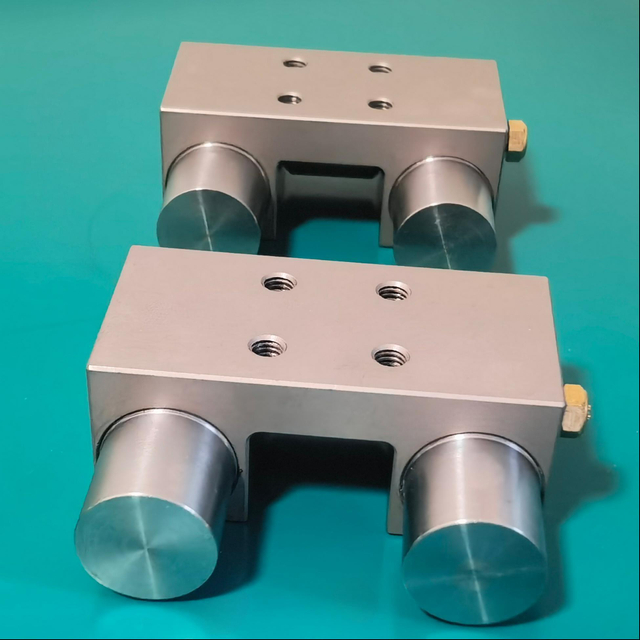

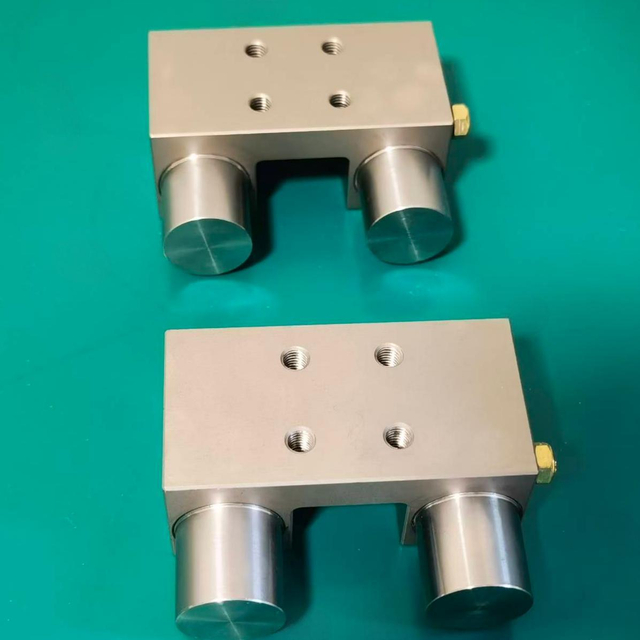

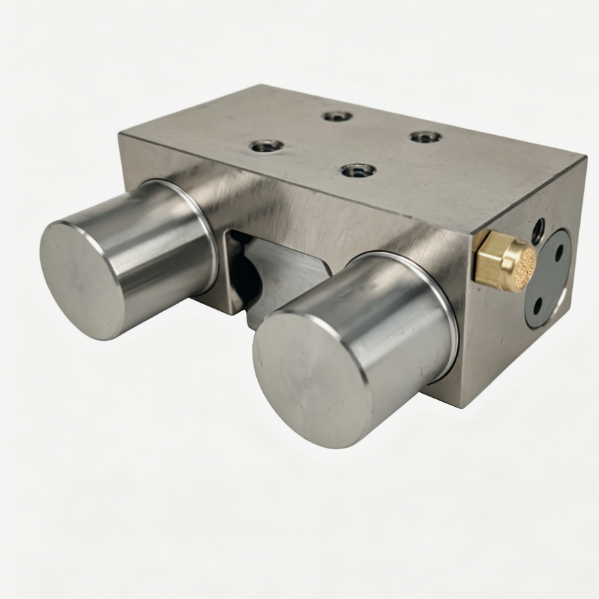

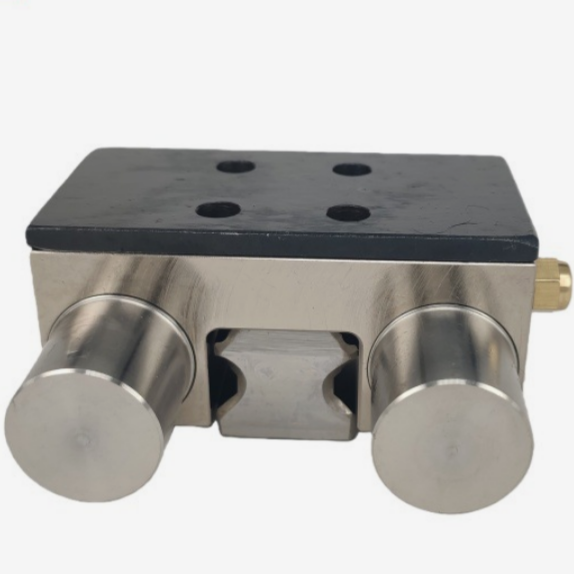

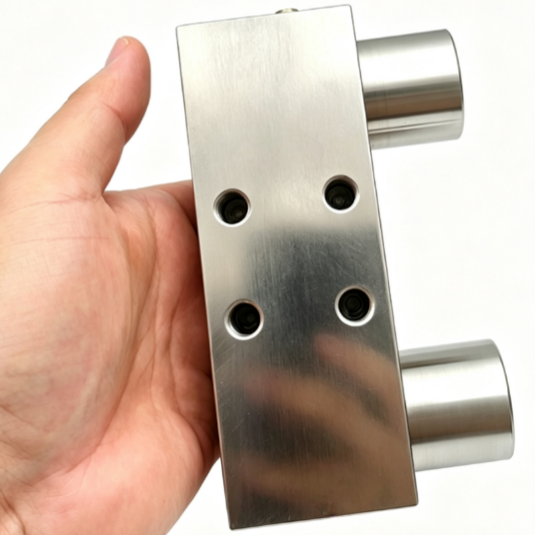

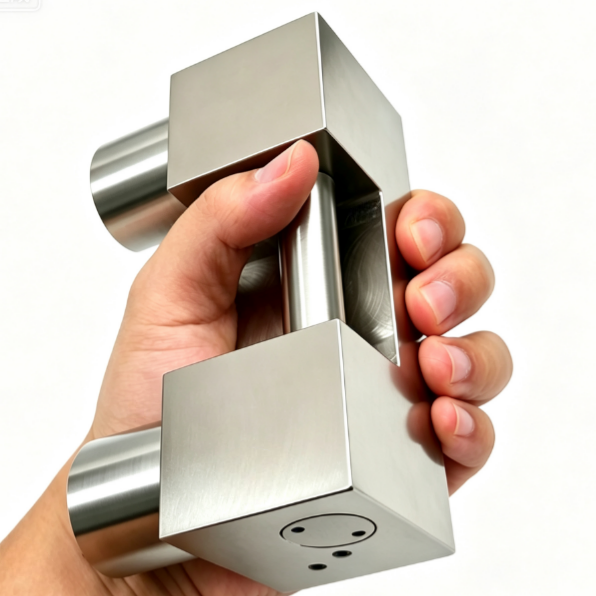

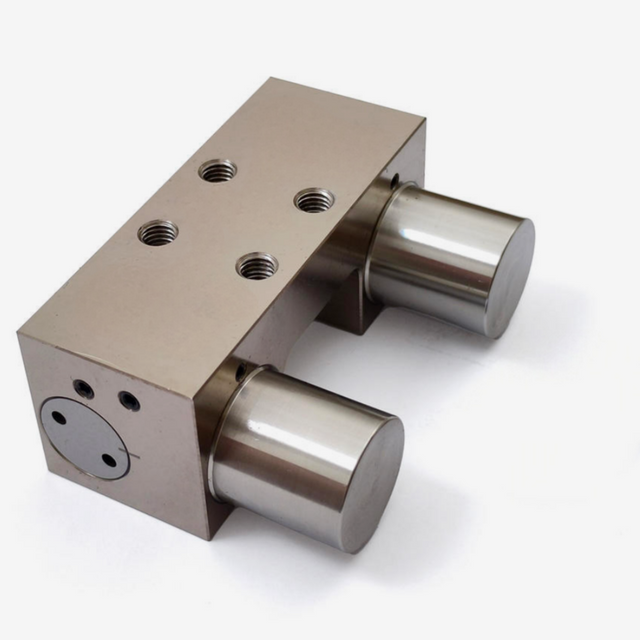

LMKS-B series pneumatic normally closed linear guide clamp automatically maintains the rigid clamping state of the linear rail when there is no air pressure supply.This clamping element is specially developed for ball linear guides with specifications of 15mm~65mm.It is compatible with mainstream brand linear guides such as HIWIN,THK,PMI NSK,WON,etc.,and can be quickly installed without customized modification.
As a professional manufacturer of pneumatic normally closed clamps,we deliver superior clamping solutions for industrial applications worldwide.Our pneumatic NC clamping elements ensure reliable safety and precision in machinery,automation,and assembly processes,meeting rigorous operational demands.We help you reduce total clamping costs by 20% to 50% compared to standard market prices.With extensive in-house inventory,our pneumatic normally closed brakes ship promptly—eliminating long lead times and keeping your projects on schedule.
Features of Pneumatic Normally Closed Rail Clamp
The surface of the pneumatic clamping element main body is nickel-plated and has good rust resistance.
When there is air pressure,the linear rail clamp is released;when there is no air pressure,the linear guide is clamped by spring force.
Depending on the holding force requirements of the clamping mechanism,standard connection or pressurized connection can be used.
Pneumatic Normally Closed Rail Clamp Advantages:
Lead time:Large stock inventory.
Cost-effective: 25%~50% cost savings.
High Durability:Up to 5 million static clamping cycles.

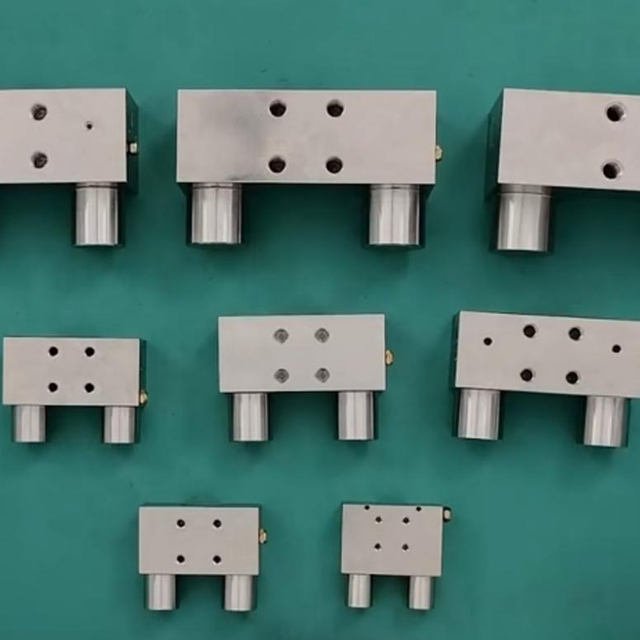

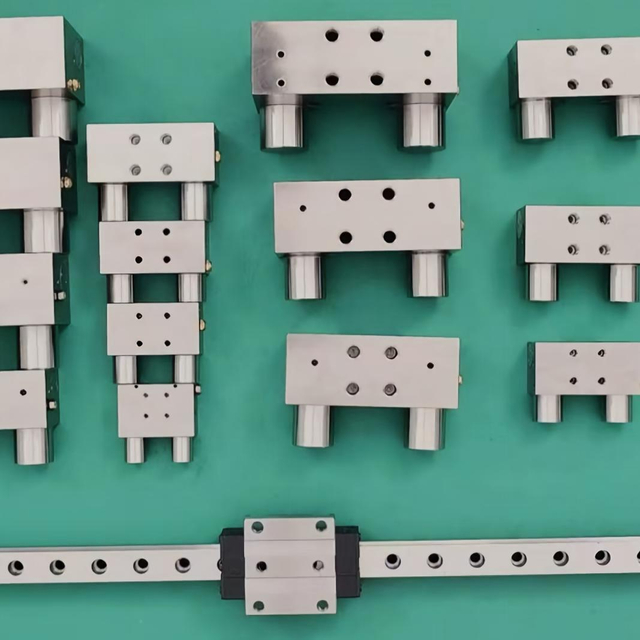

Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the pneumatic clamp locking main body is nickel-plated and has good rust resistance.
ROHS Compliant:Every pneumatic NC clamp in our range is ROHS-certified,guaranteeing compliance with international environmental and safety standards.
LMKS-B Pneumatic NC Clamping Element Working Parameters
Model | LMKS | LMKS-04 | LMKS-03 |
Open air pressure | 0.55MPa | 0.4MPa | 0.3MPa |
Max working pressure | 0.6MPa | ||
Response time | ≤0.06s | ||
Operating temperature | 0℃~70℃ | ||
Clamping service life | 5 million times | ||
(1)Standard Linear Guide Clamp Rated Holding Force and Air Consumption
Model Rated holding force(N) Air consumption (ℓ/cycle（ANR））
Standard connection/pressurized connection Standard connection/pressurized connection
LMKS15B 400N/1050N 0.011/0.035
LMKS20B 600N/1300N 0.019/0.064
LMKS25B 750/1400N 0.021/0.07
LMKS30B 1050/2600N 0.03/0.12
LMKS35B 1250/ 3250N 0.03/0.13
LMKS45B 1450/3300N 0.07/0.3
LMKS55B 1450/3300N 0.07/0.3
LMKS65B 1450/3000N 0.07/0.3
Note: The data in the table are values at 0.6MPa air pressure. The holding force is proportional to the air pressure within the working pressure range.
(2)0.4MPa Low Pressure Rail clamp rated holding force and air consumption
Model Rated holding force(N) Air consumption (ℓ/cycle（ANR））
Standard connection/pressurized connection Standard connection/pressurized connection
LMKS15B-04 300N/650N 0.011/0.035
LMKS20B-04 500N/1200N 0.015/0.05
LMKS25B-04 650/1300N 0.016/0.05
LMKS30B-04 850/1700N 0.03/0.09
LMKS35B-04 1100/ 1900N 0.03/0.1
LMKS45B-04 1350/2000N 0.07/0.2
LMKS55B-04 1350/2000N 0.07/0.2
LMKS65B-04 1350/2000N 0.07/0.2
Note: The pressurized connection data is the value at 0.4MPa air pressure.
(3)0.3MPa low pressure type guide clamp rated holding force and air consumption
Model Rated holding force(N) Air consumption (ℓ/cycle（ANR））
Standard connection/pressurized connection Standard connection/pressurized connection
LMKS15B-03 250N/550N 0.011/0.035
LMKS20B-03 350N/810N 0.015/0.05
LMKS25B-03 350/880N 0.016/0.05
LMKS30B-03 750/1320N 0.03/0.09
LMKS35B-03 850/ 1800N 0.03/0.1
LMKS45B-03 1100/1900N 0.07/0.2
LMKS55B-03 1100/1900N 0.07/0.2
LMKS65B-03 1100/1900N 0.07/0.2
Note: The pressurized connection data is the value at 0.3MPa air pressure.
