LMKS35R

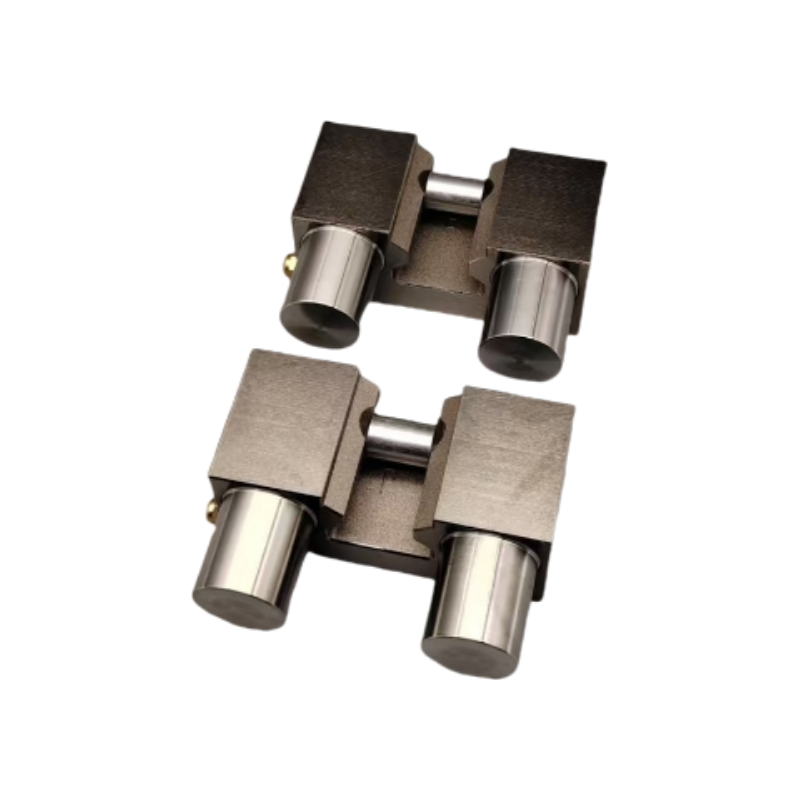

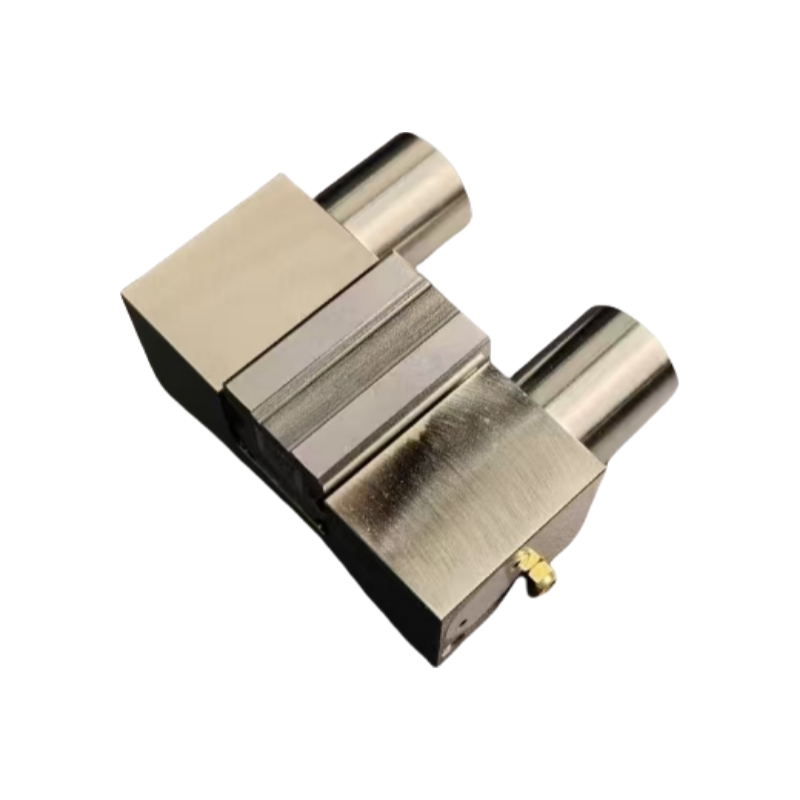

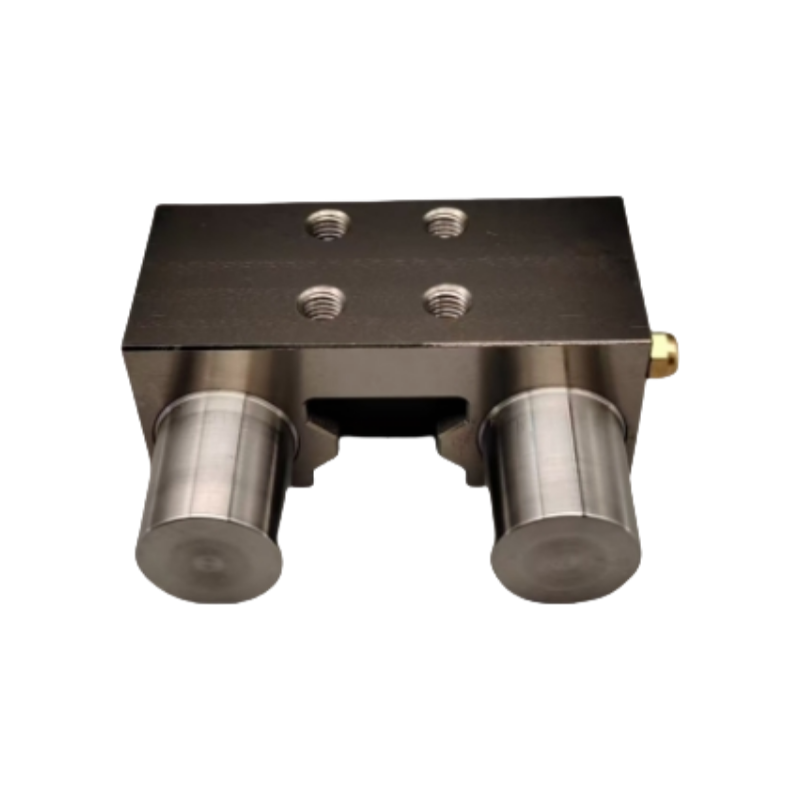

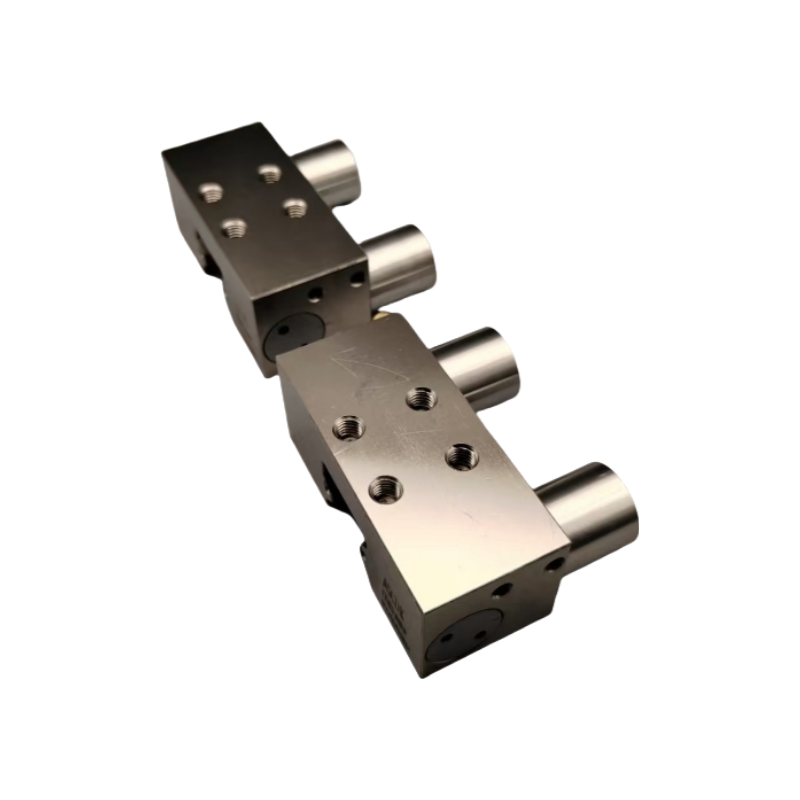

35mm Roller Guideway Pneumatic Normally Close Clamping Element
This guide clamp is used with 35mm roller linear rail.It has high positioning accuracy and is suitable for fixed machining center table.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 35mm |
| Rated holding force(N) | 1250/3250N(Standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |

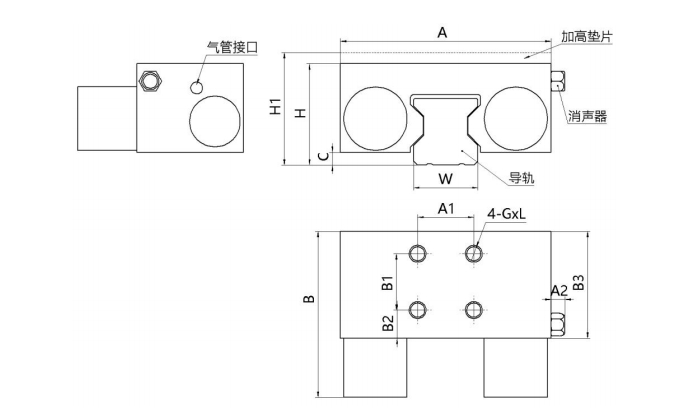

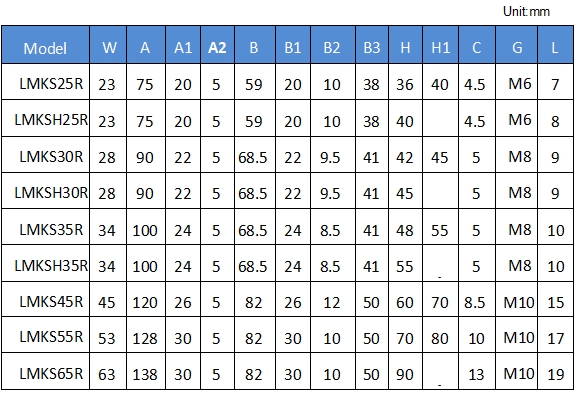

Pneumatic Normally Close Braking Dimension
Contact our sales to get a quote!
