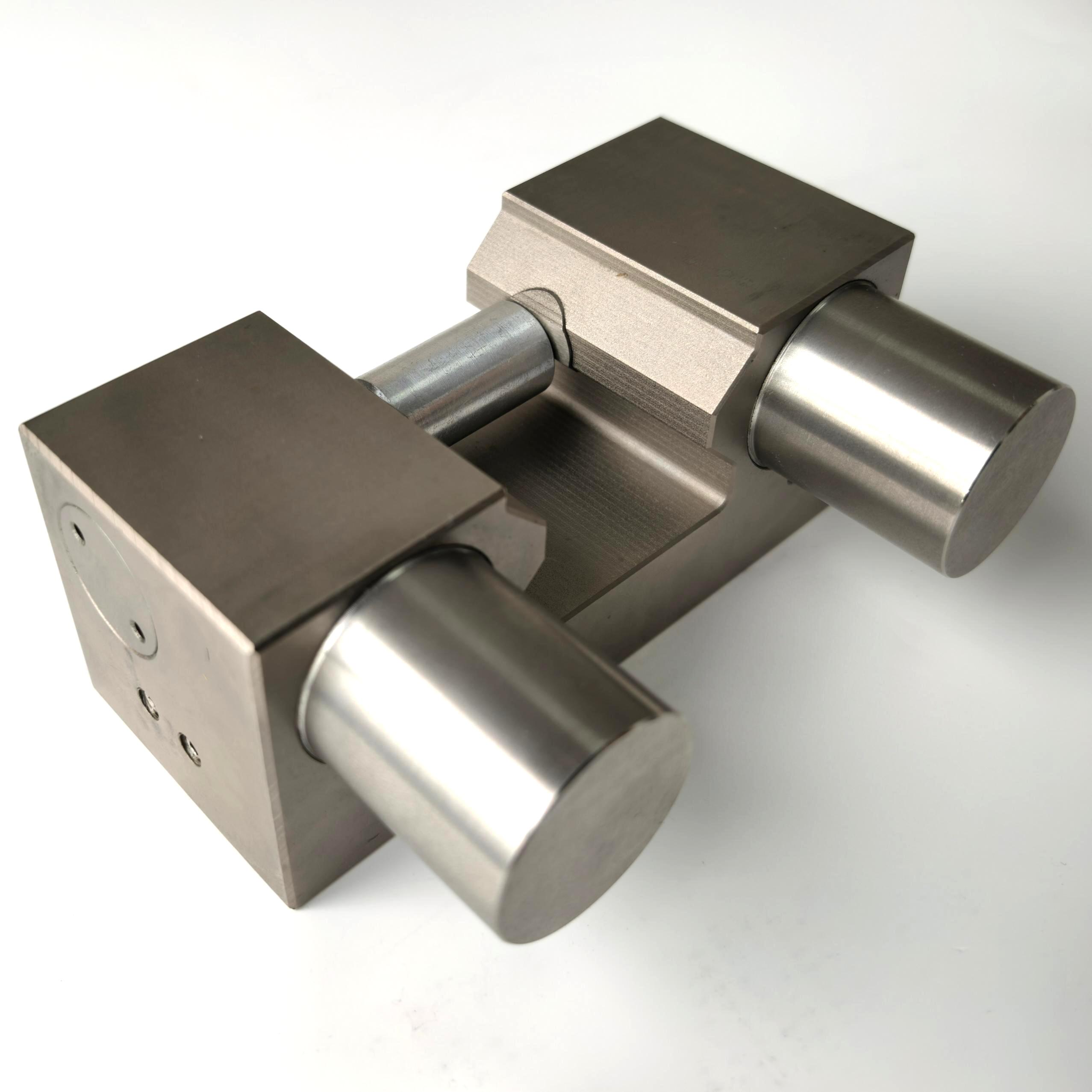

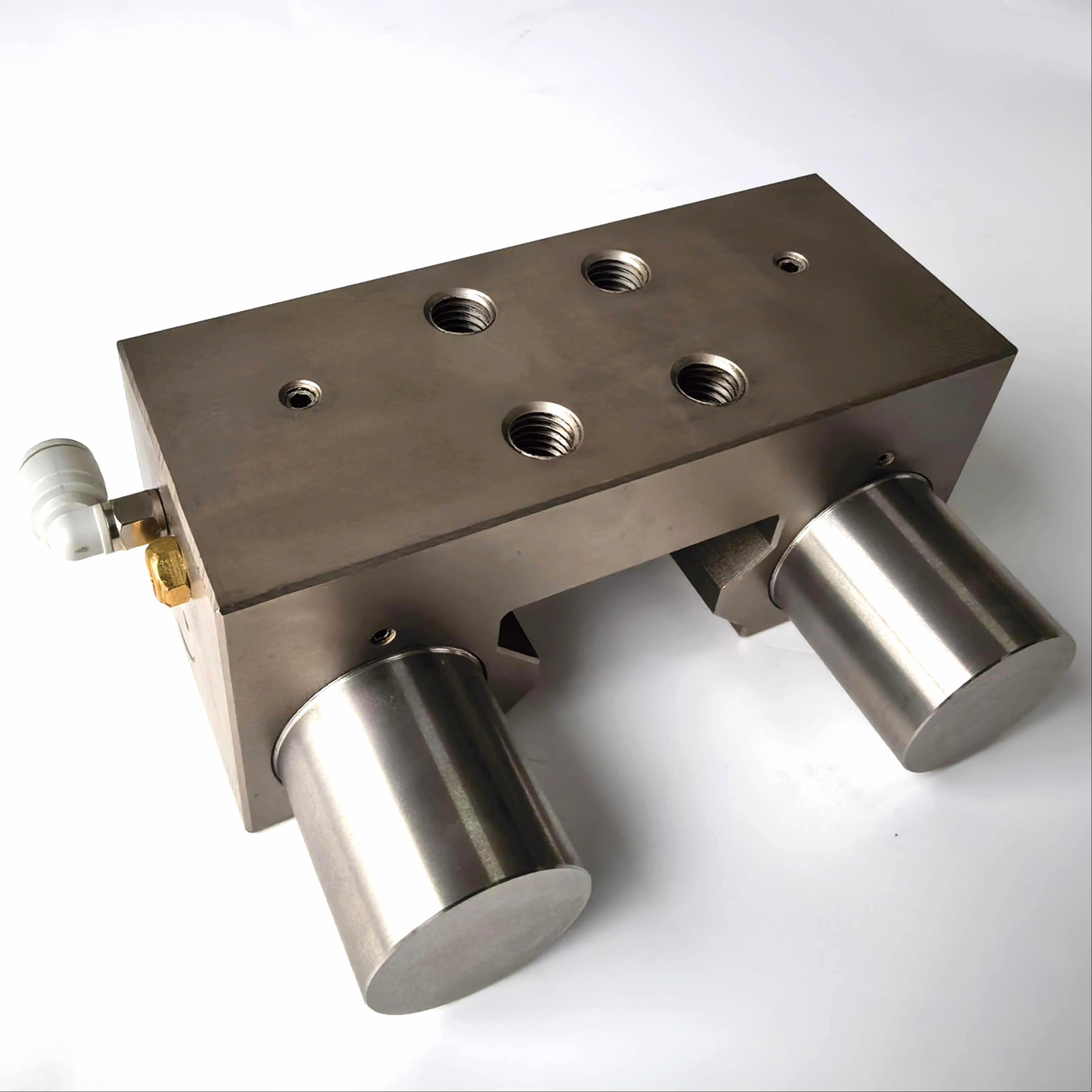

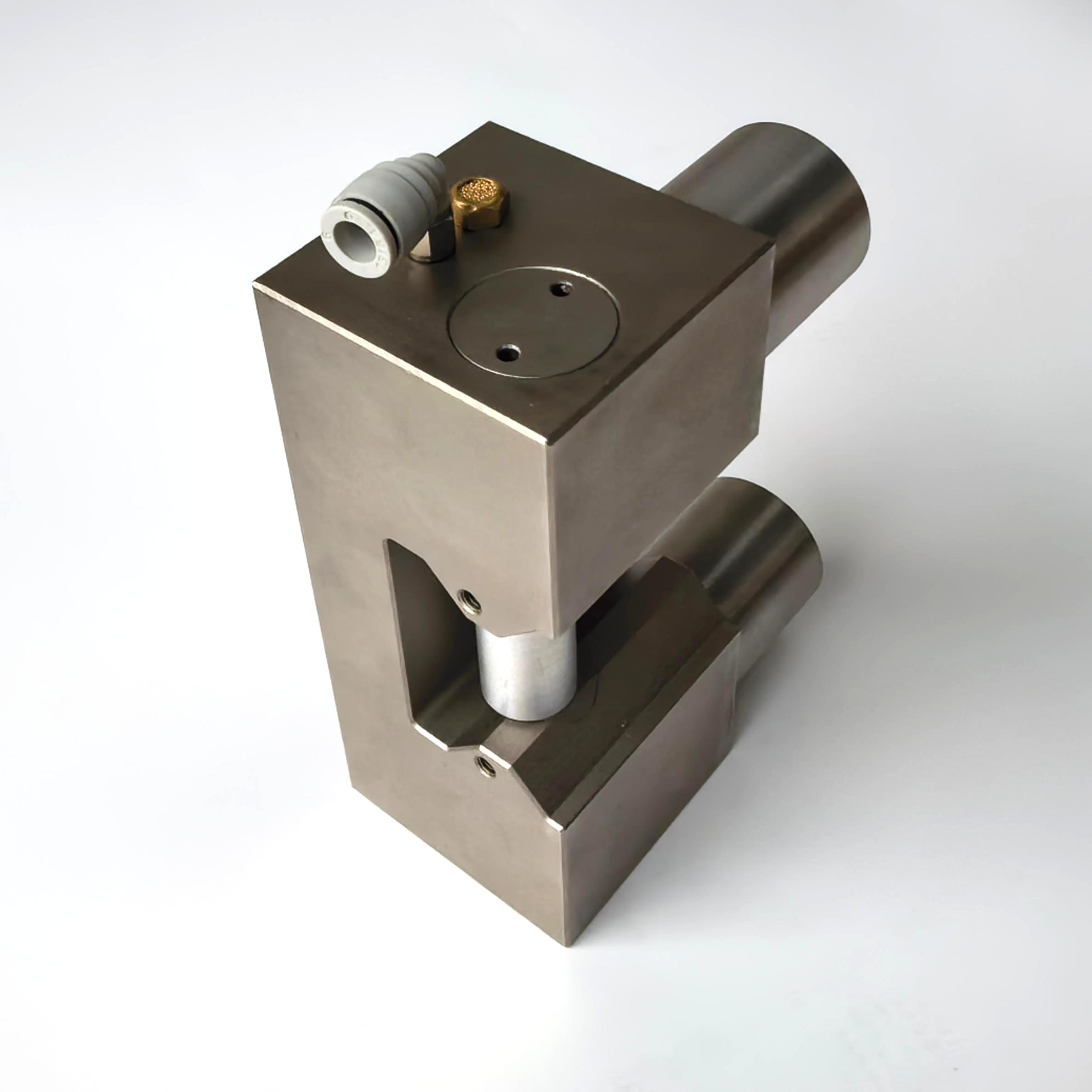

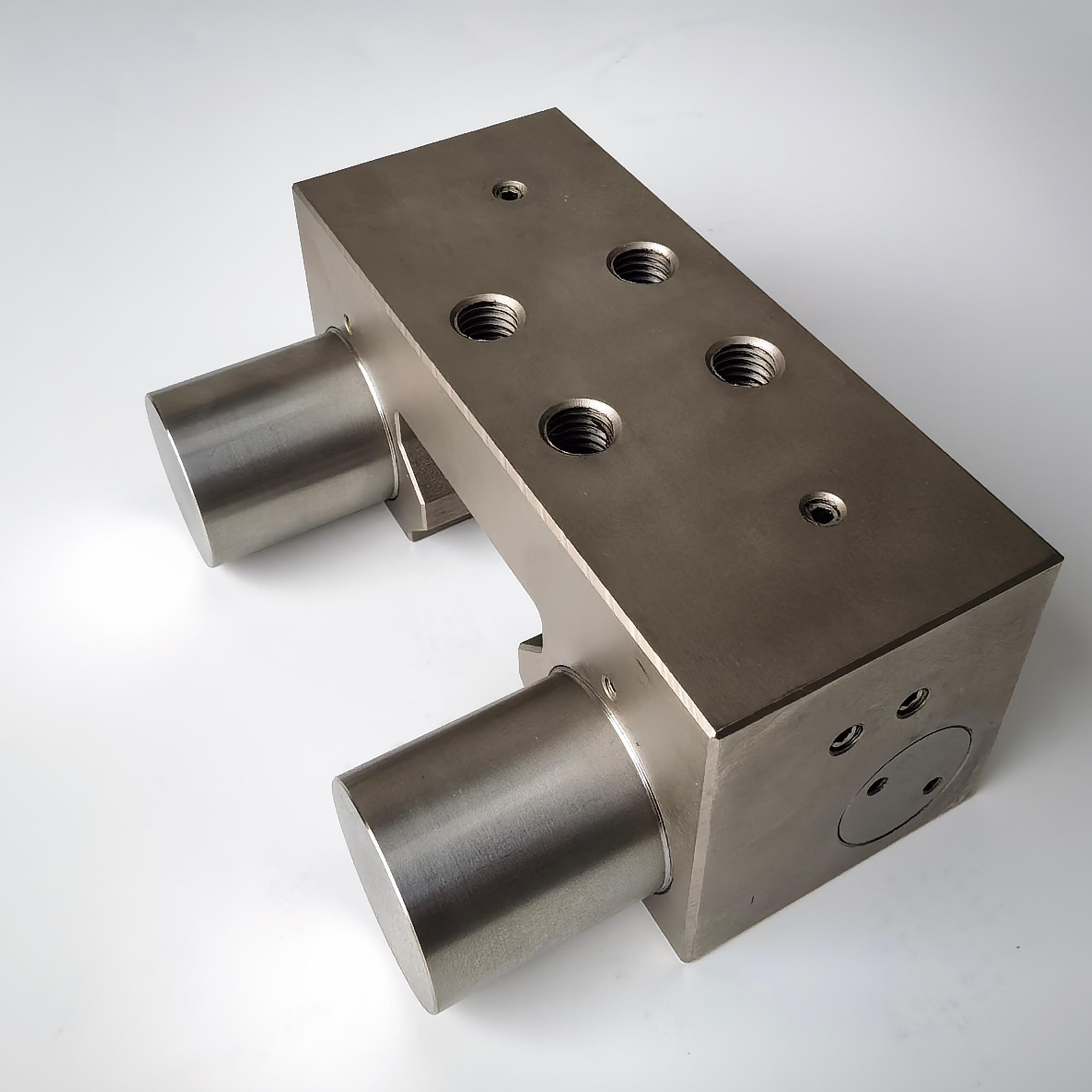

LMKS45R
LMT
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| |||||||||
-Used for fixing sliding tables,positioning and vibration suppression.
-Normally Closed (NC) type.
When air pressure is supplied: Clamping is released.
When air pressure is exhausted: The linear guideway is clamped by spring force.
-Compact design.
-Easy to mount onto existing systems;no design modifications such as extending guide length or changing slide table dimensions are required.
| Clamp types | Pneumatic normally closed |
| Linear rail sizes | 45mm |
| Rated holding force(N) | 1450/3300N(standard) |
| Standard open air pressure | 0.55~0.65Mpa |
| Clamping service life | 5 million times |
| Main body material | 42CrMo,sandblasted electroless nickel coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | -10 °C~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
⚠️WARNING
This pneumatic normally closed clamping element has a spacer block between contact surfaces when leaving factory.When air is supplied,you can remove the spacer block.
Do not remove the spacer block except during installation.If the clamping element is left in place for an extended period with the spacer block removed,the clamping element may not work anymore.
If you need clamping elements with dimensions and parameters identical to well-known international brands,please contact our sales team.We can manufacture products according to your drawings and specifications.Custom clamping elements have the same price as standard items,with an approximate lead time of 14 days.
-Lead Time:Large stock inventory.
-Cost-Effective: 50%~70% cost savings.
-High Durability:Up to 5 million static clamping cycles.
-Broad Range of Products:For all common profile rail guides.
-Superior Material:All clamping elements are made from premium raw materials with material test certificates.
-Machining Precision:Instead of ordinary milling,we adopt precision grinding to ensure much higher accuracy.
-Quality Control:Every linear guide clamping element will go through full performance testing and inspection before shipment to ensure 100% qualified products.
