Available Materials:Bearing steel GCr15,Stainless steel 9Cr18
Customized Service:1202 Ball screw and ball nut will be produced according to your requirements or drawings
1202

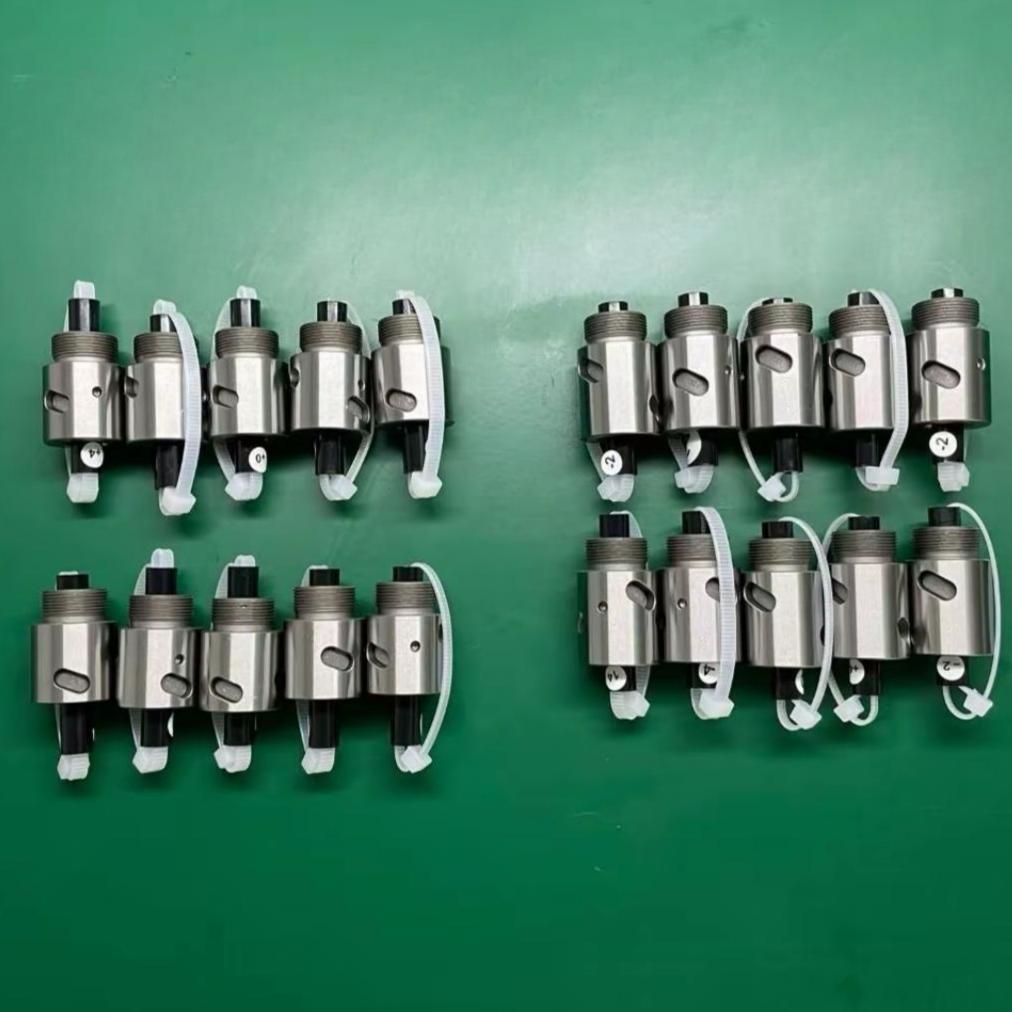

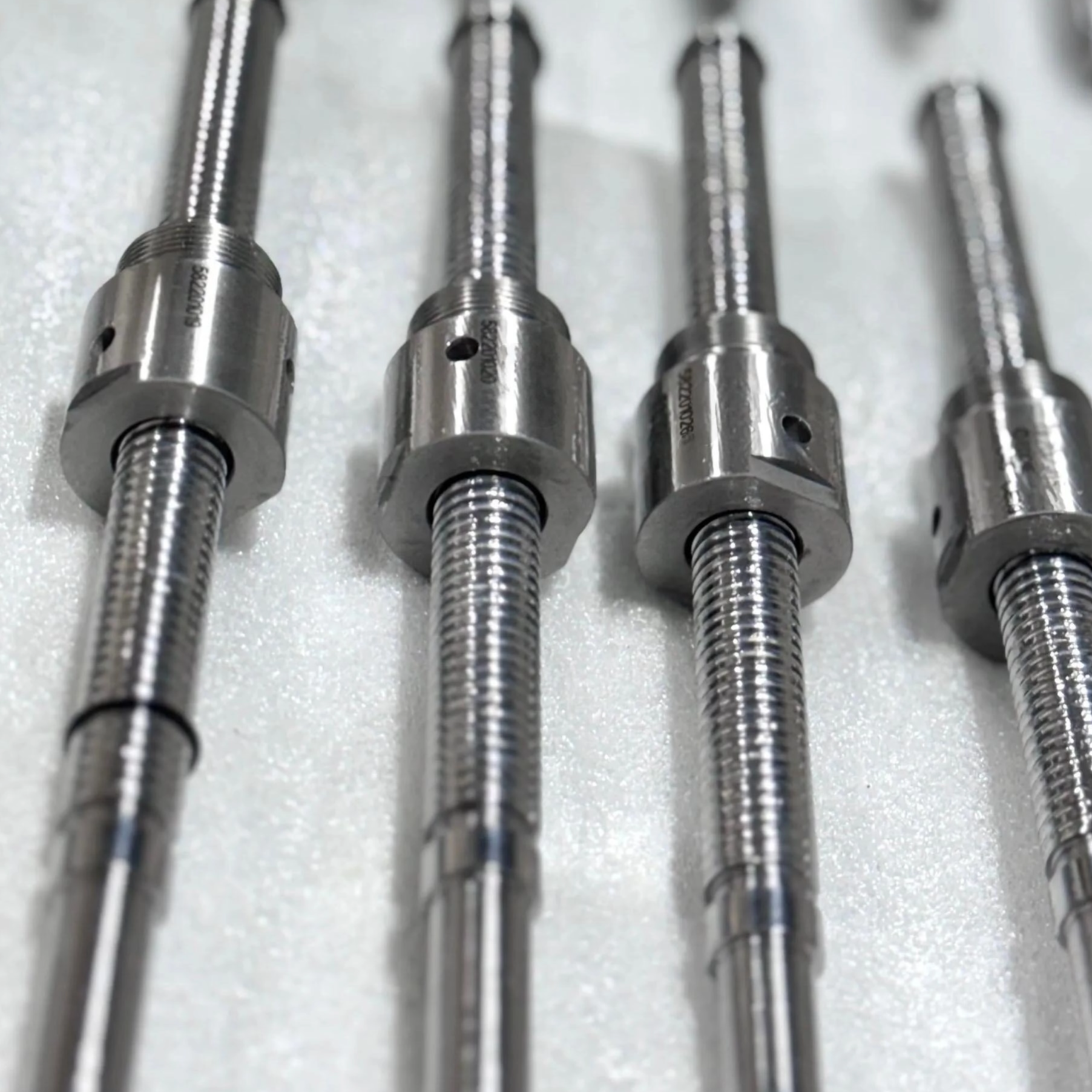

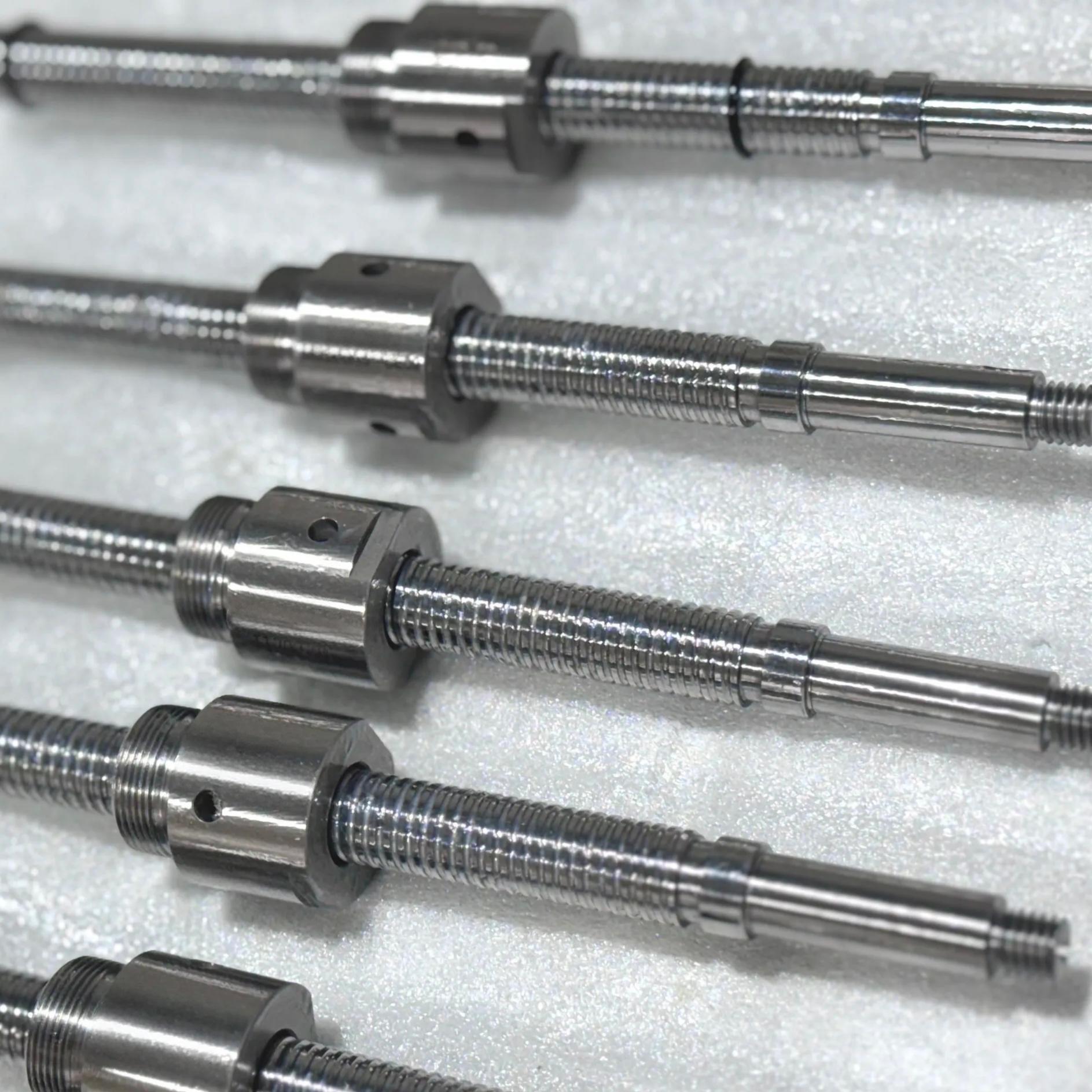

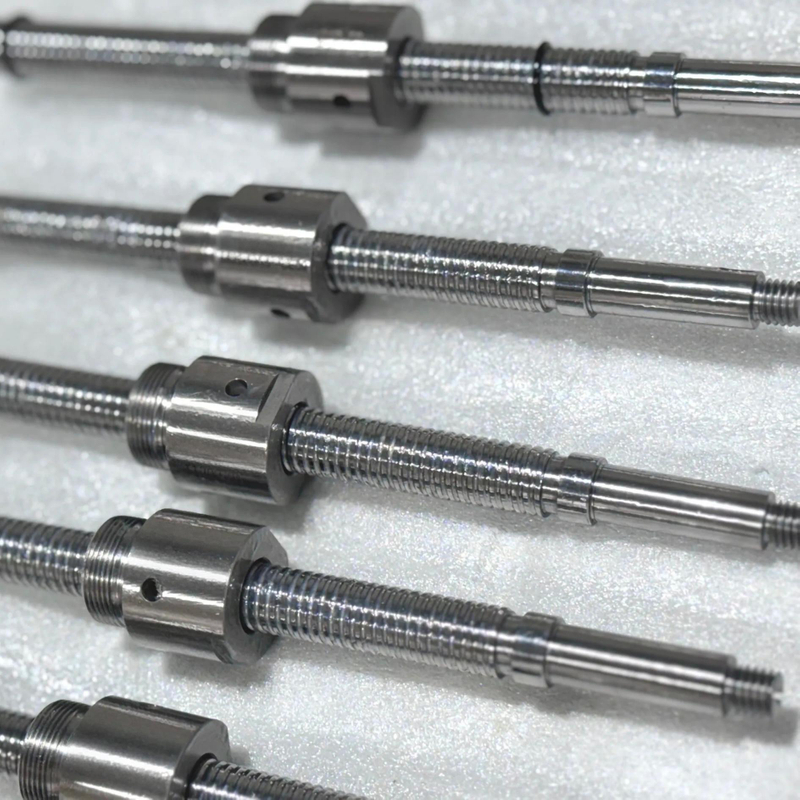

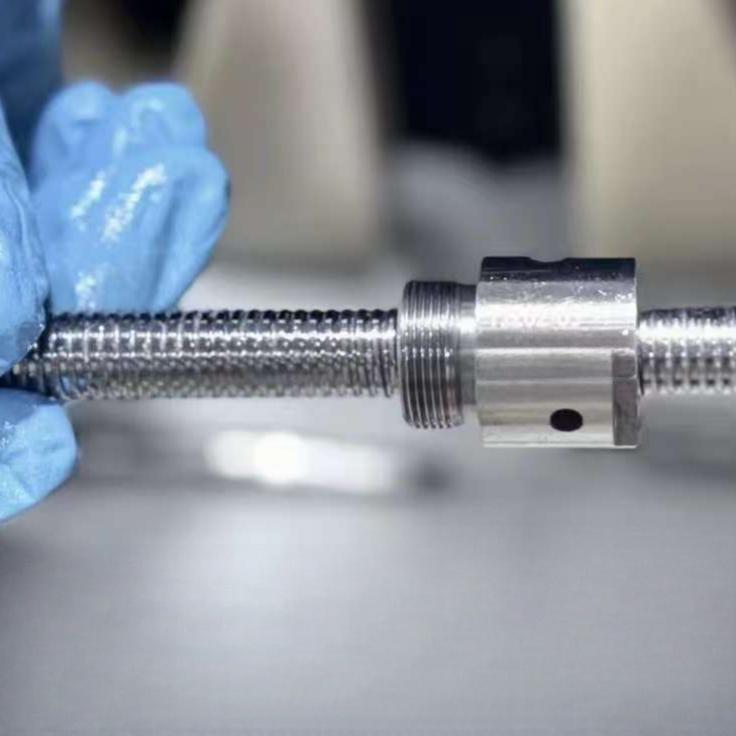

This 1202 miniature ball screw assembly provides high-precision motion control within a compact 12 mm diameter and 2 mm lead.It features a threaded cylindrical ball nut with internal ball recirculation,ensuring smooth,low-friction operation with minimal backlash and efficiency exceeding 95%.Available in accuracy grades C3,C5,and C7,the ball screw assembly offers full customization of length and shaft ends.With a minimum order quantity of one piece and a lead time of 7 to 25 days.
Diameter | 12mm |
Lead | 2mm |
| Pitch | 2mm |
| Accuracy grade | C3 C5 C7 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand/left hand/bi-directional |
Material | GCr15/9Cr18 |
MOQ: 1 pc.
Fast Delivery:7~25 days.
Cost-effective:15% ~40% cost savings.
All ball screws and ball nuts are ROHS and CE compliant.
Material test report,hardness test report,quality inspection report as your require.
Customized Service:The ball screw and ball nut will be manufactured according to your requirements.
High Quality:With 15 years of mature production experience in ball screws,all products are 100% tested for quality before shipping.
Medical and Laboratory Automation:Integrated into automated liquid handling systems(pipettes),DNA sequencers,sample positioning stages,and small surgical robot arms requiring fine,reliable linear motion.
Optical and Inspection Systems:Utilized for focusing mechanisms,lens positioning,and precise XY movement of cameras or sensors in microscopes,spectrometers,and automated optical inspection (AOI) stations.
Compact Actuators for Aerospace and Defense:Found in small satellite mechanisms(e.g.,antenna deployment,mirror positioning),drone gimbal controls,and miniaturized guidance system actuators where a high power-to-size ratio is essential.
This 1202 miniature ball screw assembly provides high-precision motion control within a compact 12 mm diameter and 2 mm lead.It features a threaded cylindrical ball nut with internal ball recirculation,ensuring smooth,low-friction operation with minimal backlash and efficiency exceeding 95%.Available in accuracy grades C3,C5,and C7,the ball screw assembly offers full customization of length and shaft ends.With a minimum order quantity of one piece and a lead time of 7 to 25 days.
Diameter | 12mm |
Lead | 2mm |
| Pitch | 2mm |
| Accuracy grade | C3 C5 C7 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand/left hand/bi-directional |
Material | GCr15/9Cr18 |
MOQ: 1 pc.
Fast Delivery:7~25 days.
Cost-effective:15% ~40% cost savings.
All ball screws and ball nuts are ROHS and CE compliant.
Material test report,hardness test report,quality inspection report as your require.
Customized Service:The ball screw and ball nut will be manufactured according to your requirements.
High Quality:With 15 years of mature production experience in ball screws,all products are 100% tested for quality before shipping.
Medical and Laboratory Automation:Integrated into automated liquid handling systems(pipettes),DNA sequencers,sample positioning stages,and small surgical robot arms requiring fine,reliable linear motion.
Optical and Inspection Systems:Utilized for focusing mechanisms,lens positioning,and precise XY movement of cameras or sensors in microscopes,spectrometers,and automated optical inspection (AOI) stations.
Compact Actuators for Aerospace and Defense:Found in small satellite mechanisms(e.g.,antenna deployment,mirror positioning),drone gimbal controls,and miniaturized guidance system actuators where a high power-to-size ratio is essential.
