Diameter 16mm Lead 2mm T16x2 Trapezoidal Lead Screw

This product shows the models we can produce.

Lead screw material,screw length,screw shaft end machining,screw surface coating,nut shape,nut dimension,nut material will be customized according to your requirements or drawing.

Customized product MOQ: 1pc

Customized product lead time: 10~15days

Model:
T16x2


Availability:



Inquire Add to Basket

Product Description

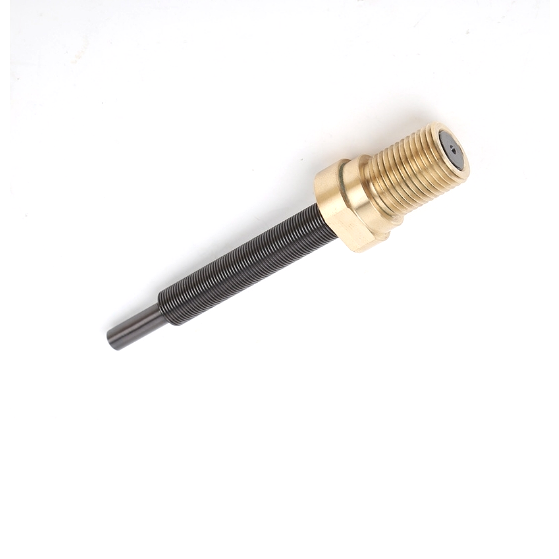

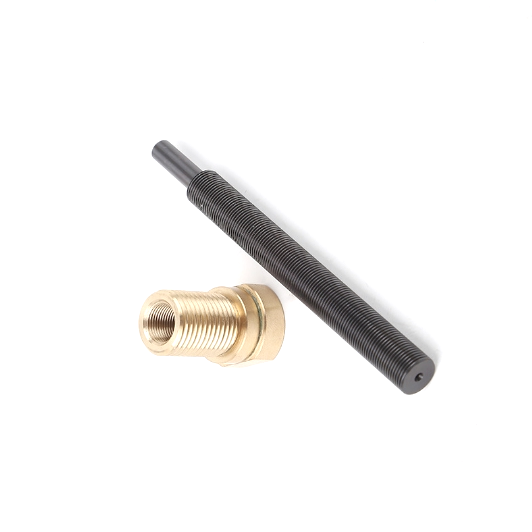

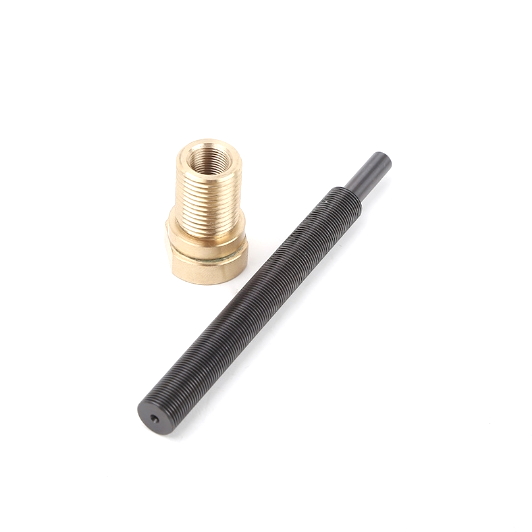

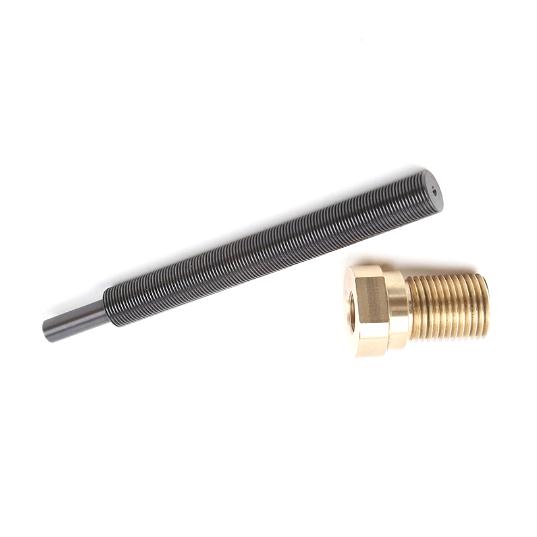

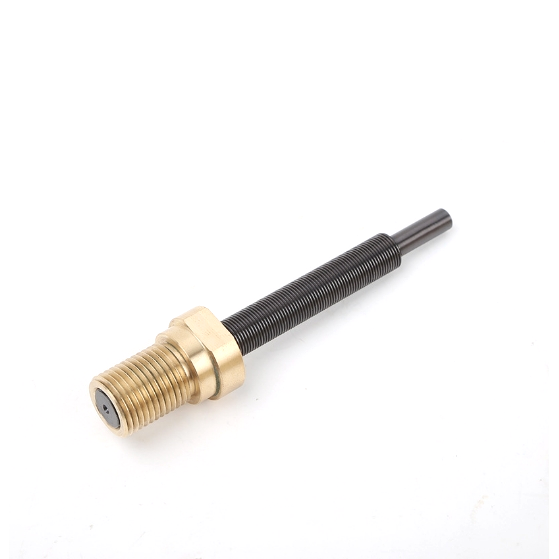

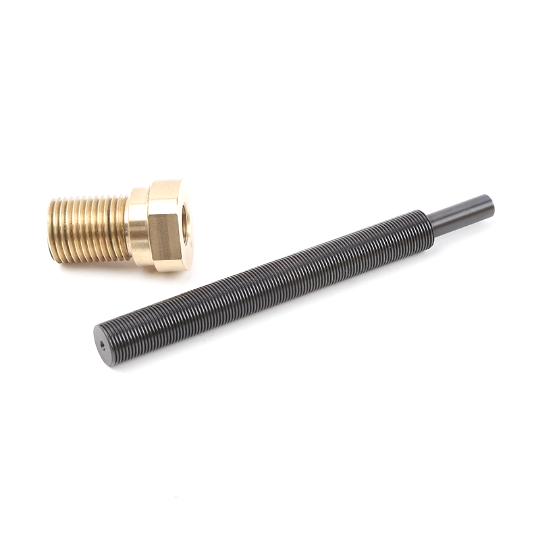

Diameter 16mm Lead 2mm T16x2 Trapezoidal Lead Screw

T16x2 trapezoidal lead screw is a mechanical transmission component with a 16mm diameter and a 2mm lead,designed to convert rotary motion into linear motion.Its trapezoidal thread profile ensures smooth operation and moderate load-bearing capacity.

Diamter	16mm
Lead	2mm
Pitch	1mm
Number of starts	2
Screw shaft end machining and length	According to your requirement or drawing
Nut shape and dimension	Be customized according to your needs
Thread Direction	Right hand thread/left hand thread/right and left hand thread
Screw material	S45C/ SS303/SS304/SS316
Nut material	Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C
Popular surface coatings	Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating.
