Diameter 16mm Lead 4mm T16x4 Trapezoidal Lead Screw

This product shows the models we can produce.

Lead screw material,screw length,screw shaft end machining,screw surface coating,nut shape,nut dimension,nut material will be customized according to your requirements or drawing.

Customized product MOQ: 1pc

Customized product lead time: 10~15days

Model:
T16x4


Availability:



Inquire Add to Basket

Product Description

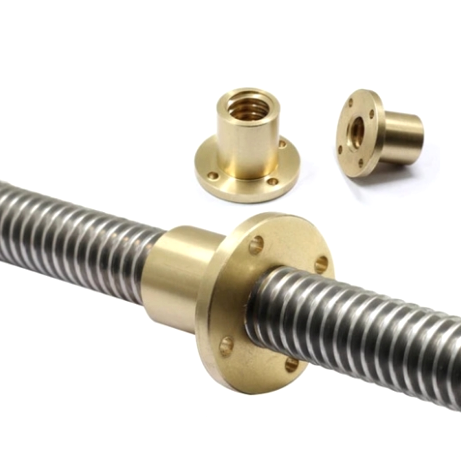

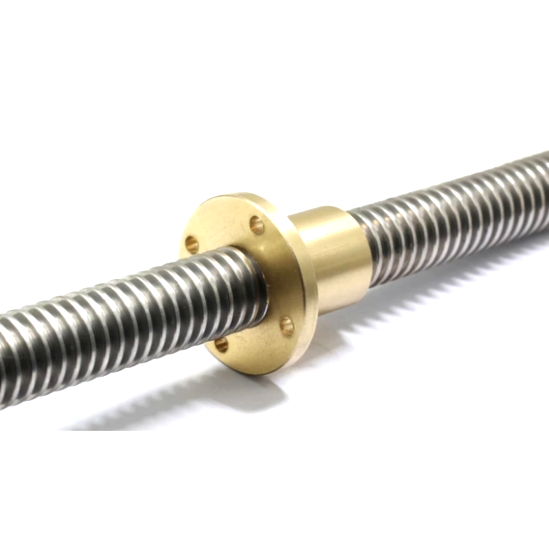

Diameter 16mm Lead 4mm T16x4 Trapezoidal Lead Screw

This trapezoidal screw has a diameter of 16 mm,a lead of 4 mm and a pitch of 4 mm.We offer flexible customized solutions and the Tr16x4 lead screw assembly will be manufactured according to your needs.

Diamter	16mm
Lead	4mm
Pitch	4mm
Number of starts	1
Screw shaft end machining and length	According to your requirement or drawing
Nut shape and dimension	Be customized according to your needs
Thread Direction	Right hand thread/left hand thread/right and left hand thread
Screw material	S45C/ SS303/SS304/SS316
Nut material	Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C
Popular surface coatings	Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating.
