T4x1

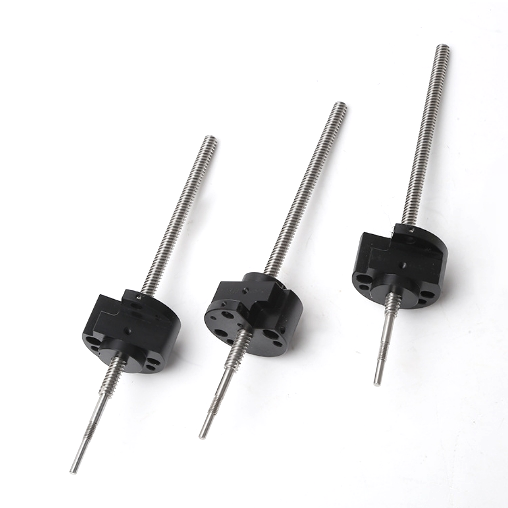

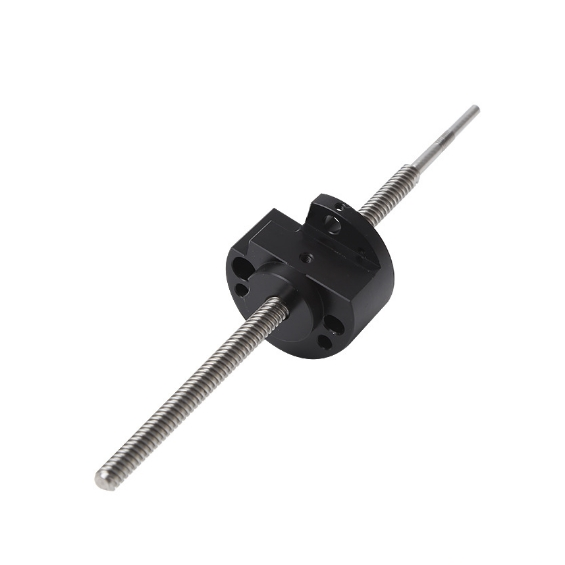

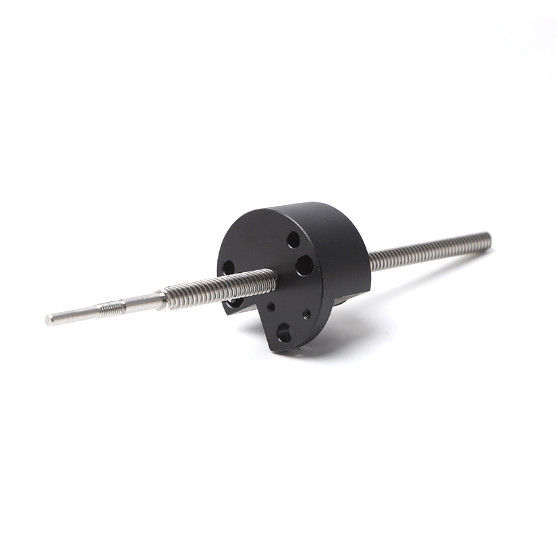

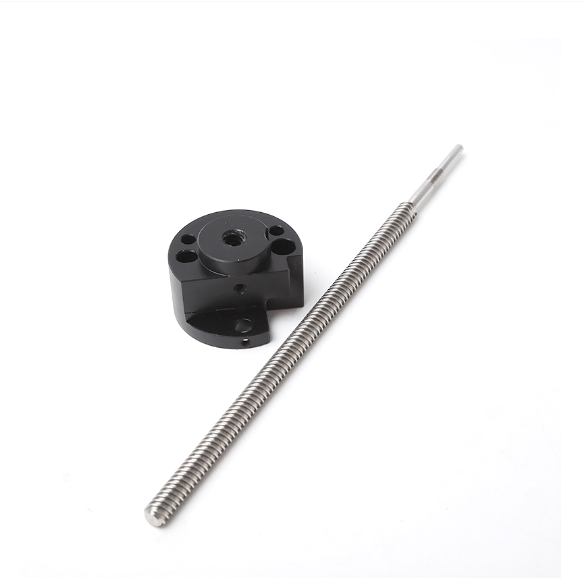

Diameter 4mm Lead 1mm Tr4x1 Trapezoidal Screw
Tr4x1 lead screw diameter is 4mm,lead 1mm,pitch 1mm.The lead screw and nuts are produced according to your requirements or drawing.
Diamter | 4mm |
Lead | 1mm |
Pitch | 1mm |
| Number of starts | 1 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
Contact our sales to customize your trapezoid screw and nut!
