Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:Lead screws and nuts will be custom-produced according to your requirements or drawings

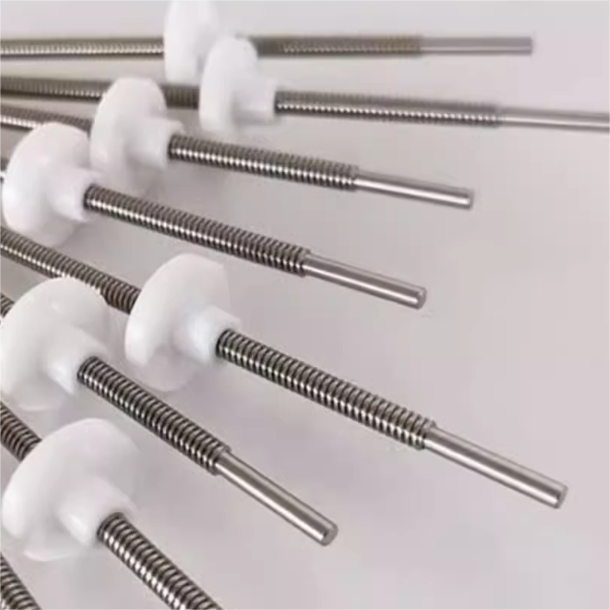

T4x2 Diameter 4mm Lead Screw Rod with POM Flange Nut
The lead screw diameter is 4mm,lead is 2mm,pitch is 1mm.The flanged nut design ensures even load distribution and simplifies installation in space-constrained setups.Self-lubricating POM nut ensures low friction operation and prolonged lead screw longevity.
Diameter | 4mm |
Lead | 2mm |
Pitch | 1mm |
| Number of starts | 2 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | According to your needs |
Thread Direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
T4x2 lead screw advantages:
Cost-Effective:30% cost savings.
Fast Delivery: Within 12 days.
Customized Service:Lead screws and nuts will be produced according to your requirements.Just send the requirements or drawings.
Compact and Space-Saving:Slim 4mm diameter screw and low-profile nut optimize space utilization in miniature systems.
Contact our sales to customize your 4x2 trapezoid screw and nut!
