HKR3000A

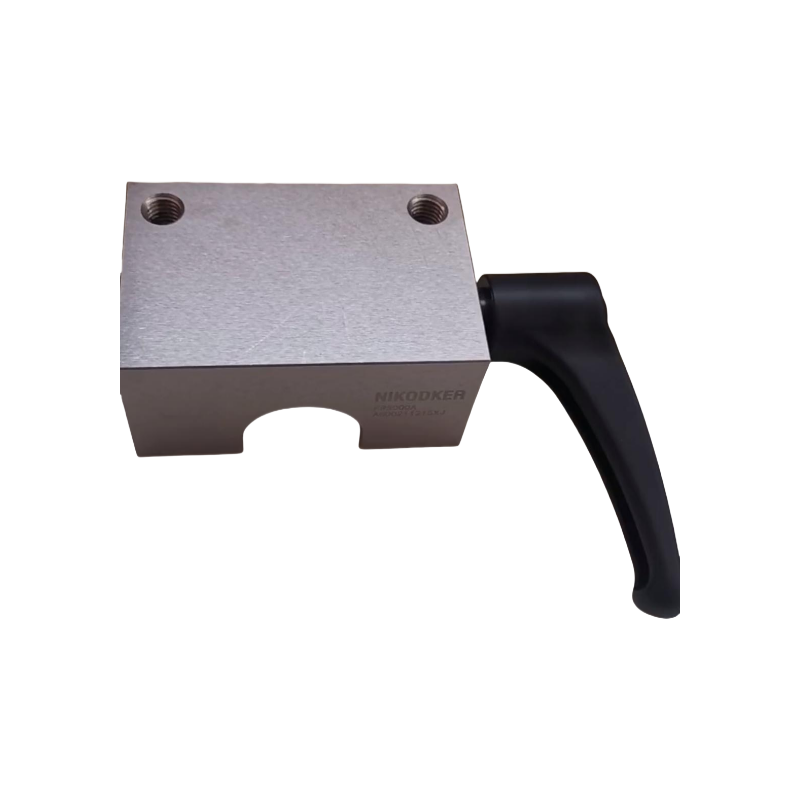

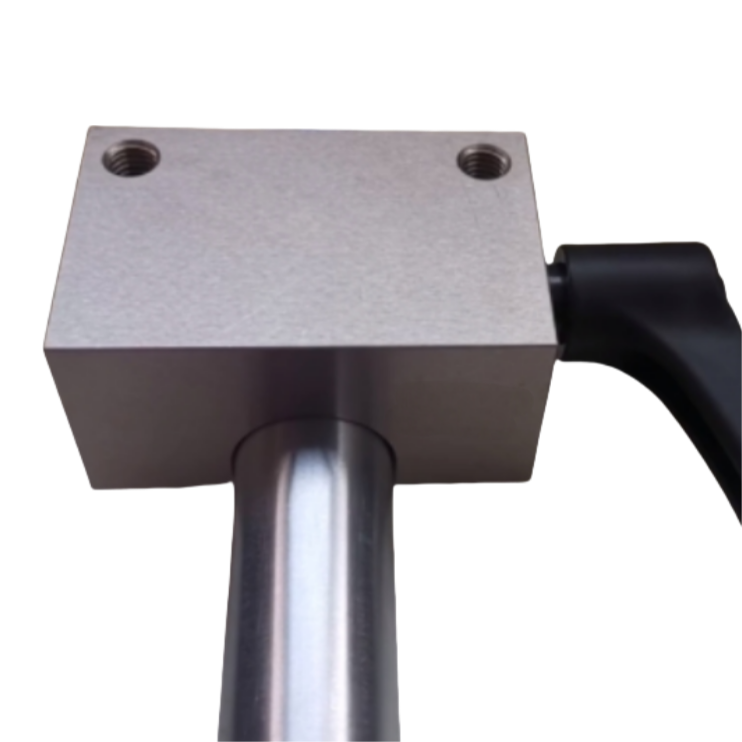

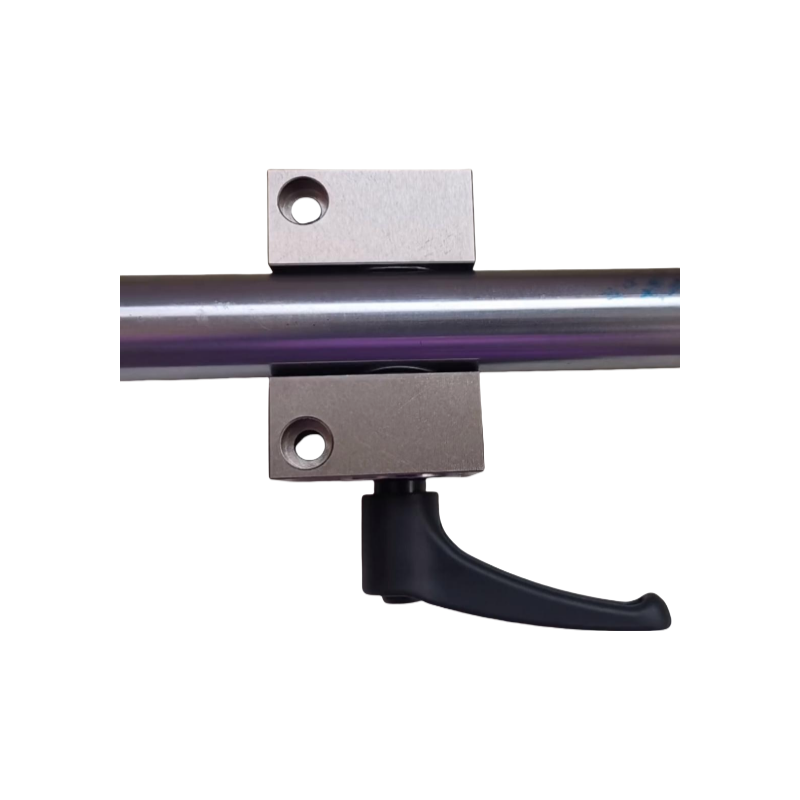

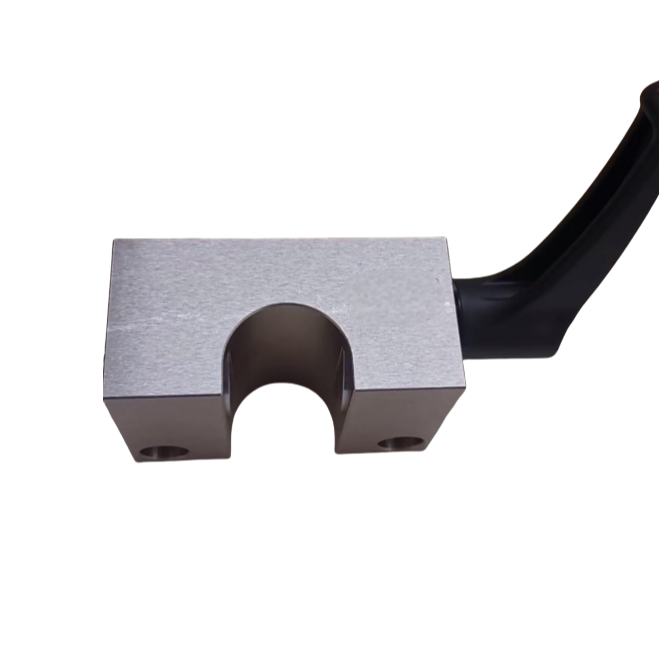

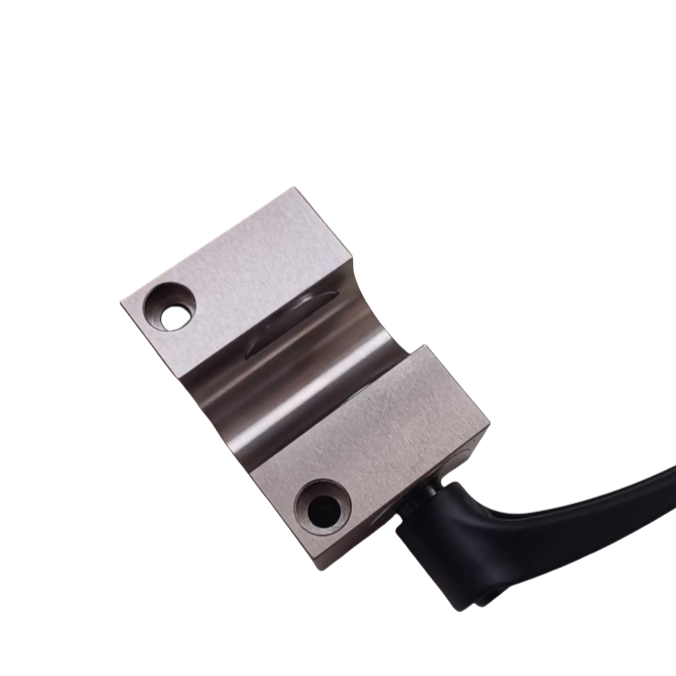

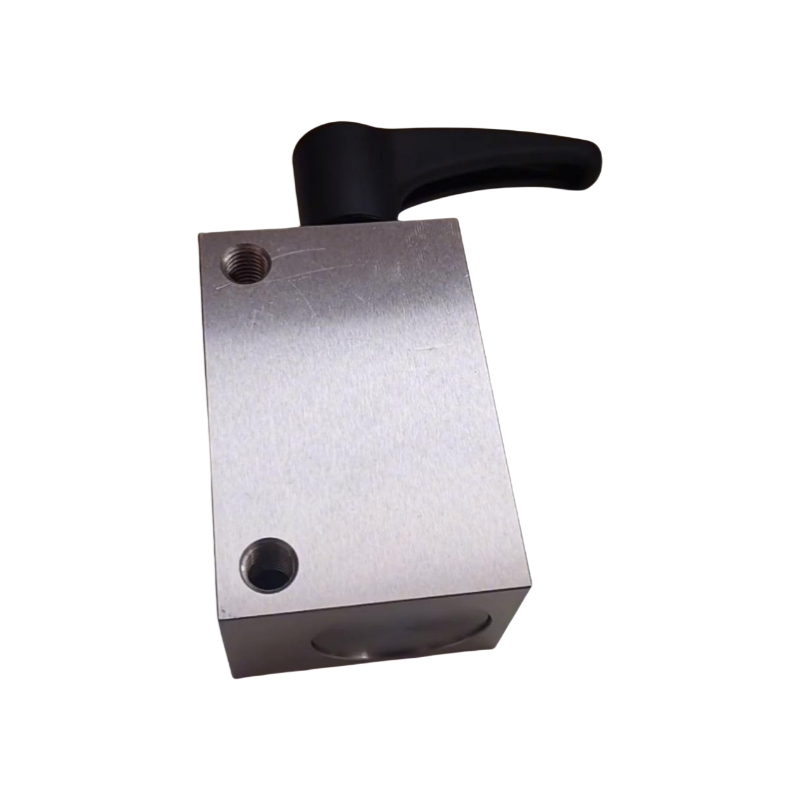

HKR3000A Linear Shaft Clamping Element
This manual clamp is used for 30mm linear shafts.HKR3000A clamping element can be used for fixing slide,positioning and preventing vibration.
| Clamp Types | Manual |
| Shaft diameter | 30mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0° ~70 °C |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
HKR3000A Linear Shaft Clamping Element
This manual clamp is used for 30mm linear shafts.HKR3000A clamping element can be used for fixing slide,positioning and preventing vibration.
| Clamp Types | Manual |
| Shaft diameter | 30mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0° ~70 °C |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
