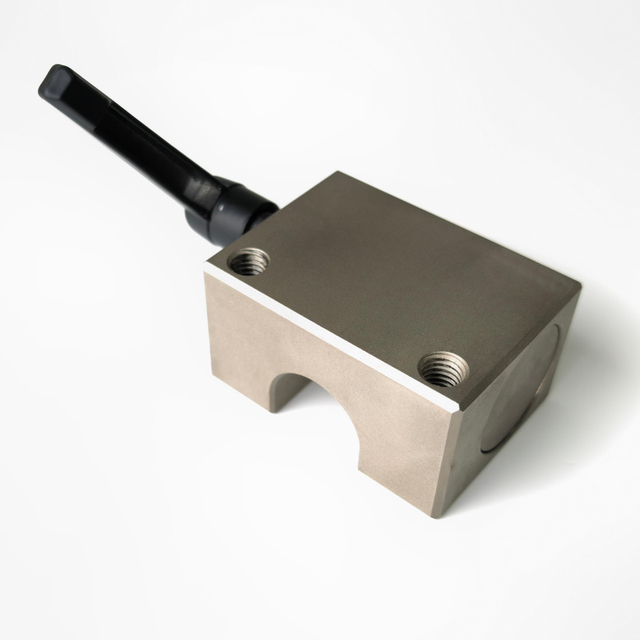

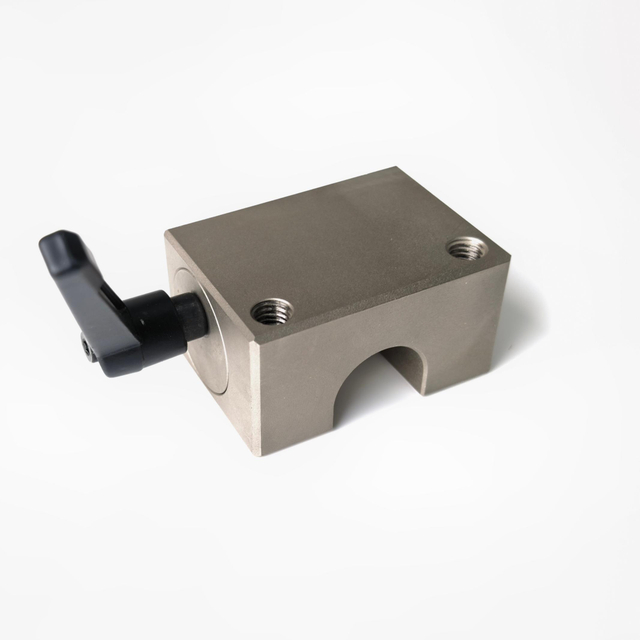

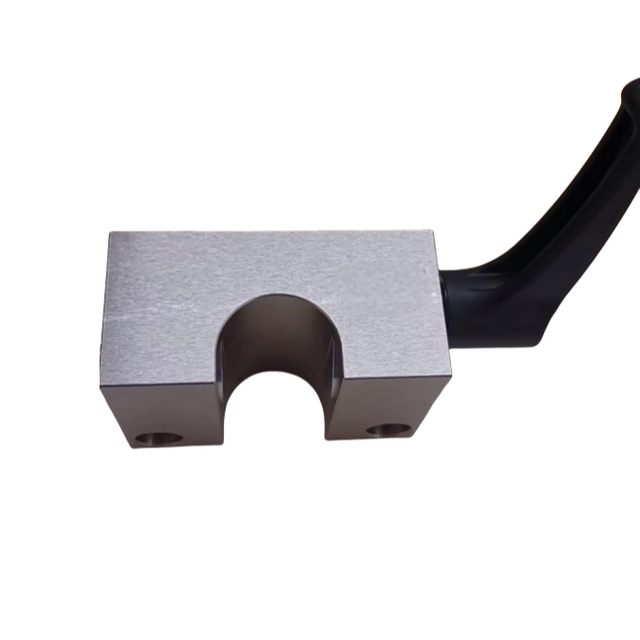

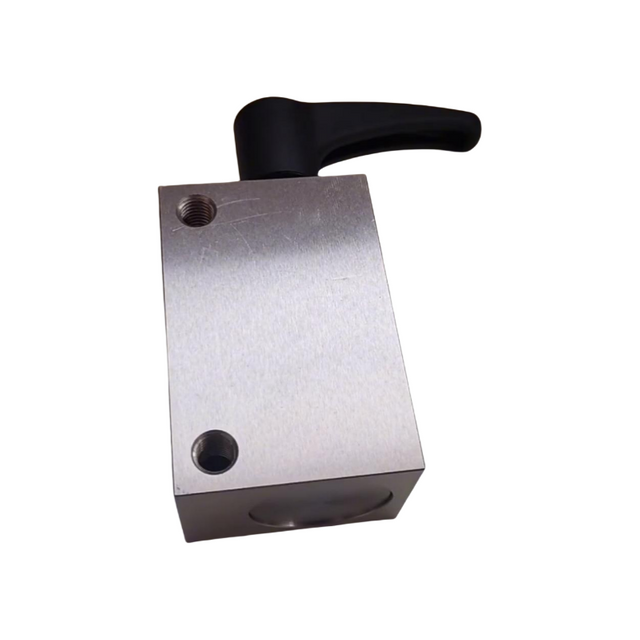

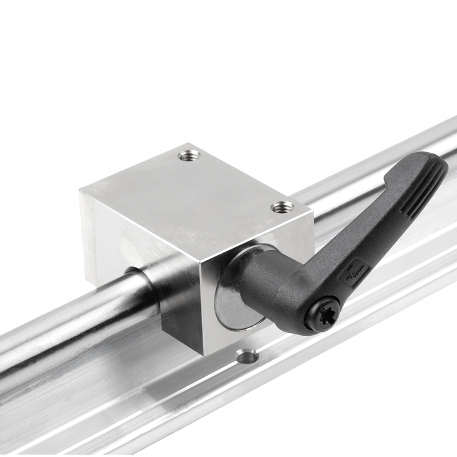

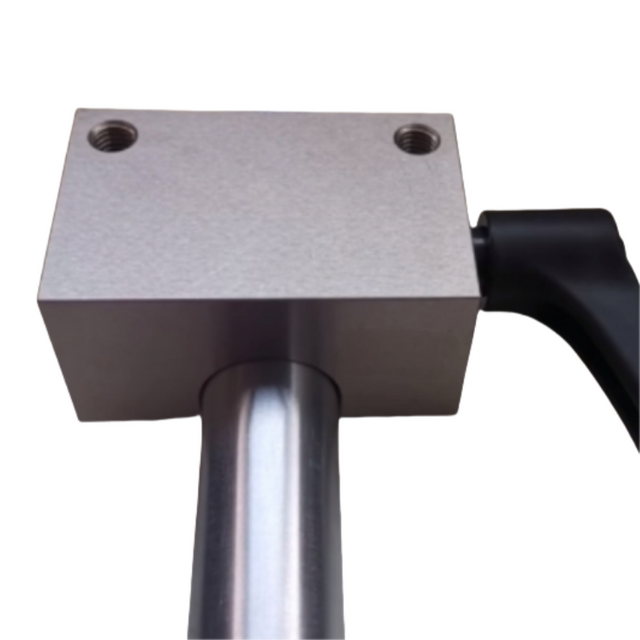

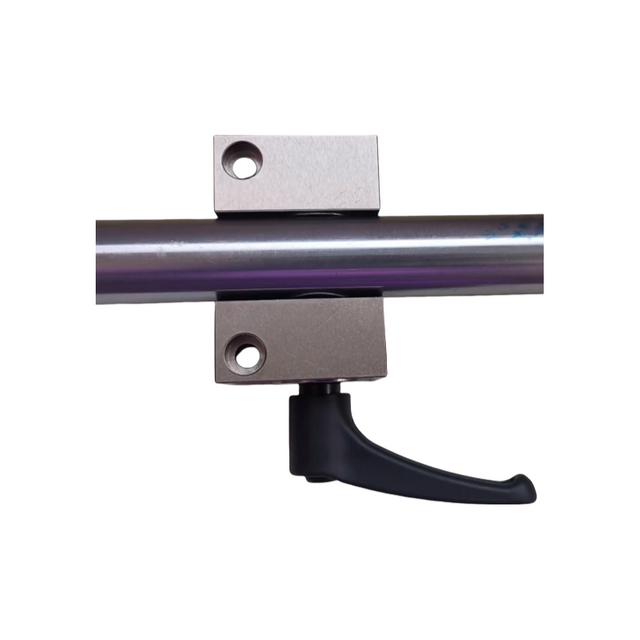

We are a professional manufacturer dedicated to producing high-performance clamping elements.Our RSD series manual clamping element is specially designed for linear shafts with shaft diameters ranging from 12mm to 60mm.This manual clamping element locks sliding tables tightly for precise positioning and anti-vibration.
As a cost-effective alternative to HKR series clamping units,our RSD model cuts your purchasing cost by 50%~70%,with a short production lead time of only 10days.It features compact construction and can be quickly mounted onto your existing linear motion systems without complicated modification.
RSD Series Manual Clamping Element Features
-Suitable for linear shaft assemblies
-Manual lever clamping design
-Locks slide units firmly for accurate positioning and anti-vibration
-Economical cost, greatly cutting your procurement expense
-Works well on all round guide shafts
-Compact structure, quick installation on your current automation system

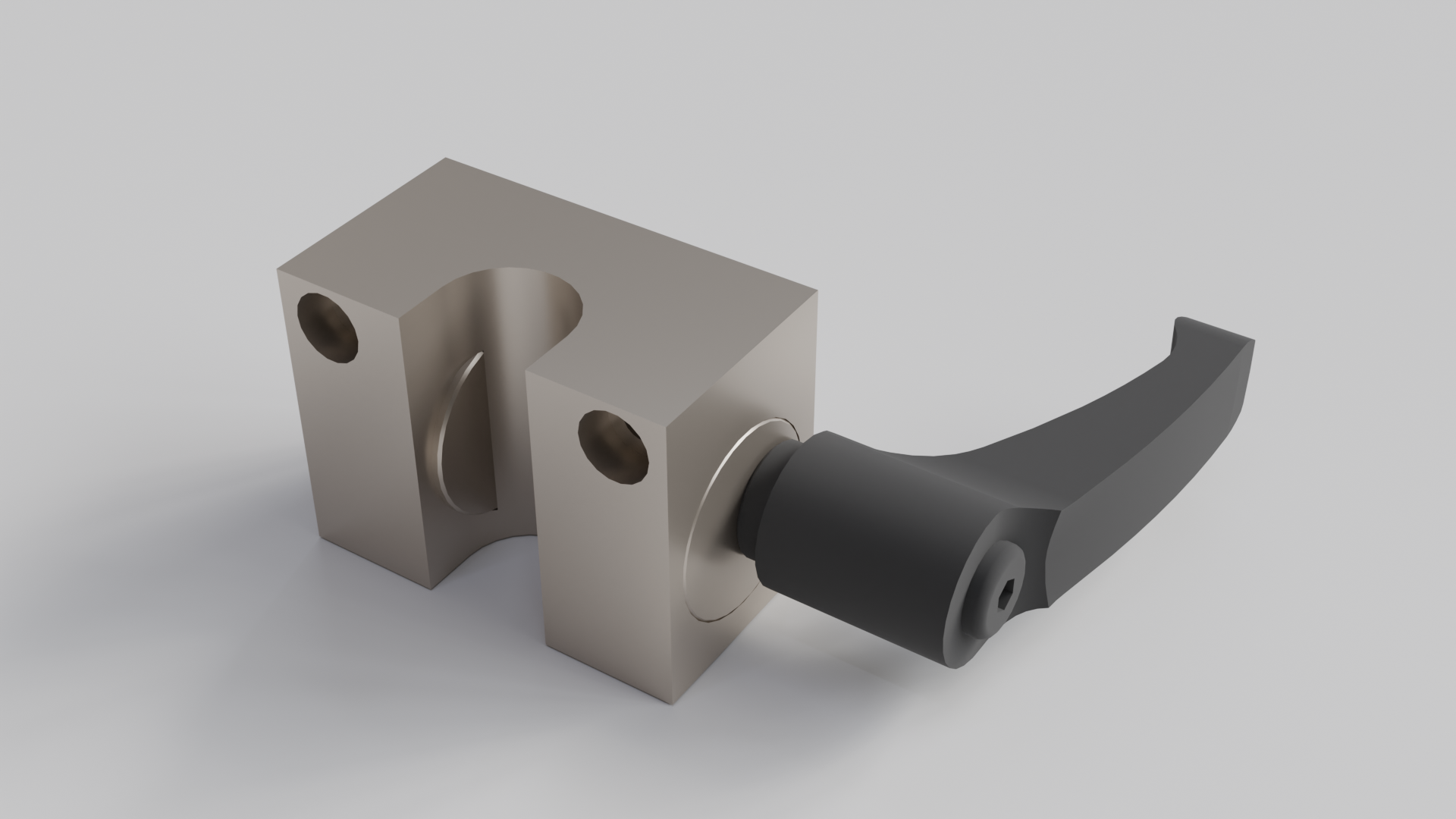

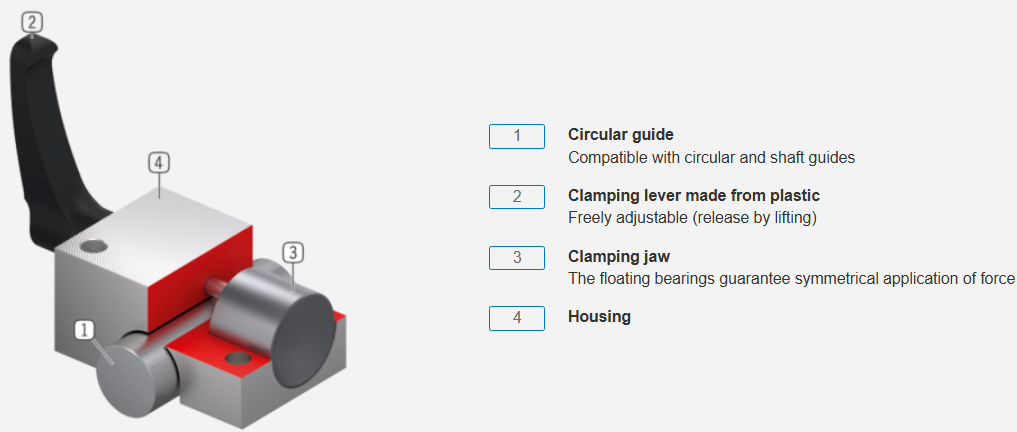

RSD Manual Linear Shaft Clamp Structure

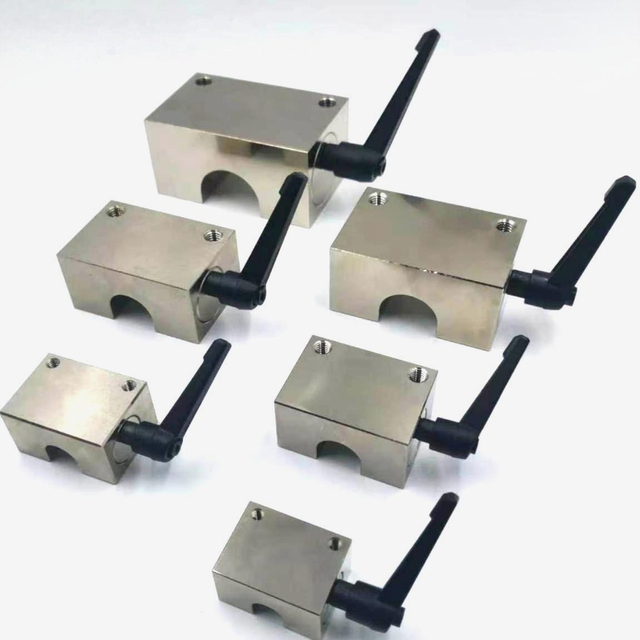

RSD Clamping Element Rated Holding Force
| Shaft Ø | Model number | Rated holding force(N) | Tightening torque（N・m） |
| 12mm | RSD12 | 1200 | 5 |
| 16mm | RSD16 | 1200 | 5 |
| 20mm | RSD20 | 1200 | 7 |
| 25mm | RSD25 | 1200 | 7 |
| 30mm | RSD30 | 2000 | 12 |
| 40mm | RSD40 | 2000 | 17 |
| 50mm | RSD50 | 2000 | 17 |
| 60mm | RSD60 | 2000 | 17 |

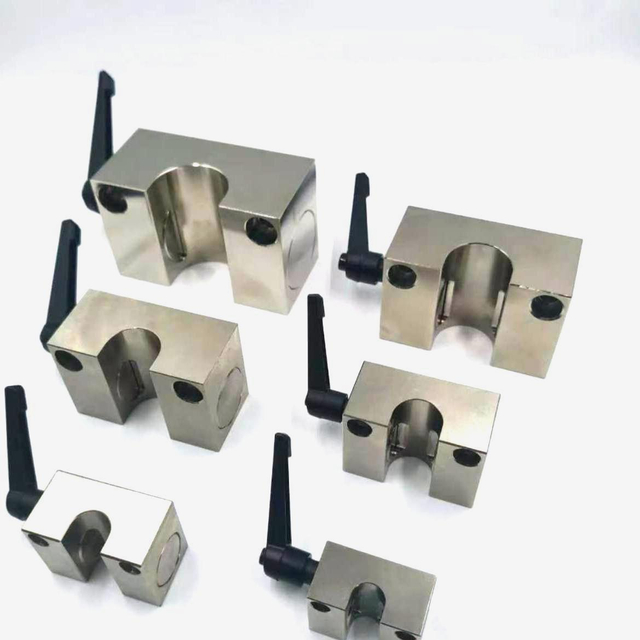

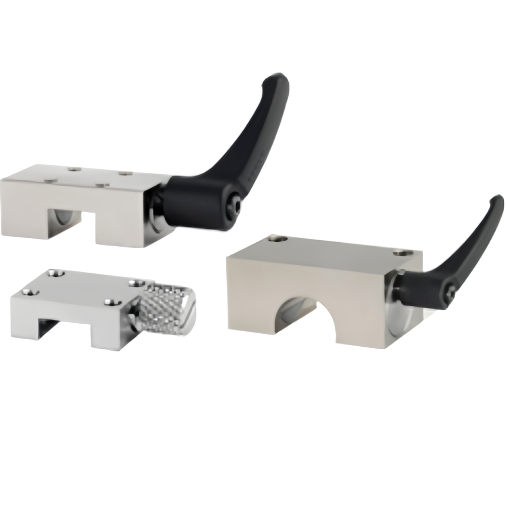

Various Handles Available,Select Suitable One While Ordering
We offer a variety of manual linear guide clamp handles.Below are our most popular styles.If you need any other custom handles, please contact our sales team.
Download 2D Drawings for RSD Series Manual Clamping Elements
RSD12 Manual Clamping Element.png
RSD16 Manual Clamping Element.png
RSD20 Manual Clamping Element.png
RSD25 Manual Clamping Element.png
RSD30 Manual Clamping Element.png
RSD40 Manual Clamping Element.png
RSD50 Manual Clamping Element.png
RSD60 Manual Clamping Element.png
