Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:M10x0.5 screw and nut will be produced according to your requirements or drawings

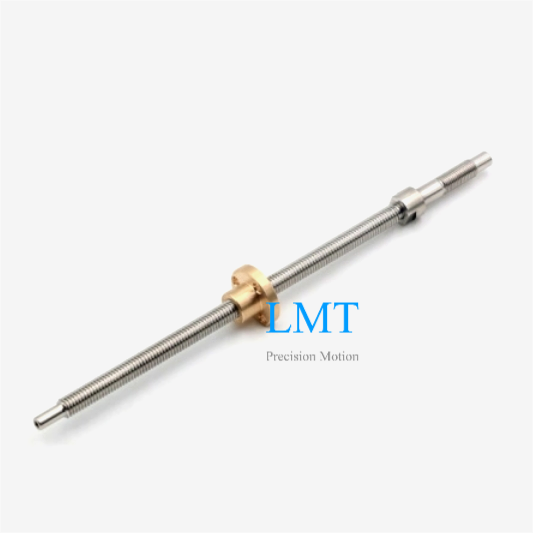

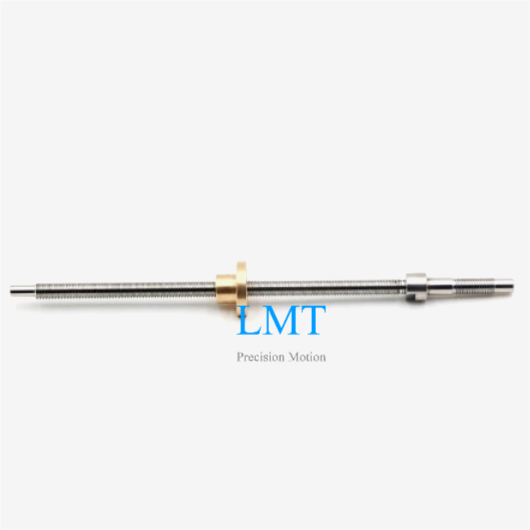

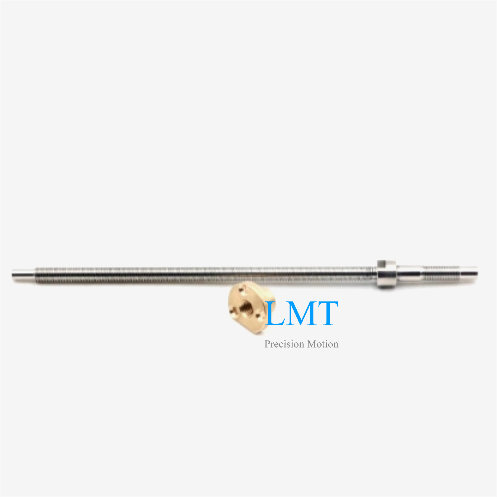

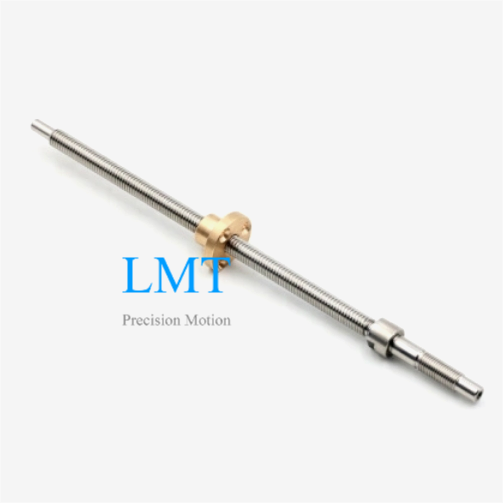

M10x0.5 Metric Thread Lead Screw with Brass Flange Nut
This miniature high-precision lead screw features a 10mm diameter and ultra-fine 0.5mm thread pitch for exceptional accuracy.Engineered with triangular threads on an ultra-smooth shaft,it delivers exceptionally low friction and smooth,precise linear motion.The wear-resistant brass flange nut ensures even load distribution,minimizes wear,and simplifies installation.Ideal for space-constrained,high-precision applications requiring reliable micron-level movement.
Specification:
Diameter | 10mm |
Lead | 0.5mm |
Pitch | 0.5mm |
| Number of starts | 1 |
Thread direction | RH |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
M10x0.5 Lead Screw and Nut Advantages:
Cost-effective:15% ~40% cost savings.
Fast Delivery:Within 12 days.
Customized Service:M10x0.5 lead screw and nut will be manufactured according to your requirements.
M10x0.5 Metric Thread Lead Screw with Brass Flange Nut
This miniature high-precision lead screw features a 10mm diameter and ultra-fine 0.5mm thread pitch for exceptional accuracy.Engineered with triangular threads on an ultra-smooth shaft,it delivers exceptionally low friction and smooth,precise linear motion.The wear-resistant brass flange nut ensures even load distribution,minimizes wear,and simplifies installation.Ideal for space-constrained,high-precision applications requiring reliable micron-level movement.
Specification:
Diameter | 10mm |
Lead | 0.5mm |
Pitch | 0.5mm |
| Number of starts | 1 |
Thread direction | RH |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
M10x0.5 Lead Screw and Nut Advantages:
Cost-effective:15% ~40% cost savings.
Fast Delivery:Within 12 days.
Customized Service:M10x0.5 lead screw and nut will be manufactured according to your requirements.
