Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:8x15 trapezoidal screw and nut will be produced according to your requirements or drawings

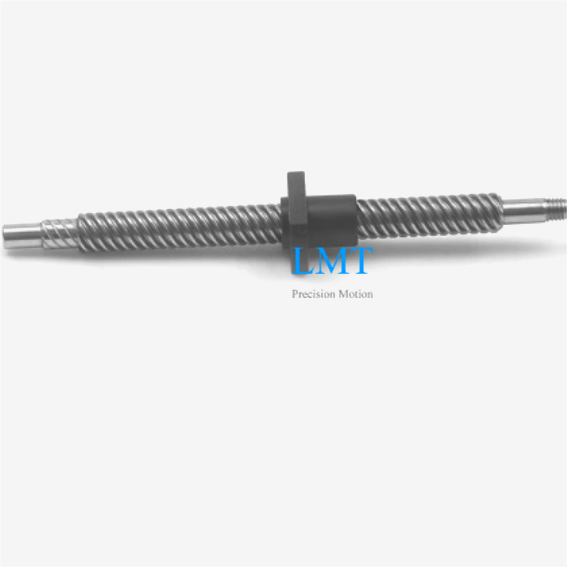

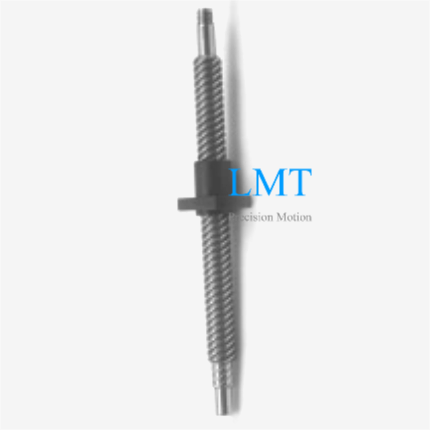

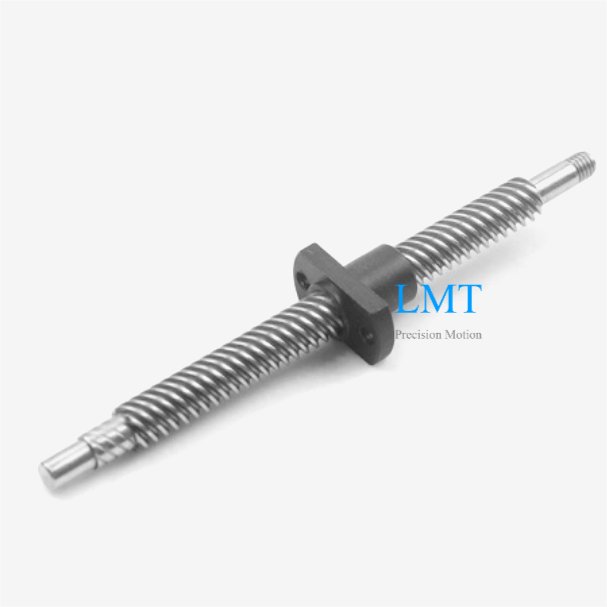

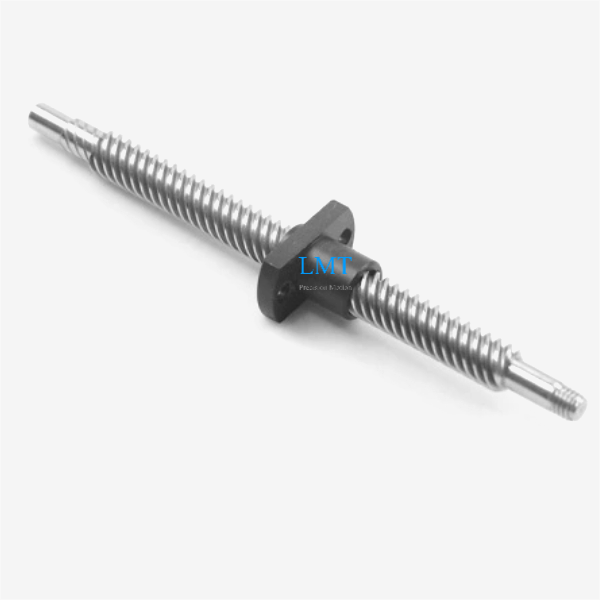

T8x15 High Speed Rolled Trapezoidal Lead Screw with Plastic Nut

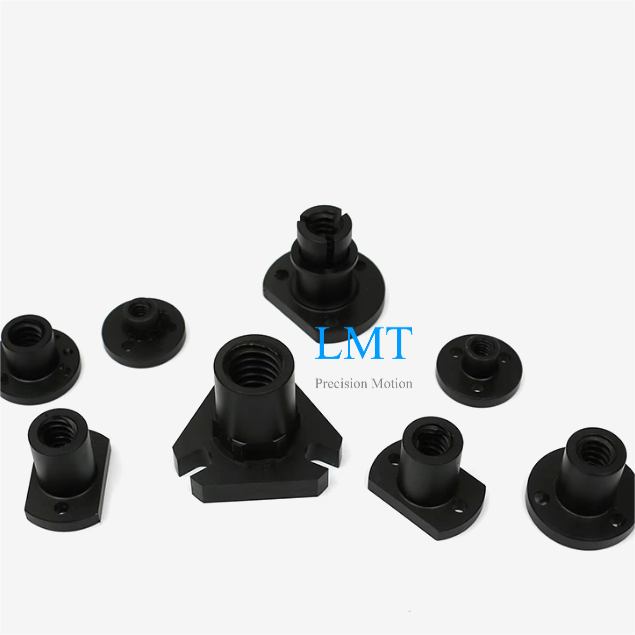

Discover our high-performance 8mm diameter trapezoidal lead screws,delivering precise 15mm linear travel per single rotation.Manufactured using a superior cold-rolled process,these T8x15 lead screws boast an exceptionally smooth surface finish.This ensures quiet,vibration-free operation even at high speeds.Paired with lightweight,maintenance-free plastic nuts(available in durable POM,high-temperature PEEK,or economical Nylon),this combination offers reliable motion,excellent wear resistance,and eliminates lubrication needs.
Specification:
Diameter | 8mm |
Lead | 15mm |
Pitch | 2.5mm |
| Number of starts | 6 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |

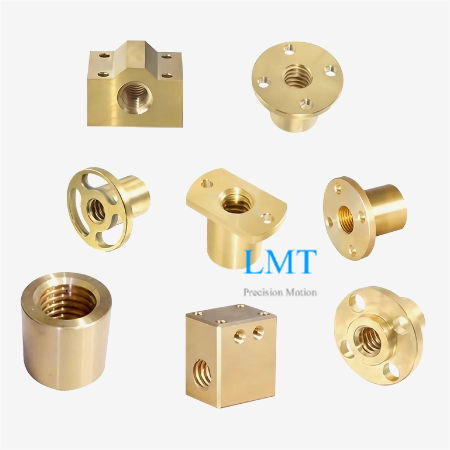

Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
T8x15 Trapezoidal Lead Screw and Nut Advantages:
Cost-effective:15% ~40% cost savings.
Fast Delivery:Within 12 days.
Customized Service:The 8x15 lead screw and nut will be manufactured according to your requirements.
High-Speed Performance: The large 15mm lead means significantly fewer rotations are needed to cover long distances.
Superior Surface & Precision:Advanced cold-rolling technology creates an ultra-smooth,hardened surface for low friction,consistent performance,and extended lifespan.
Upgrade your system with smooth,silent,and efficient 8mm diameter lead screws featuring 15mm lead and versatile plastic nut options.
