RSD12

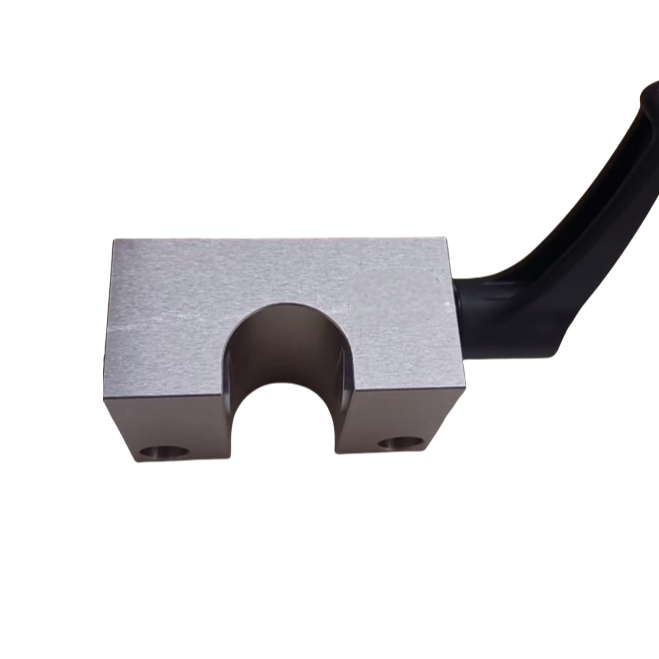

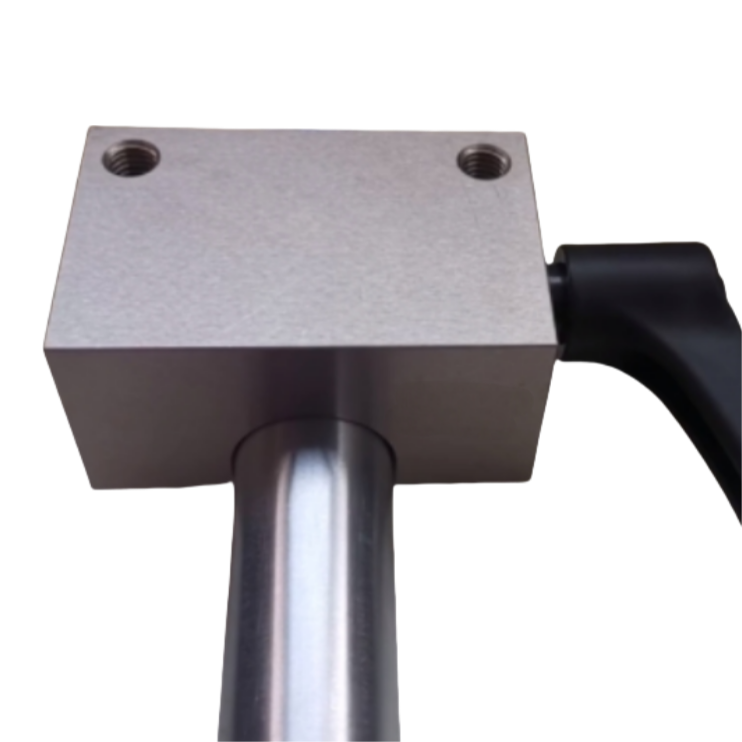

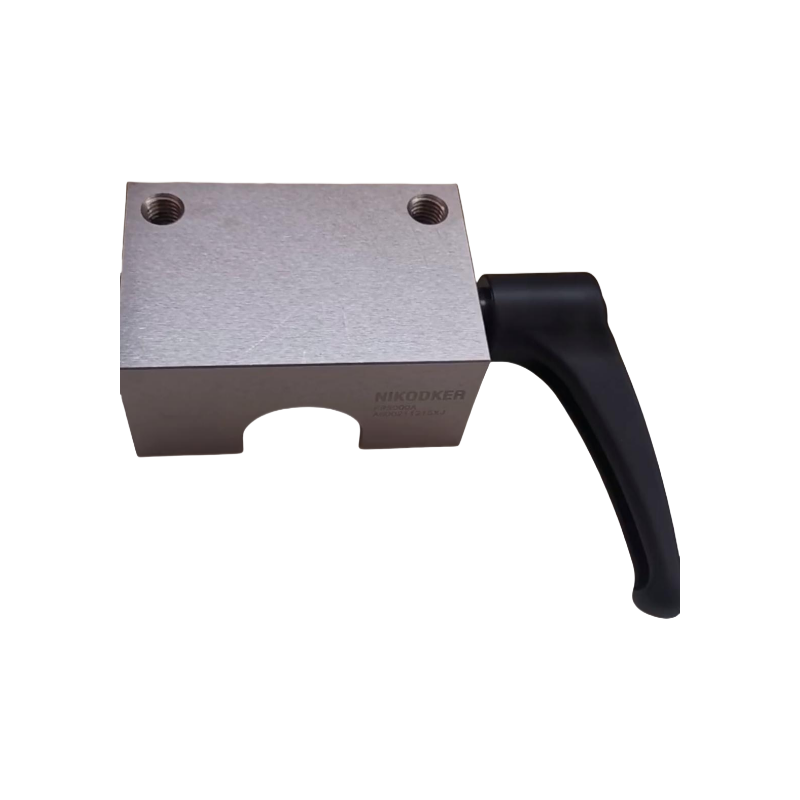

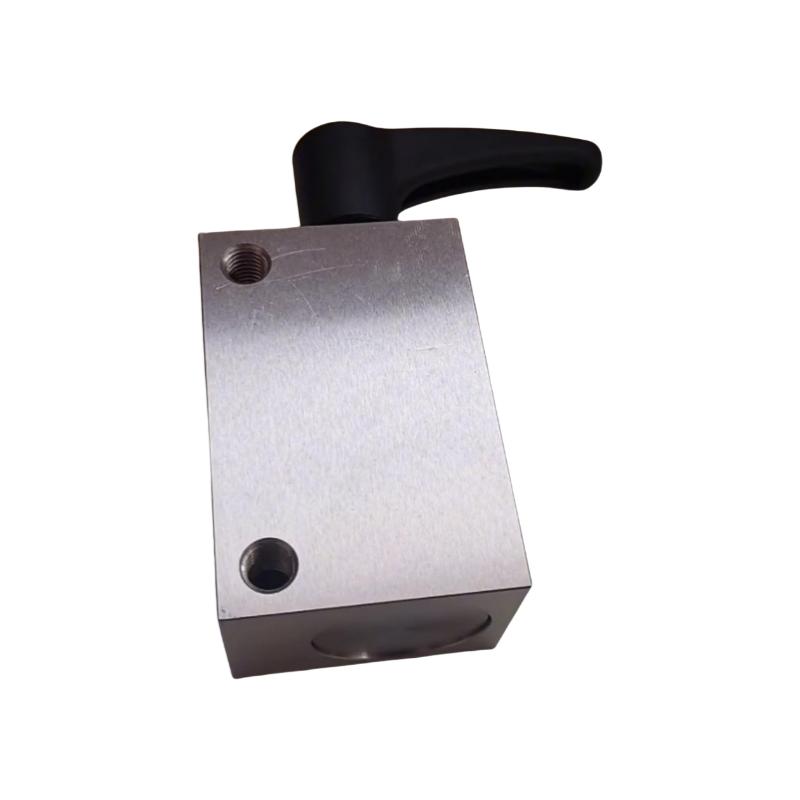

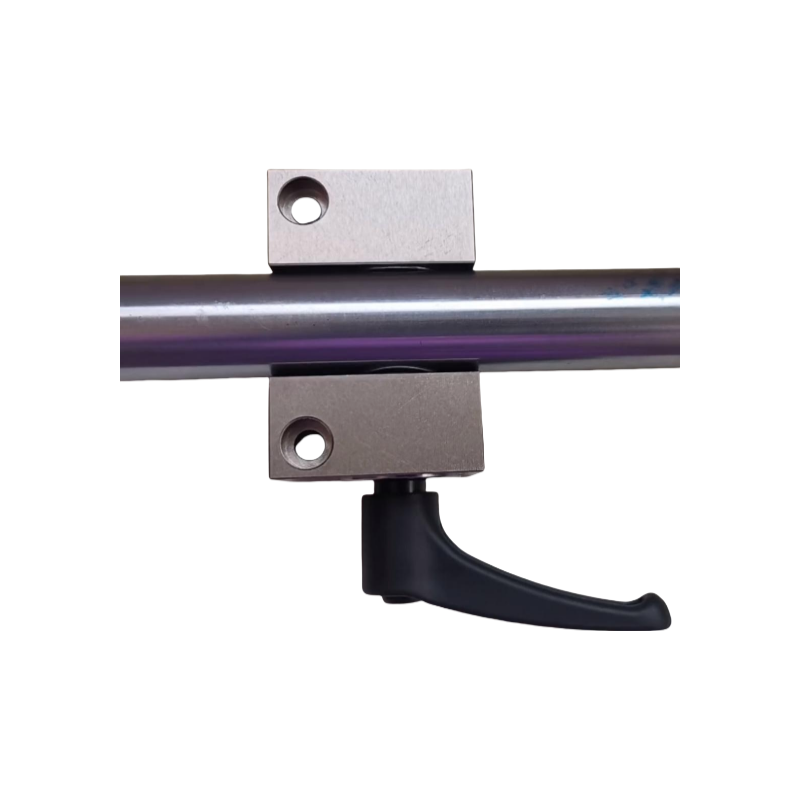

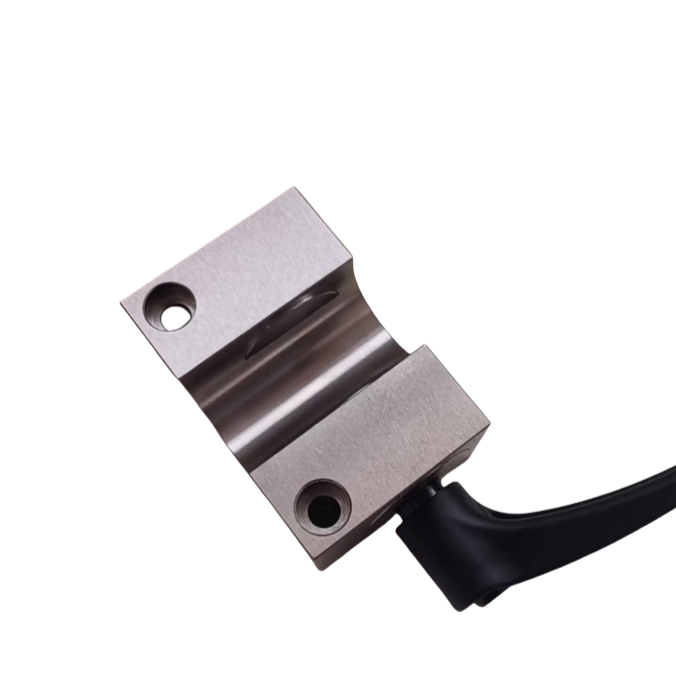

Manual Diameter 12mm Linear Shaft Clamping Element
This is a manual type clamp for 12mm diameter linear shafts.The clamping element can be used for fixing slide,positioning and preventing vibration.
| Clamp Types | Manual |
| Shaft diameter | 12mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0° ~70 °C |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
Manual Diameter 12mm Linear Shaft Clamping Element
This is a manual type clamp for 12mm diameter linear shafts.The clamping element can be used for fixing slide,positioning and preventing vibration.
| Clamp Types | Manual |
| Shaft diameter | 12mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0° ~70 °C |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
