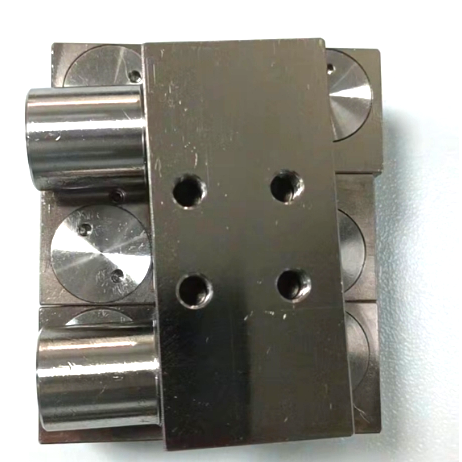

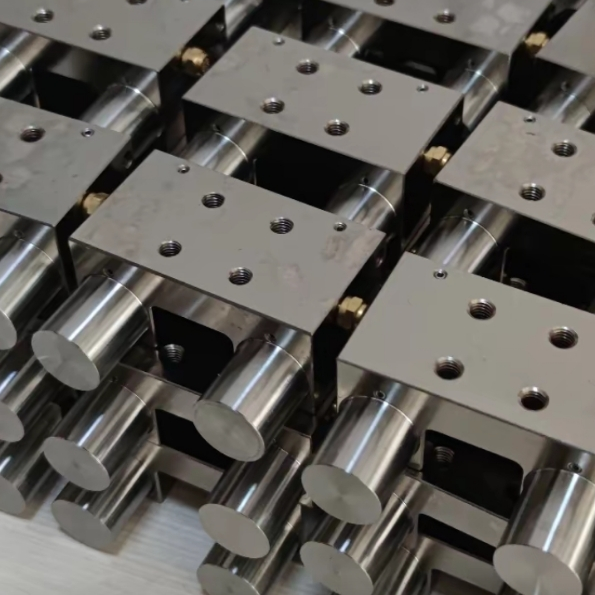

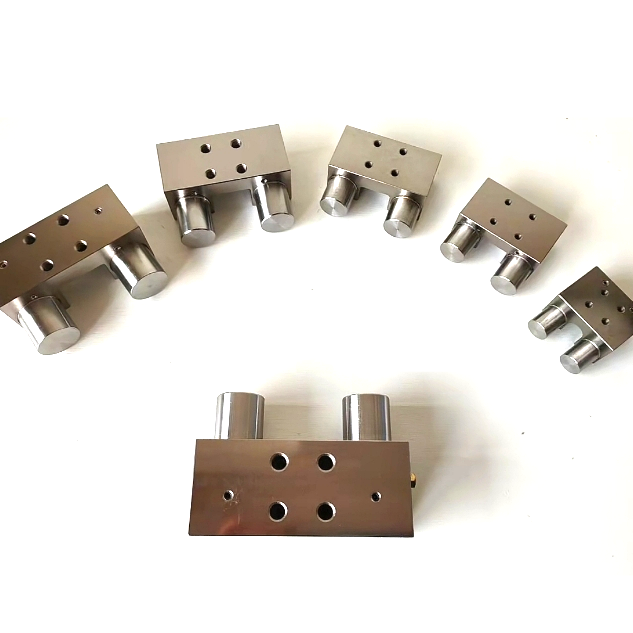

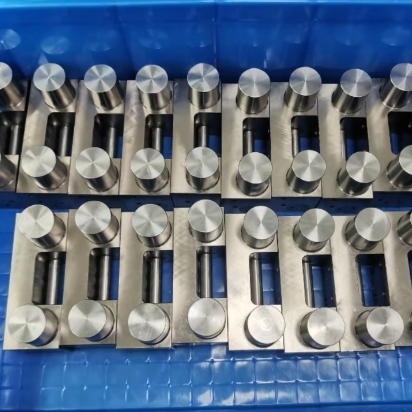

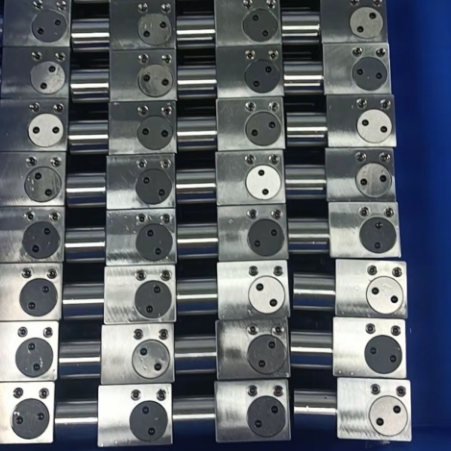

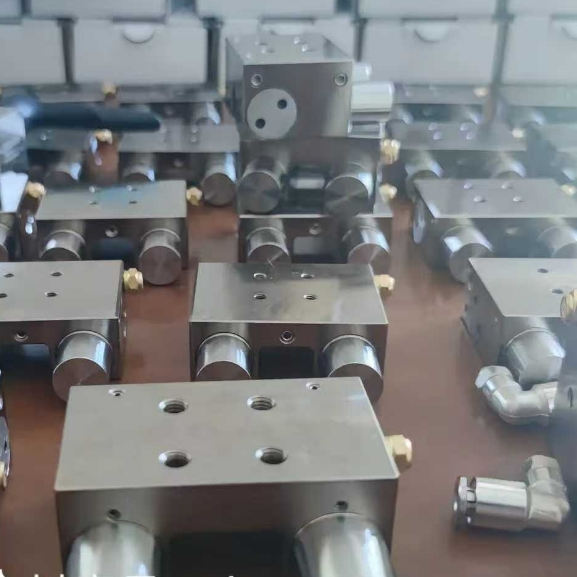

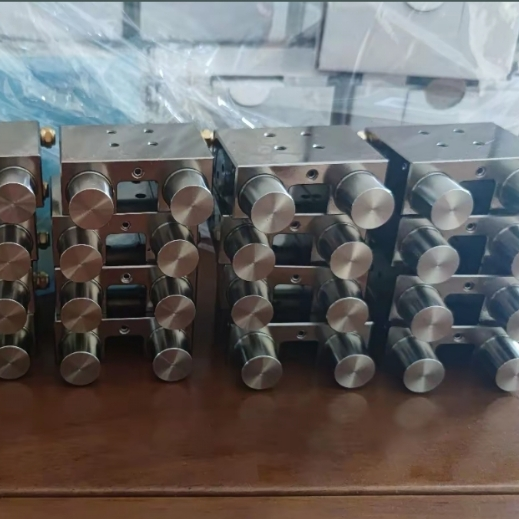

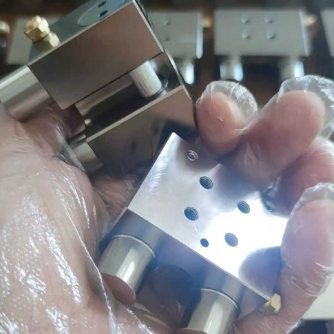

MKS1501A Pneumatic Linear Guide Rail Clamp Brake
Compatible with 15mm ball linear rails,MK1501A pneumatic linear rail brake is widely used in automation,CNC machinery,and precision equipment where vibration control and positional accuracy are critical.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 15mm |
| Rated holding force(N) | 400/1050N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
