LMKS35B

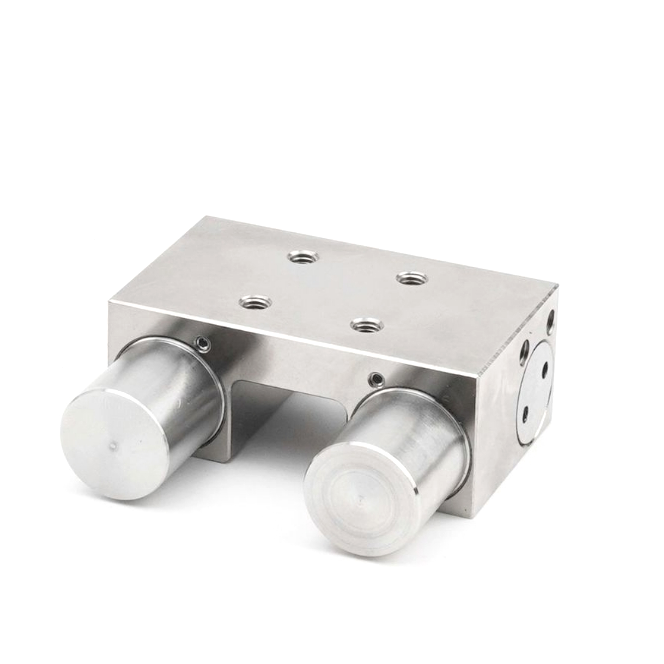

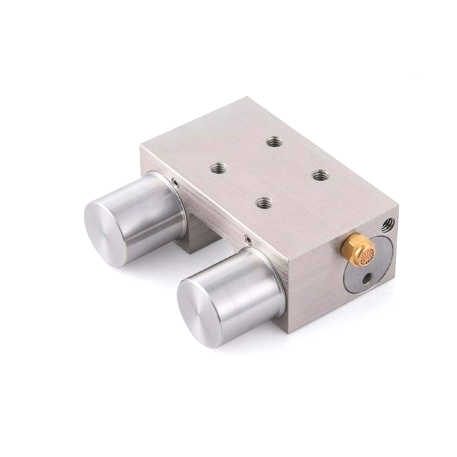

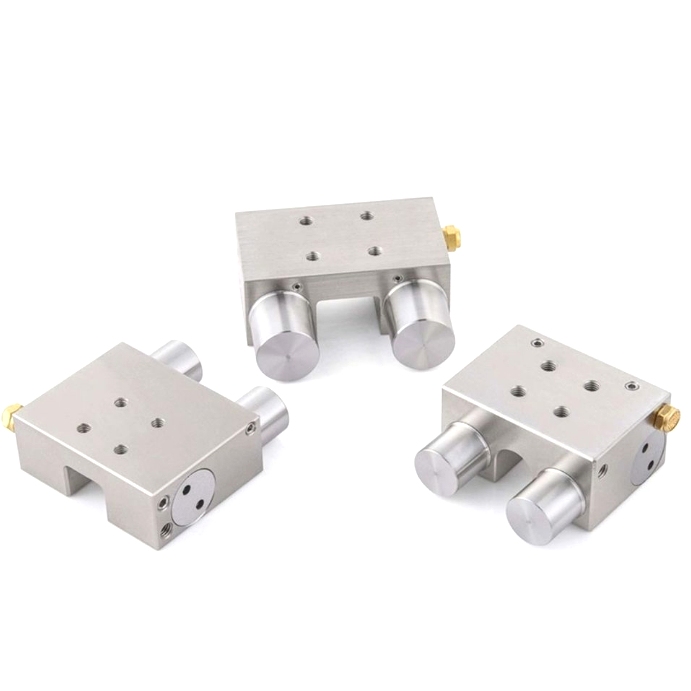

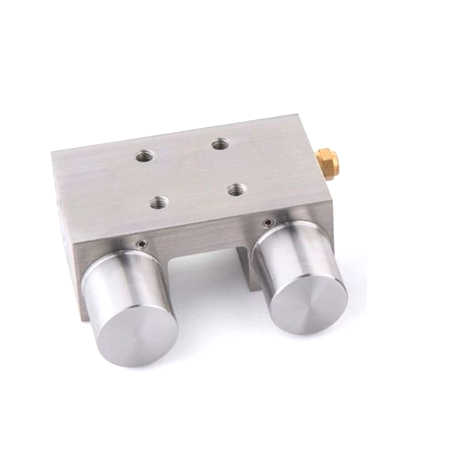

Normally Close THK HIWIN 35mm Linear Rail Pneumatic Clamping
This normally close clamp is suitable for THK HIWIN brand 35mm ball linear guides.When there is air pressure,the clamping is released; when there is no air pressure,the linear rail is clamped by spring force.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 35mm |
| Rated holding force(N) | 1250/3250N(Standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Pneumatic Clamp Dimension
Contact our sales to get a quote!
