LMKS55B

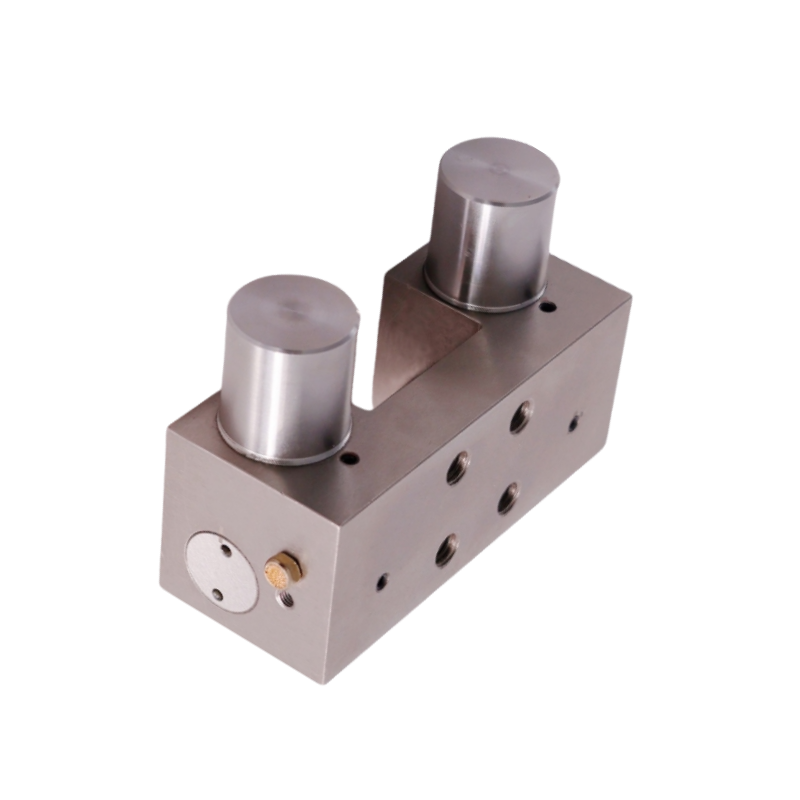

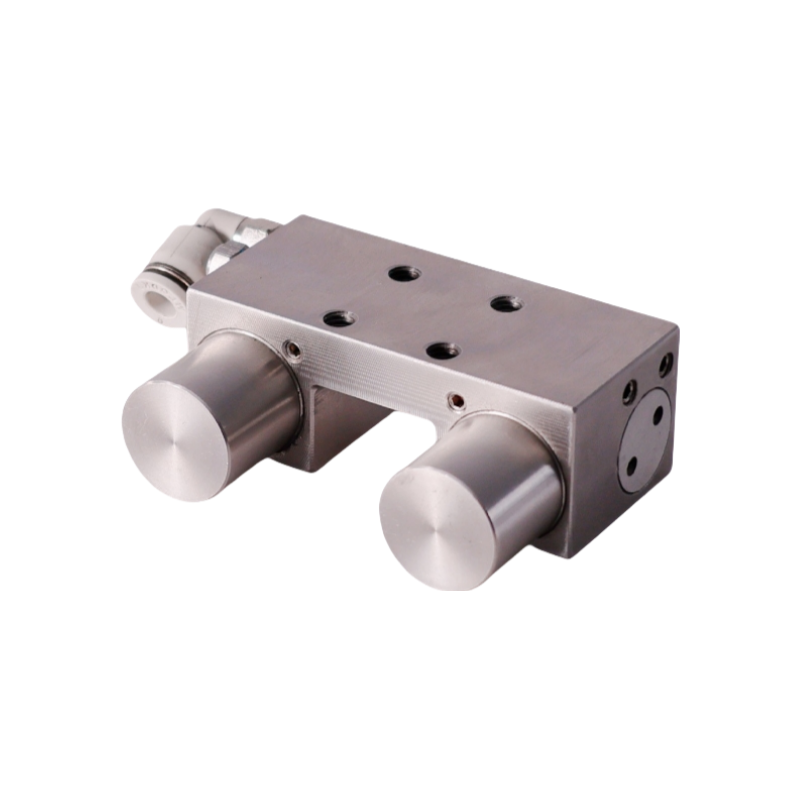

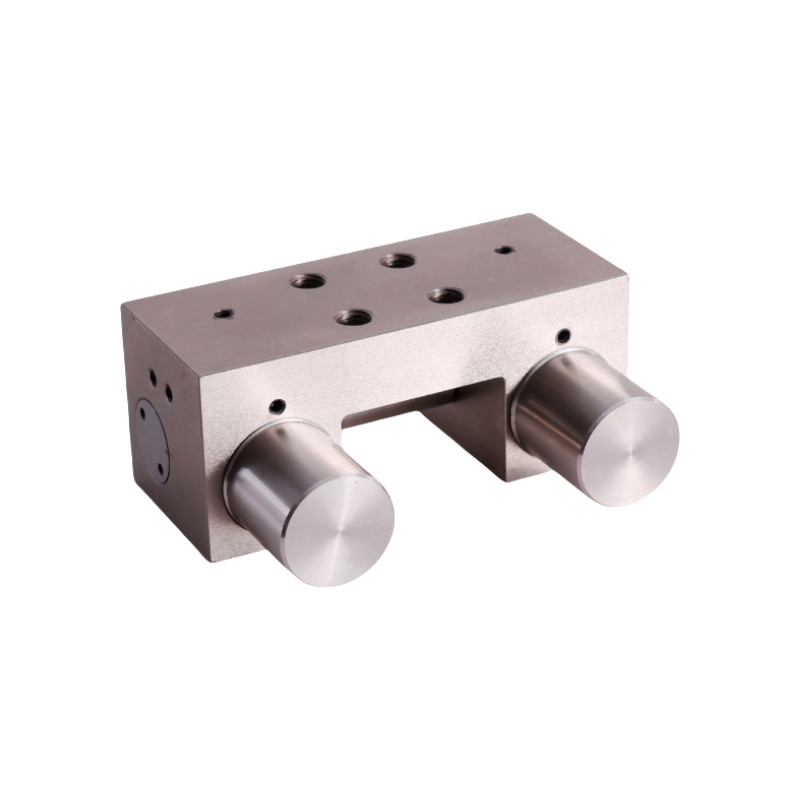

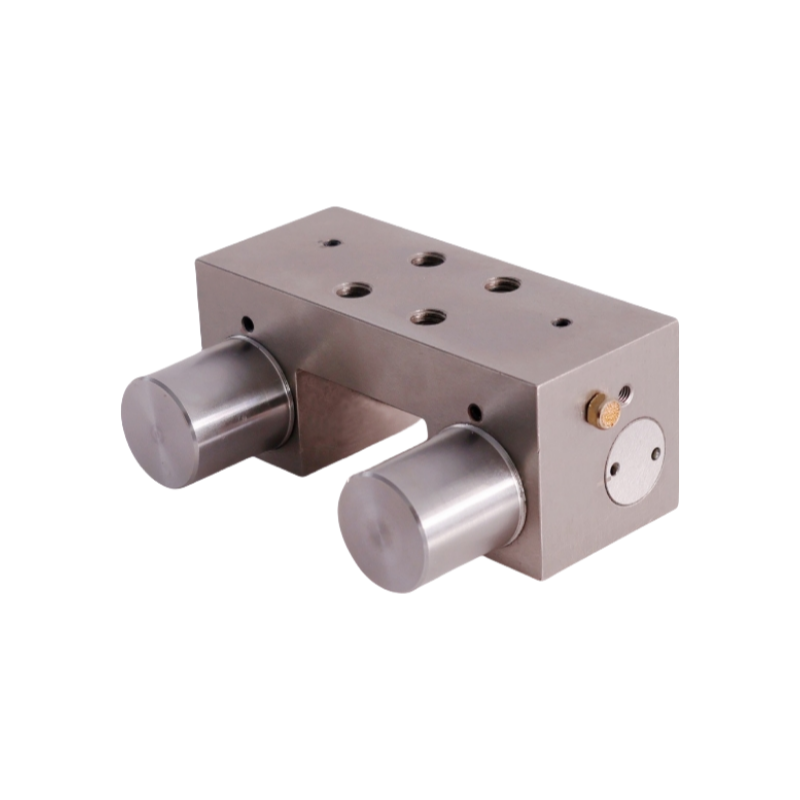

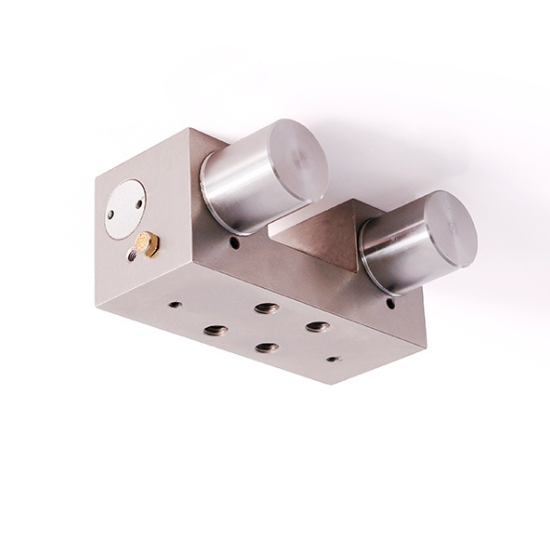

Pneumatic Clamping Braking for HIWIN HGR55 Guide
This pneumatic clamping is suitable for 55mm linear rails.Depending on the holding force requirements of the mechanism,standard connections or pressurized connections can be used.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 55mm |
| Rated holding force(N) | 1450/3300N(Standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Pneumatic Clamp Dimension
Contact our sales to get a quote!
