LMKS65B

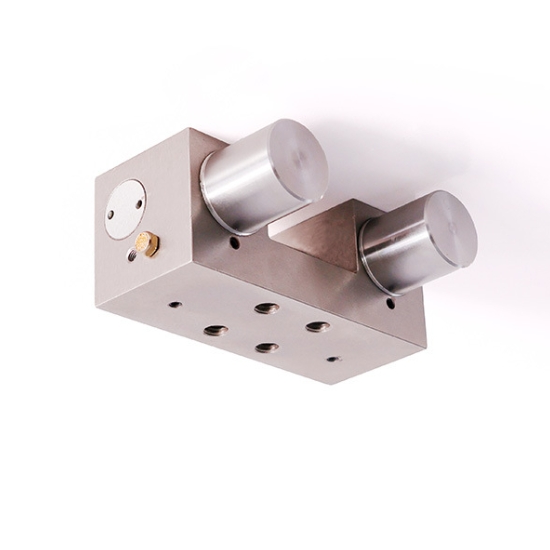

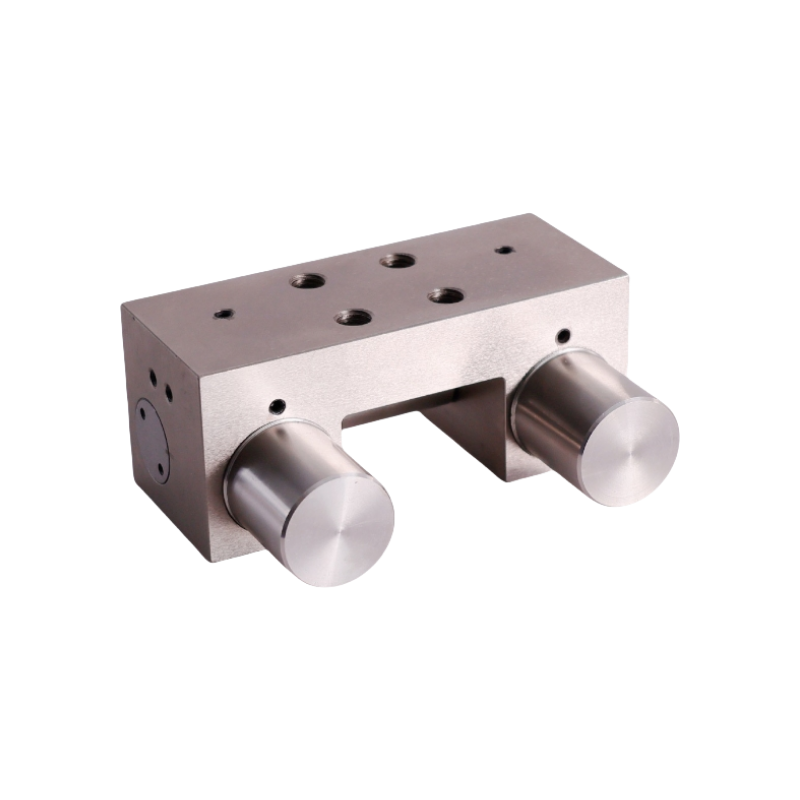

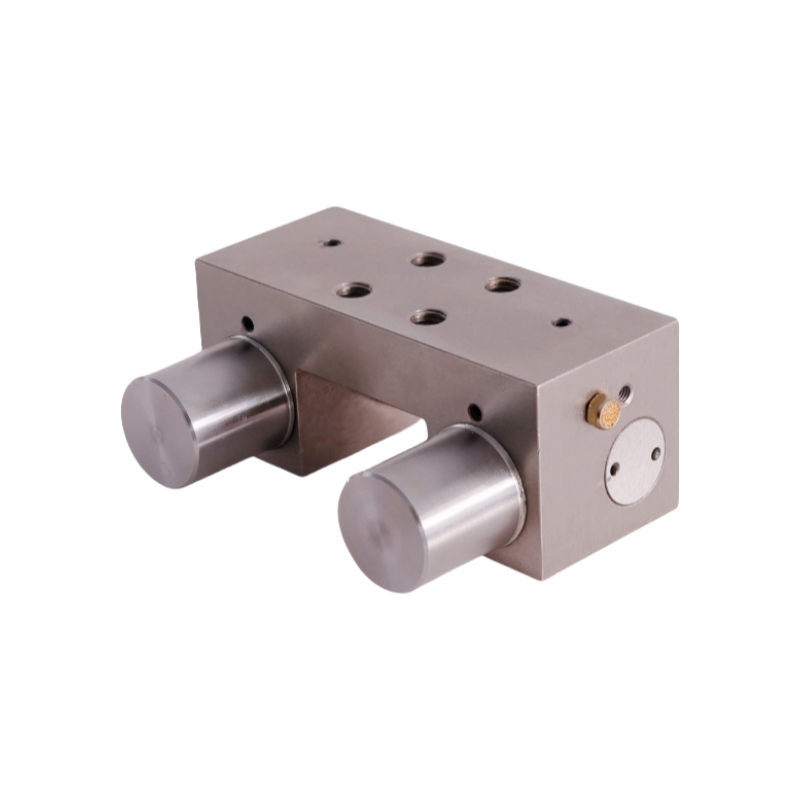

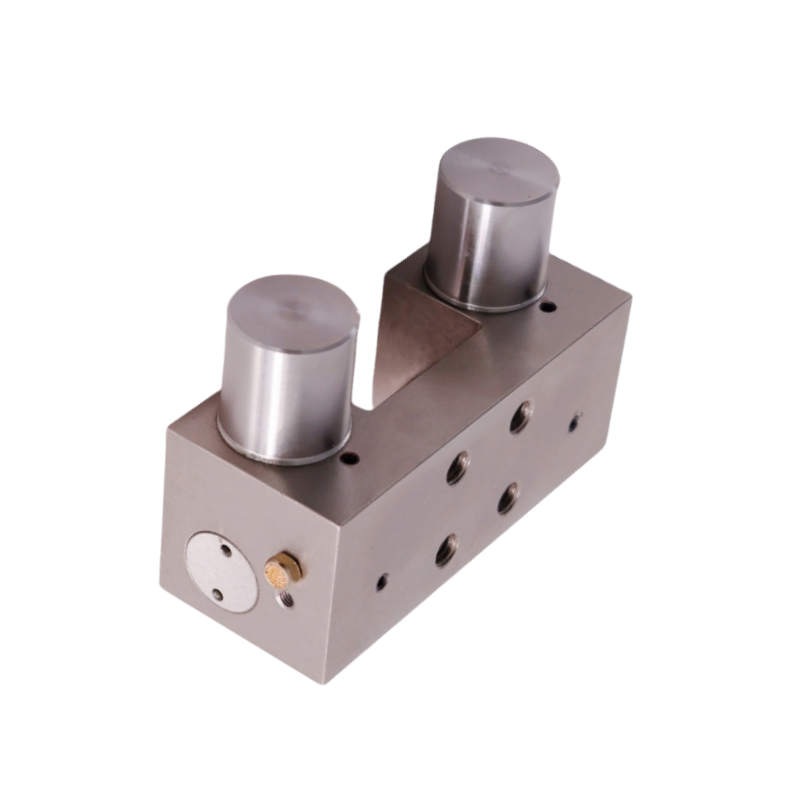

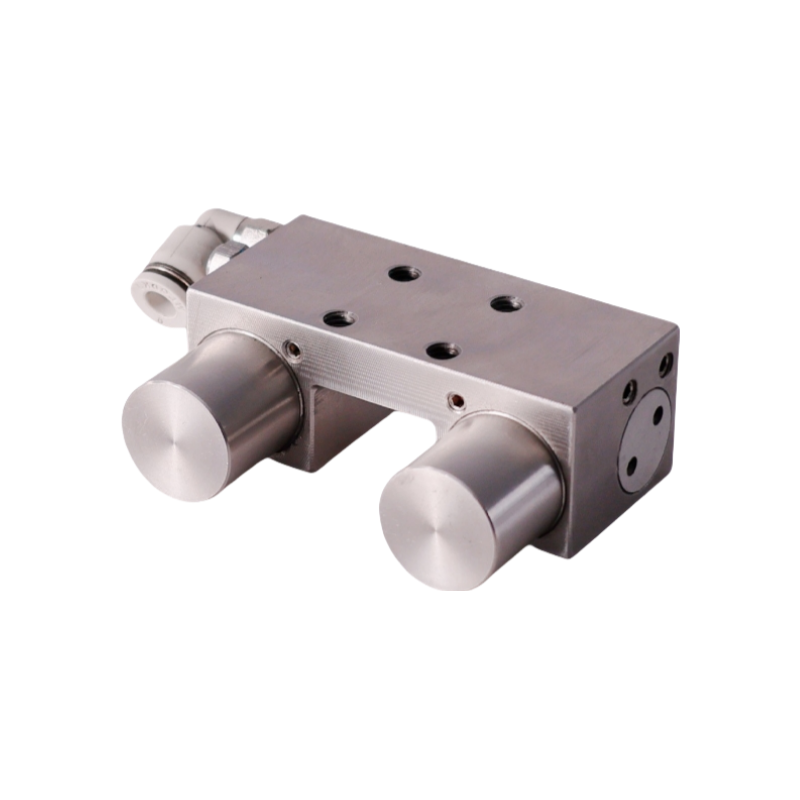

Pneumatic Clamping Element for HGR65 Linear Guide

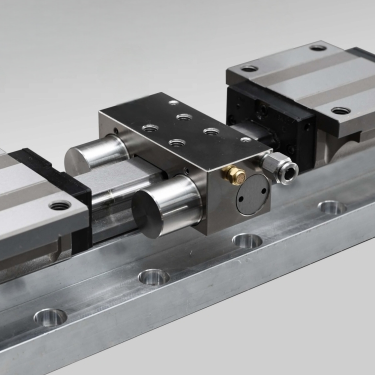

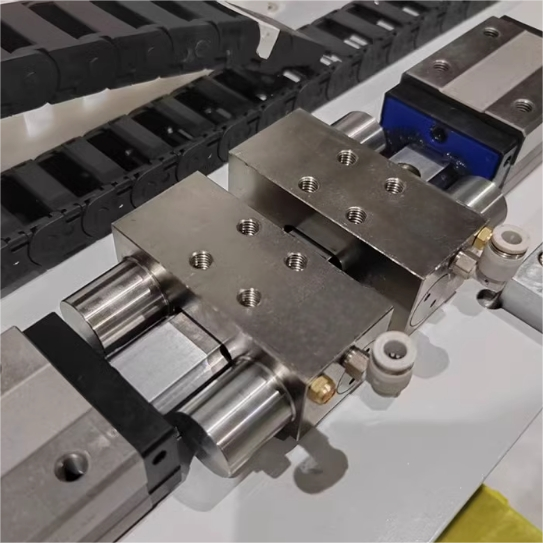

This pneumatic clamping element is suitable for 65mm linear rails.The clamp has the functions of fixed sliding table,precise positioning,preventing vibration and improving rigidity.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 65mm |
| Rated holding force(N) | 1450/3300N(Standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |

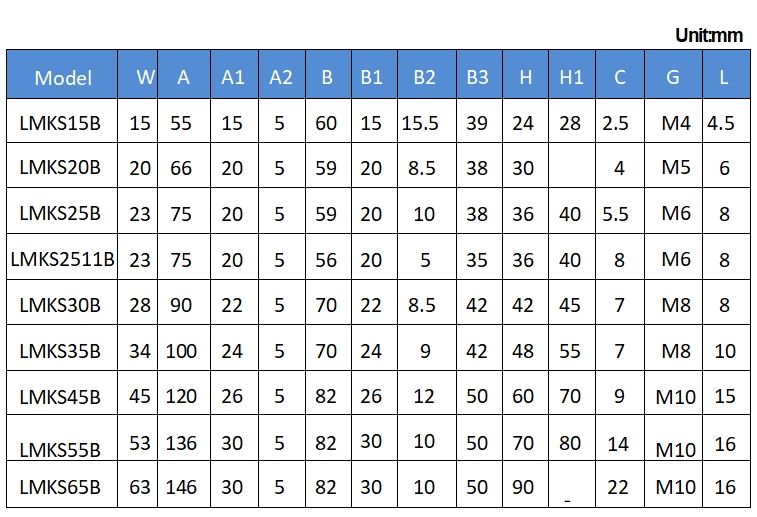

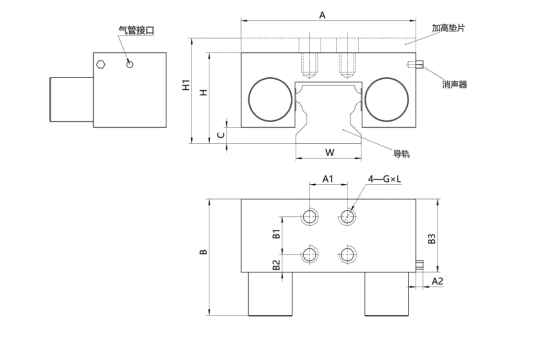

Pneumatic Clamp Dimension
Contact our sales to get a quote!
