LMKS25B

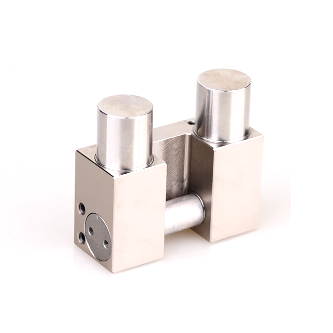

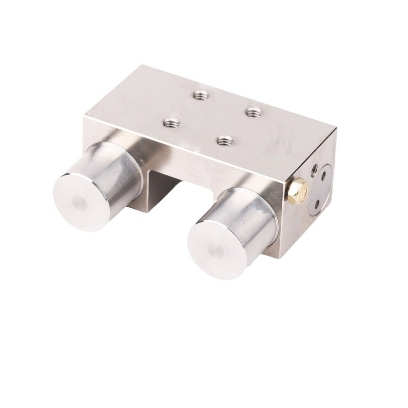

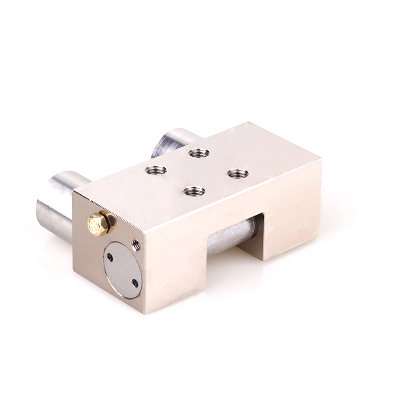

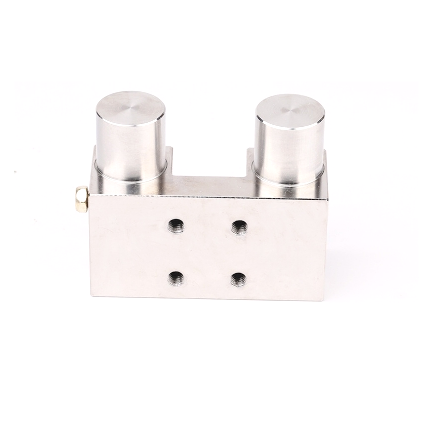

Pneumatic Clamping for 25mm HGR25 Linear Rail
The rail clamp is suitable for 25mm ball linear rails.This pneumatic normally close clamp is compact and easy to install.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 750/1400N(standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Pneumatic Clamping Element Dimension
Contact our sales to get a quote!
