Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:T8x20 lead screw and nut will be produced according to your requirements or drawings

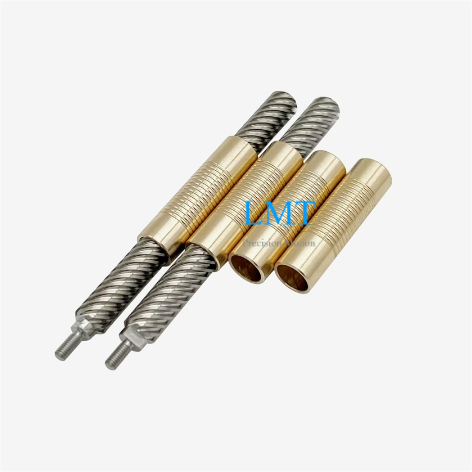

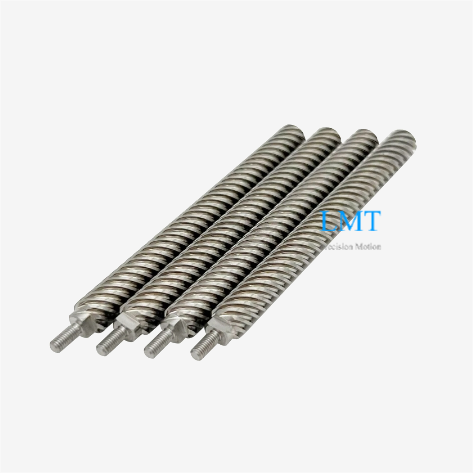

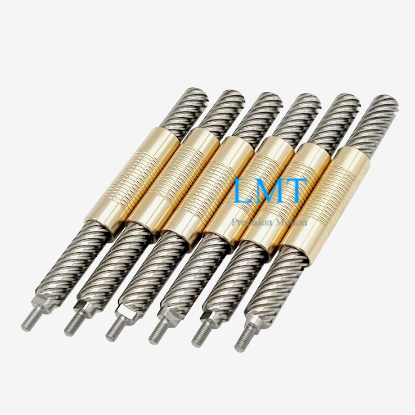

The T8x20 lead screw is a high performance trapezoidal screw designed for applications demanding rapid linear motion.Featuring an 8mm diameter and a substantial 20mm lead(achieved with a 2.5mm pitch and 8 thread starts),this screw delivers 20mm of linear travel per single rotation,enabling significantly faster movement speeds.Constructed from stainless steel using a precision cold-rolling process,it boasts an ultra-smooth surface finish.Paired with compatible T8x20 nuts(available in various materials and profiles),this 8x20 screw assembly ensures exceptionally low friction,quiet operation,and smooth,high-speed performance.
Specification:
Diameter | 8mm |
Lead | 20mm |
Pitch | 2.5mm |
| Number of starts | 8 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
T8x20 Lead Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:25% ~40% cost savings.
All lead screws and nuts are ROHS and CE compliant.
Customized Service:The Tr8x20 lead screw and nut will be manufactured according to your requirements.
Superior Surface & Precision:Advanced cold-rolling technology creates an ultra-smooth,hardened surface for low friction,consistent performance,and extended lifespan.
High quality:15 years of experience in producing trapezoidal lead screws,mature processing techniques,and 100% inspection of products before shipment.
2.5mm Pitch 8 Thread Starts T8 Lead Screw Assembly Applications:
High-Speed Positioning Platforms:Ideal for driving axes in CNC routers,laser cutters,or 3D printers where rapid traverse speeds between cutting or printing locations are essential for efficiency.
Automated Material Handling:Perfect for fast transfer systems,pick-and-place units,or conveyor indexing mechanisms requiring quick and precise linear movement of components or products.
