Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:Tr8x12 lead screw and nut will be produced according to your requirements or drawings

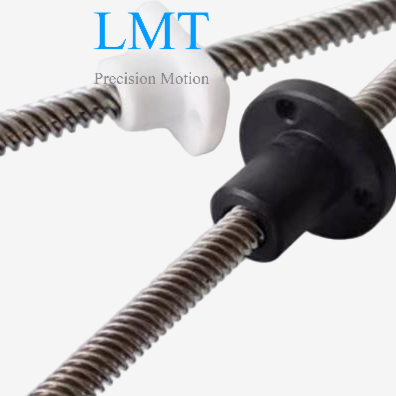

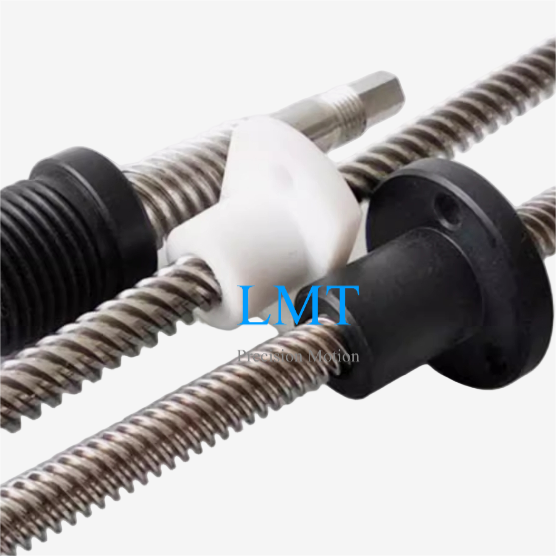

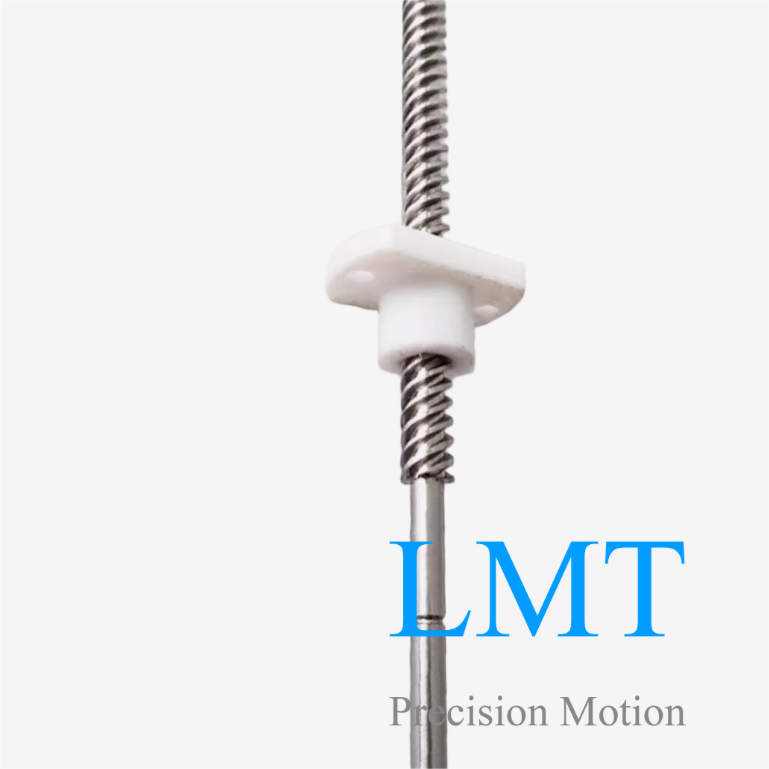

This precision 8mm diameter T8 stainless steel lead screw features a 12mm lead,meaning the matching nut travels 12mm with every full rotation of the screw.Manufactured from durable stainless steel using a cold-rolling process,the 8x12 lead screw achieves an exceptionally smooth surface finish for reliable performance.The included nut ensures perfect compatibility,offering a compact and easy-to-install solution.
Specification:
Diameter | 8mm |
Lead | 12mm |
Pitch | 3mm or 2mm |
| Number of starts | 4 or 6 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
T8 Lead Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:25% ~40% cost savings.
All lead screws and nuts are ROHS and CE compliant.
Customized Service:The Tr8x12 lead screw and nut will be manufactured according to your requirements.
Superior Surface & Precision:Advanced cold-rolling technology creates an ultra-smooth,hardened surface for low friction,consistent performance,and extended lifespan.
8x12 Lead Screw Assembly Applications:
High-Speed 3D Printer Axes:Enables rapid movement essential for efficient printing,especially on X and Y axes.
Compact Linear Motion Stages:Ideal for building space-saving precision stages in automation and optical equipment.
Automated Feed Mechanisms:Perfect for driving reliable,fast linear motion in small conveyors and industrial feeders.
This precision 8mm diameter T8 stainless steel lead screw features a 12mm lead,meaning the matching nut travels 12mm with every full rotation of the screw.Manufactured from durable stainless steel using a cold-rolling process,the 8x12 lead screw achieves an exceptionally smooth surface finish for reliable performance.The included nut ensures perfect compatibility,offering a compact and easy-to-install solution.
Specification:
Diameter | 8mm |
Lead | 12mm |
Pitch | 3mm or 2mm |
| Number of starts | 4 or 6 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
T8 Lead Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:25% ~40% cost savings.
All lead screws and nuts are ROHS and CE compliant.
Customized Service:The Tr8x12 lead screw and nut will be manufactured according to your requirements.
Superior Surface & Precision:Advanced cold-rolling technology creates an ultra-smooth,hardened surface for low friction,consistent performance,and extended lifespan.
8x12 Lead Screw Assembly Applications:
High-Speed 3D Printer Axes:Enables rapid movement essential for efficient printing,especially on X and Y axes.
Compact Linear Motion Stages:Ideal for building space-saving precision stages in automation and optical equipment.
Automated Feed Mechanisms:Perfect for driving reliable,fast linear motion in small conveyors and industrial feeders.
