LMKS45B

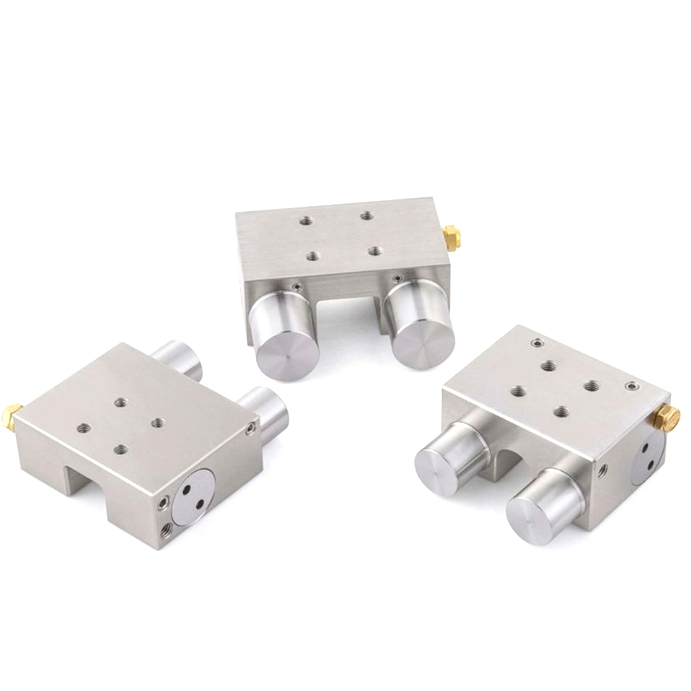

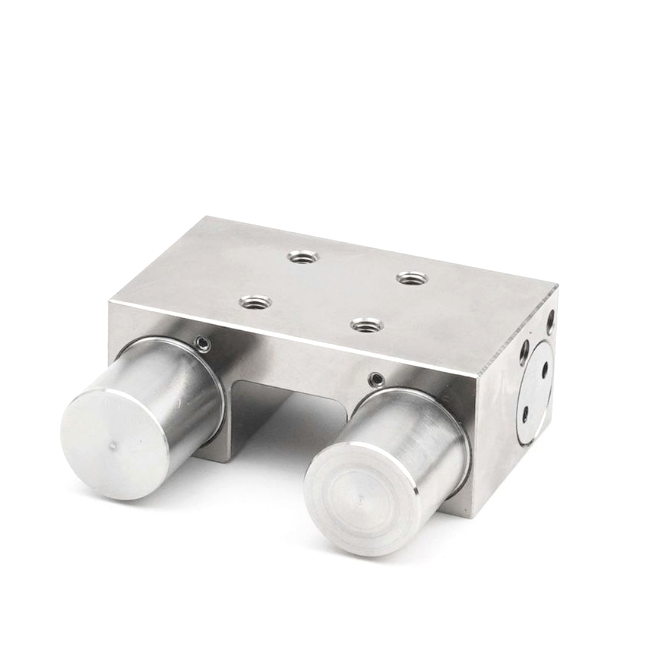

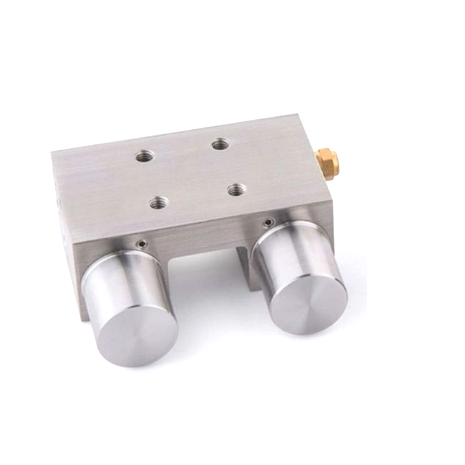

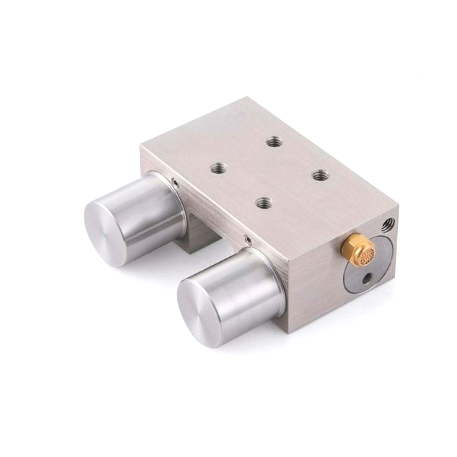

THK HIWIN 45mm Linear Rail Clamping Braking
This clamping is suitable for THK HIWIN brand 45mm ball linear guides.The surface of the clamping element main body is nickel-plated and has good rust resistance.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 45mm |
| Rated holding force(N) | 1450/3300N(Standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Pneumatic Clamp Dimension
Contact our sales to get a quote!
