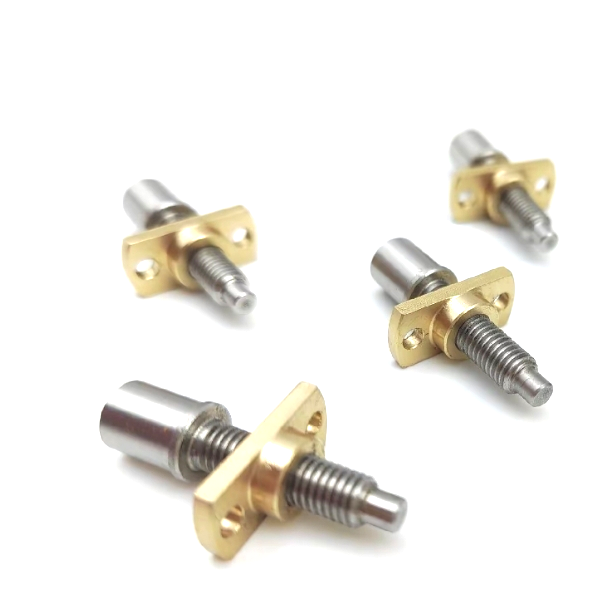

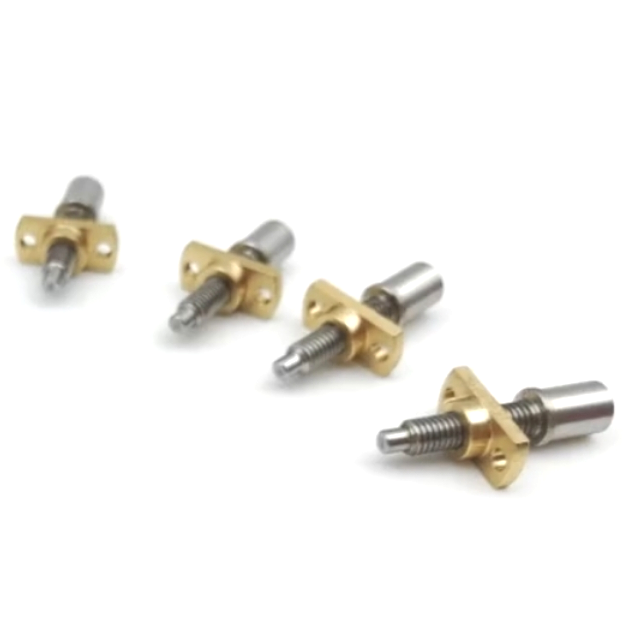

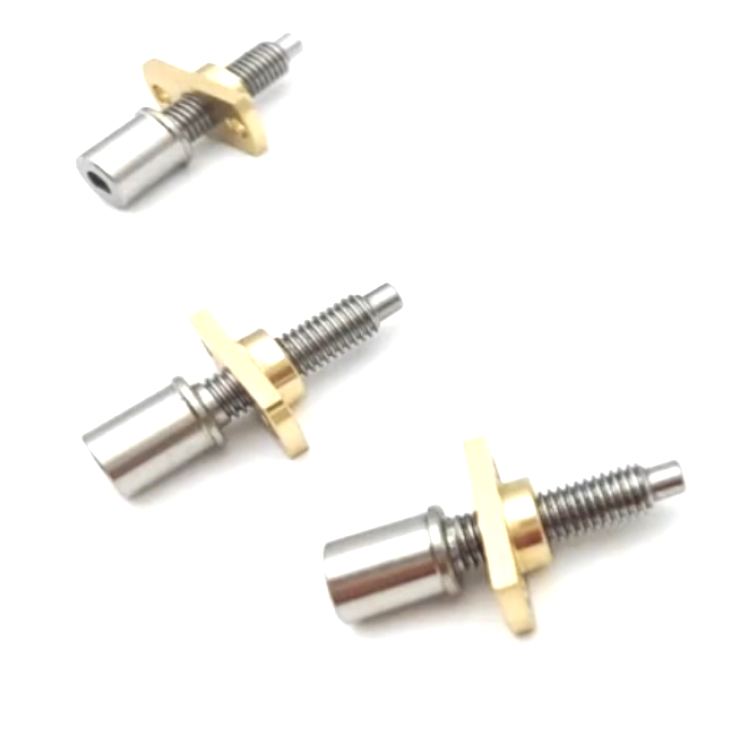

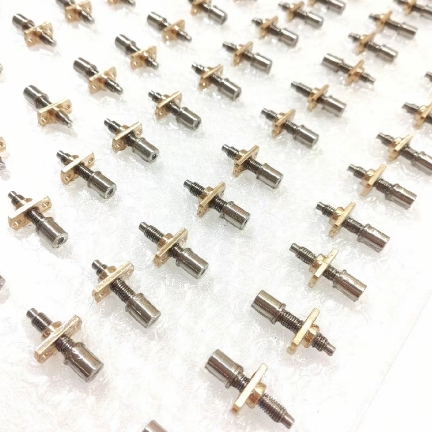

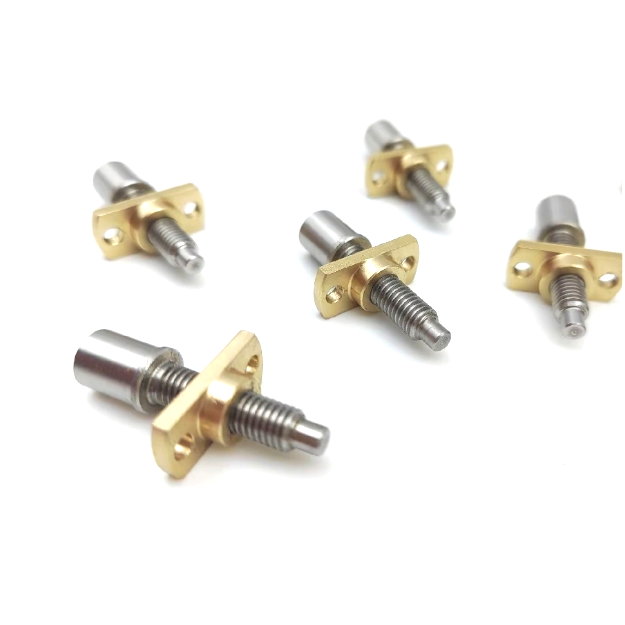

The Tr3.5×0.61 trapezoidal screw and nut set is a micro-scale mechanical solution designed for precision applications in confined spaces.Featuring a compact 3.5mm diameter and a fine lead of 0.61mm,this lead screw delivers a precise 0.61mm linear travel per full rotation of the nut,making it ideal for high-accuracy positioning systems where space constraints and micron-level control are critical.
Diameter | 3.5mm |
Lead | 0.61mm |
Pitch | 0.61mm |
| Number of starts | 1 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Why Choose our Tr3.5x0.61 screw?
✔ Superior Precision – The highest lead accuracy is up to ±0.012mm/100mm.
✔ Exceptional Surface Finish – Minimizes wear and ensures long-lasting performance.
✔Customized service:Tailored solutions available!Both Tr3.5×0.61 screw and nut can be customized to meet specific requirements,including dimensions,thread parameters,or material preferences,ensuring seamless integration into specialized applications.
Upgrade your precision motion system with the Tr3.5×0.61 trapezoidal screw and nut!
