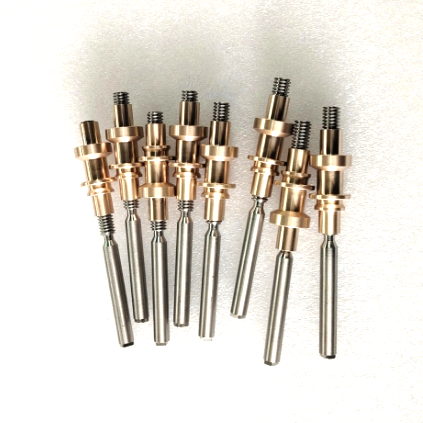

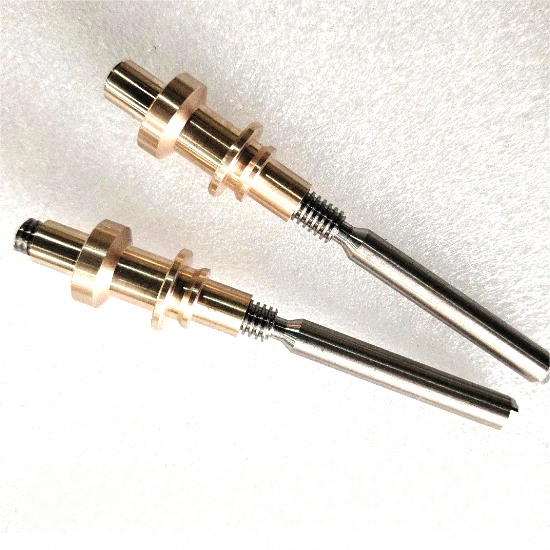

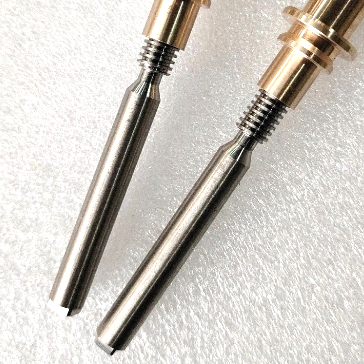

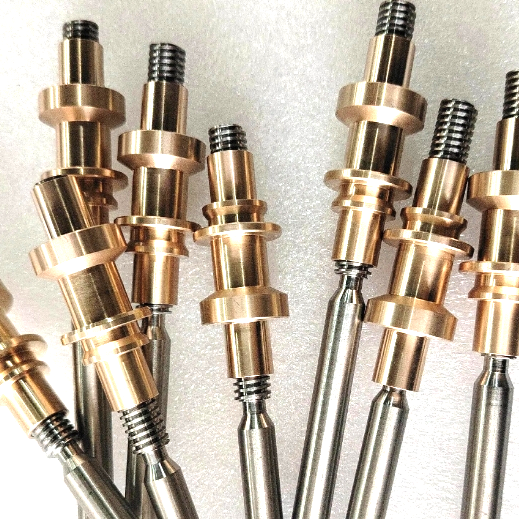

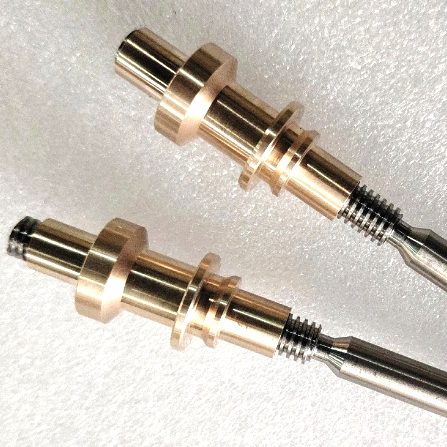

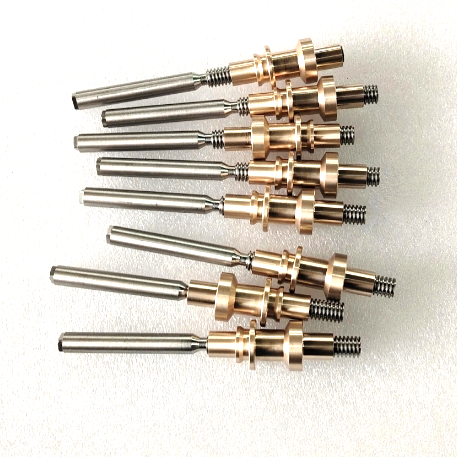

Tr4.5x1.6 Dia 4.5mm Lead 1.6mm Custom Lead Screw And Nut
A compact T4.5x1.6 lead screw and nut system with 4.5mm diameter and 1.6mm lead,engineered for precision micro-mechanical applications.Customizable in materials,tolerances,dimensions,and surface treatments to meet demands in medical devices,micro-automation,and precision instruments.
Diameter | 4.5mm |
Lead | 1.6mm |
| Pitch | 0.8mm |
| Number of thread starts | 2 |
Screw shaft end machining/length | Produce according to your requirements |
Nut dimension | Produce according to your requirements |
Thread direction | RH/LH/RL |
Popular screw materials | S45C/SS303/SS304/SS316 |
Popular nut materials | Brass/bronze/POM/PEEK/nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/black chorme plated/molybdenum disulfide |
Contact our sales to customize your 4.5x1.6 trapezoid screw and nut!
