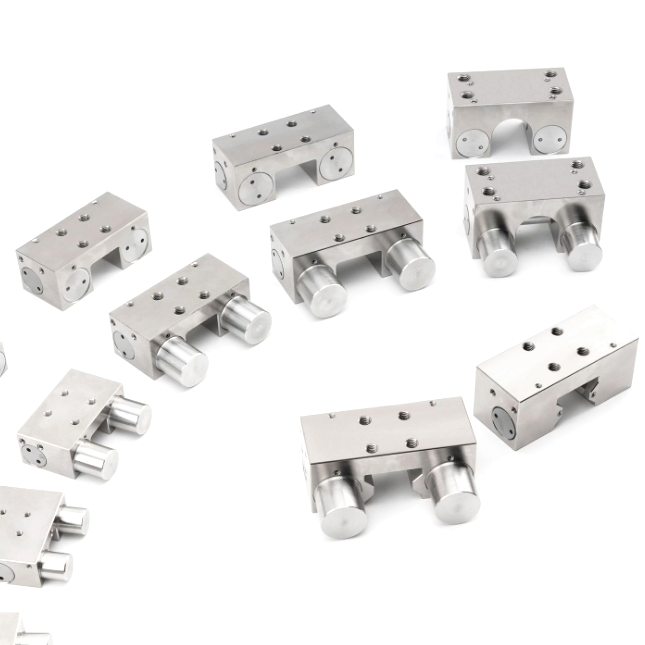

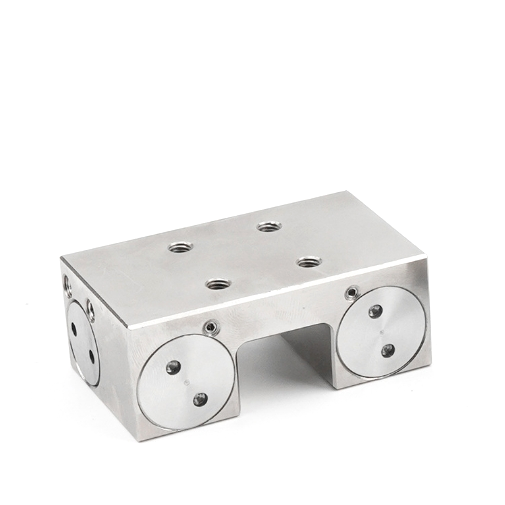

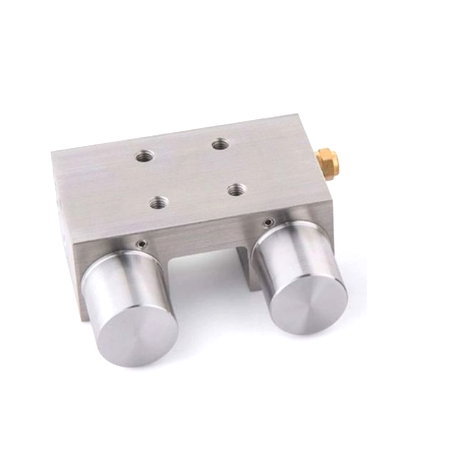

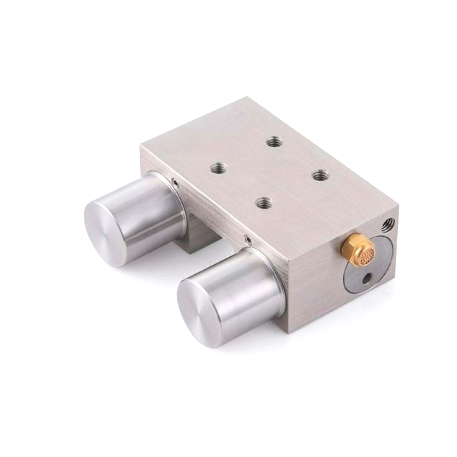

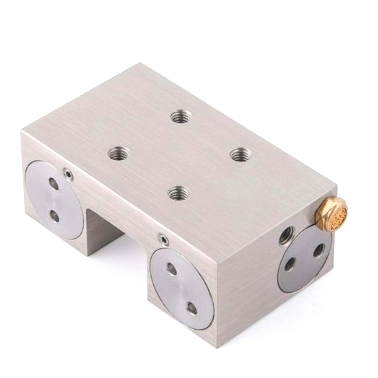

Zimmer MK MKS Linear Guide Clamping Braking Element
We offer replacement zimmer brand MK and MKS series pneumatic normally open and pneumatic normally closed guideway clamps.Suitable for linear guides from 15mm to 65mm,our prices are more affordable and lead time is only 3 days.
| Clamp Types | Pneumatic normally open/normally closed |
| Applicable guideway sizes | 15mm~65mm |
| Rated holding force(N) | 400N~3300N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
