Available Screw Materials:S45C,SS303,SS304,SS316,aluminum,40Cr
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Popular Surface Coating:Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating
Customized Service:15.875x3.175 acme lead screw and nut will be produced according to your requirements or drawings

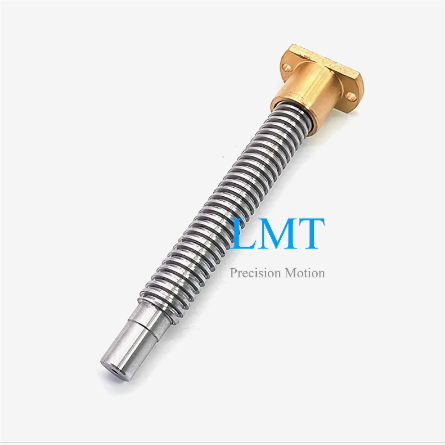

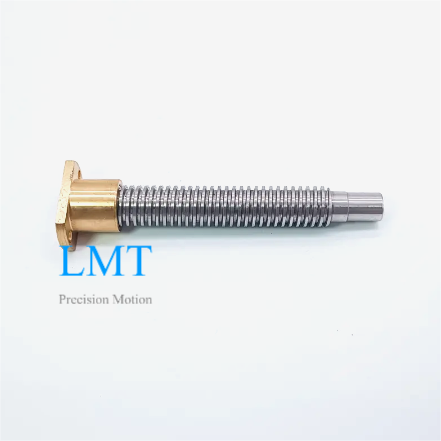

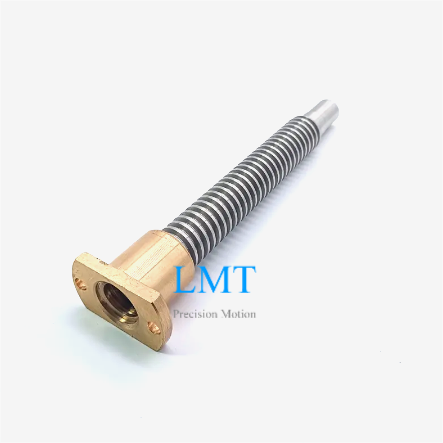

This 15.875x3.175 ACME lead screw features a 15.875mm diameter and 3.175mm lead.The acme screw is cold-rolled to achieve an ultra-smooth,hardened surface that ensures minimal friction and extended service life.Designed for high corrosion resistance and heavy-load applications,this ACME lead screw assembly offers exceptional durability and reliable performance.Both the screw and nut can be custom-manufactured to your specific requirements and drawings.
15.875x3.175 ACME Lead Screw and Nut Specification:
Diameter | 15.875mm |
Lead | 3.175mm |
Pitch | 3.175mm |
| Number of starts | 1 |
Available thread direction | RH/LH/RL |
Available screw materials | S45C/ SS303/SS304/SS316/aluminum/40Cr |
Available nut materials | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
| Popular surface coating | Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating |
15.875x3.175 ACME Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:15% ~40% cost savings.
All acme screws and nuts are ROHS and CE compliant.
Material test report,hardness test report,quality inspection report as your require.
Customized Service:The 15.875x3.175 lead screw and nut will be manufactured according to your requirements.
High Quality:With 15 years of mature production experience in acme lead screws,all products are 100% tested for quality before shipping.
Diameter 15.875mm Lead 3.175mm ACME Screw Assembly Applications:
Ideal for use in precision linear motion systems,this stainless steel 15.875mm ACME screw and bronze nut assembly is well-suited for applications such as medical equipment,marine devices,and automated packaging systems.
LMT Lead Screw Factory
This 15.875x3.175 ACME lead screw features a 15.875mm diameter and 3.175mm lead.The acme screw is cold-rolled to achieve an ultra-smooth,hardened surface that ensures minimal friction and extended service life.Designed for high corrosion resistance and heavy-load applications,this ACME lead screw assembly offers exceptional durability and reliable performance.Both the screw and nut can be custom-manufactured to your specific requirements and drawings.
15.875x3.175 ACME Lead Screw and Nut Specification:
Diameter | 15.875mm |
Lead | 3.175mm |
Pitch | 3.175mm |
| Number of starts | 1 |
Available thread direction | RH/LH/RL |
Available screw materials | S45C/ SS303/SS304/SS316/aluminum/40Cr |
Available nut materials | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
| Popular surface coating | Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating |
15.875x3.175 ACME Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:15% ~40% cost savings.
All acme screws and nuts are ROHS and CE compliant.
Material test report,hardness test report,quality inspection report as your require.
Customized Service:The 15.875x3.175 lead screw and nut will be manufactured according to your requirements.
High Quality:With 15 years of mature production experience in acme lead screws,all products are 100% tested for quality before shipping.
Diameter 15.875mm Lead 3.175mm ACME Screw Assembly Applications:
Ideal for use in precision linear motion systems,this stainless steel 15.875mm ACME screw and bronze nut assembly is well-suited for applications such as medical equipment,marine devices,and automated packaging systems.
LMT Lead Screw Factory
