Available Screw Materials:S45C,SS303,SS304,SS316,aluminum,40Cr
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Popular Surface Coating:Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating
Customized Service:9.525*12.7 acme lead screw and nut will be produced according to your requirements or drawings

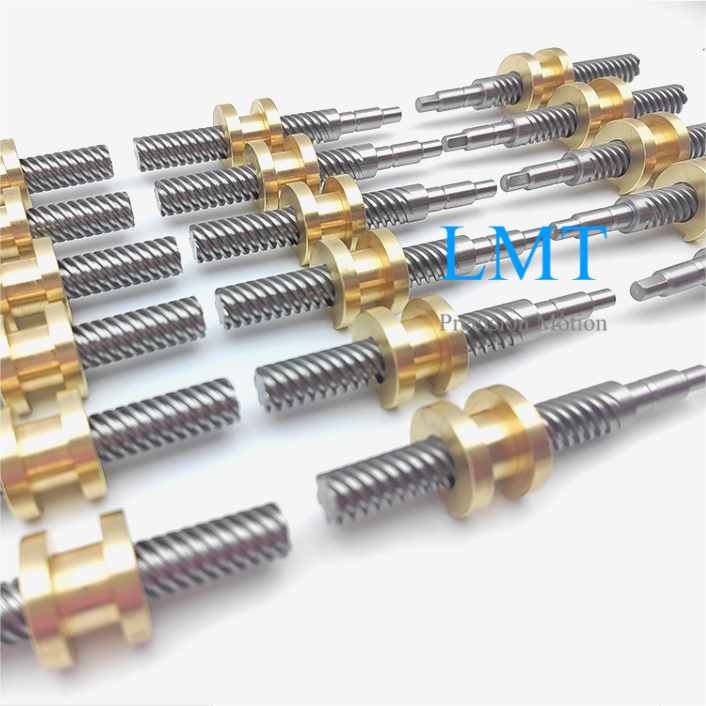

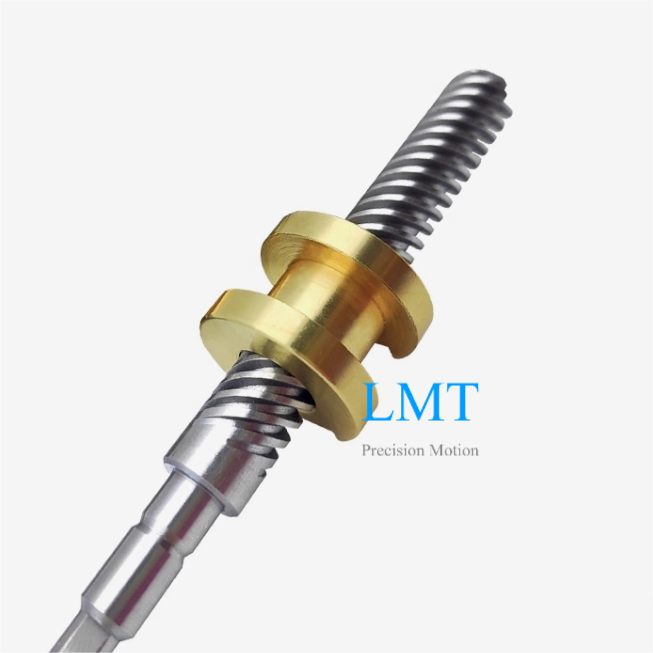

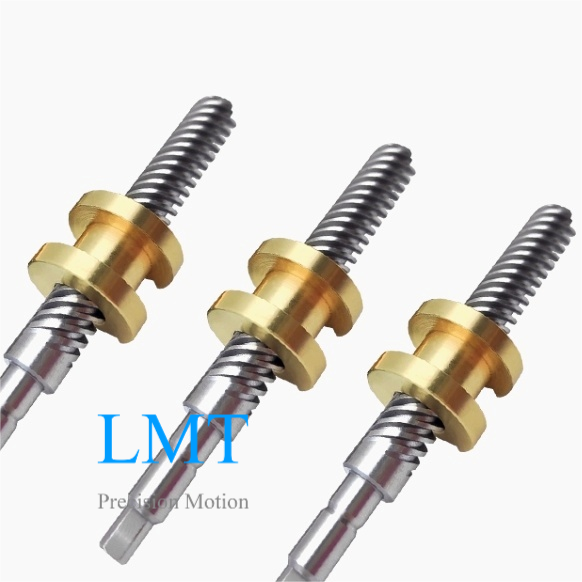

This 9.525mm diameter stainless steel ACME screw rod features a 29° thread angle and a high-helix 12.7mm lead,achieved through a 2.116mm pitch and 6 thread starts.Manufactured by cold rolling,the screw possesses an exceptionally smooth and hard surface.Paired with a bronze nut,the acme screw assembly ensures smooth operation,minimal backlash,high corrosion resistance,and long-term durability under frequent use.
9.525*12.7 ACME Lead Screw and Nut Specification:
Diameter | 9.525mm |
Lead | 12.7mm |
Pitch | 2.116mm |
| Number of starts | 6 |
Available thread direction | RH/LH/RL |
Available screw materials | S45C/ SS303/SS304/SS316/aluminum/40Cr |
Available nut materials | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
| Popular surface coating | Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating |
9.525x12.7 ACME Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:15% ~40% cost savings.
All acme screws and nuts are ROHS and CE compliant.
Material test report,hardness test report,quality inspection report as your require.
Customized Service:The 9.525*12.7 lead screw and nut will be manufactured according to your requirements.
High Quality:With 15 years of mature production experience in acme lead screws,all products are 100% tested for quality before shipping.
Diameter 9.525mm Lead 12.7mm ACME Screw Assembly Applications:
This 9.525mm ACME screw is widely used in applications requiring high speed motion and moderate precision,such as lifting mechanisms in medical examination tables,height adjustment systems in marine equipment,and rapid positioning in automated packaging and material handling machinery.
