Available Screw Materials:S45C,SS303,SS304,SS316,aluminum,40cr
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304,aluminum
Popular Surface Coating:Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating
Customized Service:Tr12x2 bidirectional screw and nut will be produced according to your requirements or drawings

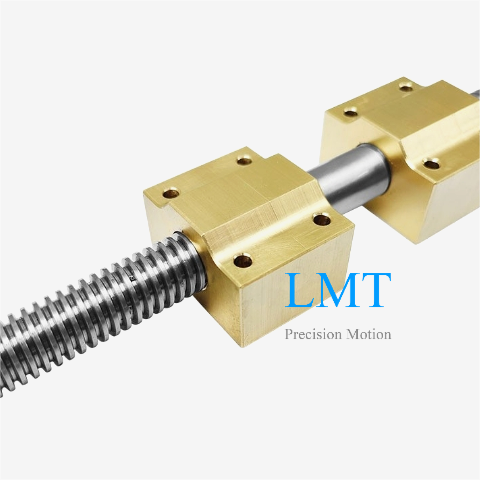

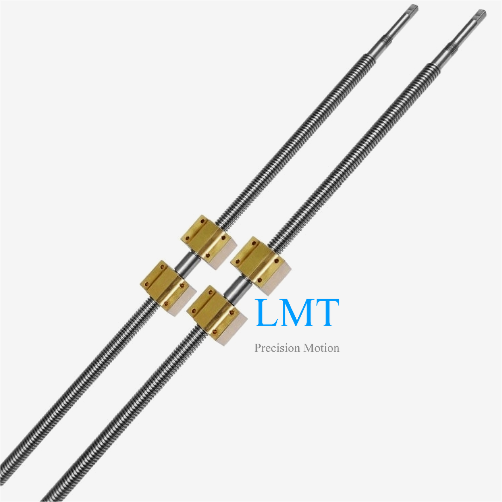

The Tr12x2 bidirectional screw is a precision-machined lead screw featuring a 12mm diameter,2mm pitch,and single-start thread design.Engineered for high load capacity and smooth operation,it boasts an ultra-smooth surface finish and exceptional durability.Both the screw and nut are corrosion-resistant and can be fully customized according to your specifications or drawings.
T12x2 Bidirectional Screw Specification:
Diameter | 12mm |
Lead | 2mm |
Pitch | 2mm |
| Number of starts | 1 |
Available thread direction | RH/LH/RL |
Available screw materials | S45C/ SS303/SS304/SS316/aluminum |
Available nut materials | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C/aluminum |
| Popular surface coating | Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating |
Tr12x2 Bidirectional Lead Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:15% ~40% cost savings.
All lead screws and nuts are ROHS and CE compliant.
Material test report,hardness test report,quality inspection report as your require.
Customized Service:The T12x2 twin-lead lead screw and nut will be manufactured according to your requirements.
High Quality:With 15 years of mature production experience in bidirectional lead screws,all products are 100% tested for quality before shipping.
T12x2 Twin Lead Screw Assembly Applications:
This compact 12mm diameter twin lead screw is ideal for applications requiring accurate bidirectional linear motion in limited spaces.It is commonly used in medical analysis instruments for sample positioning,optical adjustment systems,small robotic actuation mechanisms,and laboratory automation equipment.
