Available Screw Materials:S45C,SS303,SS304,SS316,aluminum
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304,SS316
Popular Surface Coating:Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating
Customized Service:9.525x6.35 acme lead screw and nut will be produced according to your requirements or drawings

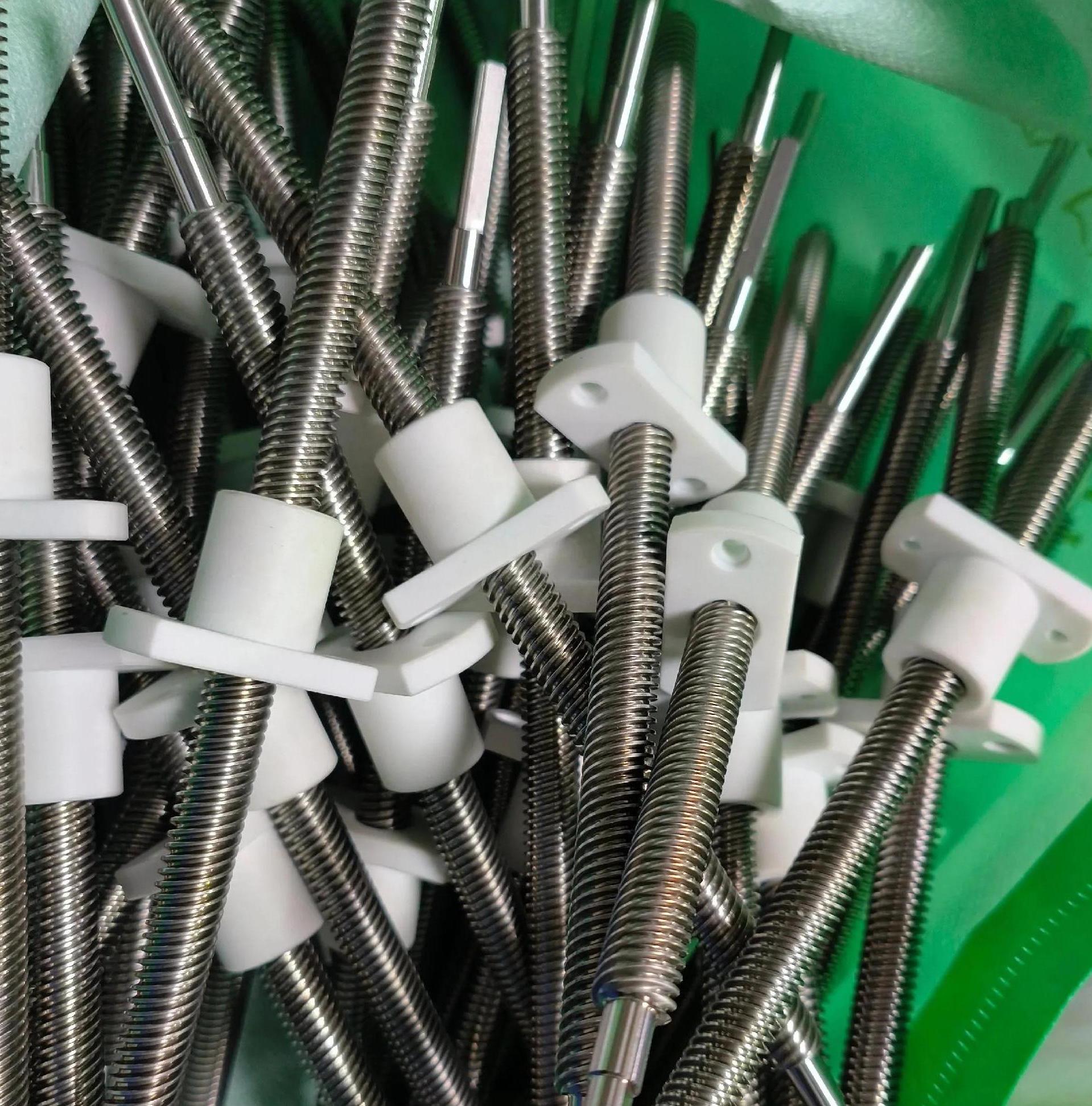

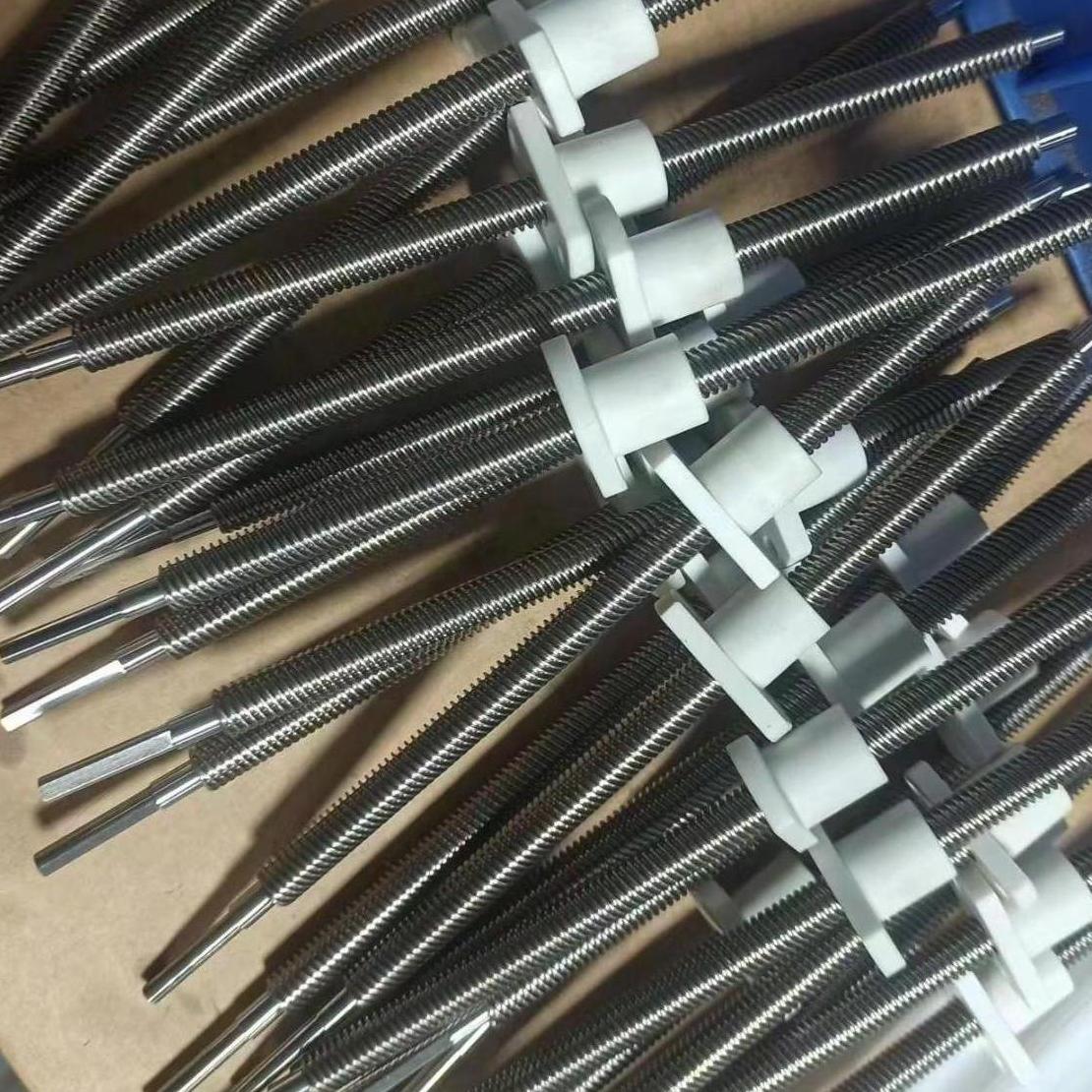

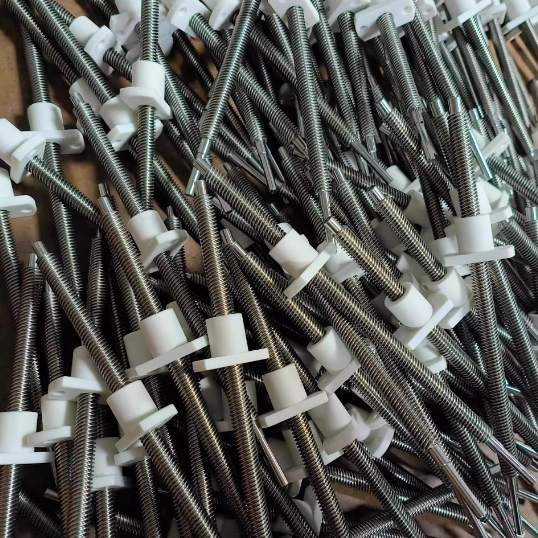

This precision ACME lead screw features a 29° thread angle,9.525mm diameter,and 6.35mm lead with 4 thread starts,delivering a fine pitch of 1.5875mm.The screw offers exceptionally smooth operation,engineered for low friction,high-speed performance,and minimal noise when paired with plastic nuts made from POM,PEEK,or nylon.Both acme screws and nuts can be customized to meet specific application requirements.
Specification:
Diameter | 9.525mm |
Lead | 6.35mm |
Pitch | 1.5875mm |
| Number of starts | 4 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316/aluminum |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
| Popular surface coating | Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating |
9.525x6.35 ACME Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:25% ~40% cost savings.
All lead screws and nuts are ROHS and CE compliant.
Customized Service:The A9.525x6.35 lead screw and nut will be manufactured according to your requirements.
Superior Surface & Precision:Advanced cold-rolling technology creates an ultra-smooth,hardened surface for low friction,consistent performance,and extended lifespan.
High quality:15 years of experience in producing acme screws,mature processing techniques,and 100% inspection of products before shipment.
Diameter 9.525mm Lead 6.35mm ACME Screw Assembly Applications:
This ACME lead screw and plastic nut system provides reliable linear motion with high wear resistance,low maintenance,and quiet operation.Ideal for use in automation,medical devices,packaging machinery,and food processing equipment.
