4.76x1.27 Rolled Miniature ACME Lead Screw Rod with Nut

  • Model Number: Diameter 4.76mm,lead 1.27mm,pitch 1.27mm
  • Lead Time: 12~14days,MOQ 1 pc
  • Available Screw Materials:S45C,SS303,SS304,SS316

  • Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304

  • Customized Service:4.76x1.27 ACME screws and nuts will be custom-produced according to your requirements or drawings


Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

4.76x1.27 Rolled Miniature ACME Lead Screw Rod with Nut:Engineered for confined spaces,this corrosion-resistant stainless steel ACME lead screw features a cold-rolled finish for exceptional surface smoothness and dimensional stability.Custom-manufactured 4.76x1.27 acme screw rods and matching nuts ensure optimal fit and performance for specialized applications.


Diameter

4.76mm

Lead

1.27mm
Pitch 1.27mm
Number of starts 1

Screw shaft end machining and length

According to your requirement or drawing

Nut shape and dimension

Be customized according to your needs

Thread direction

RH/LH/RL

Screw material

S45C/ SS303/SS304/SS316

Nut material

Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C

Popular surface coatings

Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating.


4.76x1.27 Mini ACME Screw Rod and Nut Advantages:

MOQ: 1 pc.

Lead Time: Within 12 days.

Cost-Effective:15%~35% cost savings.

Lightweight Design:Compact 4.76mm diameter structure for space-constrained equipment.

Customized Service:Lead screws and nuts will be produced according to your requirements.Just send the requirements or drawings.

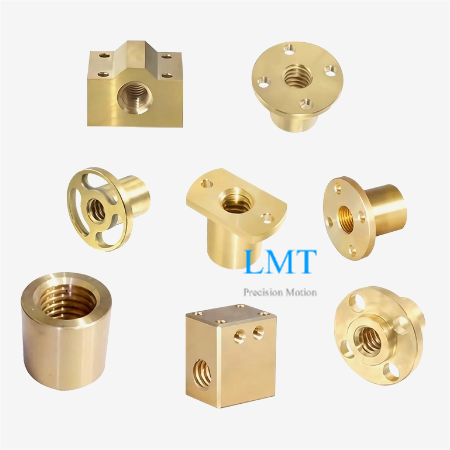

4.76x1.27 Miniature ACME Lead Screw Nut

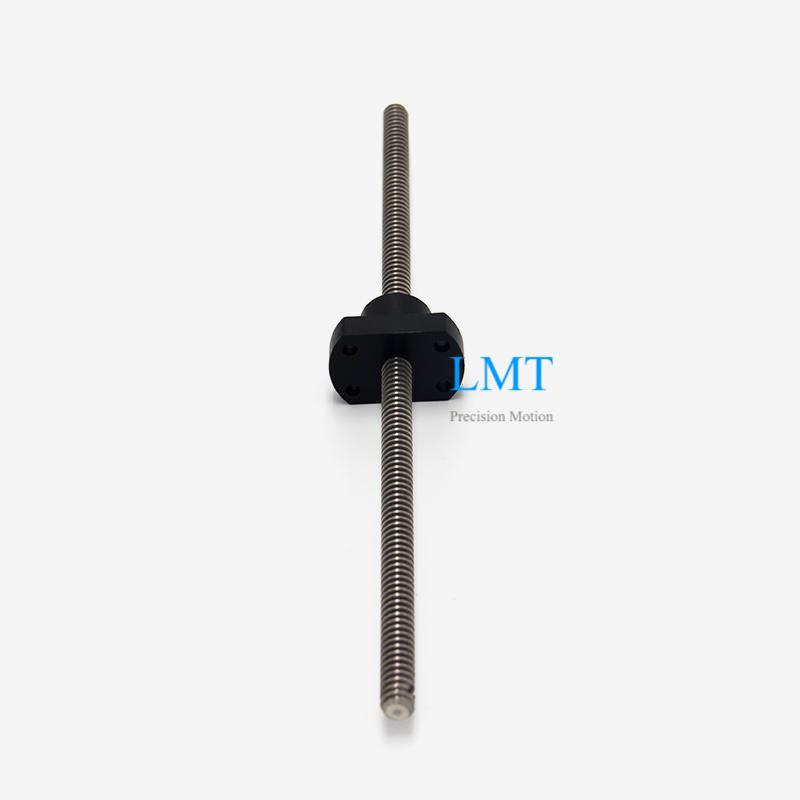

4.76x1.27 Rolled Miniature ACME Lead Screw Rod with Nut


4.76x1.27 Miniature ACME Lead Screw Nuts

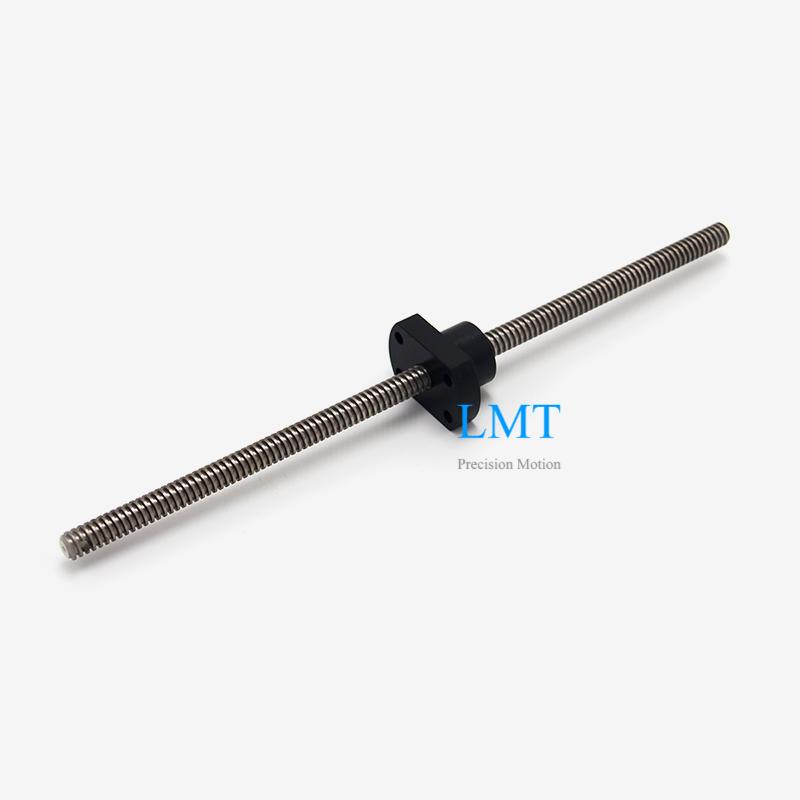

4.76x1.27 Rolled Miniature ACME Lead Screw Rod with Nuts
