Available Screw Materials:S45C,SS303,SS304,SS316

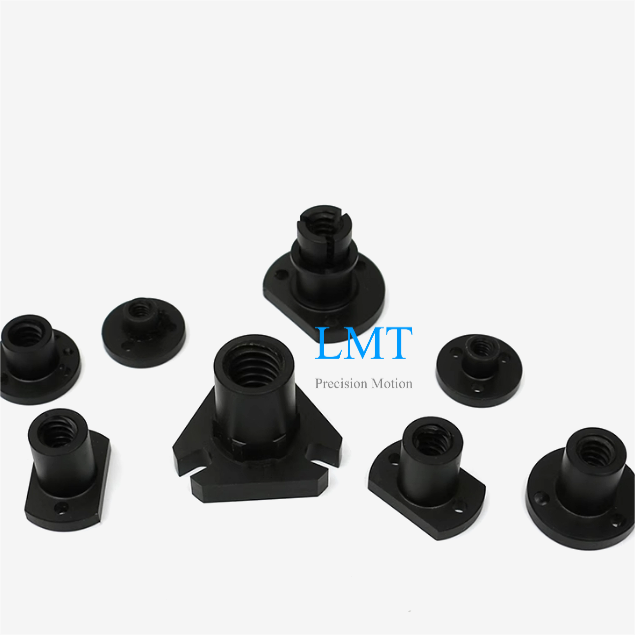

Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:T3.5x4 trapezoidal screw and nut will be produced according to your requirements or drawings

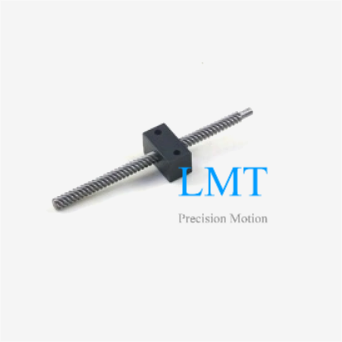

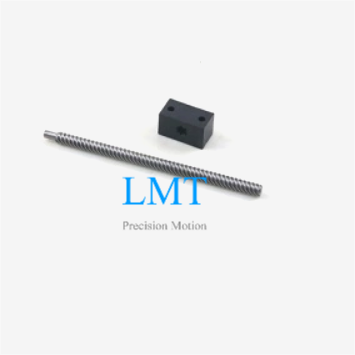

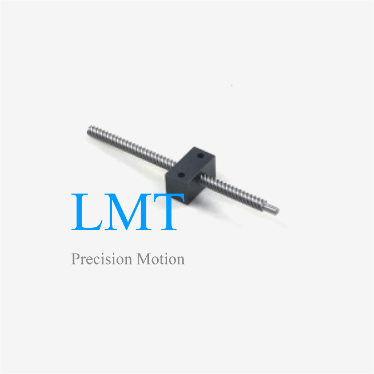

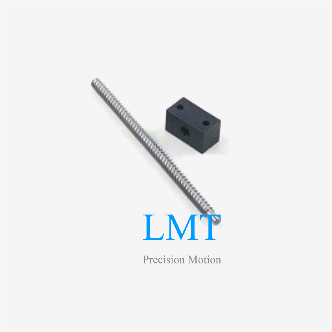

Introducing the Tr3.5x4 miniature lead screw:A precision 3.5mm diameter,4mm lead trapezoidal screw manufactured via cold-rolled process for exceptional surface smoothness.Engineered for smooth,low-friction operation with compatible plastic nuts(POM, PEEK, or nylon),its compact design delivers reliable linear motion in tight spaces.
Specification:
Diameter | 3.5mm |
Lead | 4mm |
Pitch | 1mm |
| Number of starts | 4 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
T3.5x4 Lead Screw and Nut Advantages:
Cost-effective:15% ~35% cost savings.
Fast Delivery:Within 12 days.
Customized Service:The T3.5x4 lead screw and nut will be manufactured according to your requirements.
Superior Surface & Precision:Advanced cold-rolling technology creates an ultra-smooth,hardened surface for low friction,consistent performance,and extended lifespan.
Introducing the Tr3.5x4 miniature lead screw:A precision 3.5mm diameter,4mm lead trapezoidal screw manufactured via cold-rolled process for exceptional surface smoothness.Engineered for smooth,low-friction operation with compatible plastic nuts(POM, PEEK, or nylon),its compact design delivers reliable linear motion in tight spaces.
Specification:
Diameter | 3.5mm |
Lead | 4mm |
Pitch | 1mm |
| Number of starts | 4 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
T3.5x4 Lead Screw and Nut Advantages:
Cost-effective:15% ~35% cost savings.
Fast Delivery:Within 12 days.
Customized Service:The T3.5x4 lead screw and nut will be manufactured according to your requirements.
Superior Surface & Precision:Advanced cold-rolling technology creates an ultra-smooth,hardened surface for low friction,consistent performance,and extended lifespan.
