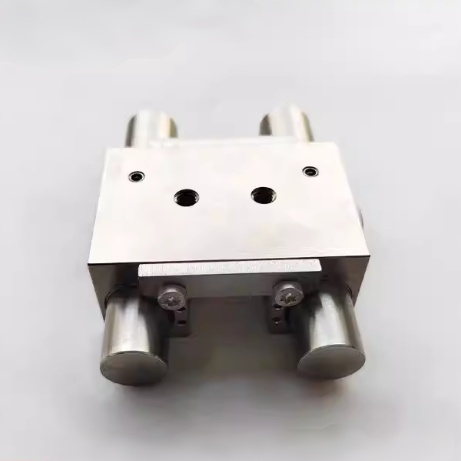

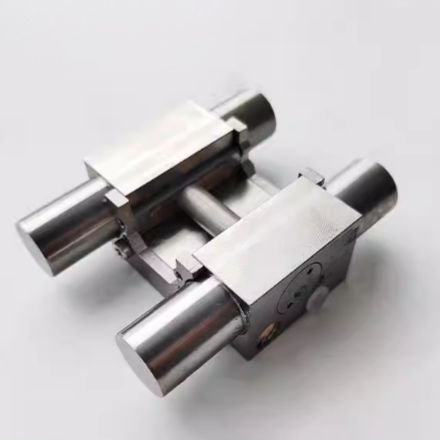

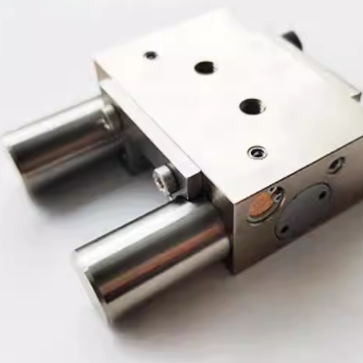

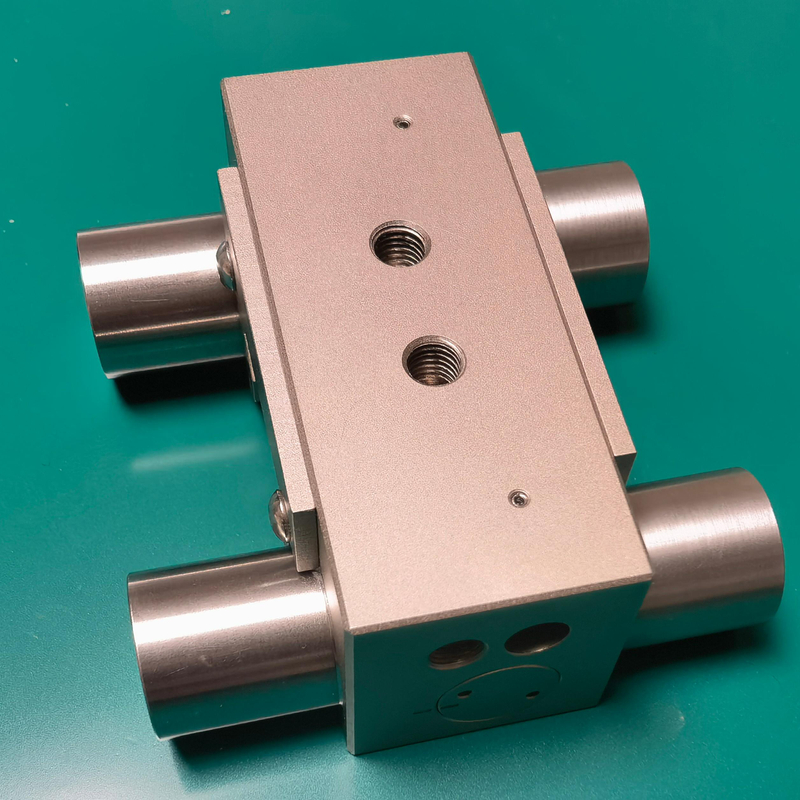

LMBPS45
Suitable for use with ball linear guides.
Used to secure the workbench,ensure positioning,and prevent vibration.
When air pressure is applied: the clamp opens.
When the air pressure is closed: clamping closed (clamped by spring pressure).
| Clamp types | Pneumatic normally closed |
| Applicable guideway sizes | 45mm |
| Holding force(N) | 3600N |
| Operating pressure range | 0.55~0.65Mpa |
| Service life | 2 million times |
Body material and surface treatment | 42CrMo，non-electrolytic sandblasting nickel plating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | Bosch Rexroth/Ewellix (SKF) |

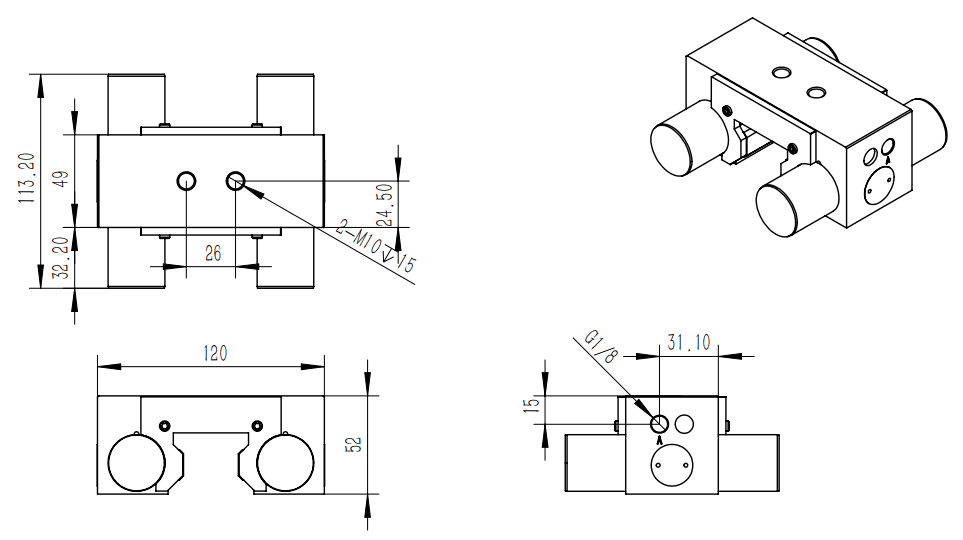

| 2D and 3D drawing | Available |
LMT Pneumatic 45mm Rail Clamping Element Advantages:
Fast delivery :3 days.
Help you save 25%~45% of the cost.
Direct replacement for Zimmer MBPS series pneumatic normally close clamping element.
Features a durable corrosion-resistant surface coating,safeguarding against rust and wear in challenging environments,ensuring extended operational life.
Suitable for use with ball linear guides.
Used to secure the workbench,ensure positioning,and prevent vibration.
When air pressure is applied: the clamp opens.
When the air pressure is closed: clamping closed (clamped by spring pressure).
| Clamp types | Pneumatic normally closed |
| Applicable guideway sizes | 45mm |
| Holding force(N) | 3600N |
| Operating pressure range | 0.55~0.65Mpa |
| Service life | 2 million times |
Body material and surface treatment | 42CrMo，non-electrolytic sandblasting nickel plating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | Bosch Rexroth/Ewellix (SKF) |
| 2D and 3D drawing | Available |
LMT Pneumatic 45mm Rail Clamping Element Advantages:
Fast delivery :3 days.
Help you save 25%~45% of the cost.
Direct replacement for Zimmer MBPS series pneumatic normally close clamping element.
Features a durable corrosion-resistant surface coating,safeguarding against rust and wear in challenging environments,ensuring extended operational life.
