MKS2001A

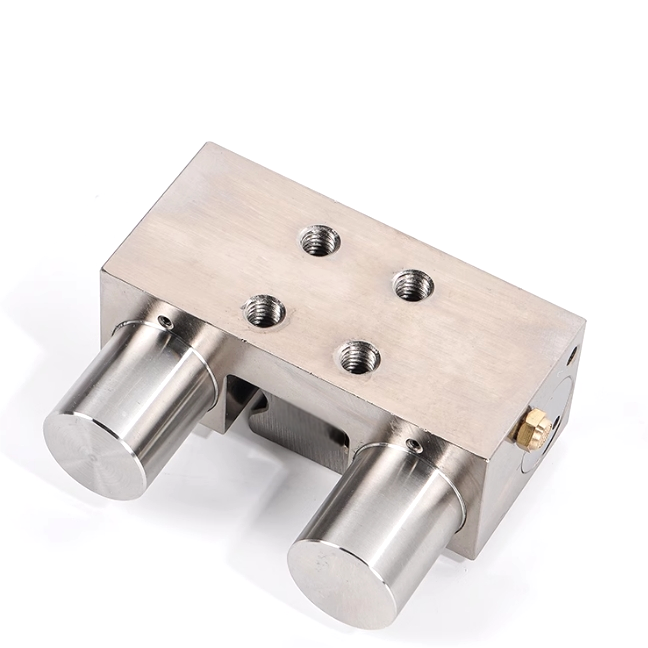

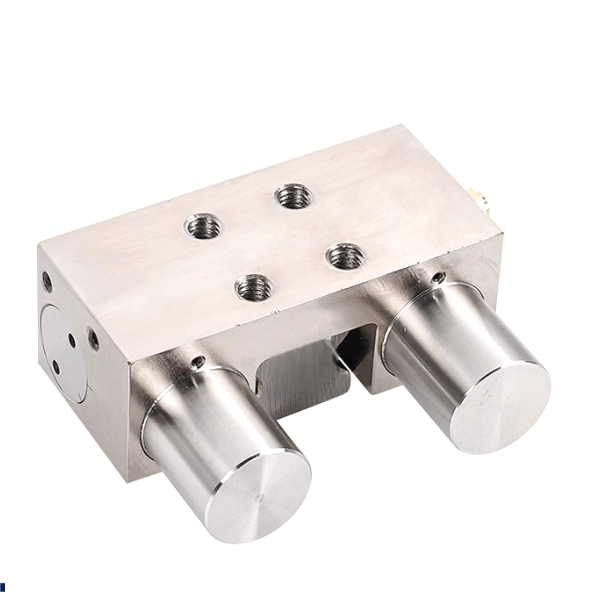

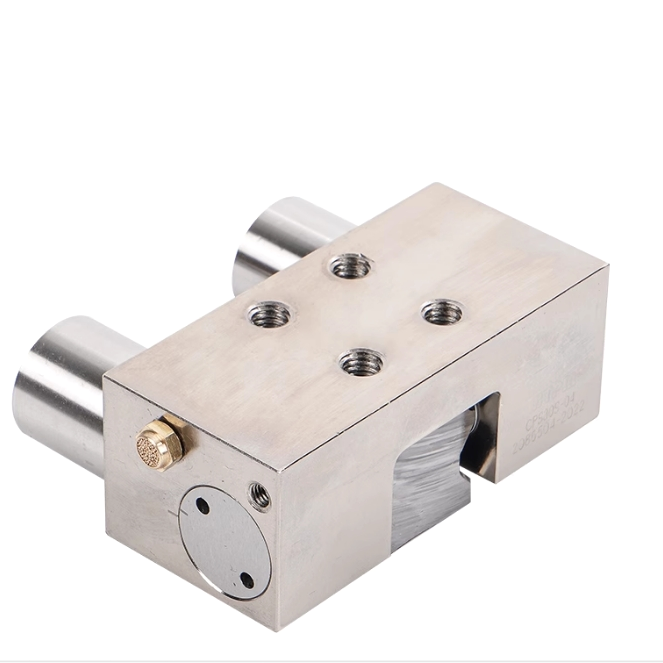

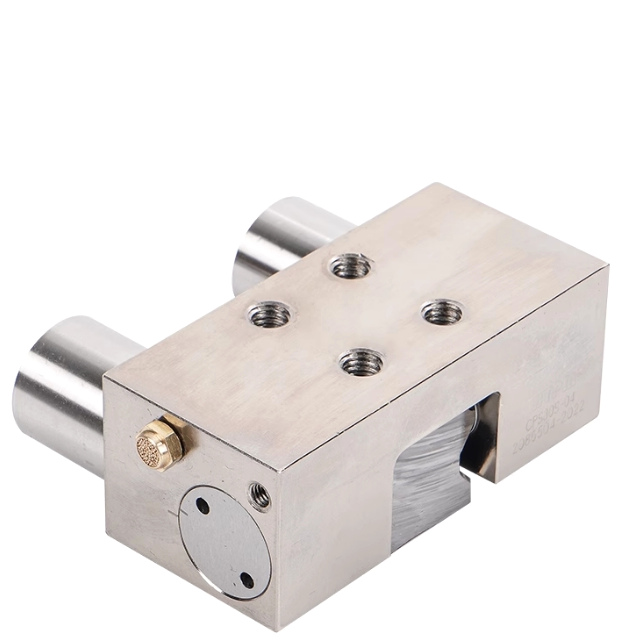

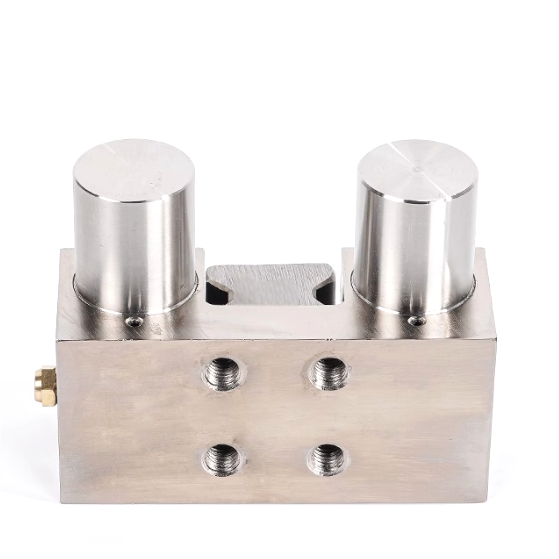

MKS2001A Pneumatic Linear Rail Clamping Braking Element
The MKS2001A clamp is suitable for 20mm linear guide and features a fixed slide,precise positioning,vibration prevention and increased rigidity.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 20mm |
| Rated holding force(N) | 600/1300N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
MKS2001A Pneumatic Linear Rail Clamping Braking Element
The MKS2001A clamp is suitable for 20mm linear guide and features a fixed slide,precise positioning,vibration prevention and increased rigidity.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 20mm |
| Rated holding force(N) | 600/1300N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
