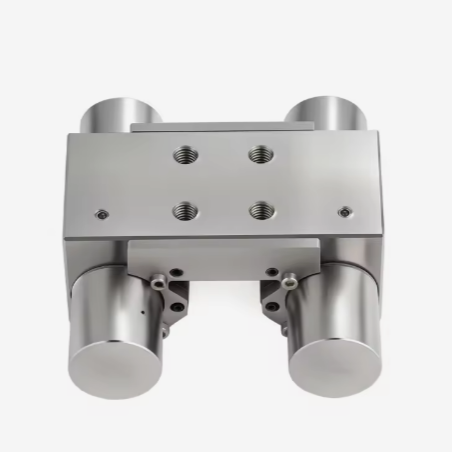

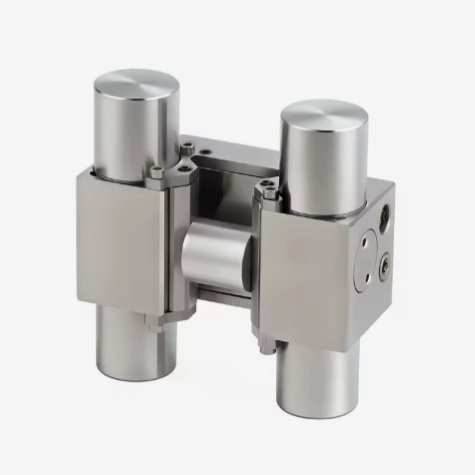

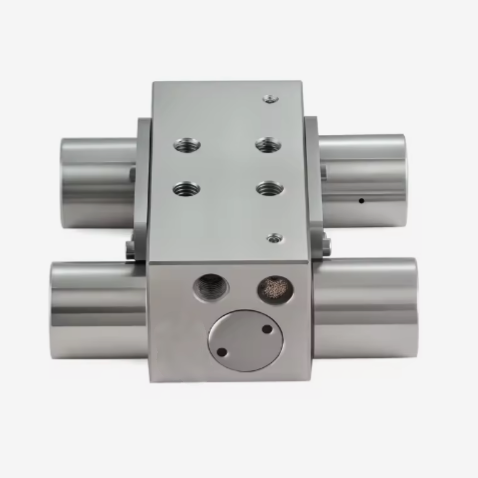

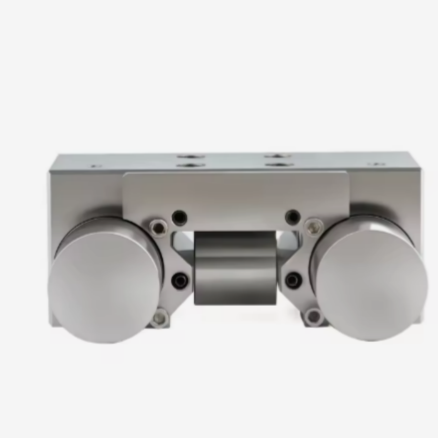

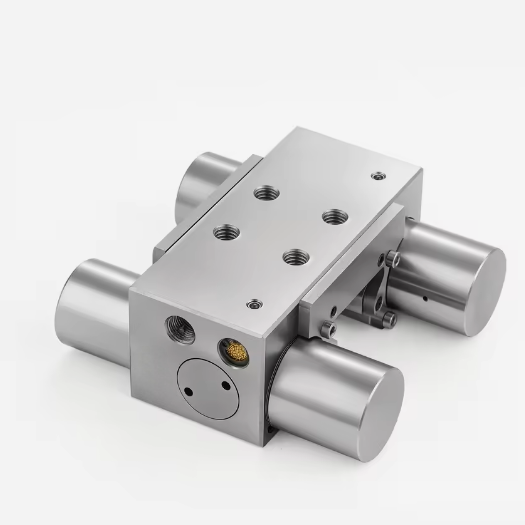

LMBPS55
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| |||||||||
Contact sales and send your linear rail and linear block models.We will provide this pneumatic normally closed clamping element 2D and 3D drawings as well as quotations.
Broad range of products: For all common profile rail guides
Energize to open (NC):through spring-loaded energy storage
High durability:5 million static clamping cycles
Safety element:Safe braking in case of energy failure
| Clamp types | Pneumatic normally closed |
| Applicable guideway sizes | 55mm |
| Holding force(N) | 3600N/4700N |
| Operating pressure range | 0.55~0.65Mpa |
| Service life | 2 million times |
Body material and surface treatment | 42CrMo，non-electrolytic sandblasting nickel plating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| 2D and 3D drawing | Available |
LMT Pneumatic Clamping Element Advantages:
Fast delivery :15 days.
Help you save 25%~45% of the cost.
Direct replacement for Zimmer MBPS series pneumatic normally close clamping element.
Features a durable corrosion-resistant surface coating,safeguarding against rust and wear in challenging environments,ensuring extended operational life.
