Available Materials:Bearing steel GCr15,Stainless steel 9Cr18
Customized Service:1004 Ball screw and ball nut will be produced according to your requirements or drawings
1004

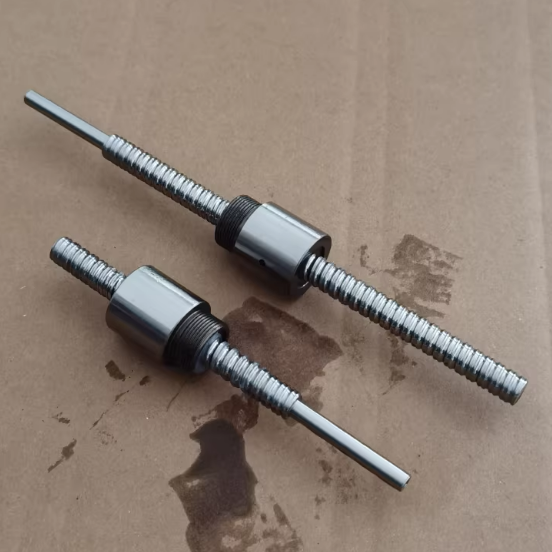

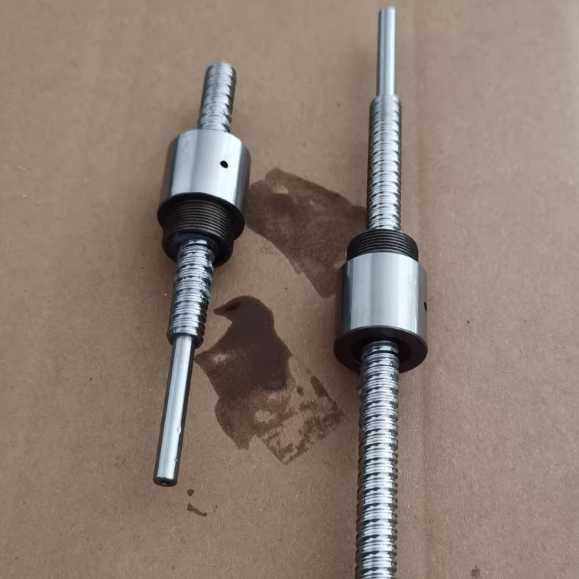

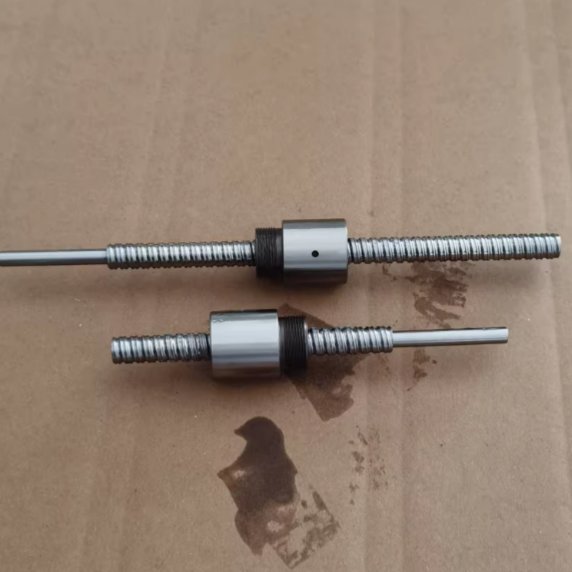

This 1004 ball screw assembly combines a 10mm diameter with a 4mm lead,delivering fast linear travel while maintaining excellent positioning accuracy.It is paired with a thread-mounted cylindrical nut featuring internal ball recirculation,ensuring smooth,low-friction operation with minimal backlash.
Diameter | 10mm |
Lead | 4mm |
| Pitch | 4mm |
| Accuracy grade | C3 C5 C7 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand/left hand/bi-directional |
Material | GCr15/9Cr18 |
MOQ: 1 pc.
Fast Delivery:7~25 days.
Cost-effective:15% ~40% cost savings.
Material test report,hardness test report,quality inspection report as your require.
Customized Service:The ball screw and ball nut will be manufactured according to your requirements.
High Quality:With 15 years of mature production experience in ball screws,all products are 100% tested for quality before shipping.
3D Printers & CNC Machines: Fast XYZ-axis movement and extruder positioning
Medical & Laboratory Automation: Quick, accurate positioning for sample handling
Pick-and-Place Systems: High-speed linear motion for assembly lines
Precision Actuators: Compact, efficient drives for robotics and automation
