MBPS3501AS1-A

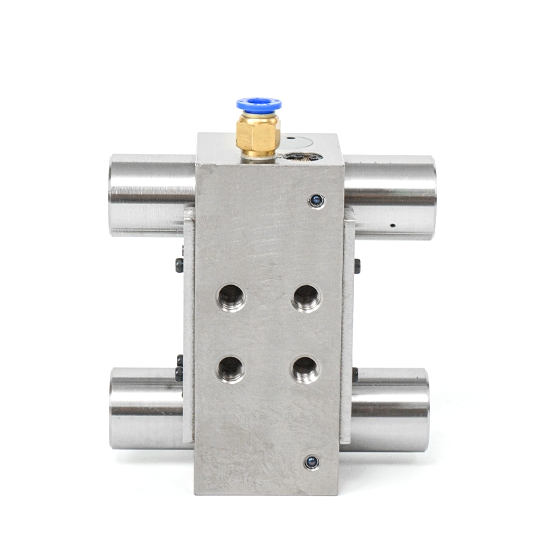

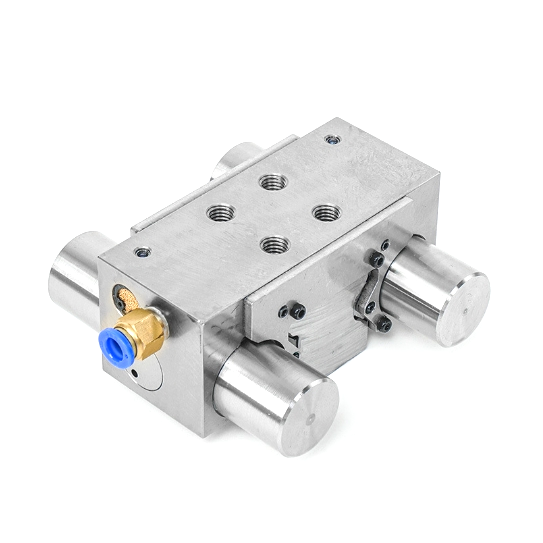

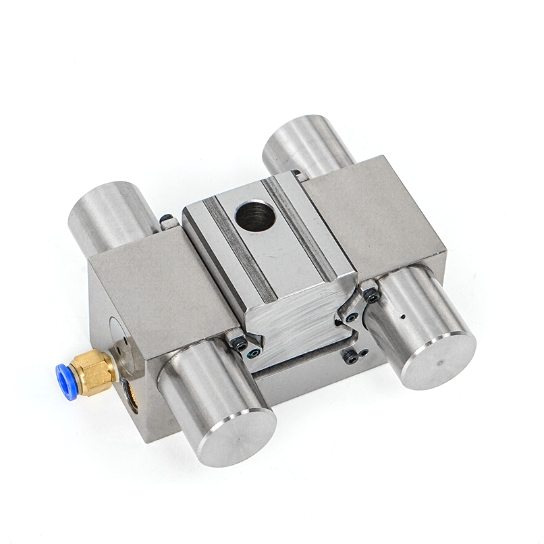

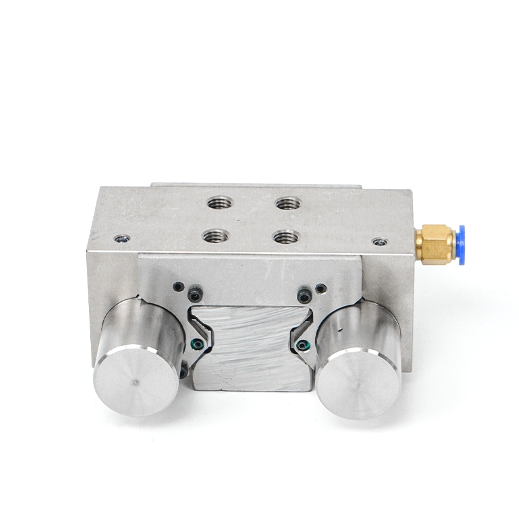

MBPS3501AS1-A Pneumatic Linear Guide Clamping Braking Element
Clamping and braking are realized through the action of spring energy storage on the wedge block,and the clamping is relieved by air pressure.When the power is off, MBPS3501AS1-A clamp can emergency brake to prevent the vertical shaft from falling and colliding.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 35mm |
| Rated holding force(N) | 2800N |
| Open air pressure | 0.45~0.8Mpa |
| Brake life | ＞2000 times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
