MBPS4501ES1

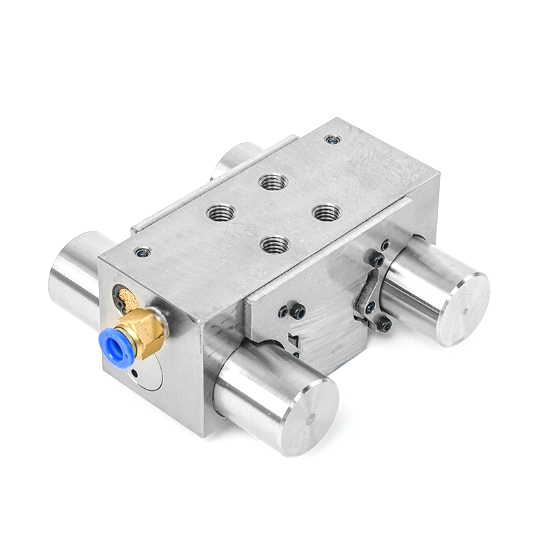

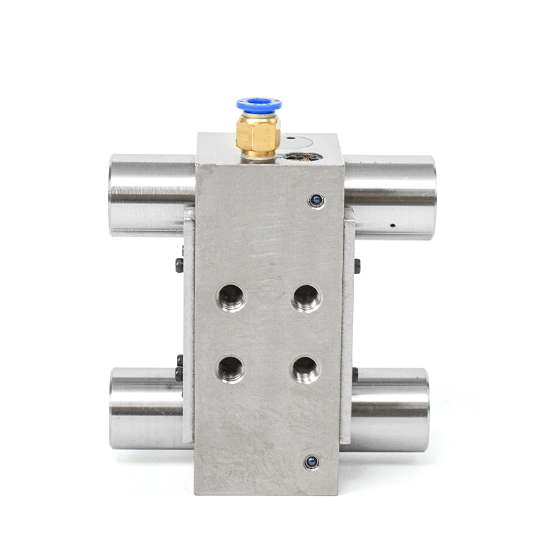

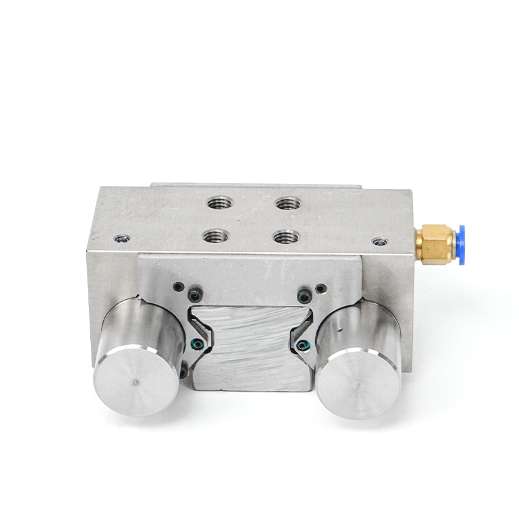

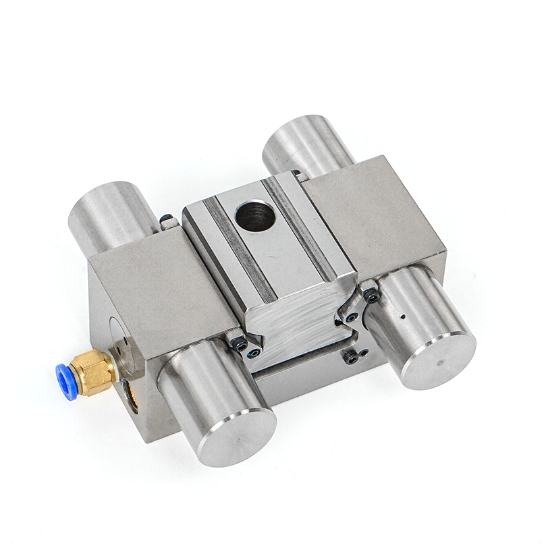

MBPS4501ES1 Pneumatic Roller Linear Rail Clamping Braking Element

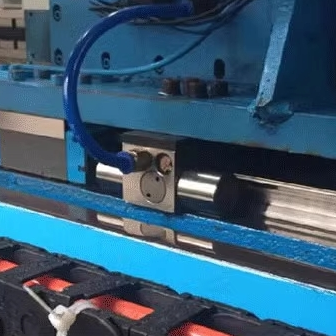

The MBPS4501ES1 guide clamp is easy to install,can be directly connected with the workbench,without changing the size of the workbench,has high positioning accuracy, suitable for fixing the machining center workbench. When the power is off, it can emergency brake to prevent the vertical shaft from falling and colliding.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 45mm |
| Rated holding force(N) | 4000N |
| Open air pressure | 0.45~0.8Mpa |
| Brake life | ＞2000 times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
