MBPS5501AS1

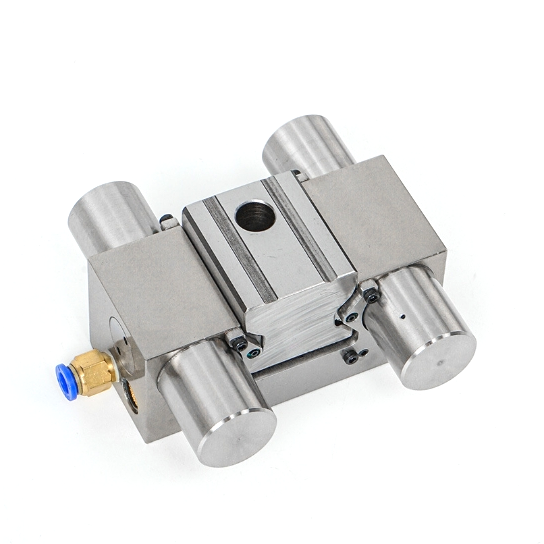

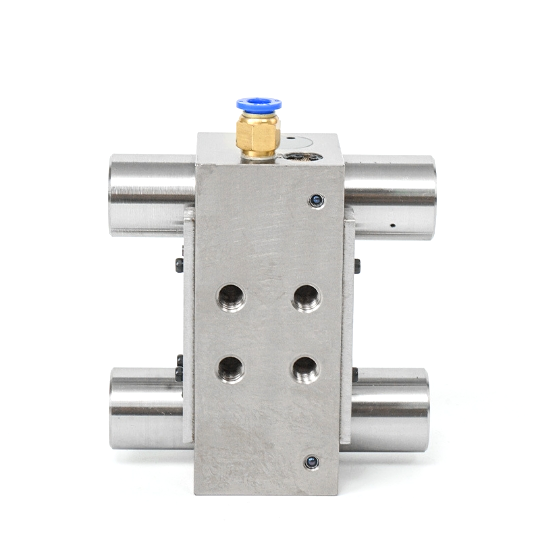

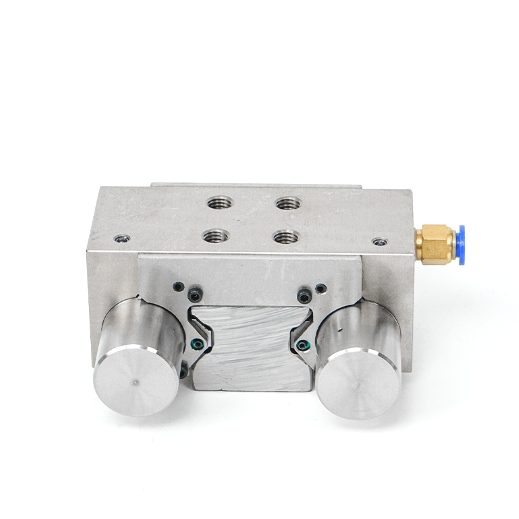

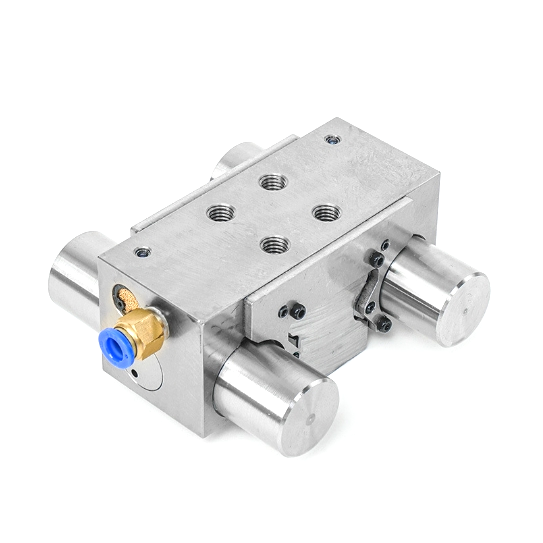

MBPS5501AS1 Pneumatic Roller Linear Rail Braking Element
The MBPS5501AS1 clamp element is a pneumatic normally closed rail clamp. When power is off, it can brake urgently and prevent the vertical shaft from falling and colliding.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 55mm |
| Rated holding force(N) | 4000N |
| Open air pressure | 0.45~0.8Mpa |
| Brake life | ＞2000 times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
