MKRS1600A-A

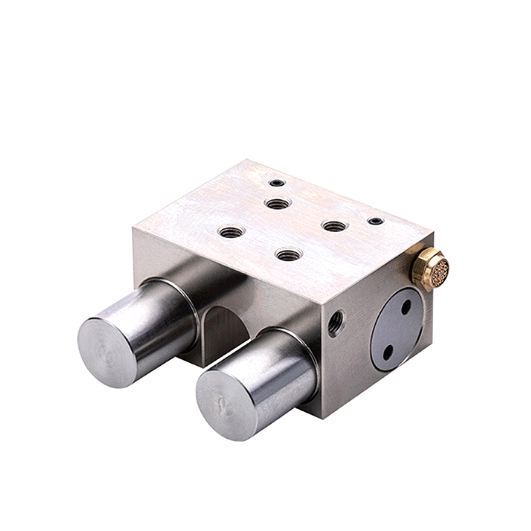

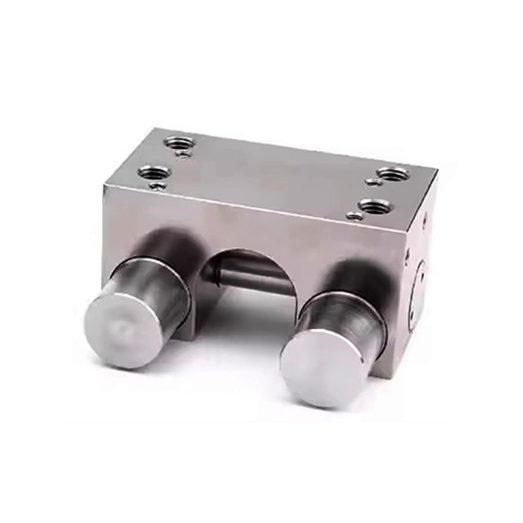

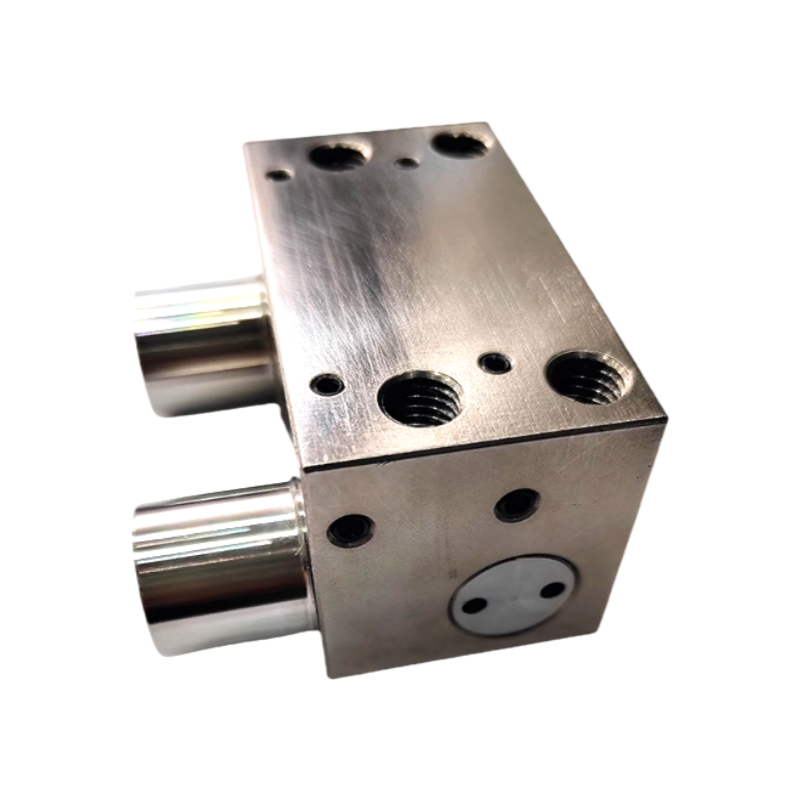

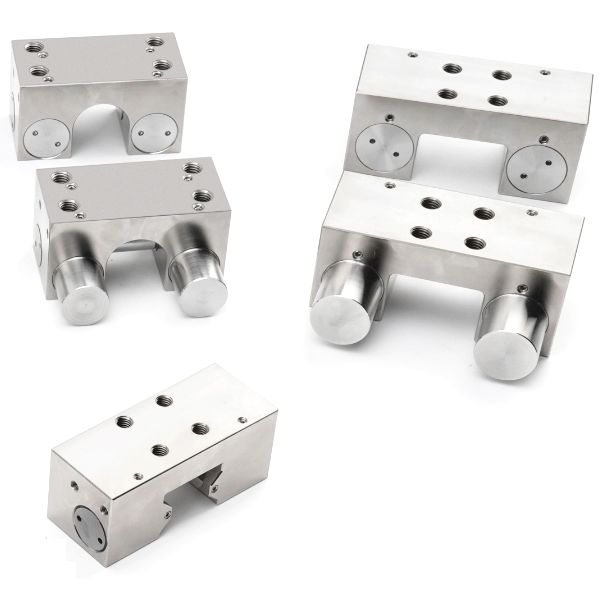

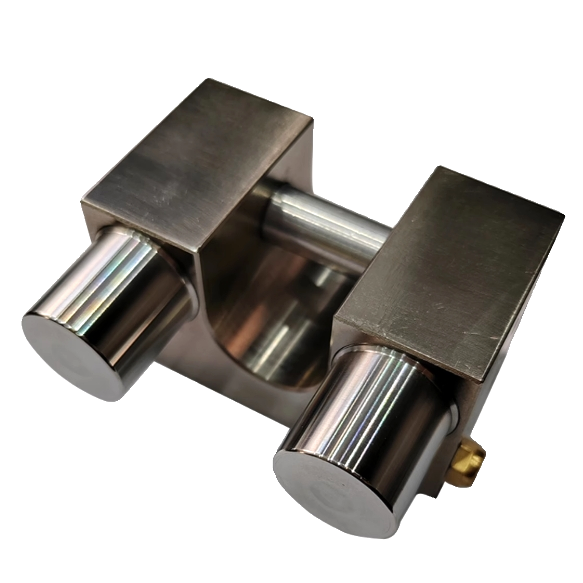

MKRS1600A-A Clamping Braking Element for 16mm Linear Shaft
The linear shaft clamp has a novel design and can avoid the rigid impact during clamping.MKRS1600A-A clamp is simple to install and directly connected to the workbench without changing the size of the workbench.
| Clamp Types | Pneumatic |
| Shaft diameter | 16mm |
| Rated holding force(N) | 400N |
| Open air pressure | 0.2~0.8Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
