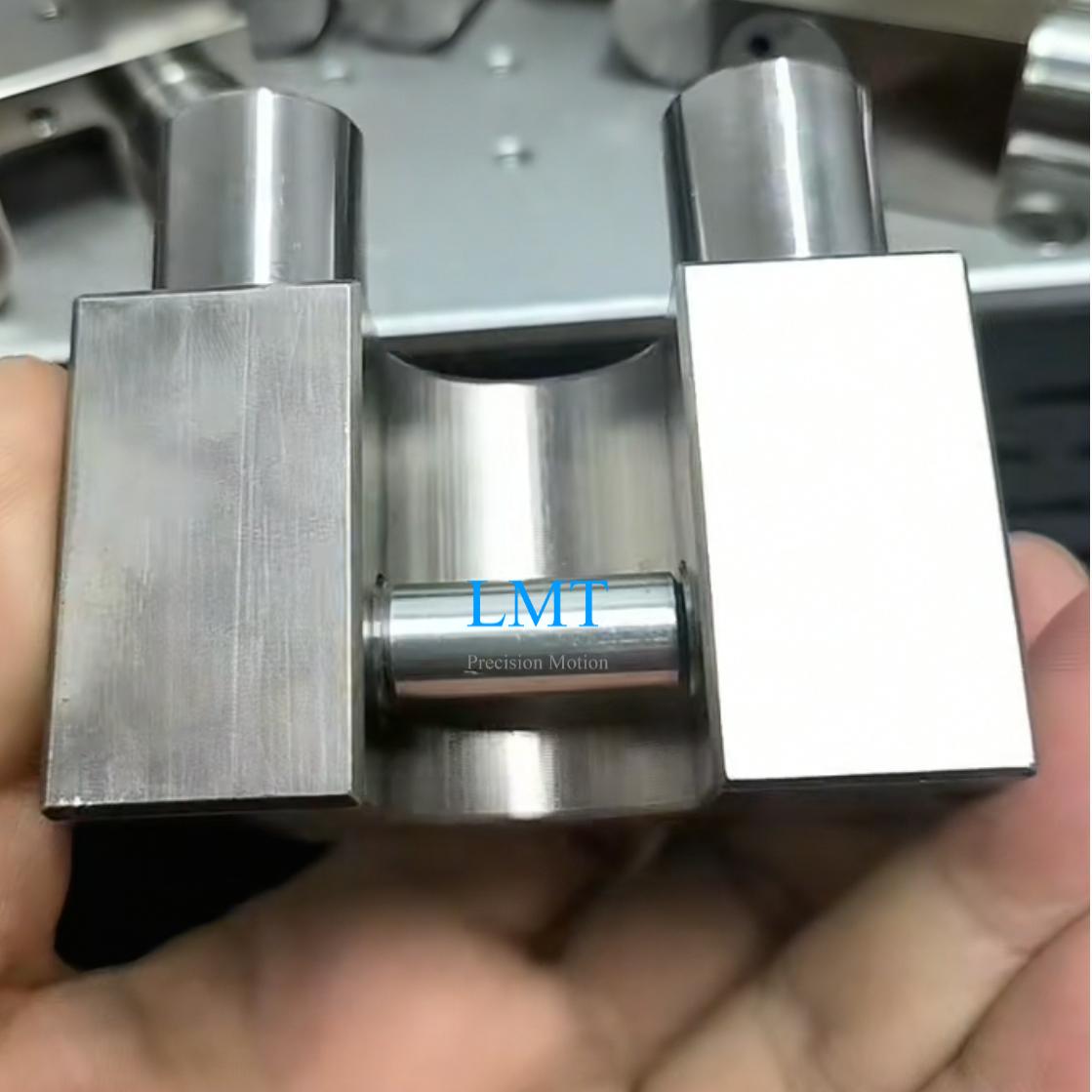

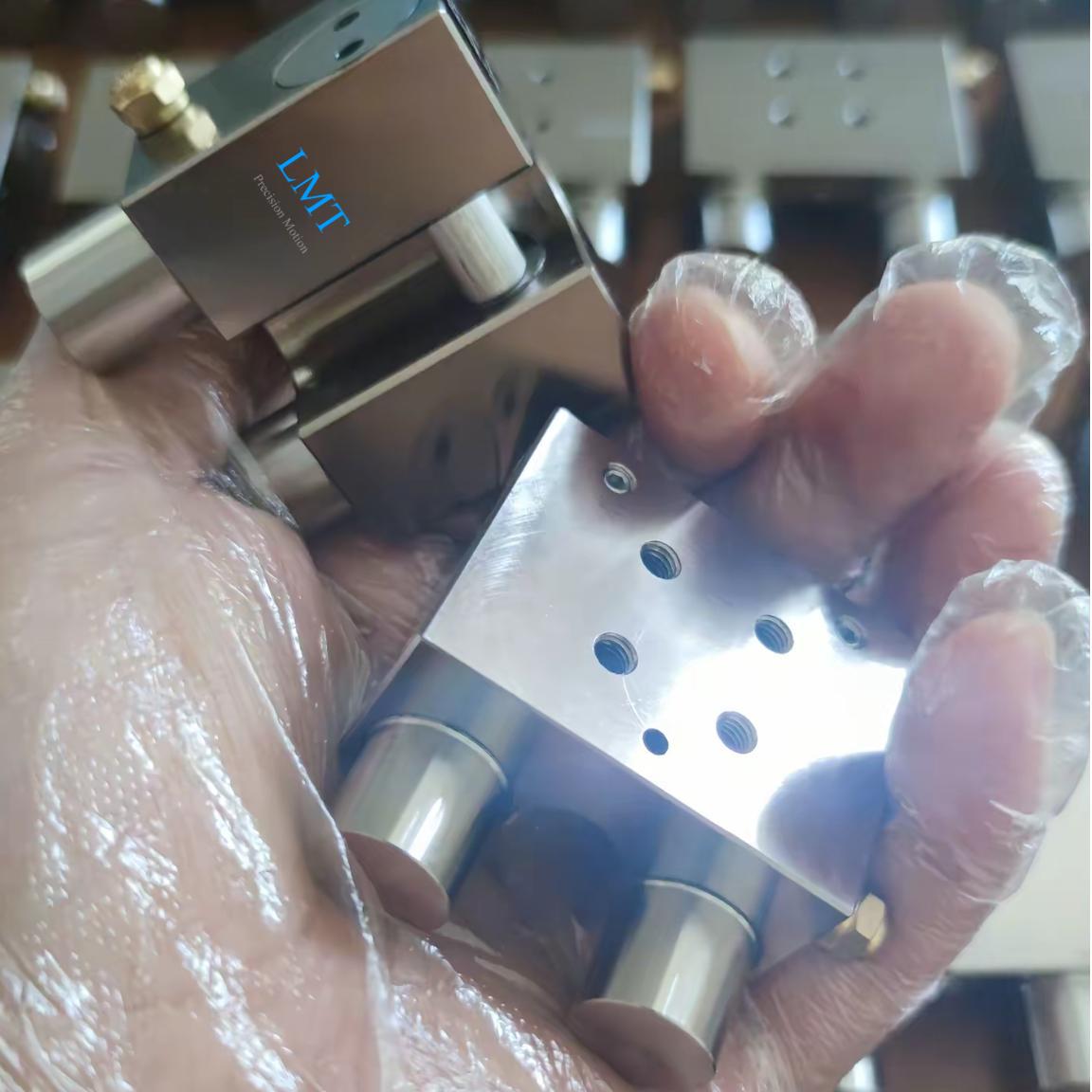

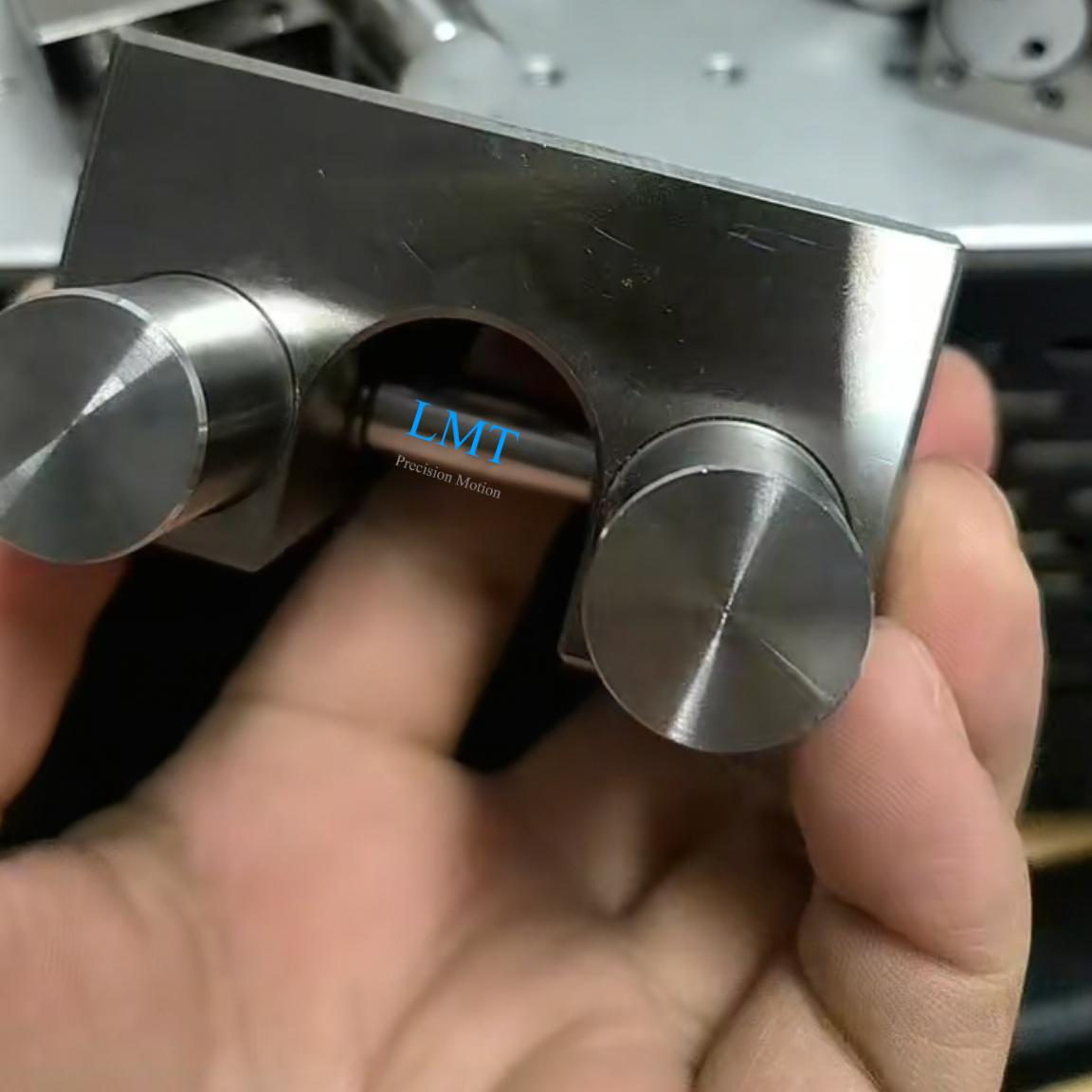

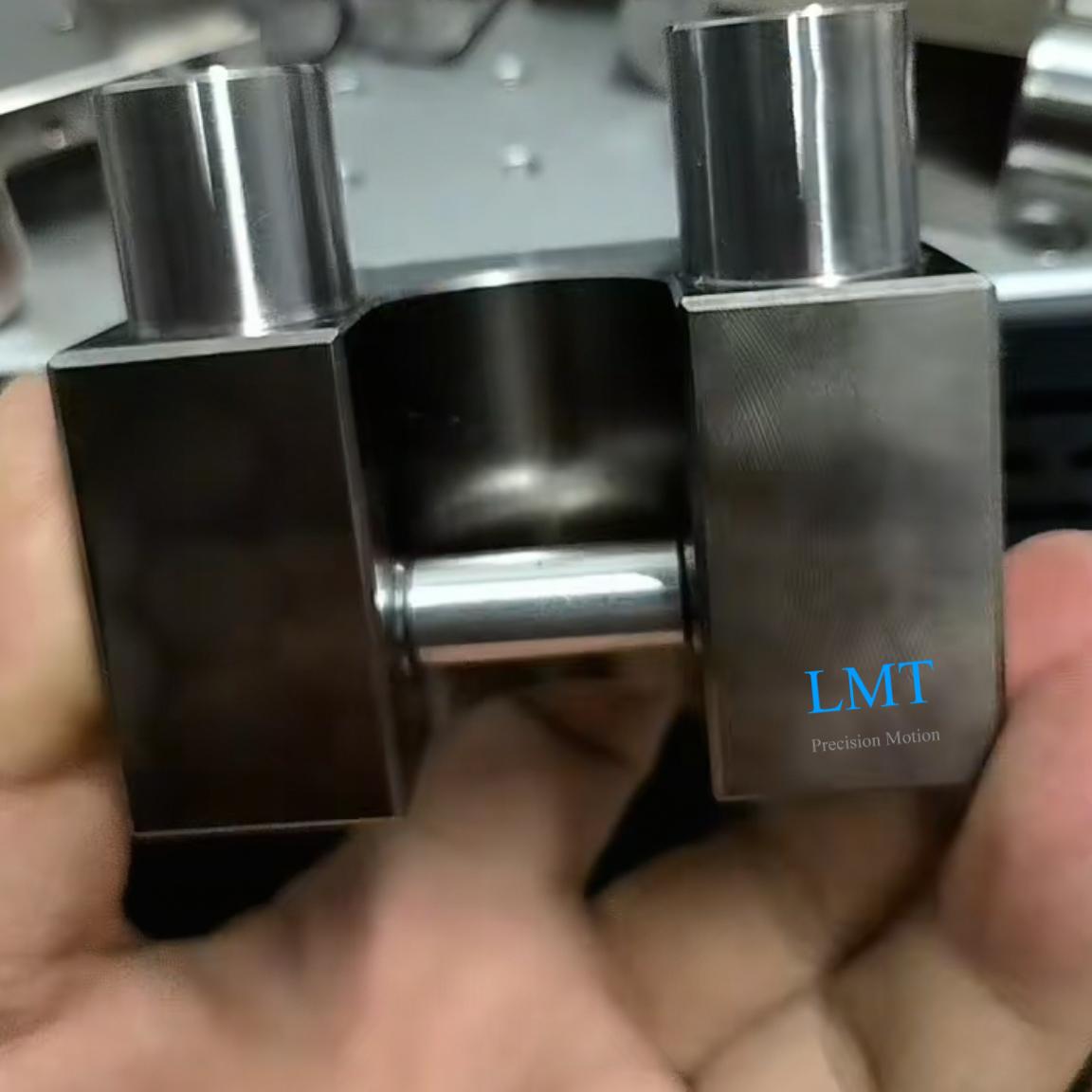

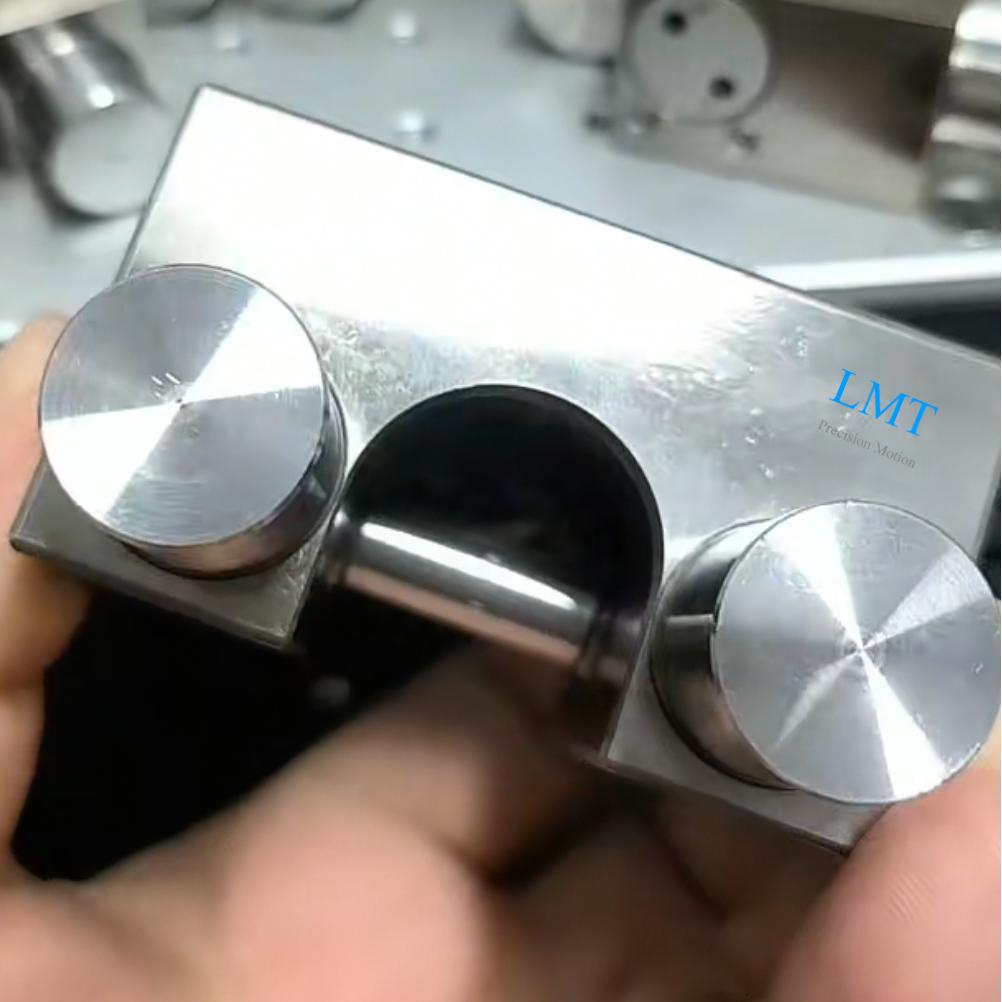

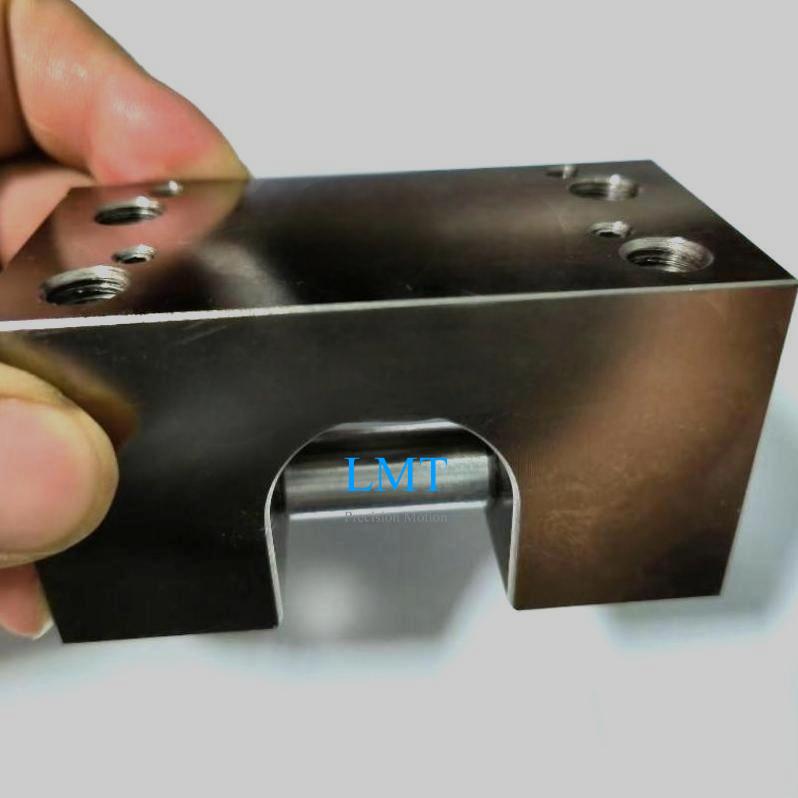

Replace MKRS3000A Circular Round Shaft Clamping Braking Element
Upgrade your linear motion systems with our direct MKRS3000A replacement shaft clamping and braking element!Securely locks 30mm circular shafts,eliminating slippage and ensuring precise positioning.Reinforces structural integrity in linear guides and motion assemblies.
| Clamp types | Pneumatic normally close |
| Shaft diameter | 30mm |
| Rated holding force(N) | Standard connection 1050N,pressurized connection 2600N |
| Open air pressure | 0.55~0.8Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |

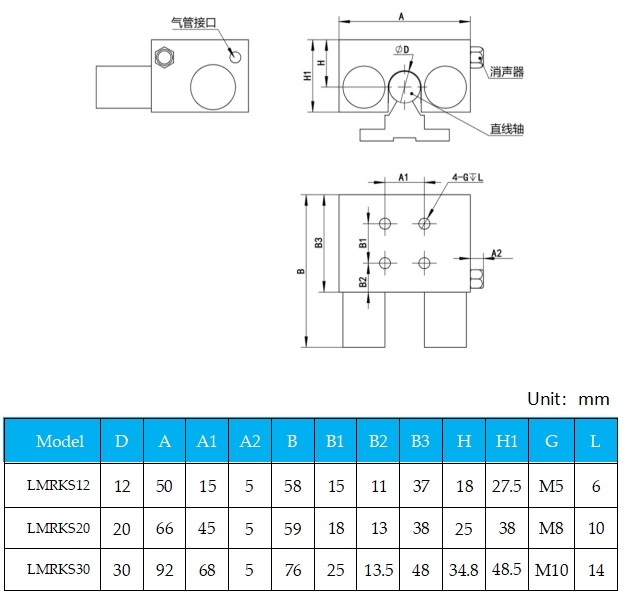

| 2D and 3D drawing | Available |
30mm Round Shaft Clamping and Braking Element Key Advantages:
Lead time:Large stock inventory.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For circular guides and shaft guides.
Completely replace the Zimmer brand MKRS series linear shaft clamping element.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp brake main body is nickel-plated and has good rust resistance.
Pneumatic Normally Closed Linear Shaft Clamp Brake Video
Replace MKRS3000A Circular Round Shaft Clamping Braking Element
Upgrade your linear motion systems with our direct MKRS3000A replacement shaft clamping and braking element!Securely locks 30mm circular shafts,eliminating slippage and ensuring precise positioning.Reinforces structural integrity in linear guides and motion assemblies.
| Clamp types | Pneumatic normally close |
| Shaft diameter | 30mm |
| Rated holding force(N) | Standard connection 1050N,pressurized connection 2600N |
| Open air pressure | 0.55~0.8Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| 2D and 3D drawing | Available |
30mm Round Shaft Clamping and Braking Element Key Advantages:
Lead time:Large stock inventory.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For circular guides and shaft guides.
Completely replace the Zimmer brand MKRS series linear shaft clamping element.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp brake main body is nickel-plated and has good rust resistance.
Pneumatic Normally Closed Linear Shaft Clamp Brake Video
