Available Screw Materials：S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:Lead screws and nuts will be custom-produced according to your requirements or drawings

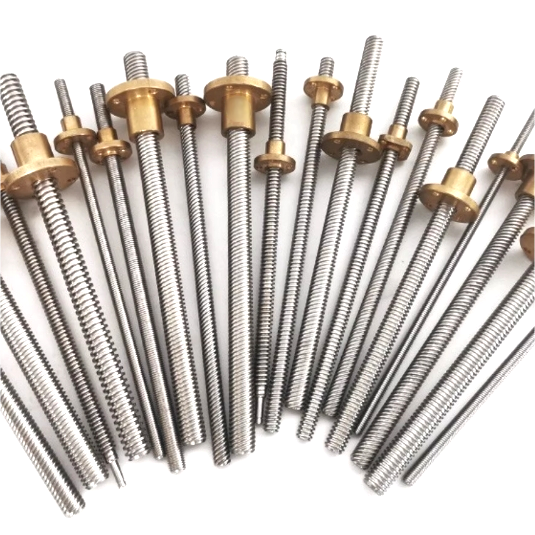

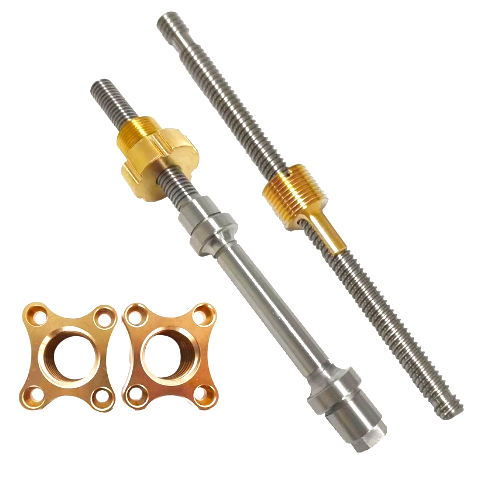

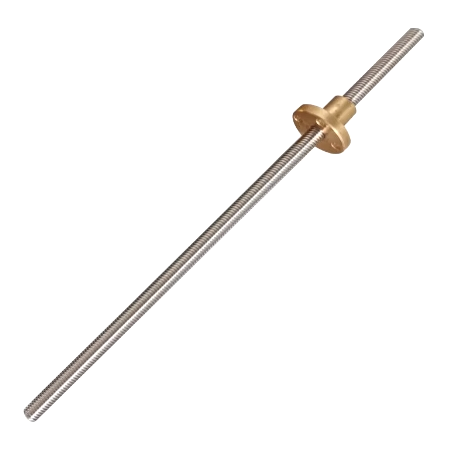

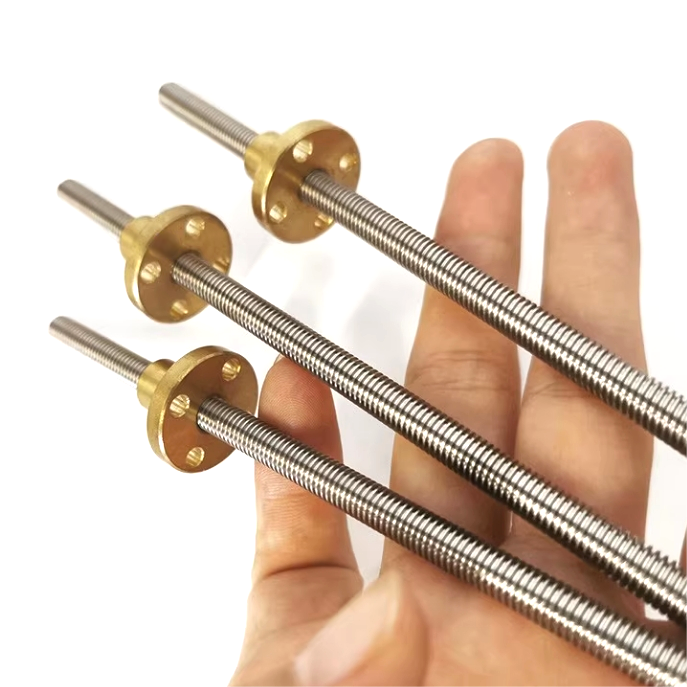

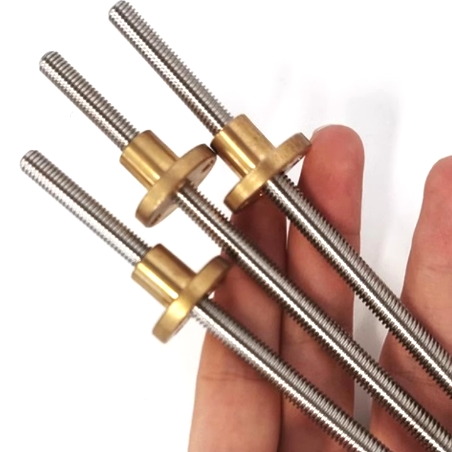

Tr5x5 Miniature Precision Trapezoidal Screw with Nut
This is a miniature trapezoidal lead screw with a diameter of 5mm,a lead of 5mm,and a pitch of 1.25mm.Designed for applications in confined spaces,T5x5 lead screw delivers high-precision motion control with a maximum lead accuracy of 0.012mm per 100mm.The screw features a 4-start thread configuration (lead = 4×pitch)to optimize torque efficiency while maintaining compact dimensions.
Diameter | 5mm |
Lead | 5mm |
Pitch | 1.25mm |
| Number of starts | 4 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread direction | Right hand thread/left hand thread/right and left hand thread |
Key Advantages:
Cost-Effective Solution:Competitive pricing without compromising quality,providing exceptional value for high-performance applications.
Customizable Design:Tailored to your specifications,including custom lengths,lead screw shaft end,coatings,nut configurations,and material options for unique operational needs.
Tr5x5 Miniature Precision Trapezoidal Screw with Nut
This is a miniature trapezoidal lead screw with a diameter of 5mm,a lead of 5mm,and a pitch of 1.25mm.Designed for applications in confined spaces,T5x5 lead screw delivers high-precision motion control with a maximum lead accuracy of 0.012mm per 100mm.The screw features a 4-start thread configuration (lead = 4×pitch)to optimize torque efficiency while maintaining compact dimensions.
Diameter | 5mm |
Lead | 5mm |
Pitch | 1.25mm |
| Number of starts | 4 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread direction | Right hand thread/left hand thread/right and left hand thread |
Key Advantages:
Cost-Effective Solution:Competitive pricing without compromising quality,providing exceptional value for high-performance applications.
Customizable Design:Tailored to your specifications,including custom lengths,lead screw shaft end,coatings,nut configurations,and material options for unique operational needs.
