Tr6x8 ROHS Compliant Rolled Lead Screw Rod with Plastic Nut

  • Model Number: Diameter 6mm,lead 8mm,pitch 2mm
  • Lead Time and MOQ : lead time 12~14days,MOQ 1 pc
  • Available Screw Materials:S45C,SS303,SS304,SS316

  • Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304

  • Customized Service:6x8 trapezoidal screw and nut will be produced according to your requirements or drawings




Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

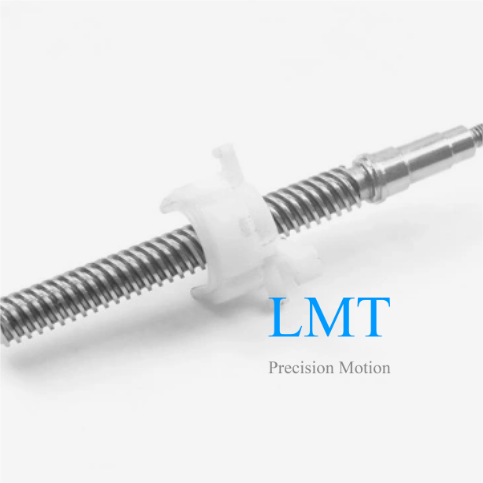

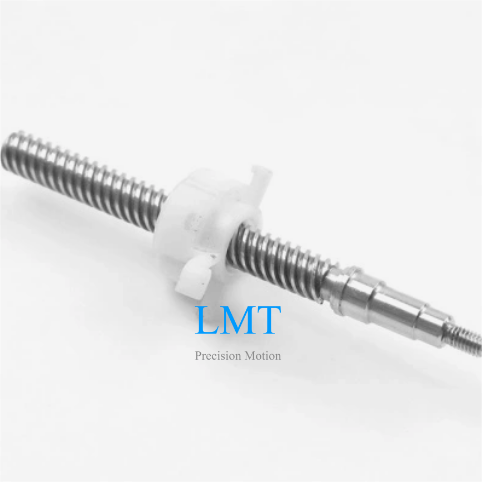

Tr6x8 ROHS Compliant Rolled Lead Screw Rod with Plastic Nut:This precision Tr6x8 trapezoidal lead screw features a 6mm diameter and 8mm lead,manufactured from corrosion-resistant stainless steel using cold-rolling technology.The process delivers an ultra-smooth surface finish for enhanced performance.Paired with engineered plastic nuts(POM,PEEK,or nylon options),the screw and nut set enables high-velocity motion with minimal friction,near-silent operation,and zero maintenance requirements.


Specification:


Diameter

6mm

Lead

8mm

Pitch

2mm

Number of starts 4

Thread direction

RH/LH/RL

Screw material

S45C/ SS303/SS304/SS316

Nut material

Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C


Tr6x8 Mini Lead Screw Rod and Nut Advantages:


MOQ: 1 pc.

Fast Delivery:Within 12 days.

Cost-effective:15% ~40% cost savings.

All screws and nuts are ROHS and CE compliant.

Customized Service:The T6x8 lead screw and nut will be manufactured according to your requirements.

Superior Surface & Precision:Advanced cold-rolling technology creates an ultra-smooth,hardened surface for low friction,consistent performance,and extended lifespan.


Lead Screw Nut


Tr6x8 ROHS Compliant Rolled Lead Screw Rod with Plastic Nut


Lead Screw Nuts


Tr6x8 ROHS Compliant Rolled Lead Screw Rod with Plastic Nuts
