CPDS20S

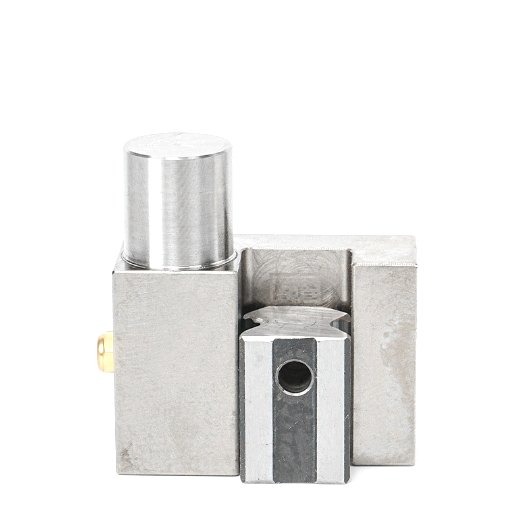

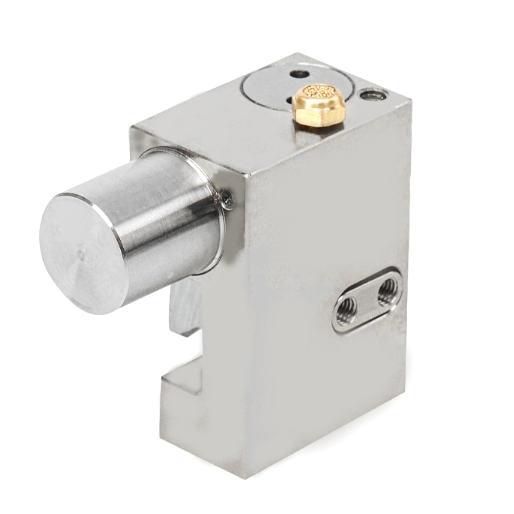

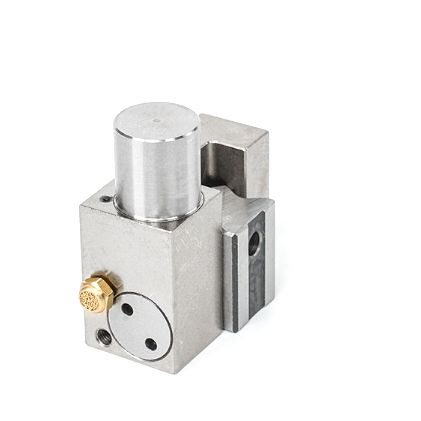

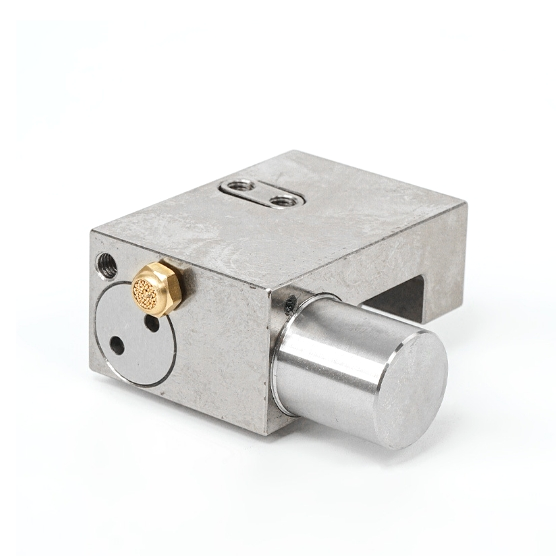

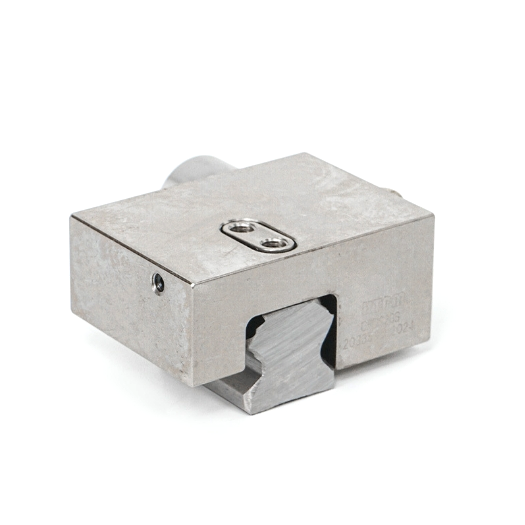

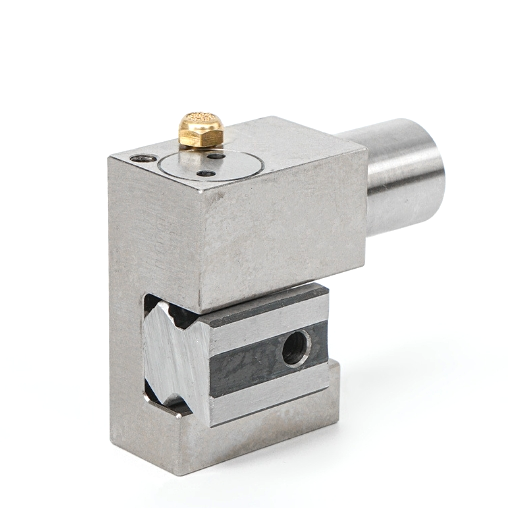

20mm Linear Guide Single Cylinder Pneumatic Clamping Element
This 20mm linear guide clamp is easy to install,directly connected to the workbench without changing the workbench size,has high positioning accuracy and is suitable for fixed machining center tables.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 20mm |
| Rated holding force(N) | 500N/1000N(standard series) 400N/700N (Low pressure series) |
| Open air pressure | 0.55~0.8Mpa(standard series) 0.4~0.8Mpa(Low pressure series) |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |

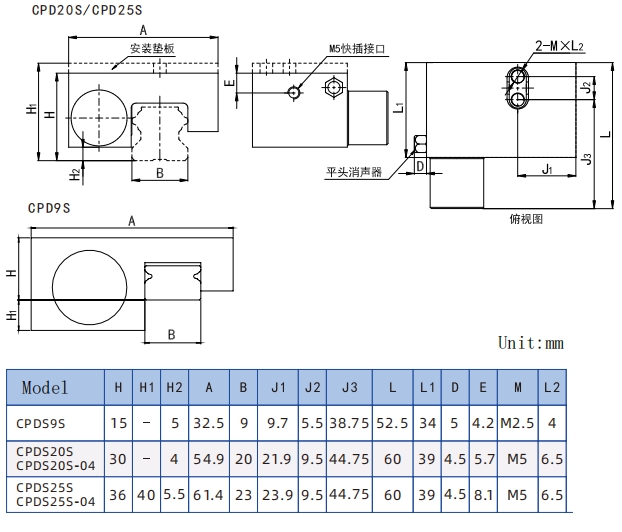

Single Cylinder Pneumatic Braking Dimension
Contact our sales to get a quote!
