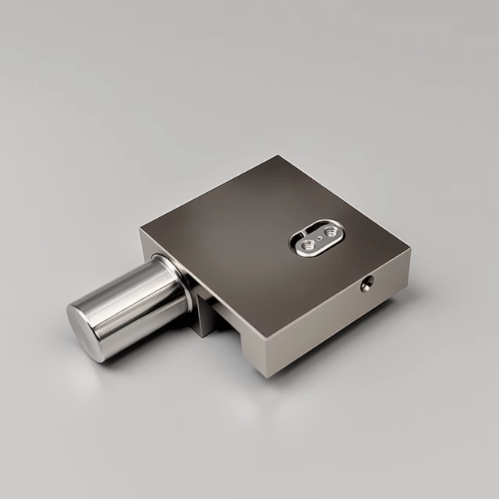

CPDS Series Pneumatic Guide Clamping And Braking

Single cylinder pneumatic normally closed linear guide clamping element

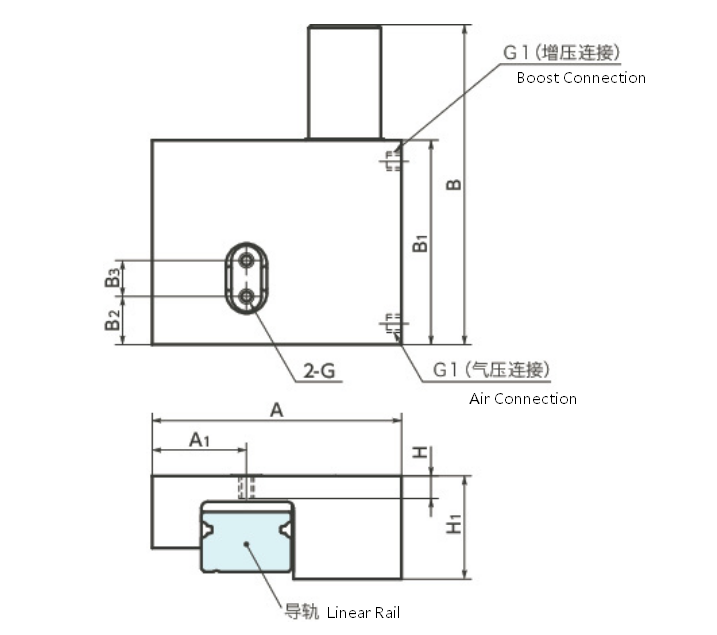

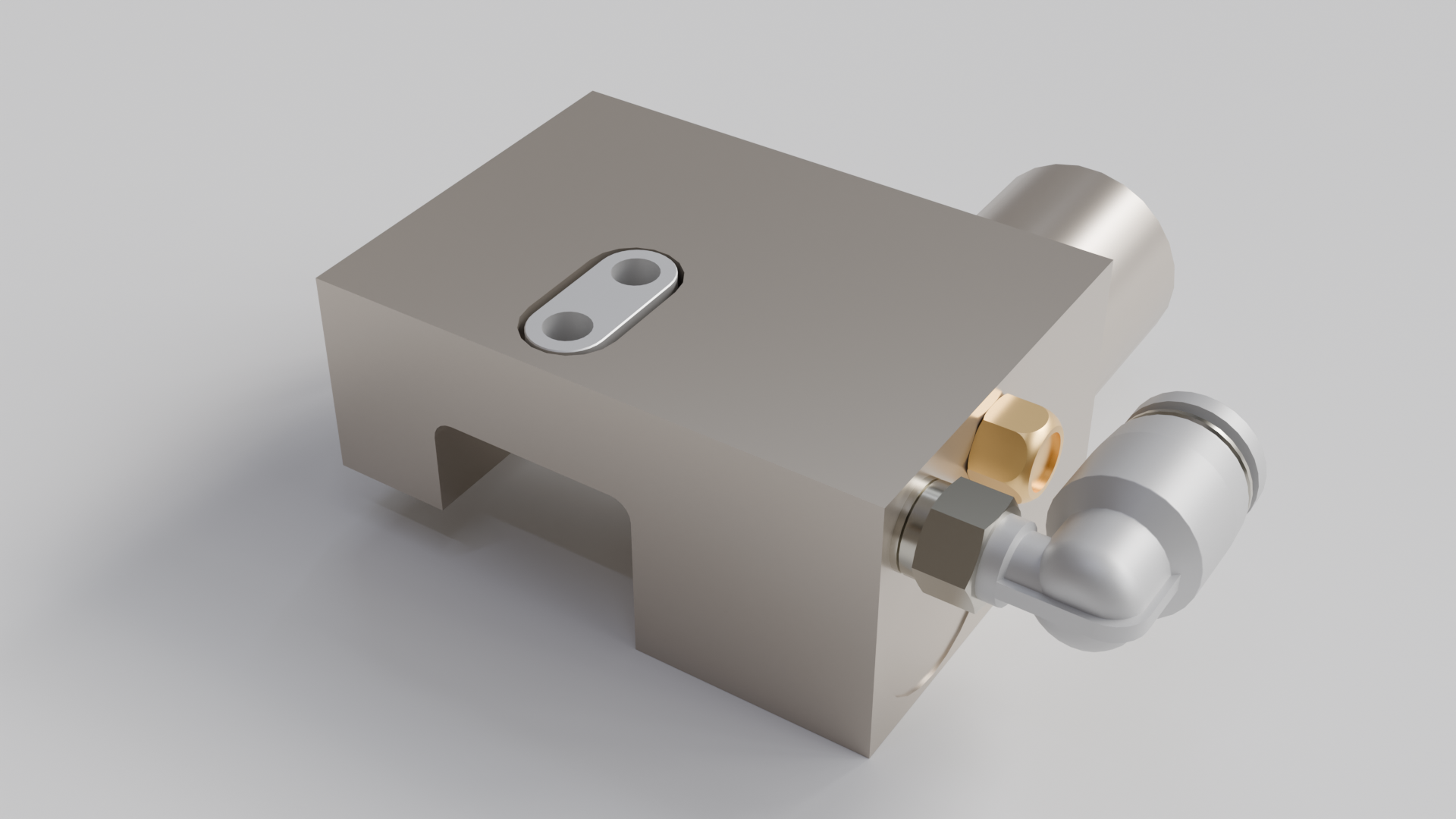

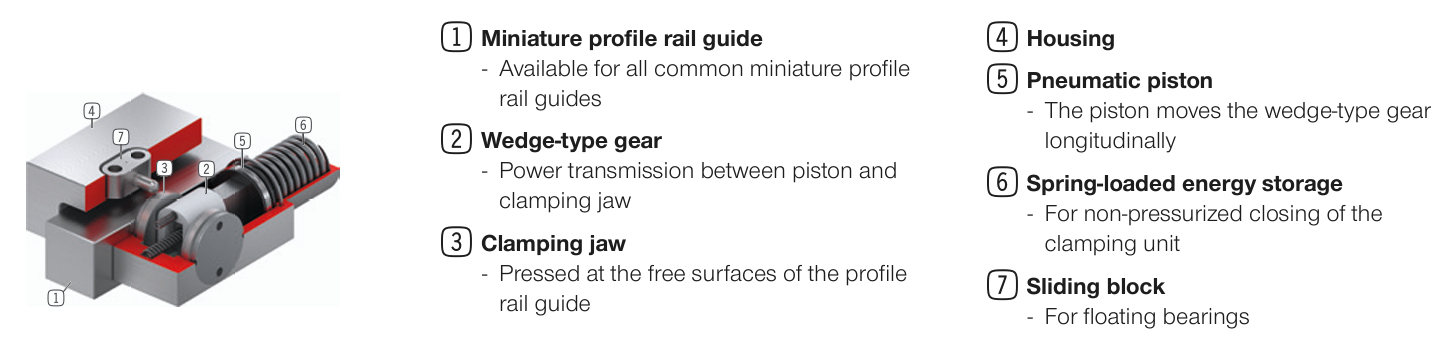

AKS20B seriesClamping is realized by spring energy storage acting on the wedge block.

Unclamping by pneumatic pressure (standard and low pressure series according to different opening pressures).

Easy to install, directly connected to the table without changing the table size.

High positioning accuracy, suitable for fixed machining center table.


Standard pneumatic clamping working condition/rated holding force/air consumption

Specification code

Response time

Opening pressure

Pressurized connection

Operating  temperature

pneumatic normally close

≤0.06S

0.55~0.8MPa

0.2~0.8MPa

0°C~70℃



    Model                                          Rated holding force(N)                                                                                                Air consumption (ℓ/cycle(ANR))

                                             Standard connection/pressurized connection                                                                     Standard connection/pressurized connection


CPDS9S                                   80N/200N                                                                                                                    0.007/0.02


CPDS20S                                500N/1000N                                                                                                               0.014/0.055


CPDS25S                                 650/1050N                                                                                                                   0.015/0.06


Note:When the operating pressure is less than 0.55MPa, use the low pressure series.




Low pressure series clamping working condition/rated holding force/air consumption


Specification code

Response time

Opening pressure

Pressurized connection

Operating  temperature

pneumatic normally close

≤0.06S

0.4~0.8MPa

0.2~0.8MPa

0°C~70℃


    Model                                          Rated holding force(N)                                                                                                Air consumption (ℓ/cycle(ANR))

                                             Standard connection/pressurized connection                                                                     Standard connection/pressurized connection


CPDS20S                                 400/700N                                                                                                                         0.014/0.055


CPDS25S                                 500/750N                                                                                                                          0.01/0.04



Pressurized connection method

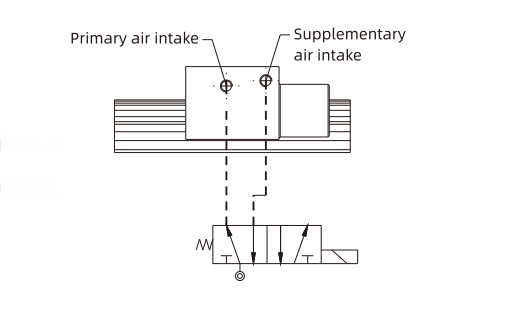

Clamping element Pressurized connection method


1. Remove the silencer.

2. Install the pipe connector,air pipe,and solenoid valve.

3. Start supplying air.

4. Start the solenoid valve and confirm the opening and closing status of the clamps.
