LMK20B

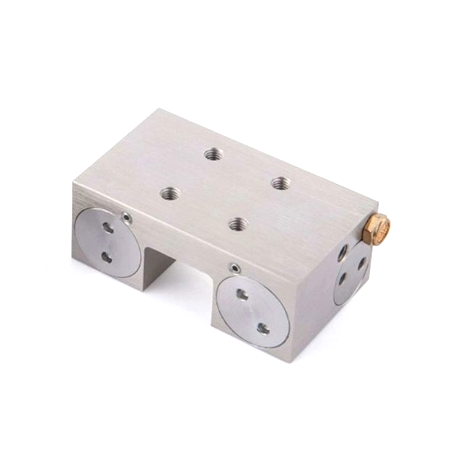

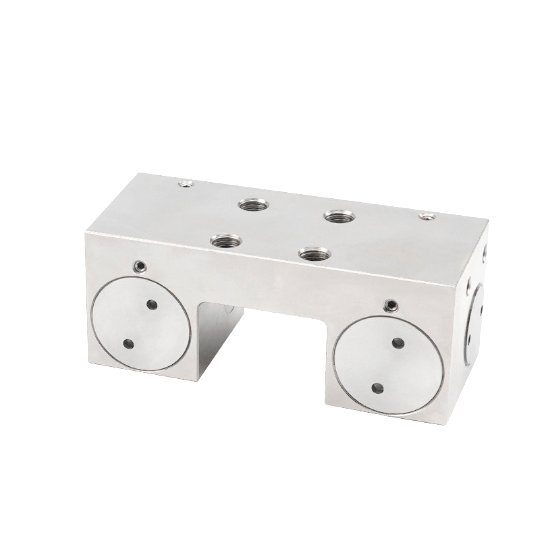

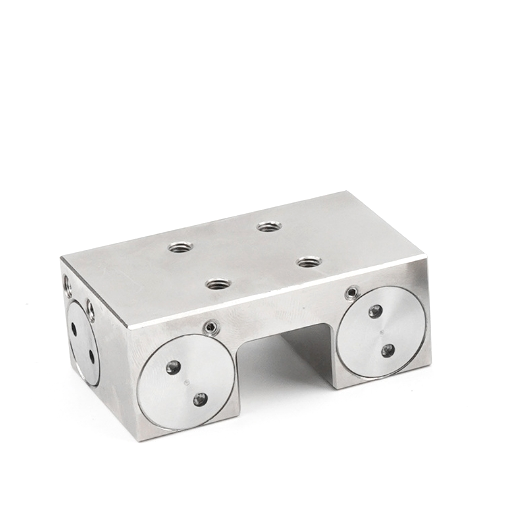

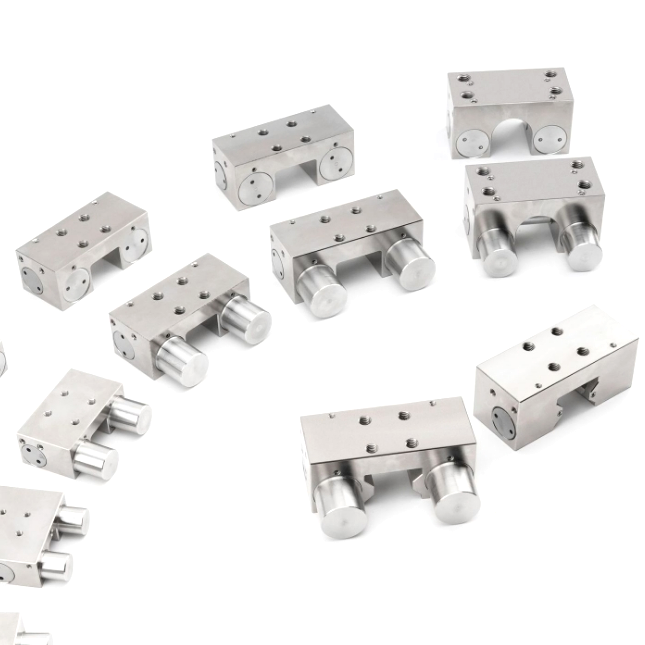

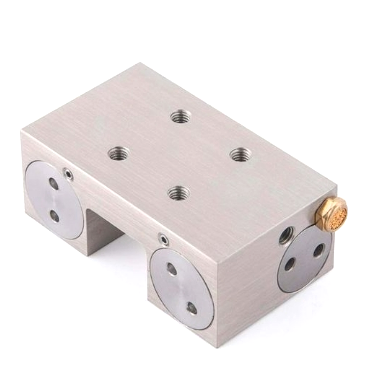

20mm THK PMI Won Linear Rail Lock Clamp Breaking Stopper
The clamping element is in the clamping state when air is supplied and is suitable for 20mm linear rails.The surface of the clamp has a nickel-plated coating,which provides good protection against rust.
| Clamp types | Pneumatic normally open |
| Linear guide sizes | 20mm |
| Rated holding force(N) | 1000N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
20mm Linear Rail Lock Clamp Advantages:
Fast delivery within 3 days.
Help you save 25% of the cost.
High Durability,up to 5 million static clamping cycles.
Direct replacement for Zimmer or NBK brand MK series pneumatic normally open braking element.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
