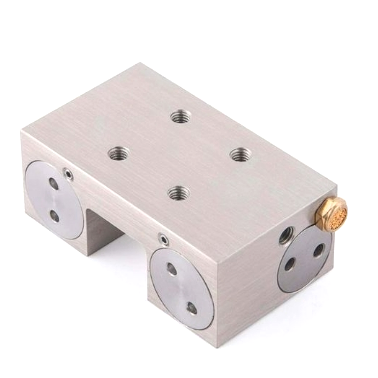

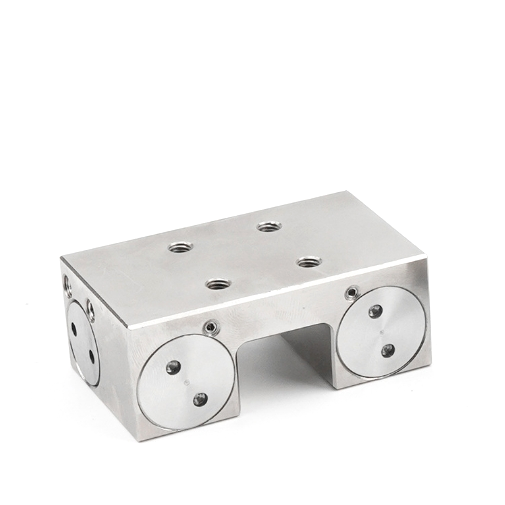

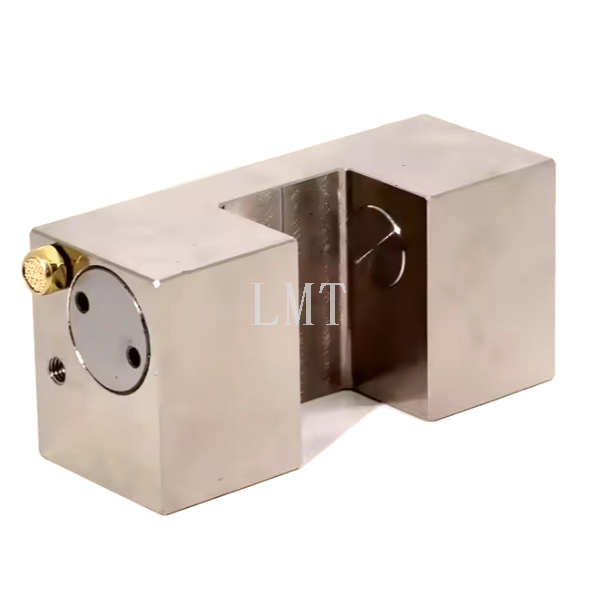

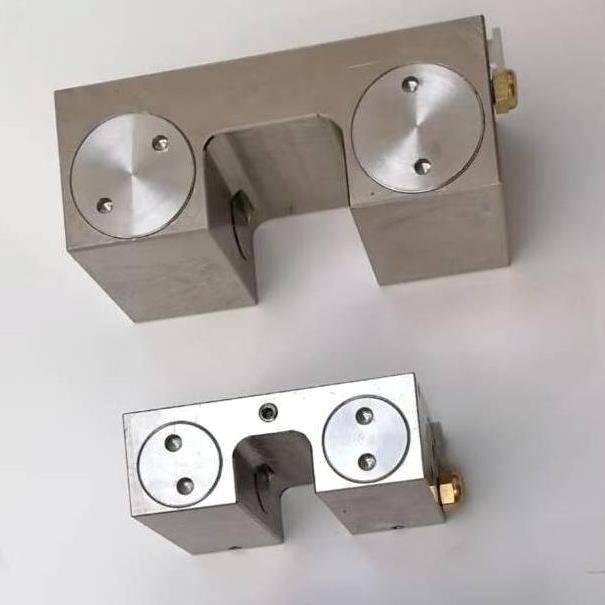

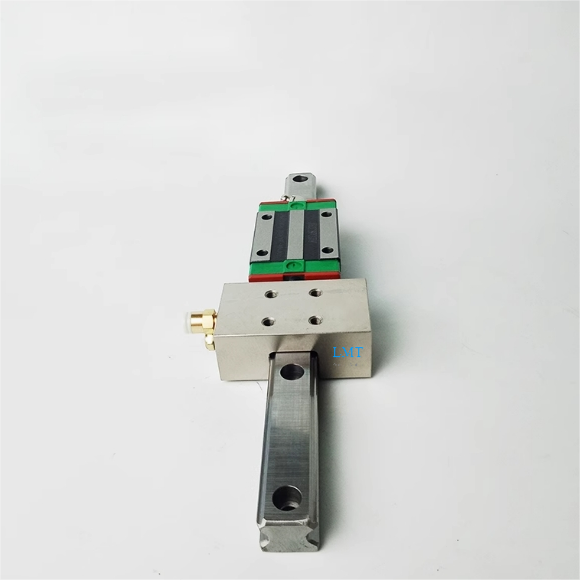

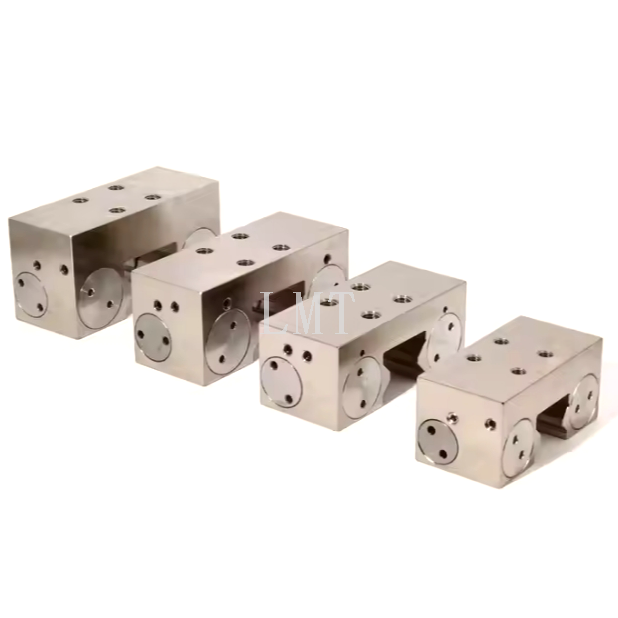

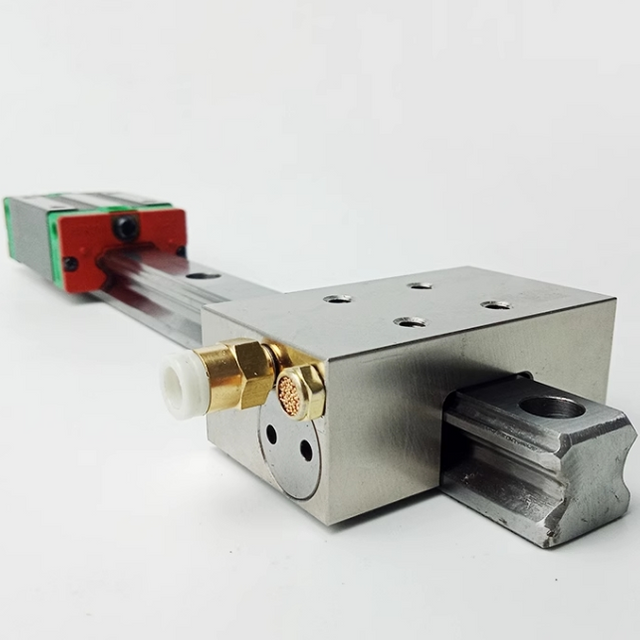

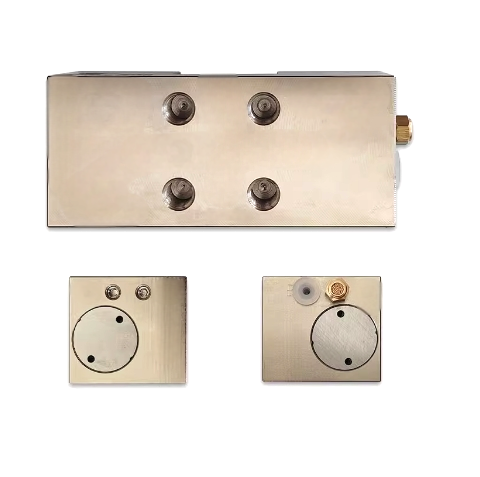

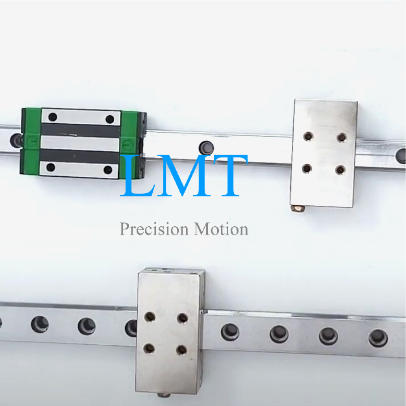

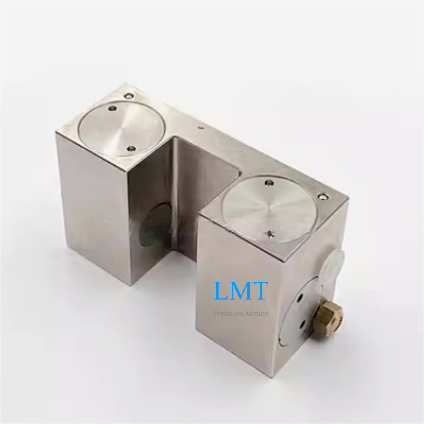

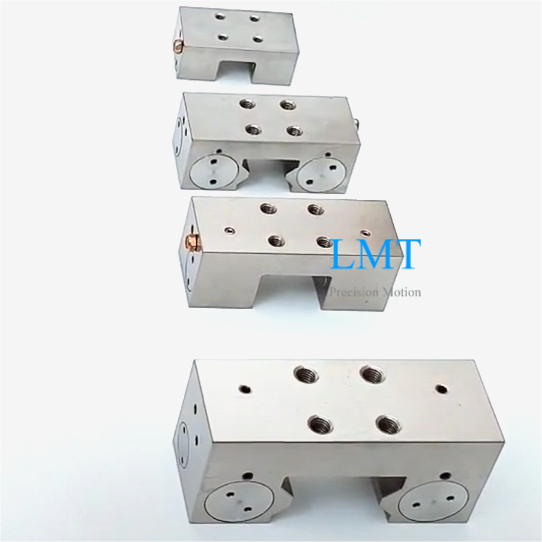

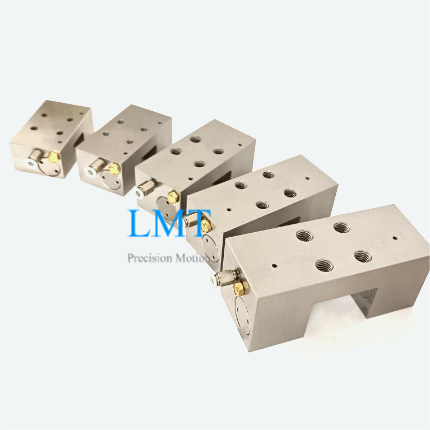

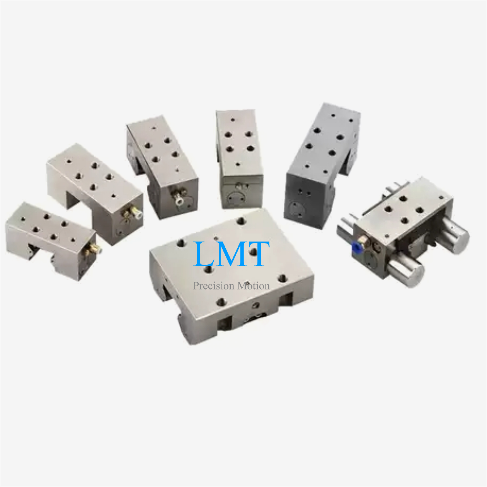

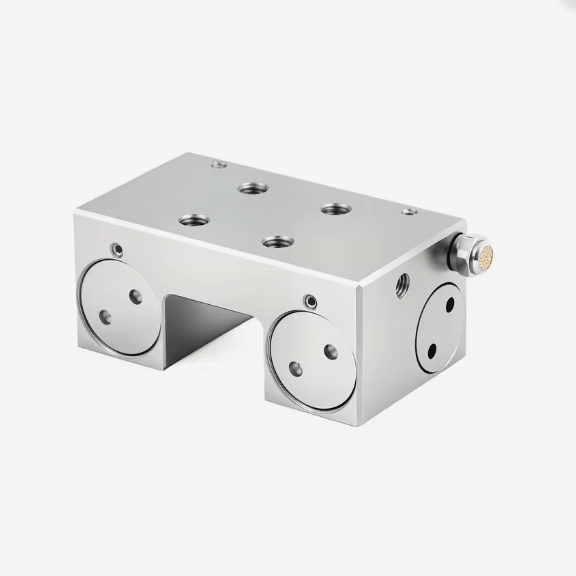

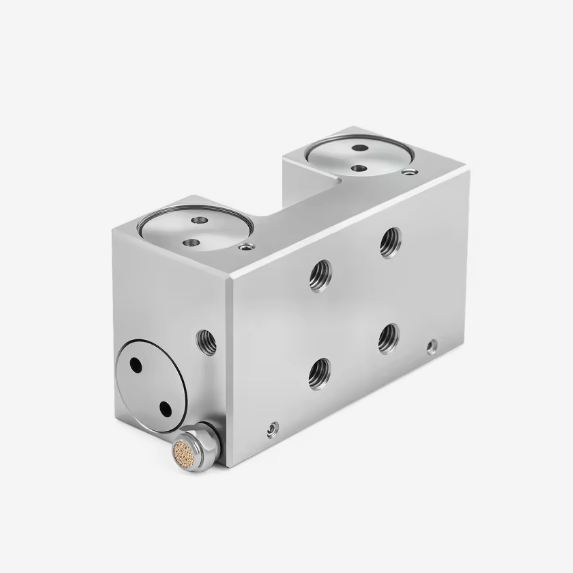

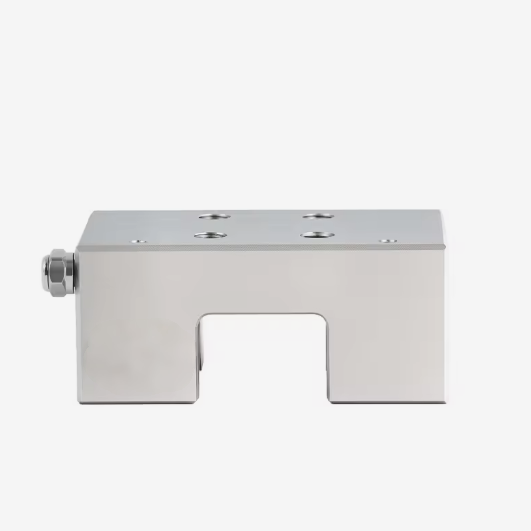

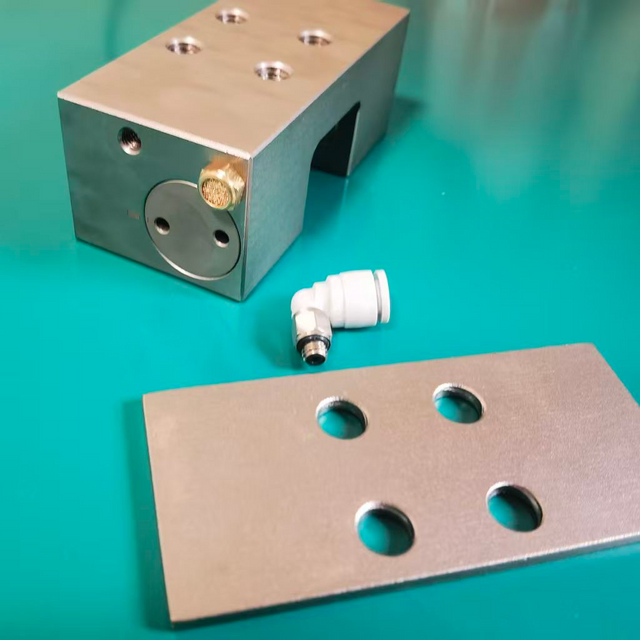

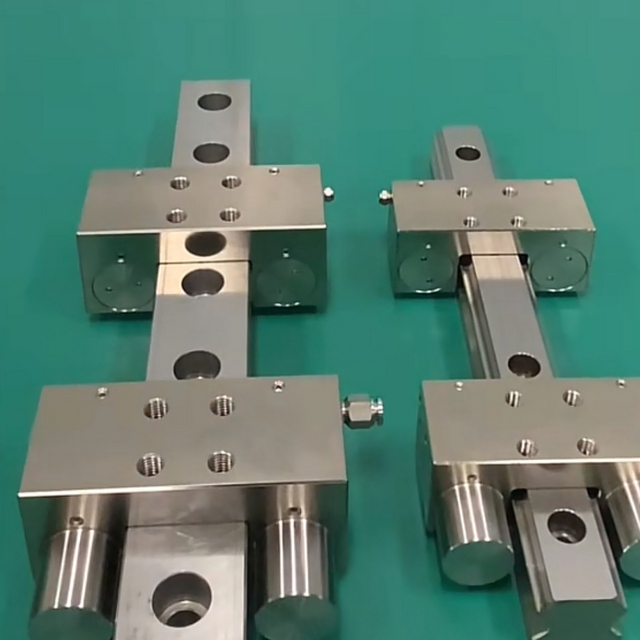

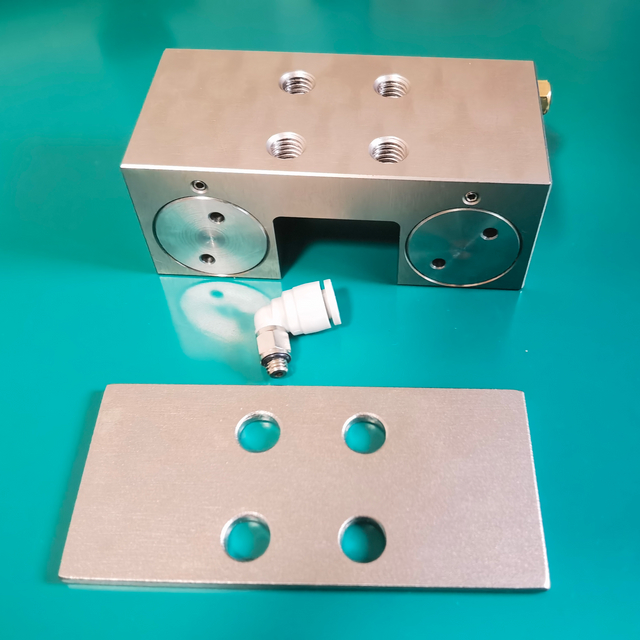

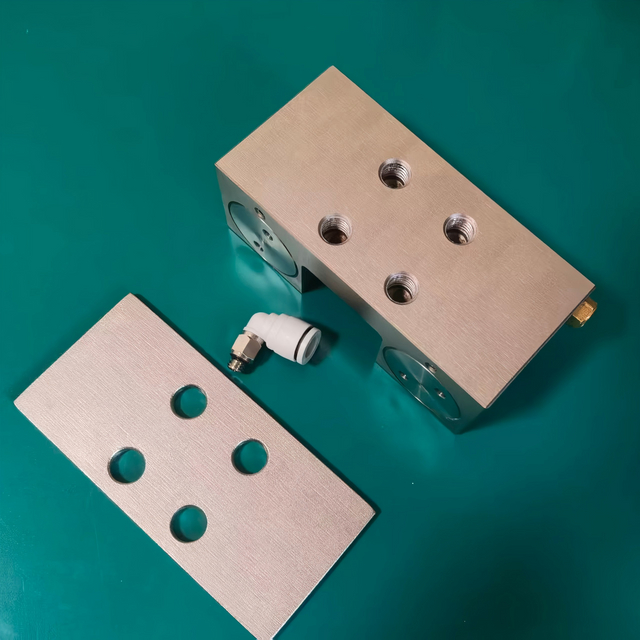

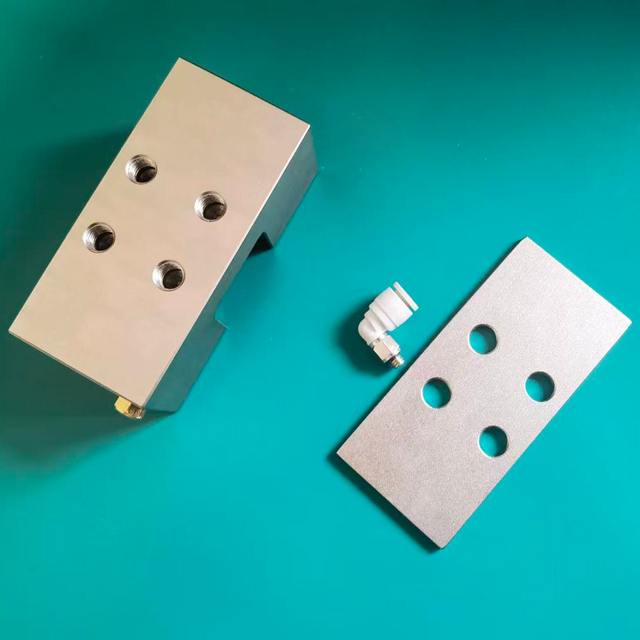

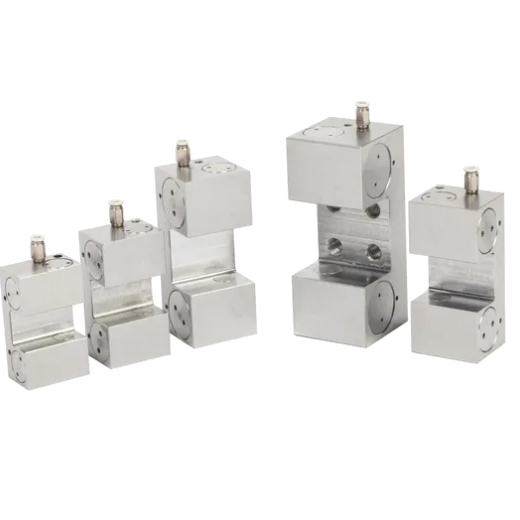

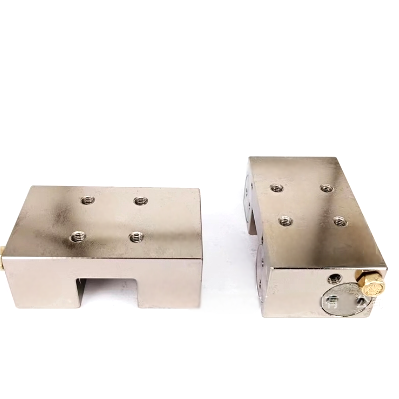

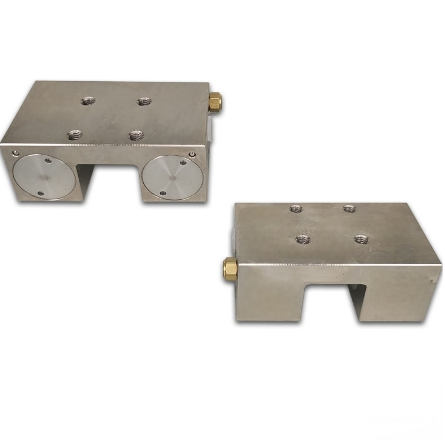

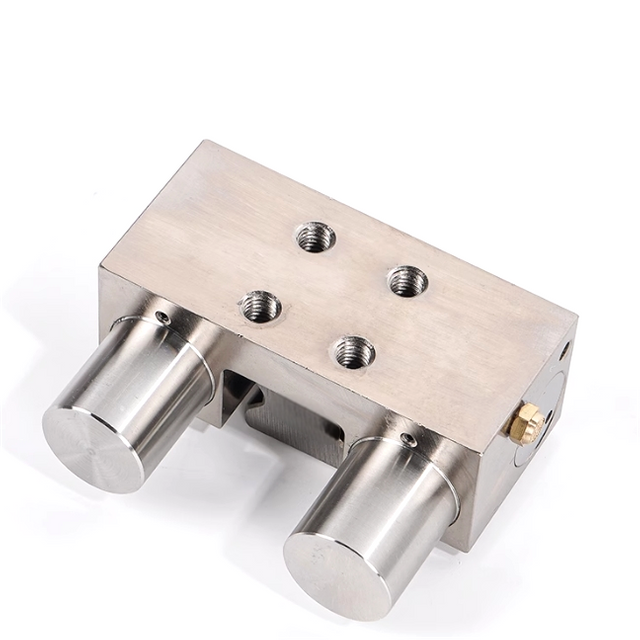

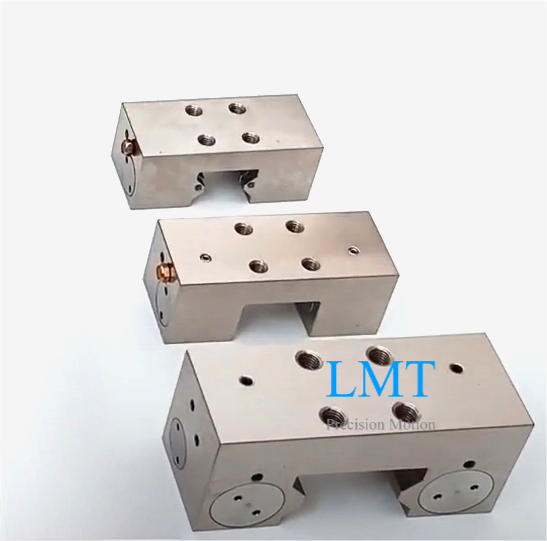

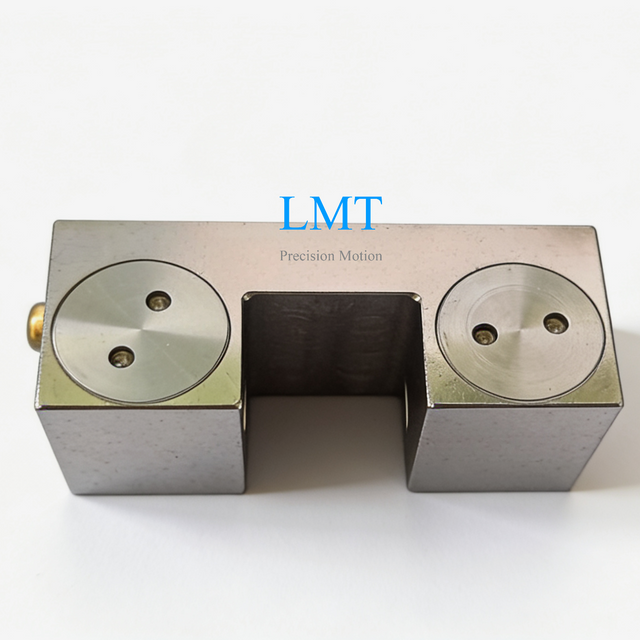

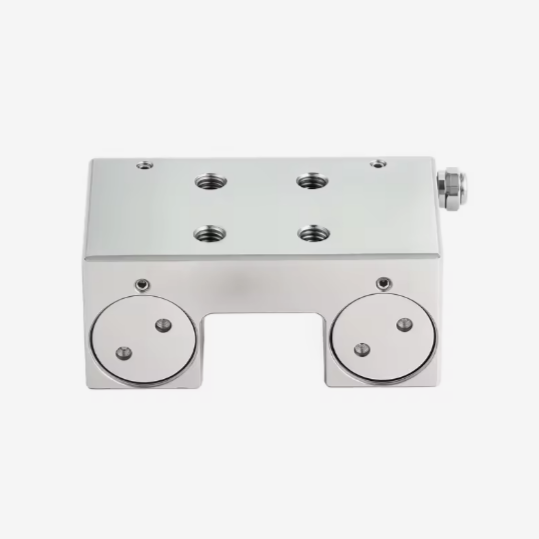

LMK-B Series Pneumatic Linear Guide Clamping Element

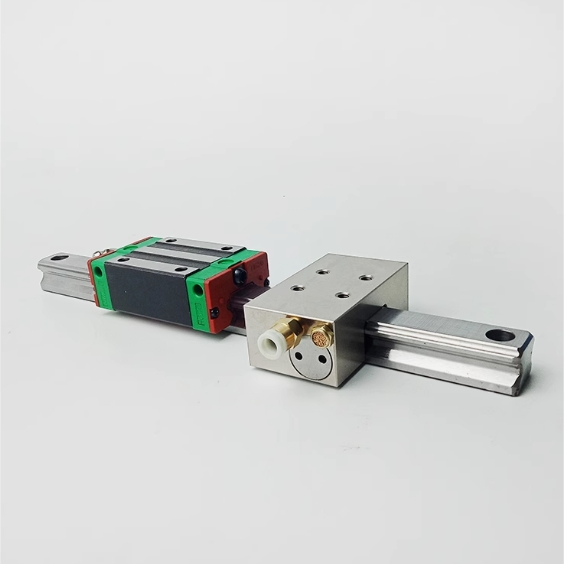

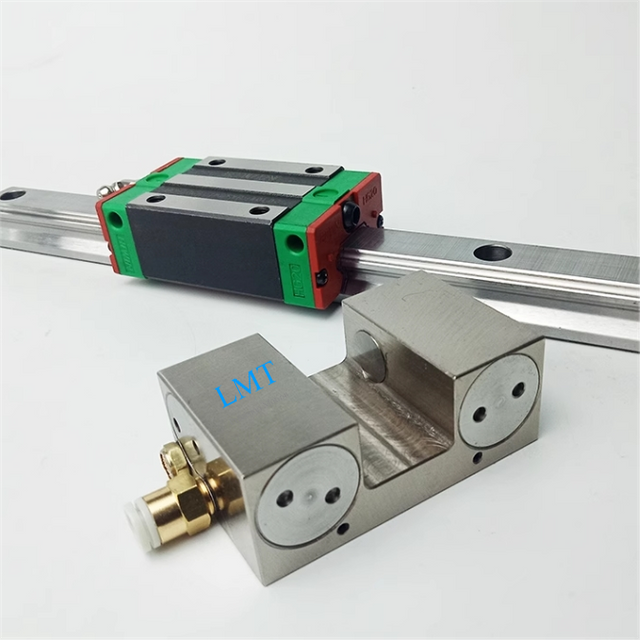

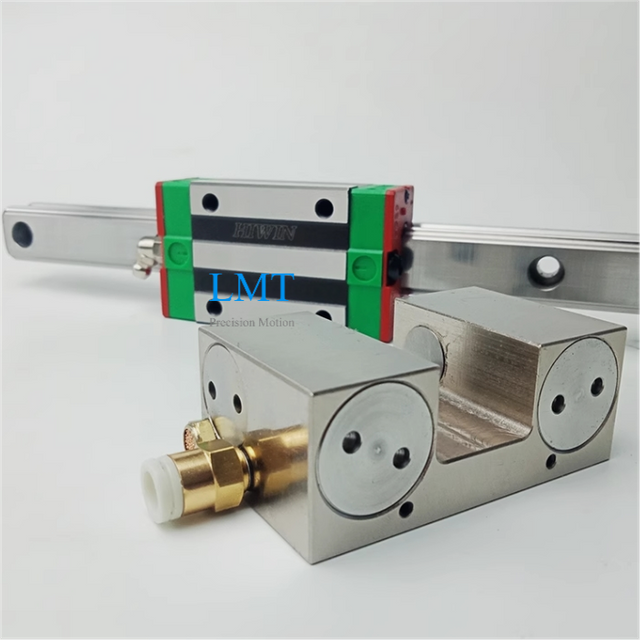

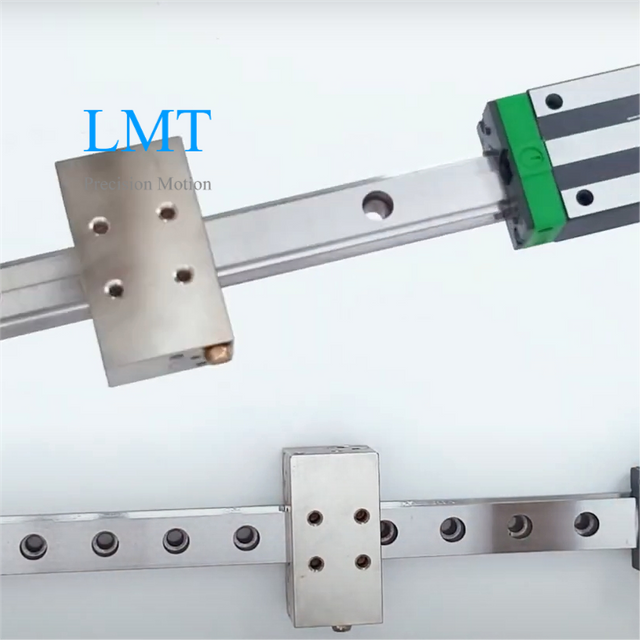

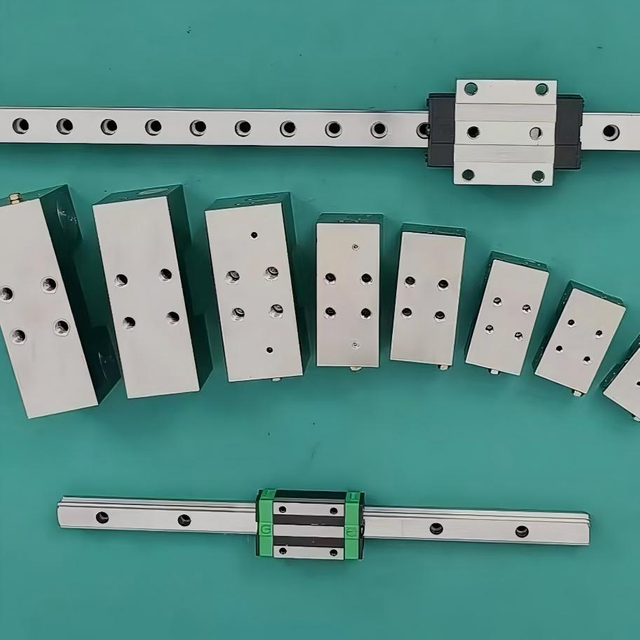

This is a pneumatic normally open type linear guide clamping element.The LMK-B series guide clamp brake is used with ball linear guides with sizes of 15mm~65mm and can be used with most linear guide brands on the market,such as HIWIN,THK,PMI,NSK,and WON linear guides.


The rail clamp delivers strong holding force to securely fix your work slide table during critical operations.Achieve precise positioning every time,eliminate unwanted vibration,and significantly increase rigidity on linear guides – ensuring stable,accurate machining or assembly.


Pneumatic Normally Open Guide Clamping Features

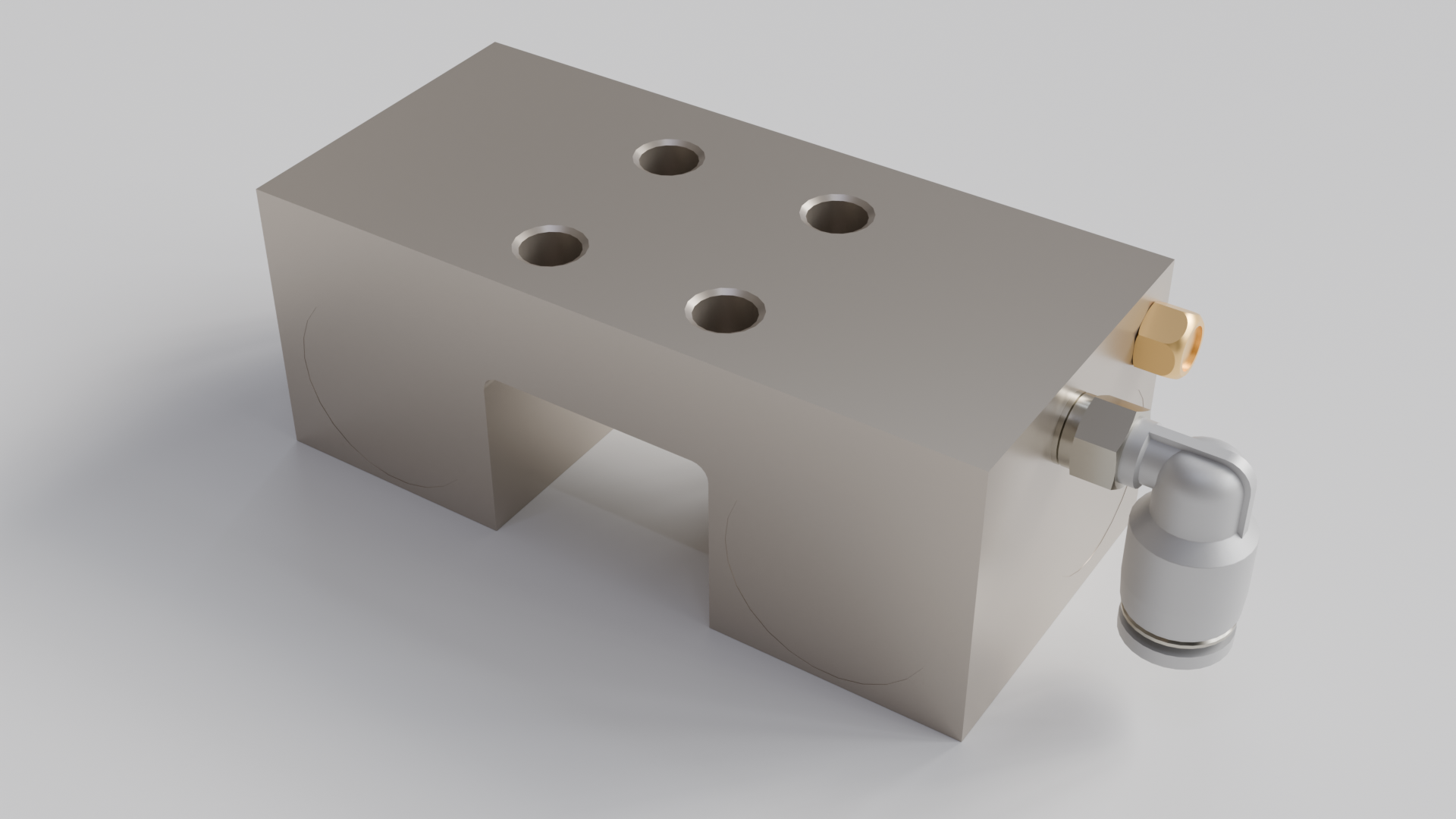

FK30B seriesPneumatic normally open clamps that are in a loosened state when air or oil is not supplied.

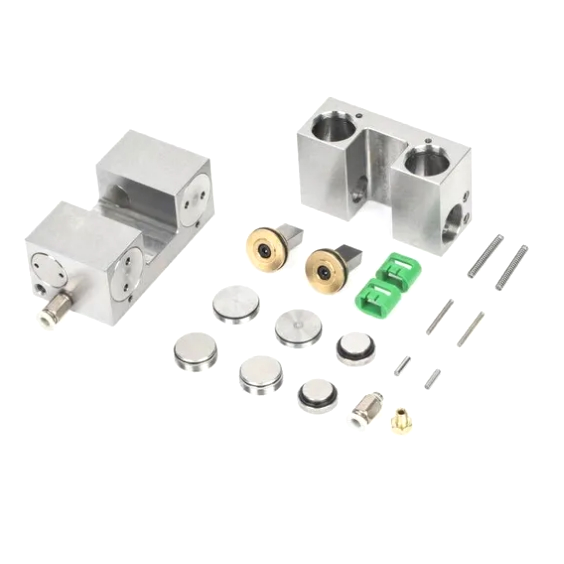

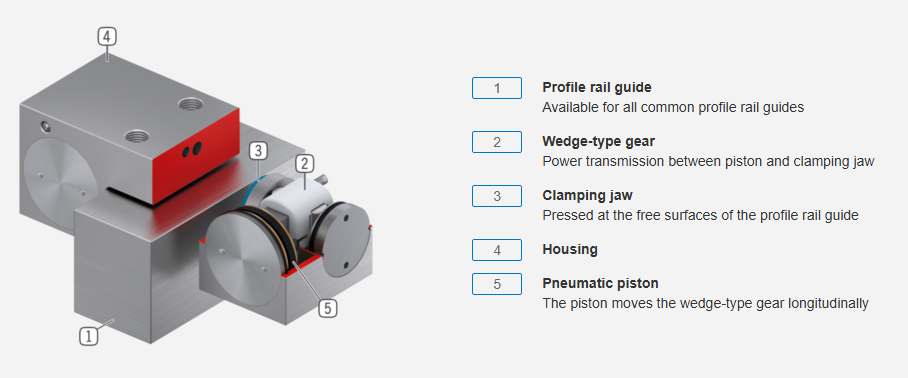

Through the wedge block expanding force principle, using air pressure to realize clamping.

Compact structure with strong holding force. Novel design to avoid rigid impact when clamping.

Easy to install, directly connected with the worktable, no need to change the size of the worktable.

Precision positioning for pneumatic clamping of mo tion axes.




Linear Guide Rail Clamp Working Parameters

Working pressure

 0.2~0.6MPa

Response time

≤0.06 s

Use temperature

0℃~70℃

Clamping Service life

5 million times


Clamping Element Rated Holding Force and Air Consumption

 Model                                              Rated holding force(N)                                         Air consumption (ℓ/cycle(ANR))

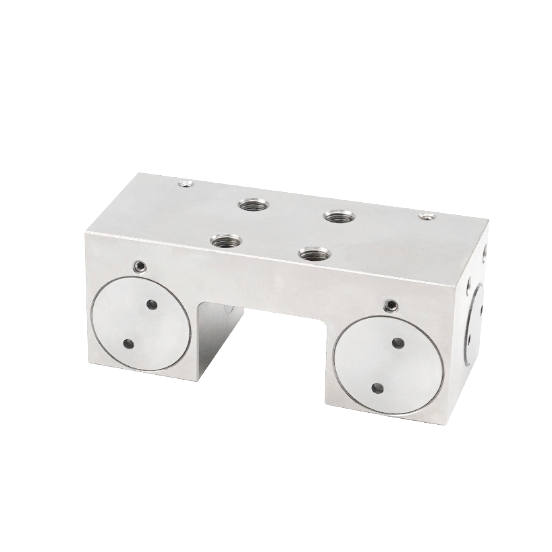

LMK15B                                                                 650N                                                                                               0.011


LMK20B                                                                1000N                                                                                             0.019


LMK25B                                                                1200N                                                                                             0.021


LMK30B                                                                 1750N                                                                                             0.03


LMK35B                                                                 2000N                                                                                            0.03

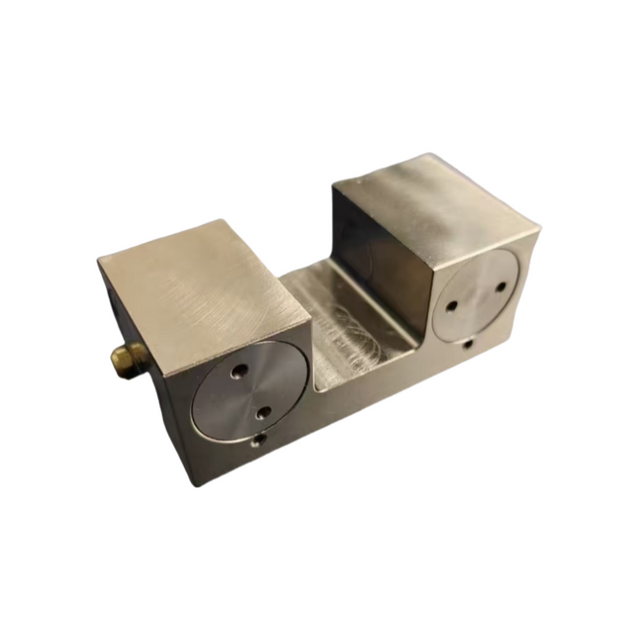

LMK45B                                                                 2250N                                                                                             0.04


LMK55B                                                                 3000N                                                                                              0.04


LMK65B                                                                 3000N                                                                                               0.07



Note: The data in the table are values at 0.6MPa air pressure. The holding force is proportional to the air pressure within the working pressure range.


Pneumatic Normally Open Linear Rail Clamp Core Advantages

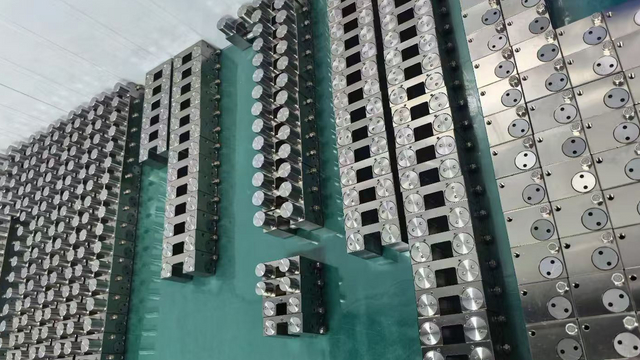

  • Lead Time:Large stock inventory.

  • Cost-effective: 35%~50% cost savings.

  • High Durability:Up to 5 million static clamping cycles.

  • Broad Range of Products:For all common profile rail guides.

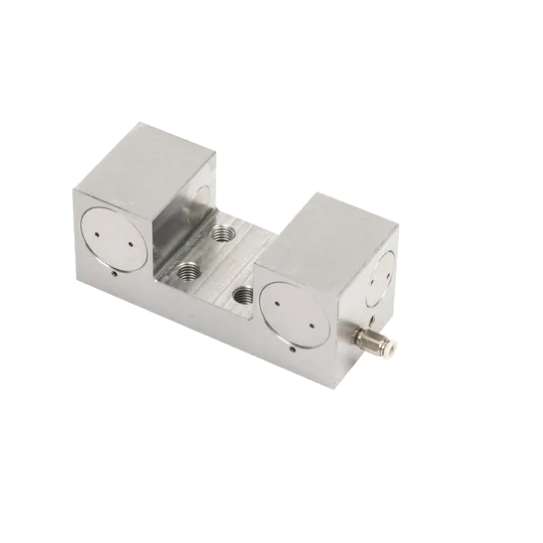

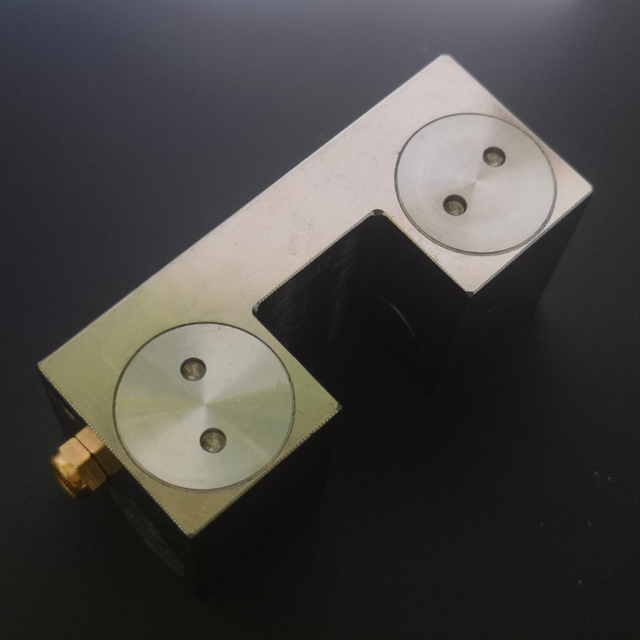

  • Completely replace the Zimmer brand MK series linear guide clamp.

  • Customizable Design:Tailored to meet specific application requirements.

  • Corrosion Resistance:The surface of the clamp brake main body is nickel-plated and has good rust resistance.


Pneumatic NO Clamp Dimensions Download

Model number3D drawing2D drawing

LMK15B

LMK15B Pneumatic Normally Open Linear Guide Clamp.STEP








Download Pneumatic Normally Open Linear Guide Clamp Size Chart.png

LMK20B

LMK20B Pneumatic Normally Open Linear Guide Clamp.STEP

LMK25B

LMK25B Pneumatic Normally Open Linear Guide Clamp.STEP

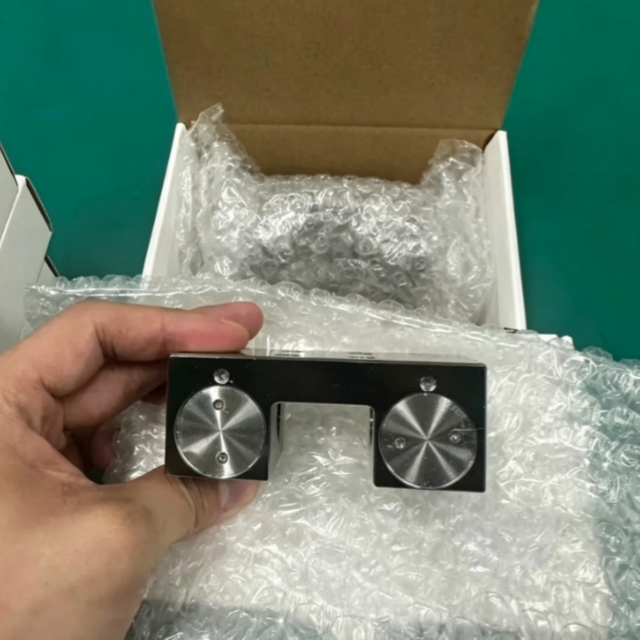

LMK30B

LMK30B Pneumatic Normally Open Linear Guide Clamp.STEP

LMK35B

LMK35B Pneumatic Normally Open Linear Guide Clamp.STEP

LMK45B

LMK45B Pneumatic Normally Open Linear Guide Clamp.STEP
LMK55B LMK55B Pneumatic Normally Open Linear Guide Clamp.STEP
LMK65B LMK65B Pneumatic Normally Open Linear Guide Clamp.STEP
