CPDS25S

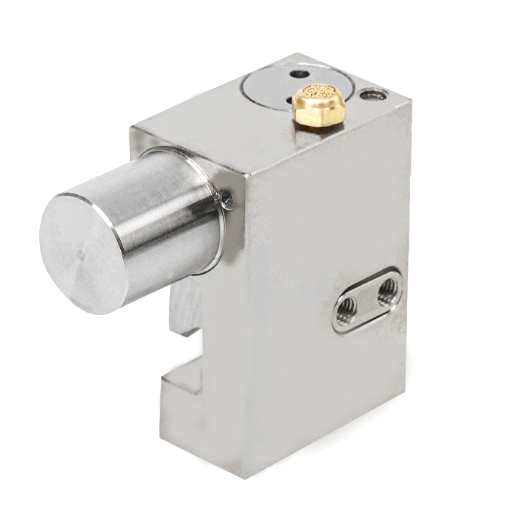

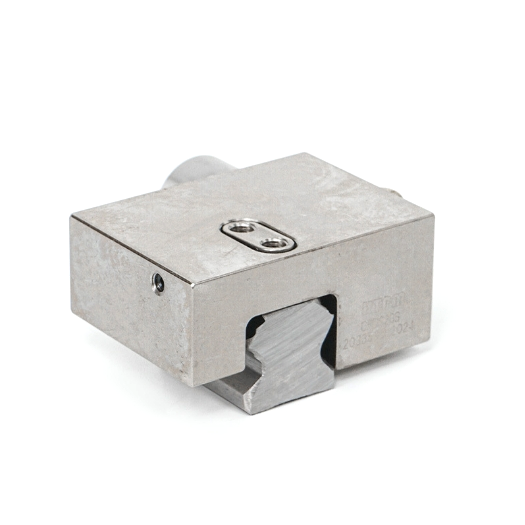

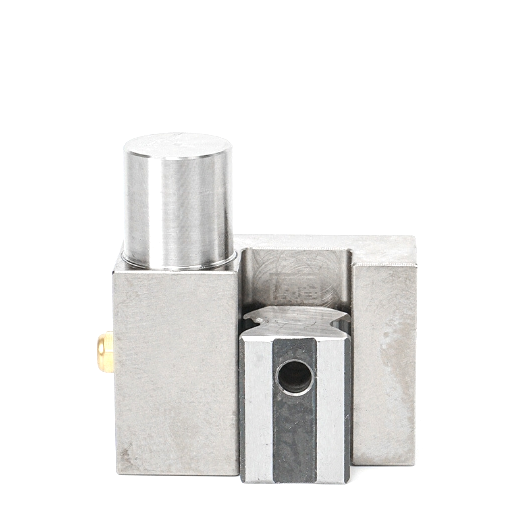

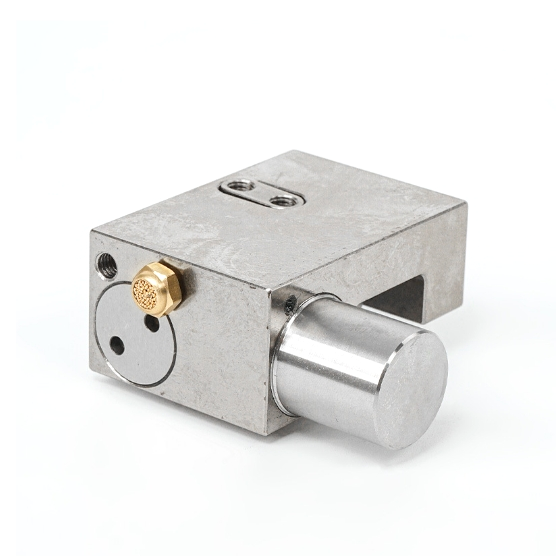

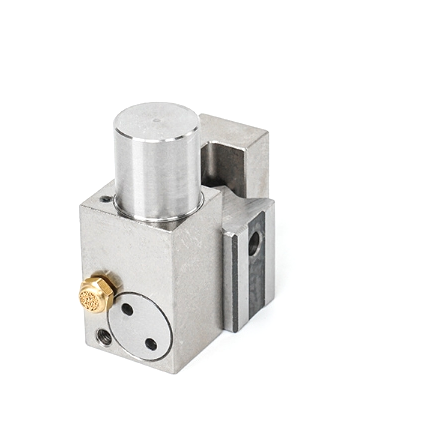

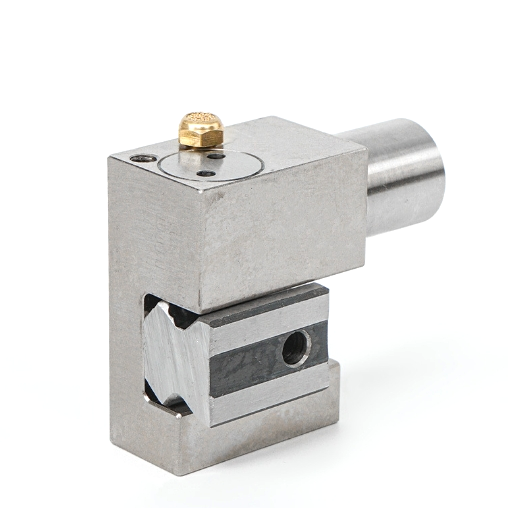

25mm Linear Guide Single Cylinder Pneumatic Clamp
This single cylinder clamp is suitable for 25mm linear rail,it utilizes air pressure to release the clamp,and is divided into standard series and low-pressure series according to different opening pressures.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 650N/1050N(standard series) 500N/750N (Low pressure series) |
| Open air pressure | 0.55~0.8Mpa(standard series) 0.4~0.8Mpa(Low pressure series) |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Single Cylinder Pneumatic Braking Dimension
Contact our sales to get a quote!
