LMK25B

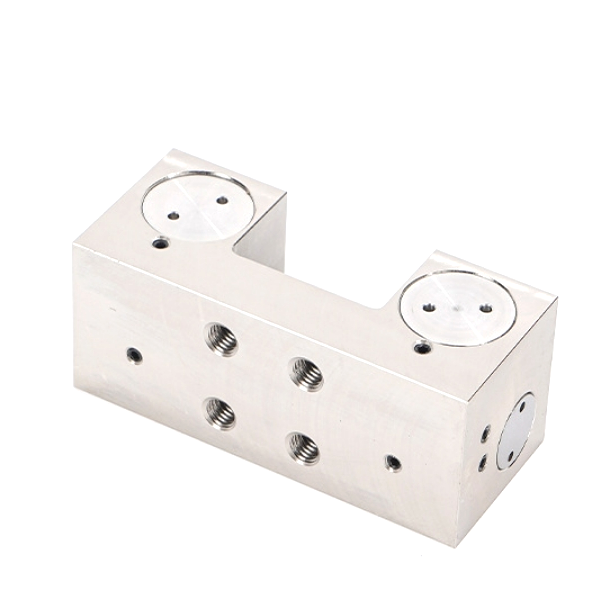

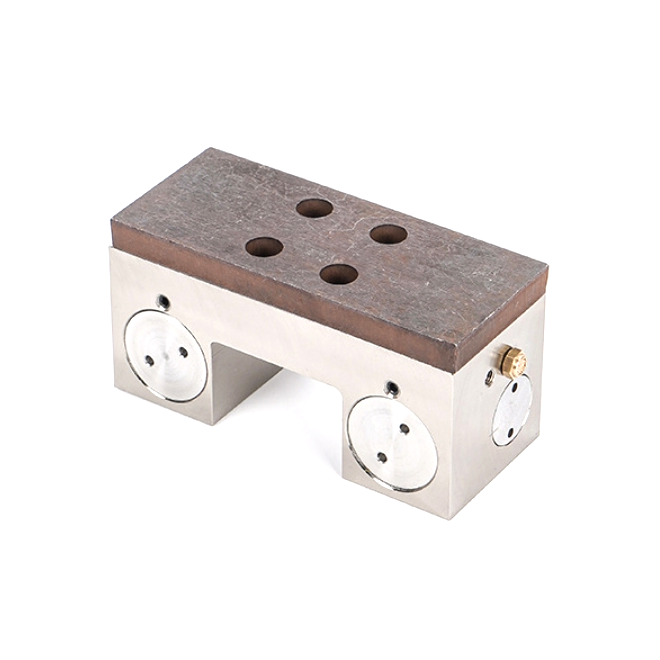

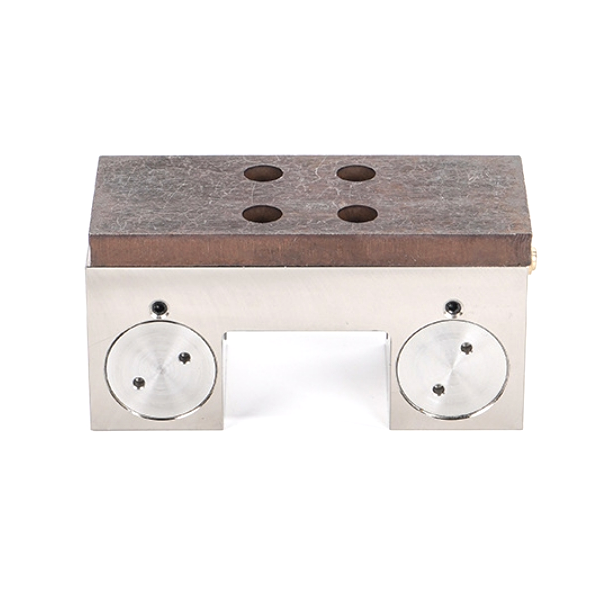

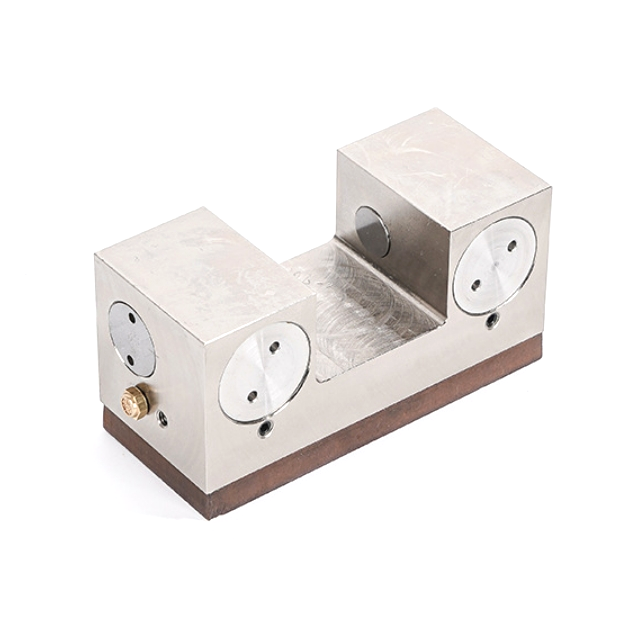

25mm Linear Rail Pneumatic Normally Open Clamping Element
The clamp is suitable for 25mm ball linear guides. This clamp element is compact and easy to integrate into your linear motion system.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 1200N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |

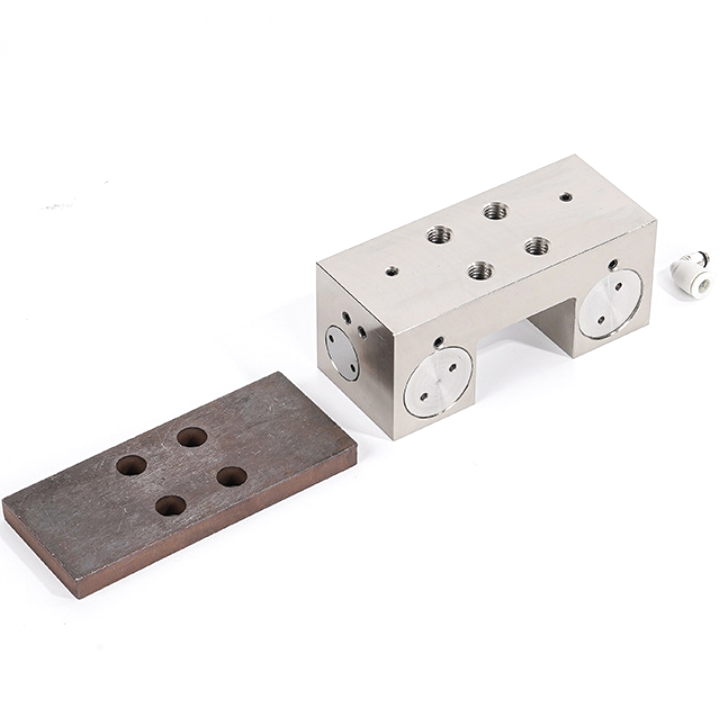

Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |

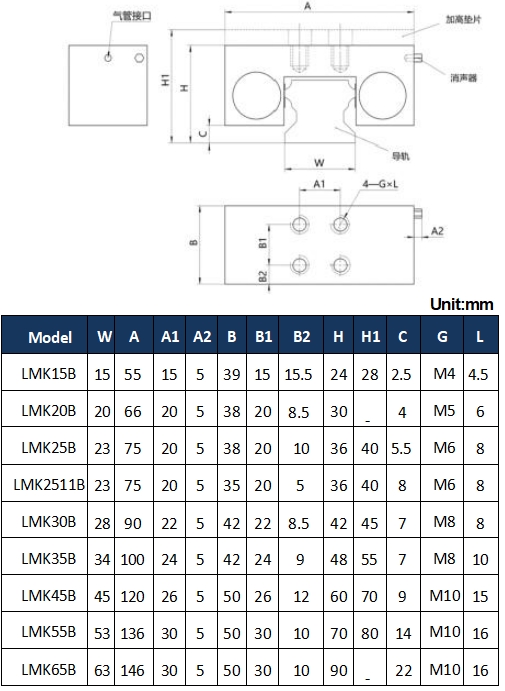

Pneumatic Clamp Dimension for 20mm linear rail
Contact our sales to get a quote!
