LMK45B

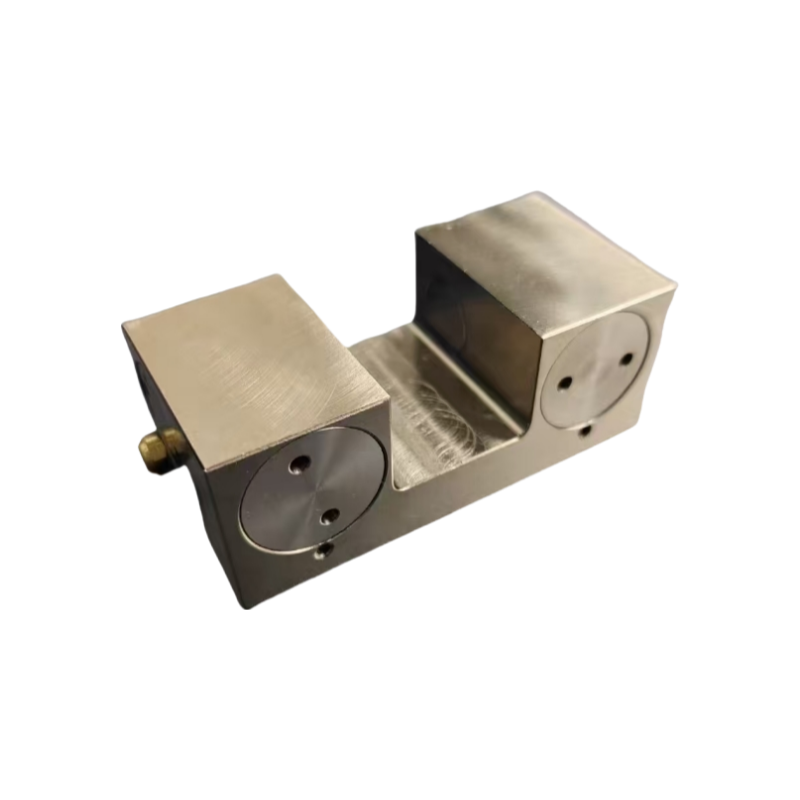

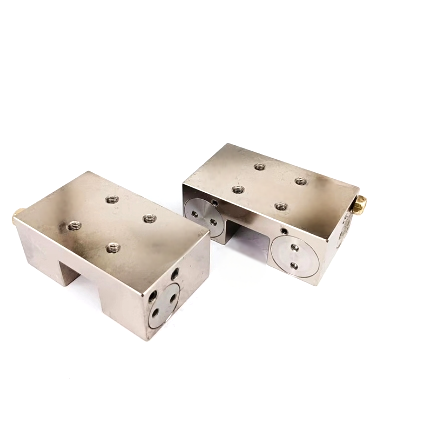

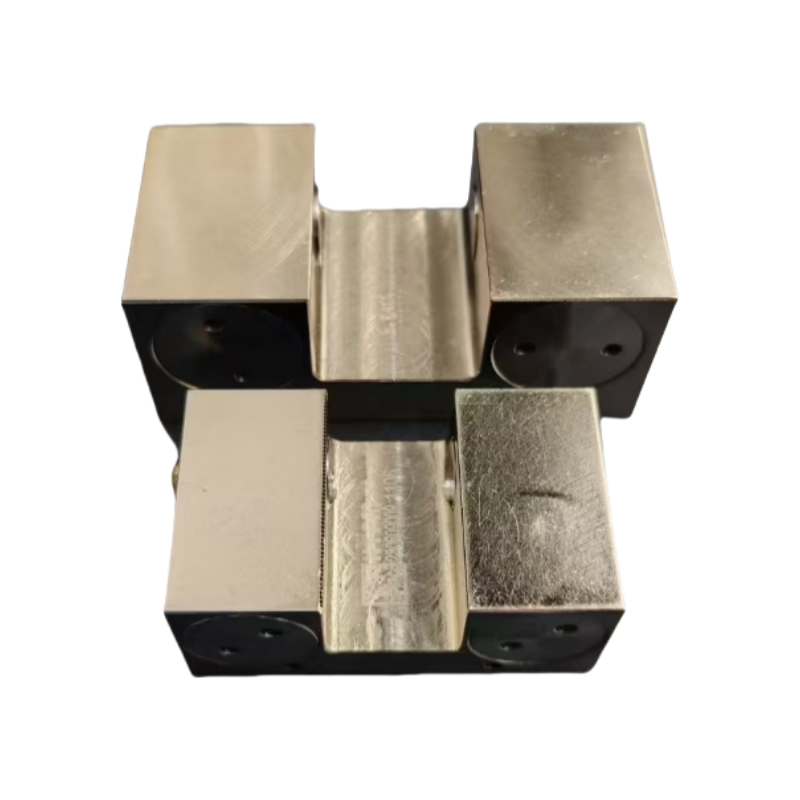

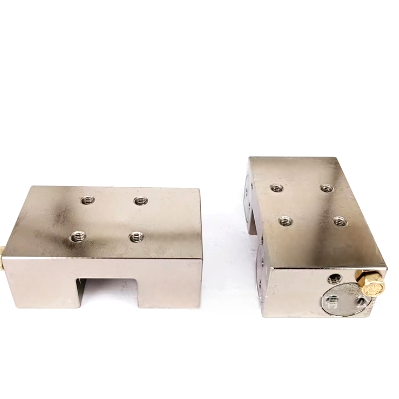

45mm Linear Rail Pneumatic Clamping Braking
The clamping element realizes clamping by air pressure through the wedge block force expansion principle.This clamp is suitable for 45mm ball linear guides. It prevents vibration and improves the rigidity of the system.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 45mm |
| Rated holding force(N) | 2250N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Pneumatic Normally Open Braking dimension
Contact our sales to get a quote!
